The full-power experience.
All-Mountain eMTB
Shares our award-winning suspension design and adjustability and built around 150-160mm suspension, making it the ultimate All-Mountain/Trail eMTB.
One Motor, Every Build
The highest-end Avinox M2S drive unit comes standard on every Wire Peak — Sport through Pro. Whatever your budget, enjoy best-in-class performance.
More Bike, Less Barrier
Wire Peak’s all-new aluminum frame lets us put flagship performance into a bike that starts under $5,000 — so more riders get to ride it, not fewer.
Everyday trails. All-mountain ambition.
Wire Peak is built to widen the door — more capability, more adjustability, and more bike for the money, without cutting the parts that matter.
Built to Your Standards
Wire Peak’s all-new aluminum chassis, engineered tube by tube around the same suspension philosophy that has helped Ari win multiple ‘Bike of the Year’ awards and championships.
Command the Trail, Not the Other Way Around

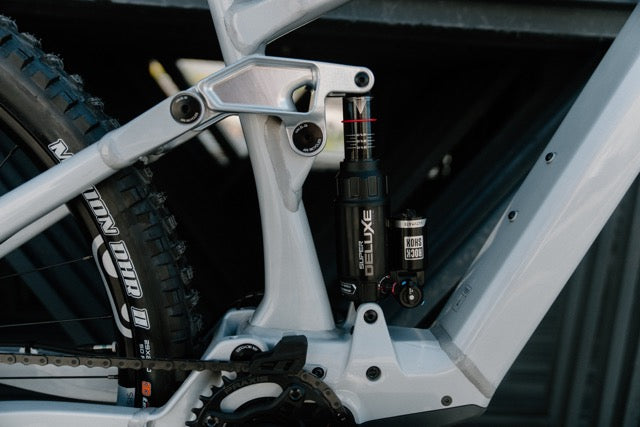

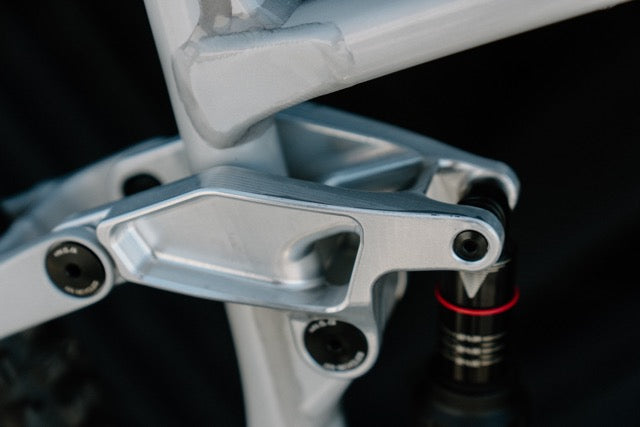

The Tetra-Link suspension platform gives you 150mm of rear travel and a confident, active feel—even under braking. Whether you’re charging into rough sections or feathering the brakes through tech, your suspension stays planted and smooth.

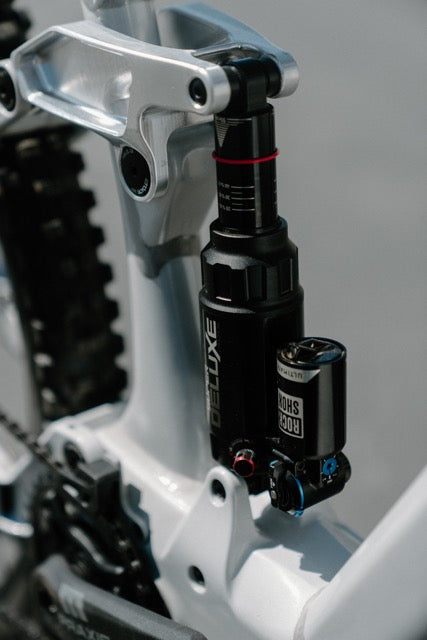

The new vertical shock layout isn’t just sleek—it lowers standover height and allows long dropper posts, so you’re never fighting your bike when the trail gets steep.
Make every ride your best ride.
Geometry That Works As Hard As You
Every trail is different, and Wire Peak doesn't make you choose. Independently adjustable High/Low and Long/Short settings let you fine-tune the bike's character without giving anything else up — run any component in any configuration, full stop.
Run it as a full 29er or an MX (mullet) setup, and dial in the ride you want:
- Low / Long — stable, plow-friendly, confident at speed
- High / Short — poppy, playful, quick to change direction
Power / Motor System
Power That Punches Above its Weight Class
Every Wire Peak build runs the same drive system, top to bottom — because the best motor shouldn't be reserved for the most expensive build.

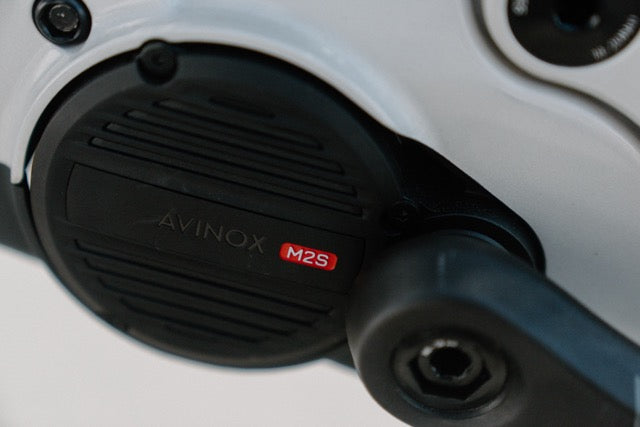

Avinox M2S Drive Unit
- 150Nm of peak torque, 1,300W peak power

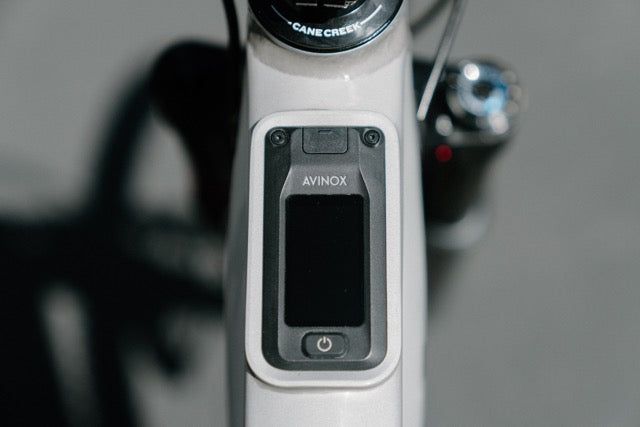

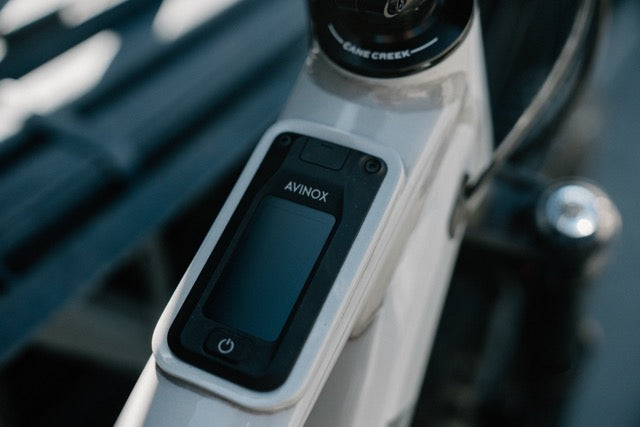

- Wireless remote, fully integrated display
- Traction control tuned for technical climbing and loose terrain
- Quiet, refined power delivery — not buzzy, not abrupt
Choose between Class 1 or Class 3
The Wire Peak lets you switch seamlessly between Class 1 (pedal-assist up to 20 mph) and Class 3 (up to 28 mph). Crank it up to Class 3 via the companion app or display to fly down the road to the trailhead, then drop back to Class 1 to stay fully compliant on local trails.
*Changing your e-bike from Class 1 to Class 3 may affect where it can legally be ridden. Riders are responsible for understanding and following all applicable local laws and regulations.
Spec'd for the real world.
Bigger brakes, bigger rotors — because e-bike speeds need e-bike stopping power
e-MTB-specific components throughout — rated for the added weight and torque of motor assist, not repurposed from an acoustic bike's parts bin
Burlier suspension tune — matched to the higher average speeds an e-bike carries into rough terrain
Heavier-duty tires — for the traction and puncture resistance big days actually demand
Ready for the Rough
Like every Ari bike, Wire Peak comes with our Lifetime Warranty + Transferable 1-Year Warranty to the second owner. Each Ari goes through the Ari Custom Setup and starts by evaluating the rider’s body measurements and riding position to ensure the bike is perfect for you.
Battery, Your Way
800Wh battery for maximum range. Compatible with 600Wh battery for those that want to go lighter.
Easy removal of battery for those who want to hot swap for extra long days.
Low standover, longer dropper.
The vertical shock layout lowers standover height and opens room for a longer dropper post on every size — so standover doesn't mean giving up post length, and vice versa.

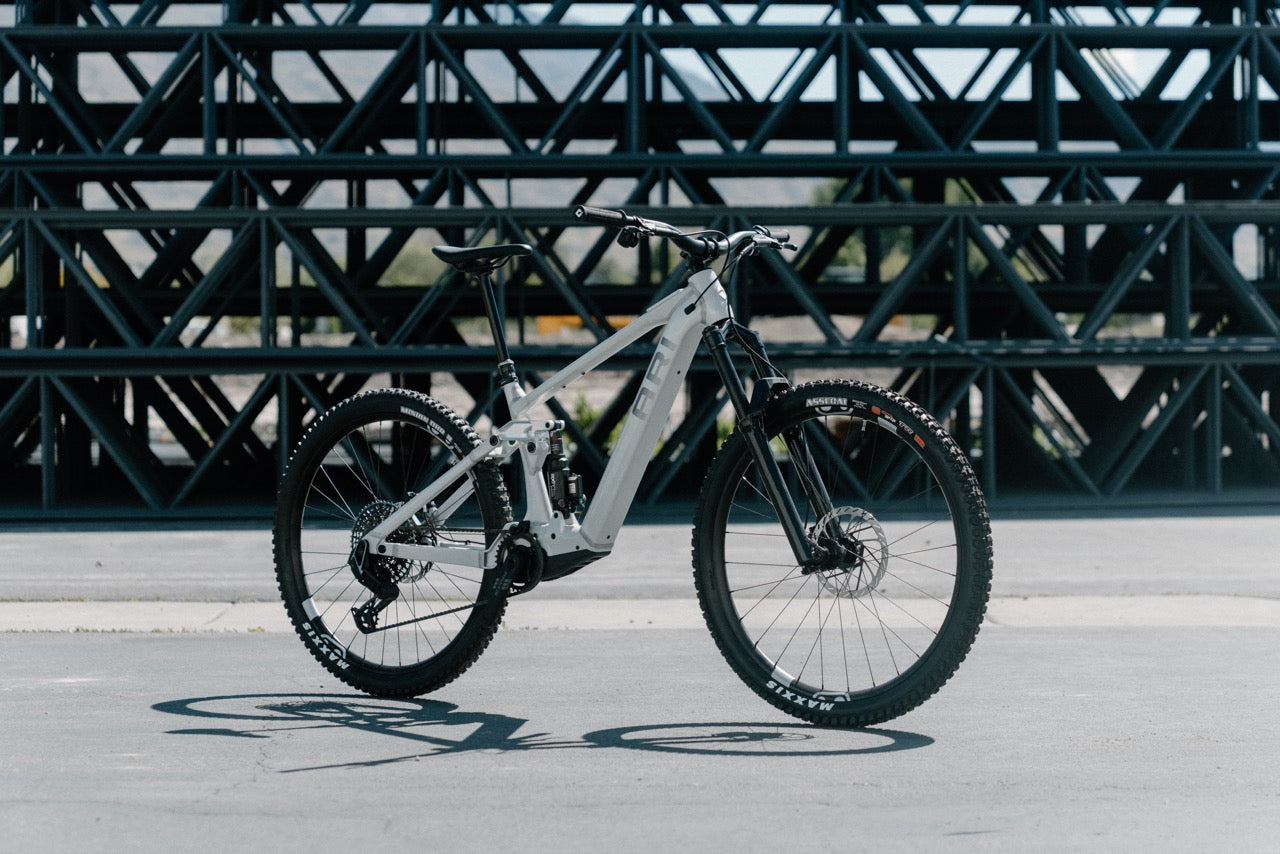

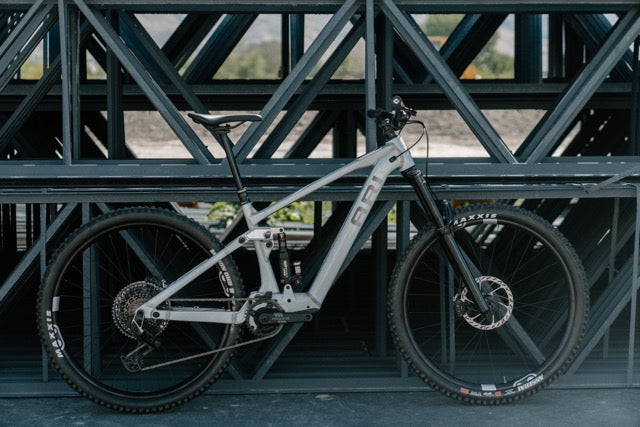

Wire Peak 3.0
3D Model
Click and Drag to see Wire Peak's All-New Aluminum Frame
Geometry
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Top Tube | 573.1 | 582.1 | 609.4 | 635.3 |
| Seat Tube | 390.0 | 400.0 | 420.0 | 450.0 |
| Chainstay | 441.7 | 441.7 | 441.7 | 441.7 |
| Head Angle (degrees) | 64.0 | 64.0 | 64.0 | 64.0 |
| Effective Seat Angle (degrees) | 78.0 | 78.0 | 78.0 | 78.0 |
| Seat Height for Effective Seat Angle | 600.0 | 660.0 | 720.0 | 780.0 |
| Actual Seat Angle (degrees) | 70.9 | 71.9 | 72.7 | 73.3 |
| Head Tube Length | 110.0 | 110.0 | 120.0 | 140.0 |
| Bottom Bracket Height | 341.0 | 341.0 | 341.0 | 341.0 |
| Bottom Bracket Drop | 30.0 | 30.0 | 30.0 | 30.0 |
| Wheelbase | 1216.1 | 1233.3 | 1267.7 | 1301.5 |
| Fork Offset | 44.0 | 44.0 | 44.0 | 44.0 |
| Standover Height | 752.0 | 751.0 | 748.0 | 748.0 |
| Stack | 629.9 | 629.9 | 638.9 | 656.9 |
| Reach | 435.0 | 450.0 | 480.0 | 505.0 |
| Axle to Crown | 576.0 | 576.0 | 576.0 | 576.0 |
The best experience for every rider.
Discover the benefits of our direct-to-consumer model, including exclusive discounts, direct communication with our experts, and a hassle-free purchasing process.
Learn More +
Direct to you, the rider
The best bang for your buck. Save up to 40% when buying directly from us, the manufacture.
A warranty that lasts a lifetime
Riding a bike should be an enjoyable and worry-free experience. That's why we offer the best lifetime warranty in the industry.
Custom fit to your body
Give us a few quick measurements and then we custom fit the bike to you. It makes all the difference!
Build Specs
Each Ari bike is built with the best components in a given category so you get the most bang for the buck. Each model has different build specs to choose from usually ranging in good, better, best order.
Comparison TableBuild Level
Specifications
| Wire Peak 3.0 Sport | Wire Peak 3.0 Comp | Wire Peak 3.0 Elite | Wire Peak 3.0 Pro | Wire Peak 3.0 Frameset |
|---|---|---|---|---|
|
Price $4,999 |
Price $5,999 |
Price $6,999 |
Price $7,999 |
Price $4,199 |
|
frame Ari Wire Peak 3.0 Alloy, 150mm Rear Travel, 29/29 or 29/27.5 Mullet, High/Low and Short/Long Adjust. |
frame Ari Wire Peak 3.0 Alloy, 150mm Rear Travel, 29/29 or 29/27.5 Mullet, High/Low and Short/Long Adjust. |
frame Ari Wire Peak 3.0 Alloy, 150mm Rear Travel, 29/29 or 29/27.5 Mullet, High/Low and Short/Long Adjust. |
frame Ari Wire Peak 3.0 Alloy, 150mm Rear Travel, 29/29 or 29/27.5 Mullet, High/Low and Short/Long Adjust. |
frame Ari Wire Peak 3.0 Alloy, 150mm Rear Travel, 29/29 or 29/27.5 Mullet, High/Low and Short/Long Adjust. |
|
fork Suntour ZERON 36X-Boost, 160mm travel, EQ 2CR, 44mm, 1.5 inch tapered steer tube, 110mmx15mm boost thru axle, black |
fork Marzocchi Bomber Z1, 160mm travel, Rail, 44mm, 1.5 inch tapered steer tube, 110mmx15mm boost thru axle, black |
fork Rockshox Zeb Ultimate, 160mm travel, Charger 3.2, Linear XL, 44mm, 1.5 inch tapered steer tube, 110mmx15mm boost thru axle, black |
fork Rockshox Zeb Ultimate, 160mm travel, Charger 3.2, Linear XL, 44mm, 1.5 inch tapered steer tube, 110mmx15mm boost thru axle, black |
fork Available Separately |
|
rear shock Suntour Edge X, 2CR LV, 210x55, Custom Tuned |
rear shock Marzocchi Bomber Air, EVOL LV, 210x55, Custom Tuned |
rear shock Rockshox Super Deluxe Ultimate, RC2T, Linear XL, 210x55, Custom Tuned |
rear shock Rockshox Super Deluxe Ultimate, RC2T, Linear XL, 210x55, Custom Tuned |
rear shock Rockshox Super Deluxe Ultimate, RC2T, Linear XL, 210x55, Custom Tuned |
|
drivetrain Shimano CUES U6000, 10-Speed |
drivetrain Shimano Deore M6200, 11-Speed |
drivetrain SRAM Eagle 90, 12-Speed |

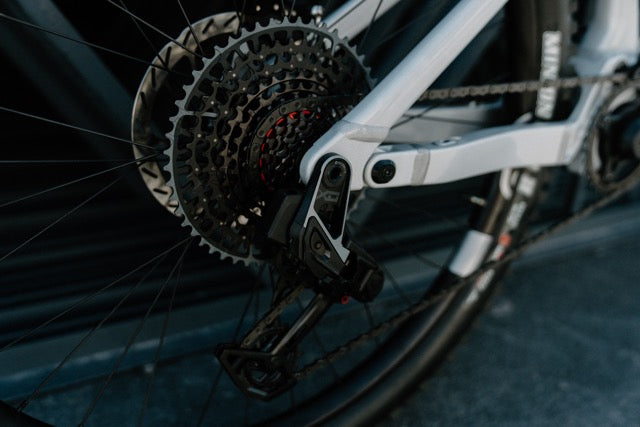

drivetrain SRAM GX Eagle Transmission, 12-Speed |
drivetrain N/A |
|
wheels WTB Sportterra i30, 29, TCS Tubeless Ready, 32h,(Size Small: 29/27.5), Carbon wheels upgrade available at checkout |
wheels Crankbrothers synthesis E-mtb 2.0 Alloy, 29, 32-hole, (Size Small: 29/27.5), Carbon wheels upgrade available at checkout |
wheels Crankbrothers synthesis E-mtb 2.0 Alloy, 29, 32-hole, (Size Small: 29/27.5), Carbon wheels upgrade available at checkout |
wheels DT Swiss HX 1700 Spline 29, (Size Small: 29/27.5), Carbon wheels upgrade available at checkout |
wheels N/A |
|
brakes TRP EVO Comp, HD-M7040, TRP 2.3mm 220/220 F/R rotors |
brakes TRP EVO Expert, HD-M8040, TRP 2.3mm 220/220 F/R rotors |
brakes TRP EVO Pro, HD-M9040, TRP 2.3mm 220/220 F/R rotors |
brakes SRAM Maven Silver, HS2 200/200mm |
brakes N/A |
|
sizes S,M,L,XL |
sizes S,M,L,XL |
sizes S,M,L,XL |
sizes S,M,L,XL |
sizes S,M,L,XL |
|
headset FSA Orbit NO.55R/57, internal sealed cartridge bearing, tapered |
headset FSA Orbit NO.55R/57, internal sealed cartridge bearing, tapered |
headset FSA Orbit NO.55R/57, internal sealed cartridge bearing, tapered |
headset FSA Orbit NO.55R/57, internal sealed cartridge bearing, tapered |
headset FSA Orbit NO.55R/57, internal sealed cartridge bearing, tapered |
|
shifters Shimano CUES U6000, 10-Speed |
shifters Shimano Deore M6230, 11-Speed |
shifters SRAM Eagle 90, 12-Speed |
shifters SRAM AXS Pod |
shifters N/A |
|
front derailleur N/A |
front derailleur N/A |
front derailleur N/A |
front derailleur N/A |
front derailleur N/A |
|
rear derailleur Shimano CUES U6000, 10-Speed |
rear derailleur Shimano Deore M7230, 11-Speed |
rear derailleur SRAM Eagle 90, 12-Speed |
rear derailleur SRAM GX Eagle Transmission, Wireless, 12-Speed |
rear derailleur N/A |
|
cassette Shimano LG400, 11-48t, 10-Speed |
cassette Shimano LG400, 11-50t, 11-Speed |
cassette SRAM CS-XS-1275 T-Type Eagle, 10-52t, 12-speed |
cassette SRAM CS-XS-1275 T-Type Eagle, 10-52t, 12-speed |
cassette N/A |
|
crank Praxis Type7 Alloy, 155mm |
crank Praxis Type7 Alloy, 155mm |
crank Praxis Type7 Alloy, 155mm |
crank Praxis Type7 Alloy, 155mm |
crank Praxis Type7 Alloy, 155mm |
|
chainrings Praxis 34T EMTB 104BCD |
chainrings Praxis 34T EMTB 104BCD |
chainrings Praxis 34T EMTB 104BCD |
chainrings Praxis 34T EMTB 104BCD |
chainrings Praxis 34T EMTB 104BCD |
|
drive unit Avinox M2S w/ Ari custom motor tune |
drive unit Avinox M2S w/ Ari custom motor tune |
drive unit Avinox M2S w/ Ari custom motor tune |
drive unit Avinox M2S w/ Ari custom motor tune |
drive unit Avinox M2S w/ Ari custom motor tune |
|
battery Avinox Battery 800WH |
battery Avinox Battery 800WH |
battery Avinox Battery 800WH |
battery Avinox Battery 800WH |
battery Avinox Battery 800WH |
|
chain Shimano LG500, 10-Speed |
chain Shimano LG500, 11-Speed |
chain SRAM GX Eagle Transmission, T-Type, 12-speed |
chain SRAM GX Eagle Transmission, T-Type, 12-speed |
chain N/A |
|
handlebars Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup |
handlebars Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup |
handlebars Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup |
handlebars Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup |
handlebars N/A |
|
stem Ari 35 CNC stem |
stem Ari 35 CNC stem |
stem Ari 35 CNC stem |
stem Ari 35 CNC stem |
stem N/A |
|
tape/grips ODI Elite Pro |
tape/grips ODI Elite Pro |
tape/grips ODI Elite Pro |
tape/grips ODI Elite Pro |
tape/grips N/A |
|
saddle WTB Solano Medium |
saddle WTB Solano Medium |
saddle WTB Solano Medium |
saddle WTB Solano Medium |
saddle N/A |
|
seatpost TransX YSI63FL1, w/ 30mm Travel Adj. Dropper- customized sizing through Ari Custom Setup. |
seatpost TransX YSI63FL1, w/ 30mm Travel Adj. Dropper- customized sizing through Ari Custom Setup. |
seatpost TransX YSI63FL1, w/ 30mm Travel Adj. Dropper- customized sizing through Ari Custom Setup. |
seatpost Oneup V3 Dropper, 31.6mm- customized sizing through Ari Custom Setup |
seatpost N/A |
|
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
|
rims WTB Sportterra i30, 29, TCS Tubeless Ready, 32h, (Size Small: 29/27.5) |
rims Crankbrothers synthesis E-mtb 2.0 Alloy Alloy Tuned Wheel System, 29, F: 28 Hole, R: 32 Hole, Tubeless ready, (Size Small: 29/27.5) |
rims Crankbrothers synthesis E-mtb 2.0 Alloy Alloy Tuned Wheel System, 29, F: 28 Hole, R: 32 Hole, Tubeless ready, (Size Small: 29/27.5) |
rims DT Swiss HX 1700, 29, Tubeless ready, (Size Small: 29/27.5) |
rims N/A |
|
hubs F: WTB Frequency Sealed Bearing Disc, 110x15mm thru axle, 32 hole, 6 bolt; R: WTB Frequency Sealed Bearing Disc, 148x12mm thru axle, 32 hole, 6 bolt, HG |
hubs F: Crankbrothers EMTB Ratchet 28H, Disc, 15x110 thru axle, R: Crankbrothers EMTB Ratchet 36T 32H, Disc, 12x148 thru axle, HG |
hubs F: Crankbrothers EMTB Ratchet 28H, Disc, 15x110 thru axle, R: Crankbrothers EMTB Ratchet 36T 32H, Disc, 12x148 thru axle, XD |
hubs F: DT Swiss 350 E-Specific, Disc, 15x110 thru axle, R: DT Swiss 350 DEG DF 0/10 degree, E-Specific, Disc, 12x148 thru axle, XD |
hubs N/A |
|
spokes Stainless, black, with brass nipple |
spokes Pillar PSB34 J-Bend |
spokes Pillar PSB34 J-Bend |
spokes DT Swiss Hybrid 1 Straightpull |
spokes N/A |
|
tires F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready, (Size Small R: Minion DHR II, 27.5x2.5WT, 3C, MaxxTerra, DH, TR Protection) |
tires F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready, (Size Small R: Minion DHR II, 27.5x2.5WT, 3C, MaxxTerra, DH, TR Protection) |
tires F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready, (Size Small R: Minion DHR II, 27.5x2.5WT, 3C, MaxxTerra, DH, TR Protection) |
tires F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready, (Size Small R: Minion DHR II, 27.5x2.5WT, 3C, MaxxTerra, DH, TR Protection) |
tires N/A |
|
tubes Maxxis 29x1.9/2.5, (Small: 29/27.5x2.5) Presta, Tubeless setup available after adding bike to cart |
tubes Maxxis 29x1.9/2.5, (Small: 29/27.5x2.5) Presta, Tubeless setup available after adding bike to cart |
tubes Maxxis 29x1.9/2.5, (Small: 29/27.5x2.5) Presta, Tubeless setup available after adding bike to cart |
tubes Maxxis 29x1.9/2.5, (Small: 29/27.5x2.5) Presta, Tubeless setup available after adding bike to cart |
tubes N/A |
|
extras Avinox DP100 Flat Display |
extras Avinox DP100 Flat Display |
extras Avinox DP100 Flat Display |
extras Avinox DP100 Flat Display |
extras Avinox DP100 Flat Display |
Specifications
build
Sport
Price
$4,999
frame
Ari Wire Peak 3.0 Alloy, 150mm Rear Travel, 29/29 or 29/27.5 Mullet, High/Low and Short/Long Adjust.
fork
Suntour ZERON 36X-Boost, 160mm travel, EQ 2CR, 44mm, 1.5 inch tapered steer tube, 110mmx15mm boost thru axle, black
rear shock
Suntour Edge X, 2CR LV, 210x55, Custom Tuned
drivetrain
Shimano CUES U6000, 10-Speed
wheels
WTB Sportterra i30, 29, TCS Tubeless Ready, 32h,(Size Small: 29/27.5), Carbon wheels upgrade available at checkout
brakes
TRP EVO Comp, HD-M7040, TRP 2.3mm 220/220 F/R rotors
sizes
S,M,L,XL
headset
FSA Orbit NO.55R/57, internal sealed cartridge bearing, tapered
shifters
Shimano CUES U6000, 10-Speed
front derailleur
N/A
rear derailleur
Shimano CUES U6000, 10-Speed
cassette
Shimano LG400, 11-48t, 10-Speed
crank
Praxis Type7 Alloy, 155mm
chainrings
Praxis 34T EMTB 104BCD
drive unit
Avinox M2S w/ Ari custom motor tune
battery
Avinox Battery 800WH
chain
Shimano LG500, 10-Speed
handlebars
Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup
stem
Ari 35 CNC stem
tape/grips
ODI Elite Pro
saddle
WTB Solano Medium
seatpost
TransX YSI63FL1, w/ 30mm Travel Adj. Dropper- customized sizing through Ari Custom Setup.
pedals
Available Separately
rims
WTB Sportterra i30, 29, TCS Tubeless Ready, 32h, (Size Small: 29/27.5)
hubs
F: WTB Frequency Sealed Bearing Disc, 110x15mm thru axle, 32 hole, 6 bolt; R: WTB Frequency Sealed Bearing Disc, 148x12mm thru axle, 32 hole, 6 bolt, HG
spokes
Stainless, black, with brass nipple
tires
F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready, (Size Small R: Minion DHR II, 27.5x2.5WT, 3C, MaxxTerra, DH, TR Protection)
tubes
Maxxis 29x1.9/2.5, (Small: 29/27.5x2.5) Presta, Tubeless setup available after adding bike to cart
extras
Avinox DP100 Flat Display
*Specs are subject to change. Any substitutions will be comparable or better.
Spec Comparison
Common Questions*
Who is this bike for?
The Wire Peak is a capable all-arounder ebike with plenty of suspension to tackle rough descents, but balanced with plenty of torque for comfort and capability on technical climbs and starts at a great price point.
How long will it take to arrive?
Estimated lead times are listed under each model's size in the bike builder. Times may vary a little based on current conditions, frame size, color, and availability.
Do I need to connect my bike to the app before my first ride?
Yes! Before taking your bike out for its first spin, you must complete a one-time activation using the Avinox Ride app. During initial setup, scan the QR code on the bike’s touchscreen using the app while connected to Wi-Fi or cellular data. Once activated, your motor system will be fully unlocked. Important: Do this at home before heading out to the trail! If you try to activate your bike in a remote area without cellular service, you will not be able to complete the setup or access full motor assist. Once initial activation is complete, you can ride anywhere—even completely offline.
Do you offer financing?
Yes, at checkout there are several options available for financing.
What is the difference between 130Nm Sustained Power and 150Nm Boost?
The Avinox M2S drive unit delivers up to 130 Nm of continuous sustained torque in standard high-assist modes. When extra output is needed for steep climbs or technical trail sections, Boost Mode steps output up to 150 Nm and 1,500 W of peak power. By default, Boost lasts for 30 seconds, but riders can customize this duration anywhere from 10 to 60 seconds directly via the Avinox Ride smartphone app or the frame’s touchscreen display. After the timer ends, the motor smoothly settles back to sustained power.
How long does charging take?
The initial full charge of the battery may take several hours. The 800Wh battery charges in about 6 hours with the standard charger. You can choose to purchase a 12A fast charger here.
How do I charge my e-bike battery safely?
To charge an e-bike battery safely, set up your charging station in a cool, dry area between 50°F and 77°F (10°C to 25°C), well away from direct sunlight, heating vents, and moisture. Always use the manufacturer-approved charger specifically designed for your battery to prevent electrical damage or fire hazards. Keep the immediate area clear of flammable materials like blankets, paper, or rugs, and place both the battery and charger on a hard, flat, non-combustible surface such as concrete, tile, or metal to prevent heat buildup. Ensure the room has proper ventilation to allow heat to dissipate, and keep a working smoke detector nearby while avoiding charging near primary escape routes.
Will the battery be charged when the bike arrives?
The batteries on all our e-bikes are shipped in a ‘deep sleep’ mode and will have about 20%-30% charge when they arrive. Before your first ride, the battery should be fully charged. The initial charge from ‘deep sleep’ to full could take up to 24 hours as the battery’s individual cell charges are equalized. After that, it should only take 6-7 hours for a full charge.
Are the electronic components waterproof?
All the electronic components (drive unit, battery, displays, switches, etc.) are water resistant. Washing the bike with a low-pressure hose, riding through small puddles, and riding in the rain are all activities the electronics are prepared for. That said, submerging the system under water or using high pressure water to wash the bike could allow water ingress and damage the electronic components and should be avoided.
What motor does the Wire Peak use?
Every level of Wire Peak uses the Avinox M2S drive unit to give you up to 150Nm of torque, up to 1300W of power, and nearly silent operation.
Can the Wire Peak Carry a Water Bottle?
Every size frame has room for a full-size water bottle in the front triangle. Choose one of the two mounting positions and use the other for tools or accessories.
What is the tire clearance on the frame?
We designed Wire Peak to accept up to a 29x2.6in tire on a 30mm internal width rim.
How far can I ride?
Ah, the age-old question. The range of Wire Peak depends on several factors including: assist mode use, rider weight, terrain, ambient temperature, and rider input. We've been on rides that left us drained before the battery. Tune your settings and equipment to suit your needs.
Can I use a battery smaller than 800Wh?
Yes, Avinox FS600 batteries can also be used. Different battery mounting hardware will be required.
What charge level and temperature should I store the battery at?
For storage time less than 30 days, the battery can be stored at 100% charge at a temperature between 14F-113F. For storage times longer than 30 days, the battery should be discharged to ~70% prior to storage and kept at temperature between 14F-95F. Every 6-months, the battery should be fully charged (and then discharged to ~70% if stored for longer than 30-days again).
Can the battery be removed?
Yes, the battery can be removed without removing the drive unit.
How is the motor tuned?
Choose from 4 different assist settings and customize parameters with the Avinox App.
How fast will the Wire Peak go? Does it have a throttle? What class of e-bike is it?
Wire Peak is a programmable electric assisted bicycle. Its default setting is Class 1- pedal assist up to 20mph. Users can switch to Class 3 via the app or on-bike display to enable pedal assist up to 28mph for riding roads to get to the trail. Switch back to Class 1 with the app or display. When the bike is turned off, the mode reverts to default- the bike will be in Class 1 mode when it powers up. It does not have a throttle and only provides assistance when the rider is pedaling. However, just like a non-assisted bike, your own leg power or gravity will allow the bike to move faster than the assisted limit.
What chainguides can be used on the Wire Peak?
Each Wire Peak comes with a custom MRP chainguide designed for use with 32-36T chainings.
Which shocks are compatible with the Wire Peak?
Both air and coil shocks work well on the Wire Peak. The Wire Peak uses a 210 x 55mm shock with M8 x 30mm hardware on both eyelets. Shocks from RockShox, Fox, Marzocchi, DVO, and EXT have been test fit. If you have questions about a shock fitment, please contact us.
What about service?
You can work directly with us, one of our recommended shops, or work through your local shop.
What is the guarantee?
It comes with a 30 Day Love it or Return it Guarantee.
How will it arrive?
All Ari bikes go through our Custom Setup process, making sure the bike is fit and tuned specifically to you. They are test-ridden before delivery. If your bike is shipped to you, it’s still tuned and ready to ride and requires just a few minutes of assembly.
What is the warranty?
Each frame comes with a Lifetime Warranty. Ari branded frames come with a transferable warranty as well.
How does transferable warranty on Ari bikes work?
Ari branded frames come with a transferable frame warranty available to the second owner. The second owner can receive a one-year frame warranty from the date they purchase the bike from the original owner. Warranty only transfers once. All Ari bikes must have the transfer documented from the original owner to the new owner here in order to qualify for a transferable warranty.
What kind of bike is this?

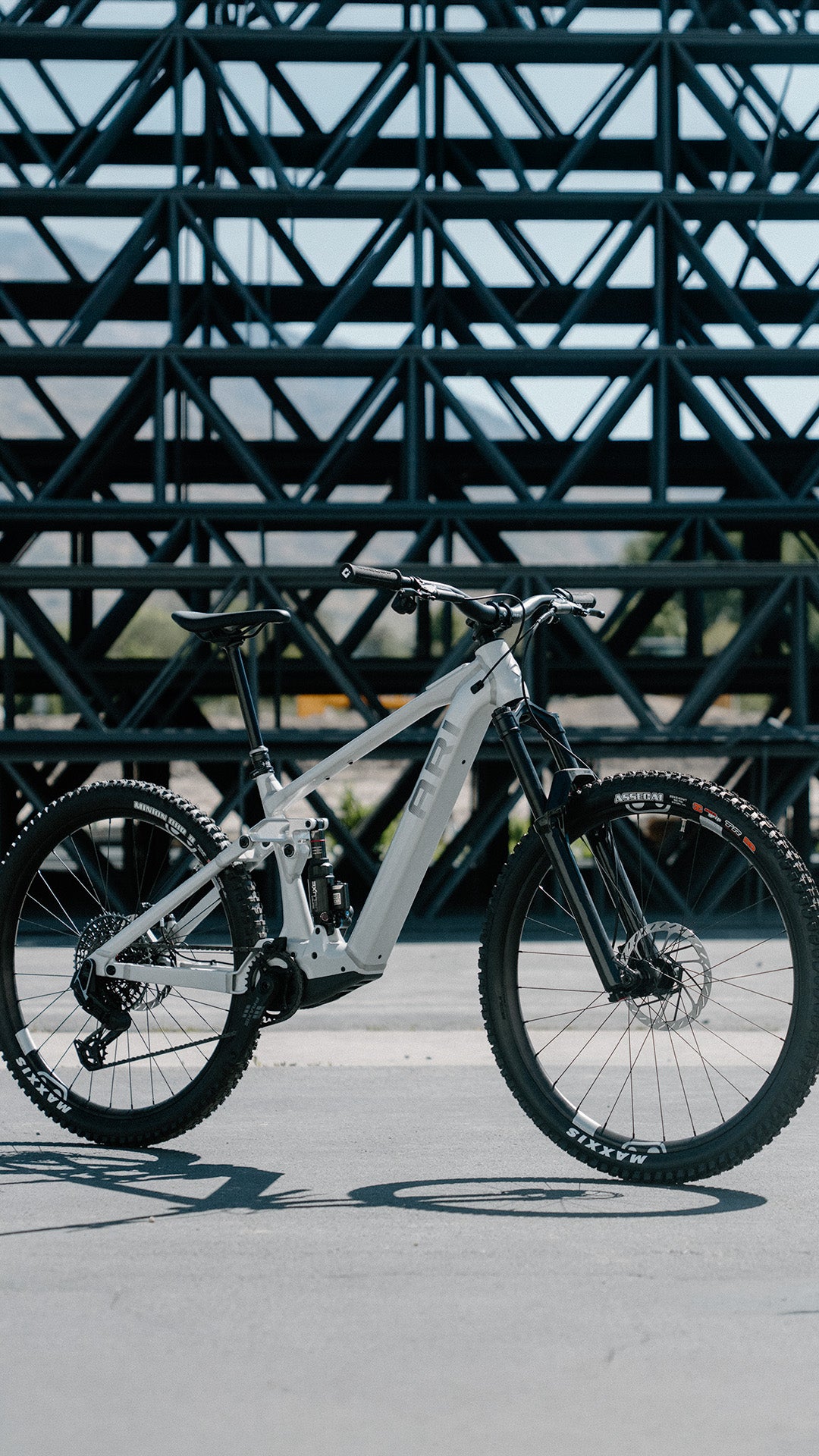

The Wire Peak 3.0 is Ari’s aluminum full-power trail e-MTB. It uses a 160mm fork and 150mm rear travel with the Avinox M2S motor for all-mountain riding at a lower starting price than Ari’s carbon e-bikes. Complete bikes start at $4,199 for the Wire Peak 3.0 Sport build.
How does Wire Peak 3.0 compare to other Ari bikes?
Wire Peak 3.0 is Ari’s aluminum full-power trail e-MTB (160mm fork / 150mm rear) with the Avinox M2S motor. Nebo Peak is the lighter carbon trail e-MTB for riders who want assist that still feels close to an analog trail bike. See Nebo Peak.
How should I choose a size when buying online?
Use Ari Custom Setup and Ari will fit the bike from your body measurements. There is also a size guide in the bike builder, and the support team can help before you order. Details: Custom Fit.
What does the starting price include?
Complete bikes start at $4,199 for the Wire Peak 3.0 Sport build. The listed price is the complete bike at that build level; the bike builder shows the selected options, lead time, and any upgrades before checkout.
What assembly is required when the bike arrives?
Bikes ship pre-tuned, test-ridden, and about 95% assembled. Basic at-home assembly remains, and technicians are available for help. See Support.
What do shipping, warranty, and returns actually involve?
Current terms live on the policy pages, not in this summary. Read Shipping, Warranty, Love it or Return it, and Return Policy before you buy. Outlet bikes follow different return rules.
