Introducing Veyo
Our Lightest Performance Bike Yet
Industry leading carbon layup design puts Veyo’s ultra lightweight frame (860g: size medium) in the top 1% of performance race bikes on the market. Veyo punches above its lightweight class with a full UCI certification. Veyo is ready for a world tour, stage race, or draft legal triathlon not solely by its weight class, but also performance, durability, and safety.
Go fast... like really fast.
No rider likes wasting energy. Power transfer and acceleration are the keys to speed. Focusing largely on lateral stiffness at the rear axle, the Veyo ensures that every watt is optimized for pushing the rider forward. We did this with meticulous planning on Veyo’s carbon layup structure and frame tube shaping.
Unleash Your Peak Performance
Veyo is the ultimate do-everything performance road bike. For those looking for fun and speed while racing, training, or on their weekend club ride, Veyo is the bike for you.
Featherlight Aero
By using a truncated airfoil design on the downtube, seat tube, and seat post, Veyo makes the most of aero benefits in real world wind conditions while maximizing weight savings. Veyo is not only aero itself, but with size specific geometry, the rider can comfortably maintain an aero position longer and be faster overall.
3D Model
Click and Drag to see Superior Peak’s robust aluminum frame from all angles.
Geometry
Wheel Size
Units
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Top Tube | 505 | 525 | 545 | 565 | 585 |
| Seat Tube | 423 | 466 | 497 | 525 | 555 |
| Chainstay | 410 | 410 | 410 | 410 | 410 |
| Head Angle (degrees) | 72° | 72.5° | 73° | 73° | 73.5° |
| Seat Angle (degrees)* | 75° | 75° | 74.5° | 74° | 73.5° |
| Head Tube | 98 | 119 | 146 | 159 | 180 |
| Bottom Bracket Height | 271 | 273 | 273 | 273 | 275 |
| Bottom Bracket Drop | 72 | 70 | 70 | 70 | 68 |
| Wheelbase | 961 | 979 | 990 | 1005 | 1016 |
| Fork Offset | 45 | 45 | 45 | 45 | 45 |
| Fork Length | 377 | 377 | 377 | 377 | 377 |
| Trail | 63 | 60 | 57 | 57 | 54 |
| Standover height | 716 | 748 | 777 | 798 | 822 |
| Stack | 510 | 530 | 557 | 570 | 590 |
| Reach | 368 | 382 | 391 | 401 | 411 |
The best experience for every rider.
Discover the benefits of our direct-to-consumer model, including exclusive discounts, direct communication with our experts, and a hassle-free purchasing process.
Learn More +
Direct to you, the rider
The best bang for your buck. Save up to 40% when buying directly from us, the manufacture.
A warranty that lasts a lifetime
Riding a bike should be an enjoyable and worry-free experience. That's why we offer the best lifetime warranty in the industry.
Custom fit to your body
Give us a few quick measurements and then we custom fit the bike to you. It makes all the difference!
Build Specs
Each Ari bike is built with the best components in a given category so you get the most bang for the buck. Each model has different build specs to choose from usually ranging in good, better, best order.
Comparison TableBuild Level
Specifications
| Veyo Comp | Veyo Elite | Veyo Pro | Veyo Team Sram | Veyo Team Shimano | Veyo Frameset |
|---|---|---|---|---|---|
|
price $3,699 |
price $4,129 |
price $4,699 |
price $7,499 |
price $7,799 |
price $2,799 |
|
frame Ari Veyo SL Aero Carbon Frame |
frame Ari Veyo SL Aero Carbon Frame |
frame Ari Veyo SL Aero Carbon Frame |
frame Ari Veyo SL Aero Carbon Frame |
frame Ari Veyo SL Aero Carbon Frame |
frame Ari Veyo SL Aero Carbon Frame |
|
fork Ari Veyo SL Aero Carbon Fork |
fork Ari Veyo SL Aero Carbon Fork |
fork Ari Veyo SL Aero Carbon Fork |
fork Ari Veyo SL Aero Carbon Fork |
fork Ari Veyo SL Aero Carbon Fork |
fork Ari Veyo SL Aero Carbon Fork |
|
rear shock N/A |
rear shock N/A |
rear shock N/A |
rear shock N/A |
rear shock N/A |
rear shock N/A |
|
drivetrain Shimano 105 Di2 R7170, 12-Speed |
drivetrain SRAM Rival AXS E1, 12-Speed, w/ Power Meter |
drivetrain SRAM Force AXS E1, 12-Speed, w/ Power Meter |
drivetrain SRAM Red AXS E1, 12-Speed, w/ Power Meter |
drivetrain Shimano Dura-Ace Di2, 12-Speed |
drivetrain N/A |
|
wheels DT Swiss E 1800 (Carbon wheels upgrade available at checkout) |
wheels DT Swiss E 1800 (Carbon wheels upgrade available at checkout) |
wheels DT Swiss PR 1600 Spline (Carbon wheels upgrade available at checkout) |
wheels Zipp 303s Carbon, (Zipp Firecrest or NSW Available at checkout) |
wheels Zipp 303s Carbon, (Zipp Firecrest or NSW Available at checkout) |
wheels N/A |
|
brakes Shimano 105 R7170 Hydraulic Road Disc, Rotors: 160mm/160mm |
brakes SRAM Rival Hydraulic Road Disc E1, Centerline Rotors: 160mm/160mm |
brakes SRAM Force Hydraulic Road Disc E1, Paceline Rotors: 160mm/160mm |
brakes SRAM Red AXS HRD Hydraulic Disc E1, Rotors: SRAM Centerline X 160/160mm |
brakes Shimano Dura-Ace Di2 Hydraulic Road Disc, Rotors: 160mm/160mm |
brakes N/A |
|
sizes XS,S,M,L,XL |
sizes XS,S,M,L,XL |
sizes XS,S,M,L,XL |
sizes XS,S,M,L,XL |
sizes XS,S,M,L,XL |
sizes XS,S,M,L,XL |
|
headset FSA SRS 1.5/1.5 |
headset FSA SRS 1.5/1.5 |
headset FSA SRS 1.5/1.5 |
headset FSA ACR NS 1.5/1.5 |
headset FSA ACR NS 1.5/1.5 |
headset FSA ACR NS 1.5/1.5 |
|
shifters Shimano 105 Di2 R7170, 2x12 |
shifters SRAM Rival AXS eTap E1, Wireless |
shifters SRAM Force AXS eTap E1, Wireless |
shifters SRAM Red AXS E1, Wireless |
shifters Shimano Dura-Ace Di2 R9270 |
shifters N/A |
|
front derailleur Shimano 105 Di2 R7170, Braze-on |
front derailleur SRAM Rival AXS E1, Braze-on |
front derailleur SRAM Force AXS E1, Braze-on |
front derailleur SRAM Red AXS E1, Braze-on |
front derailleur Shimano Dura-Ace Di2 R9250, Braze-on |
front derailleur N/A |
|
rear derailleur Shimano 105 Di2 R7170, 12-speed |
rear derailleur SRAM Rival AXS E1, 12-speed, 36T Max |
rear derailleur SRAM Force AXS E1, 12-speed, 36T Max |
rear derailleur SRAM Red AXS E1, 12-speed, 36T Max |
rear derailleur Shimano Dura-Ace Di2 R9250 |
rear derailleur N/A |
|
cassette Shimano HG710, 12-Speed, 11-36T |
cassette SRAM XG-1250, 10-36T |
cassette SRAM 1270, 10-36T |
cassette SRAM RED XG-1290, 10-36t 12-Speed |
cassette Shimano Dura-Ace, 11-30t 12-Speed |
cassette N/A |
|
crank Shimano 105 R7100, English |
crank SRAM Rival AXS E1 Power Meter, DUB |
crank SRAM Force AXS E1 Power Meter, DUB |
crank SRAM Red AXS E1 Power Meter Carbon, DUB |
crank Shimano Dura-Ace R9200 |
crank N/A |
|
chainrings Shimano 52/36T |
chainrings SRAM Rival 48/35T |
chainrings SRAM Force 48/35T |
chainrings SRAM RED 48/35T |
chainrings Shimano Dura-Ace 52/36T |
chainrings N/A |
|
bottom bracket Shimano RS-500 Pressfit |
bottom bracket SRAM DUB, BB86 |
bottom bracket SRAM DUB, BB86 |
bottom bracket SRAM DUB BB86 |
bottom bracket Shimano Dura-Ace |
bottom bracket N/A |
|
chain Shimano M7100, 12-Speed |
chain SRAM Rival E1, 12-Speed |
chain SRAM Force E1, 12-Speed |
chain SRAM RED, 12-Speed |
chain Shimano Dura-Ace, 12-Speed |
chain N/A |
|
handlebars Ari Road Alloy Compact. 31.8 diameter, 70mm reach, 125mm drop, 12-degree flare |
handlebars Ari Road Alloy Compact. 31.8 diameter, 70mm reach, 125mm drop, 12-degree flare |
handlebars Zipp SL 80 Carbon |
handlebars Zipp SL 80 Carbon |
handlebars Vision Metron Aero Compact Handlebar Carbon Integrated |
handlebars N/A |
|
stem FSA SMRII (customized sizing through Ari Custom Setup) |
stem FSA SMRII (customized sizing through Ari Custom Setup) |
stem FSA SMRII (customized sizing through Ari Custom Setup) |
stem FSA SMR (customized sizing through Ari Custom Setup) Alloy |
stem FSA SMR (customized sizing through Ari Custom Setup) Alloy |
stem N/A |
|
tape/grips Ari Super-Shock Pro w/ Anti-Slip, Black |
tape/grips Ari Super-Shock Pro w/ Anti-Slip, Black |
tape/grips Ari Super-Shock Pro w/ Anti-Slip, Black |
tape/grips Lizard Skins DSP 2.5 |
tape/grips Lizard Skins DSP 2.5 |
tape/grips N/A |
|
saddle Ergon SR Sport |
saddle Ergon SR Sport |
saddle Ergon SR Sport |
saddle Ergon SR Pro Titanium |
saddle Ergon SR Pro Titanium |
saddle N/A |
|
seatpost Ari Aero Carbon, Dual Bolt |
seatpost Ari Aero Carbon, Dual Bolt |
seatpost Ari Aero Carbon, Dual Bolt |
seatpost Ari Aero Carbon Dual Bolt |
seatpost Ari Aero Carbon Dual Bolt |
seatpost Ari Aero Carbon Dual Bolt |
|
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
|
rims DT Swiss E 1800 |
rims DT Swiss E 1800 |
rims DT Swiss PR 1600 |
rims Zipp 303s Carbon |
rims Zipp 303s Carbon |
rims N/A |
|
hubs DT Swiss 370 Ratchet LN 18 |
hubs DT Swiss 370 Ratchet LN 18 |
hubs DT Swiss 350 Ratchet LN 36 SL |
hubs Zipp 176D, 76D 142x12/100x12 |
hubs Zipp 176D, 76D 142x12/100x12 |
hubs N/A |
|
spokes DT aero comp wide straightp, DT aero II straightpull |
spokes DT aero comp wide straightp, DT aero II straightpull |
spokes DT aero comp wide straightpull |
spokes Sapim CX-Spirit |
spokes Sapim CX-Spirit |
spokes N/A |
|
tires Continental Grand Prix 500S TR 28c |
tires Continental Grand Prix 500S TR 28c |
tires Continental Grand Prix 500S TR 28c |
tires Continental GP5000 S 32c Tubeless Ready |
tires Continental GP5000 S 32c Tubeless Ready |
tires N/A |
|
tubes 700x28 Presta Valve (Tubeless setup available at Checkout) |
tubes 700x28 Presta Valve (Tubeless setup available at Checkout) |
tubes 700x28 Presta Valve (Tubeless setup available at Checkout) |
tubes 700x32 Presta Valve (Tubeless setup available at Checkout) |
tubes 700x32 Presta Valve (Tubeless setup available at Checkout) |
tubes N/A |
Specifications
build
Comp
price
$3,699
frame
Ari Veyo SL Aero Carbon Frame
fork
Ari Veyo SL Aero Carbon Fork
rear shock
N/A
drivetrain
Shimano 105 Di2 R7170, 12-Speed
wheels
DT Swiss E 1800 (Carbon wheels upgrade available at checkout)
brakes
Shimano 105 R7170 Hydraulic Road Disc, Rotors: 160mm/160mm
sizes
XS,S,M,L,XL
headset
FSA SRS 1.5/1.5
shifters
Shimano 105 Di2 R7170, 2x12
front derailleur
Shimano 105 Di2 R7170, Braze-on
rear derailleur
Shimano 105 Di2 R7170, 12-speed
cassette
Shimano HG710, 12-Speed, 11-36T
crank
Shimano 105 R7100, English
chainrings
Shimano 52/36T
bottom bracket
Shimano RS-500 Pressfit
chain
Shimano M7100, 12-Speed
handlebars
Ari Road Alloy Compact. 31.8 diameter, 70mm reach, 125mm drop, 12-degree flare
stem
FSA SMRII (customized sizing through Ari Custom Setup)
tape/grips
Ari Super-Shock Pro w/ Anti-Slip, Black
saddle
Ergon SR Sport
seatpost
Ari Aero Carbon, Dual Bolt
pedals
Available Separately
rims
DT Swiss E 1800
hubs
DT Swiss 370 Ratchet LN 18
spokes
DT aero comp wide straightp, DT aero II straightpull
tires
Continental Grand Prix 500S TR 28c
tubes
700x28 Presta Valve (Tubeless setup available at Checkout)
*Specs are subject to change. Any substitutions will be comparable or better.
Spec Comparison
Common Questions*
How does the bike handle?
Veyo is lightning fast. Agile directional changes, carving turns at high speed, and riding shoulder-to-shoulder in the peloton is where Veyo thrives. If we could embody the nature of Veyo in one word, it would be spirited—it’s gutsy, dynamic power purposefully designed for the fastest bike situations imaginable. Veyo is your new category leader.
When should I expect my bike to arrive?
Estimated lead times are listed under each model's size in the bike builder. Times may vary slightly based on current conditions, frame size, color, and availability.
Who is this bike for?
Veyo is designed with the competitive racer in mind. It prioritizes speed, agility, and efficiency. A Veyo owner is focused on improving personal bests, participating in races, or undertaking challenging cycling routes. But don’t let Veyo fool you. It’s also a great commuter as its geometry enables comfortable riding for hours at a time.
Do you offer financing?
Yes! At checkout, several financing options are available to ensure a purchasing experience that works for you.
What sizes is the Veyo offered in?
5 sizes — XS, S, M, L, and XL. Our 23-Point Custom Setup uses your measurements to help determine your frame size and component setup to fit your Veyo to you. Also, with geometry specific sizing, you can be assured that you will get the exact fit and intended performance on any size of Veyo.
How many water bottles can it hold?
Two inside the front triangle on every size.
What type of derailleur hanger is used?
A custom Ari Road Derailleur Hanger (ARDH) is utilized on the frame. It is optimized for road rear derailleurs. A spare ARDH can be purchased from Ari. Alternatively, a SRAM Universal Derailleur Hanger (UDH) can be used with cassettes that have largest cogs of 28T or greater.
What are the headset dimensions?
The Standardized Headset Identification System (SHIS) is IS52 / 28.6 | IS52 / 40(45°). This is used with the 1.5”/1.5” headtube. We have chosen to use the FSA SRS headsets for simple, clean cable management with a custom Fezzari upper bearing cap. FSA ACR is also compatible if the matching stem is also used in conjunction with the custom Fezzari upper bearing cap. Both custom top caps for ACR/SRS, and standard road stems are included with every bike and frameset.
What are the front and rear axle dimensions?
The front axle is M12x118mmxP1.5. Rear: M12x168mmxP1.0.
What is the frame weight?
A Medium SL frame weighs 860g. Veyo’s fork weighs just 350g, 15% lighter than most other premier forks on the market.
What is the maximum tire clearance?
Veyo is designed with extra space around the wheels to increase airflow with 28mm tires. However, the space can also be used to accommodate up to 32mm wide tires.
What drivetrains are compatible with the Veyo?
Veyo is designed around a standard 43.5mm chainline and is compatible with both 1x and 2x drivetrains. All mechanical drivetrains, SRAM eTap and AXS drivetrains, and Shimano Di2 drivetrains are compatible with Veyo.
What is the disc brake mounting standard?
Flat mount 140/160. the rear brake mount thickness is 25mm, so 32mm bolt length is required to mount your brakes.
What is the bottom bracket on Veyo?
Veyo uses a BB86 bottom bracket standard.
What is the seat clamp on Veyo?
Veyo includes an integrated seat clamp design that is included with every complete bike and frameset.
What about service?
You can work directly with us, one of our recommended shops, or work through your local shop.
What is the guarantee?
It comes with a 30 Day Love it or Return it Guarantee.
How will it arrive?
All Ari bikes go through our Custom Setup process, making sure the bike is fit and tuned specifically to you. They are test-ridden before delivery. If your bike is shipped to you, it’s still tuned and ready to ride and requires just a few minutes of assembly.
What is the warranty?
Each frame comes with a Lifetime Warranty. Ari branded frames come with a transferable warranty as well.
How does transferable warranty on Ari bikes work?
Ari branded frames come with a transferable frame warranty available to the second owner. The second owner can receive a one-year frame warranty from the date they purchase the bike from the original owner. Warranty only transfers once. All Ari bikes must have the transfer documented from the original owner to the new owner here in order to qualify for a transferable warranty.

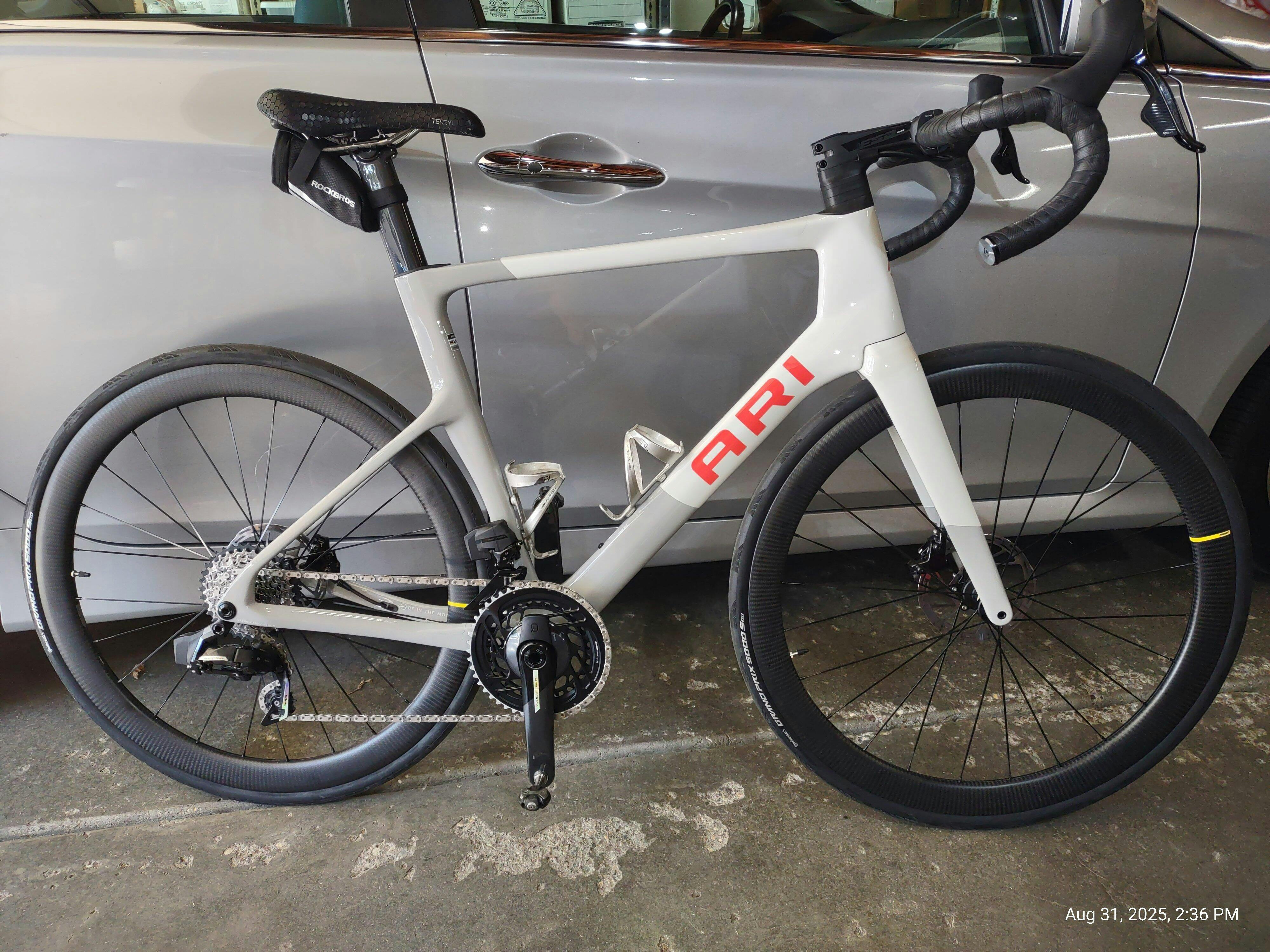

What kind of bike is this?
The Veyo is Ari’s carbon performance road bike. A size-medium frame around 860g, UCI certification, and truncated airfoil tubes make it the race and club-ride option in Ari’s road lineup. Complete bikes start at $2,799 for the Veyo SL Comp build.
How does Veyo compare to other Ari bikes?
Veyo is Ari’s carbon performance road bike with a UCI-certified ~860g medium frame. Suncrest is the lighter everyday road bike. Empire is the endurance road bike. See Suncrest.
How should I choose a size when buying online?
Use Ari Custom Setup and Ari will fit the bike from your body measurements. There is also a size guide in the bike builder, and the support team can help before you order. Details: Custom Fit.
What does the starting price include?
Complete bikes start at $2,799 for the Veyo SL Comp build. The listed price is the complete bike at that build level; the bike builder shows the selected options, lead time, and any upgrades before checkout.
What assembly is required when the bike arrives?
Bikes ship pre-tuned, test-ridden, and about 95% assembled. Basic at-home assembly remains, and technicians are available for help. See Support.
What do shipping, warranty, and returns actually involve?
Current terms live on the policy pages, not in this summary. Read Shipping, Warranty, Love it or Return it, and Return Policy before you buy. Outlet bikes follow different return rules.
