Setup & assembly
Your bike ships about 85% assembled. Plan on 30–45 minutes with the included tools.
Torque specs
| Diagram number | Bolt | N·m |
|---|---|---|
| 1 | Front Thru Axle | 10 |
| 2 | Seatpost Clamp | 8–10 |
| 3 | Rear Thru Axle | 10 |
Carbon parts: always use a torque wrench and carbon assembly paste. Component makers' printed specs take priority.

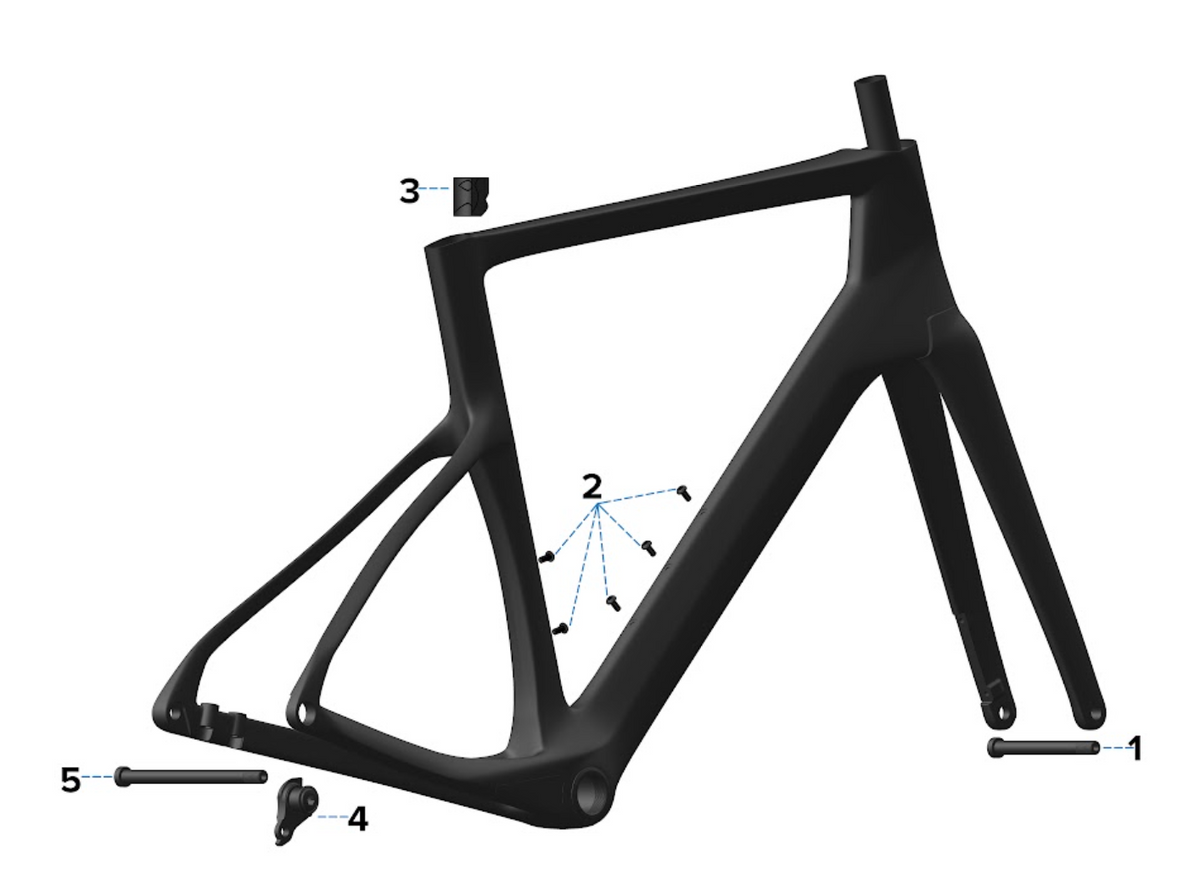

Replacement parts
Geometry
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Top Tube | 505.0 | 525.0 | 545.0 | 565.0 | 585.0 |
| Seat Tube | 423.0 | 466.0 | 497.0 | 525.0 | 555.0 |
| Chainstay | 410.0 | 410.0 | 410.0 | 410.0 | 410.0 |
| Head Angle (degrees) | 72.0° | 72.5° | 73.0° | 73.0° | 73.5° |
| Seat Angle (degrees)* | 75.0° | 75.0° | 74.5° | 74.0° | 73.5° |
| Head Tube | 98.0 | 119.0 | 146.0 | 159.0 | 180.0 |
| Bottom Bracket Height | 271.0 | 273.0 | 273.0 | 273.0 | 275.0 |
| Bottom Bracket Drop | 72.0 | 70.0 | 70.0 | 70.0 | 68.0 |
| Wheelbase | 961.0 | 979.0 | 990.0 | 1005.0 | 1016.0 |
| Fork Offset | 45.0 | 45.0 | 45.0 | 45.0 | 45.0 |
| Standover height | 716.0 | 748.0 | 777.0 | 798.0 | 822.0 |
| Stack | 510.0 | 530.0 | 557.0 | 570.0 | 590.0 |
| Reach | 368.0 | 382.0 | 391.0 | 401.0 | 411.0 |
| Fork Length | 377.0 | 377.0 | 377.0 | 377.0 | 377.0 |
| Trail | 63.0 | 60.0 | 57.0 | 57.0 | 54.0 |
Frame specifications
FrameVeyo
MaterialCarbon
Wheel Size700c
Tire Compatibilitymax 700x32mm
Front Dropout100x12
Front Axle118x12x1.5mm
Rear Dropout142x12
Rear AxleTA12/167.5mm/M12xP1.0x15mm
Front Brake Mount140 Flat Mount Disc
Rear Brake Mount140 Flat Mount Disc
Bottom BracketBB86
Seatpost Diameter27.2mm
Seatpost Clamp DiameterIntegrated
Front Derailleur MountBraze On
Headset SpecIS52 / 28.6 | IS52 / 40(45°)
