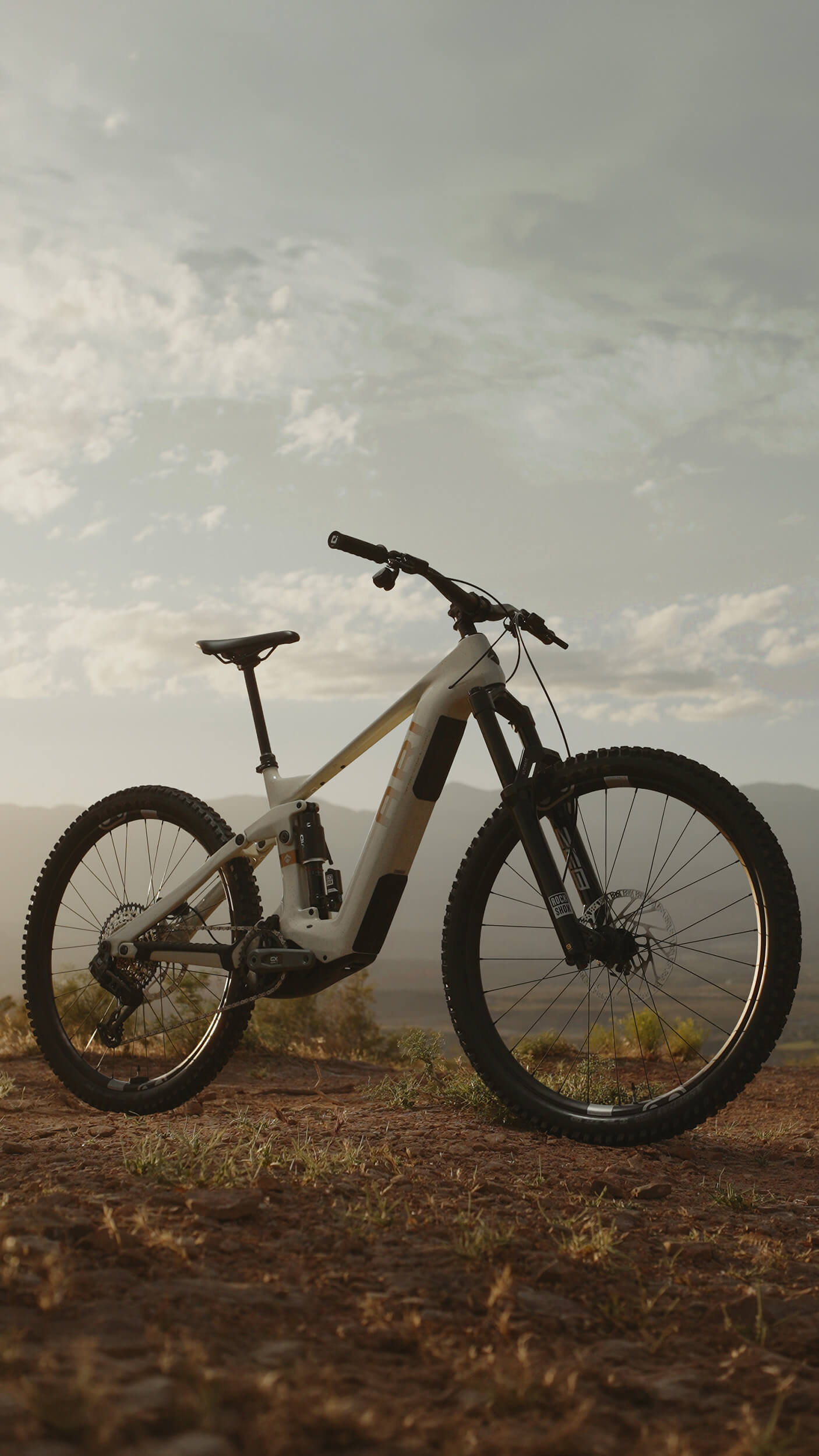

The full-power experience.
Massive Backcountry Rides
An 800Wh battery gives Timp Peak the range to explore farther and stay out longer.
E-Enduro Racing
170mm of travel and new geometry make Timp Peak fast, stable, and ready to race.
Self-Shuttle
The Gen 5 Bosch CX drive unit flattens climbs so you can self-shuttle with ease and hit more descents.
Your next big day just got bigger.
Timp Peak is built to help you go farther, ride faster, and feel more alive in the saddle.
Big Climbs. Bigger Smiles.
You don’t shy away from steep, rugged climbs—or monster descents. And neither does Timp Peak.

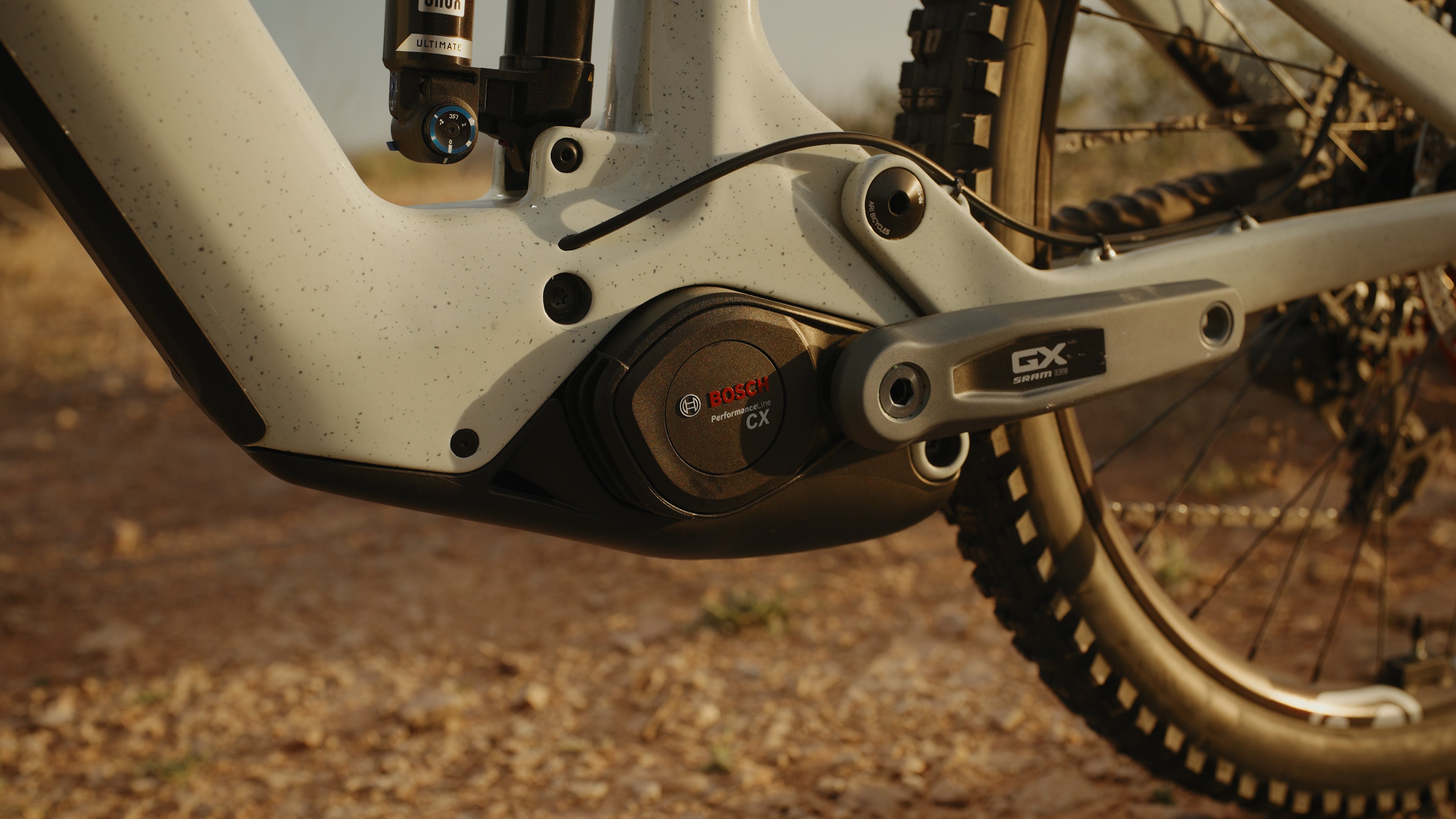

With Bosch’s latest Performance Line CX Gen 5 drive unit, you get 85Nm of torque and 600W of peak power, delivered smoothly and confidently. Whether you're crawling up techy switchbacks or powering through punchy trail sections, you’ll feel unstoppable.
More Control. More Confidence.

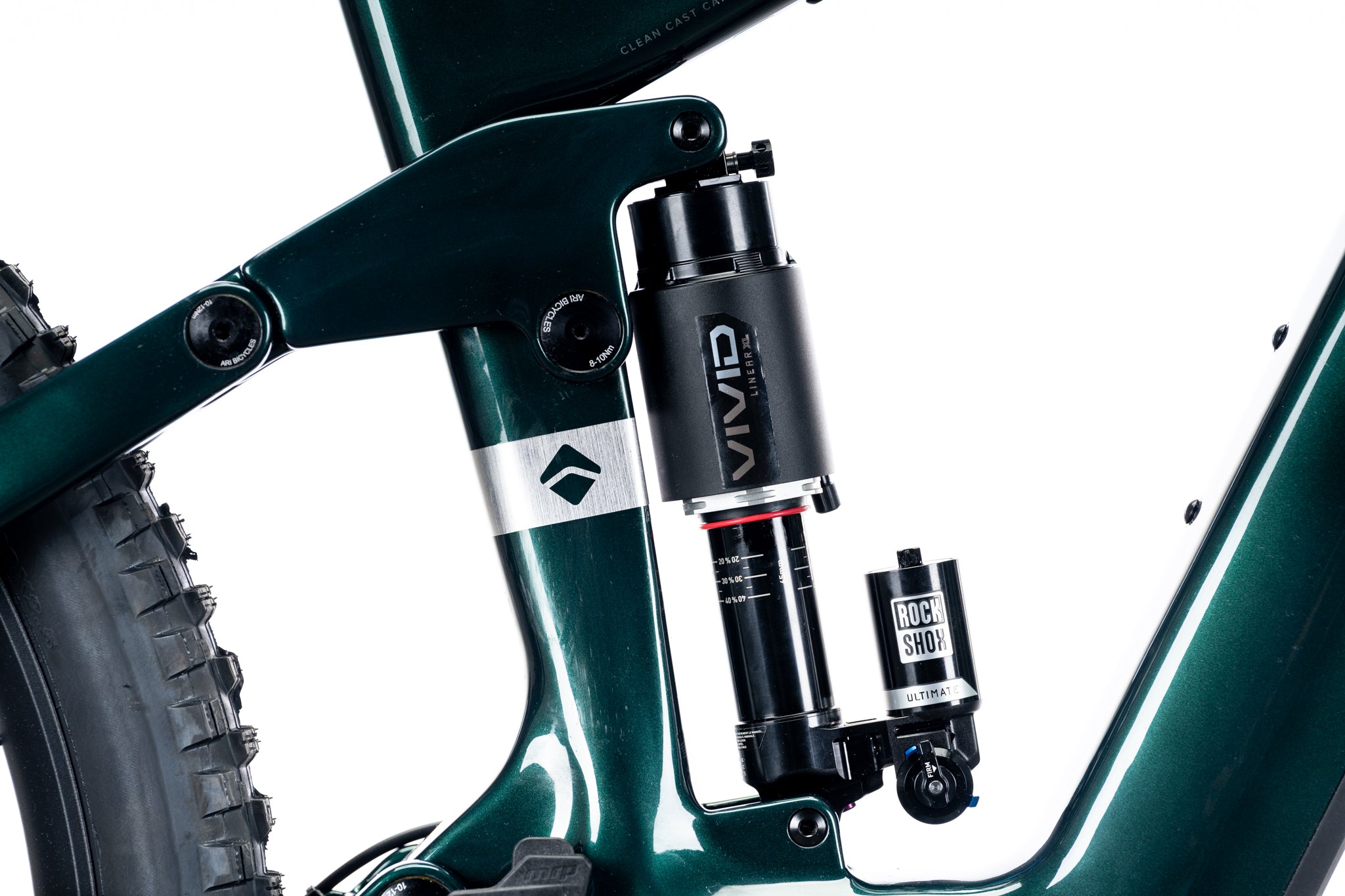

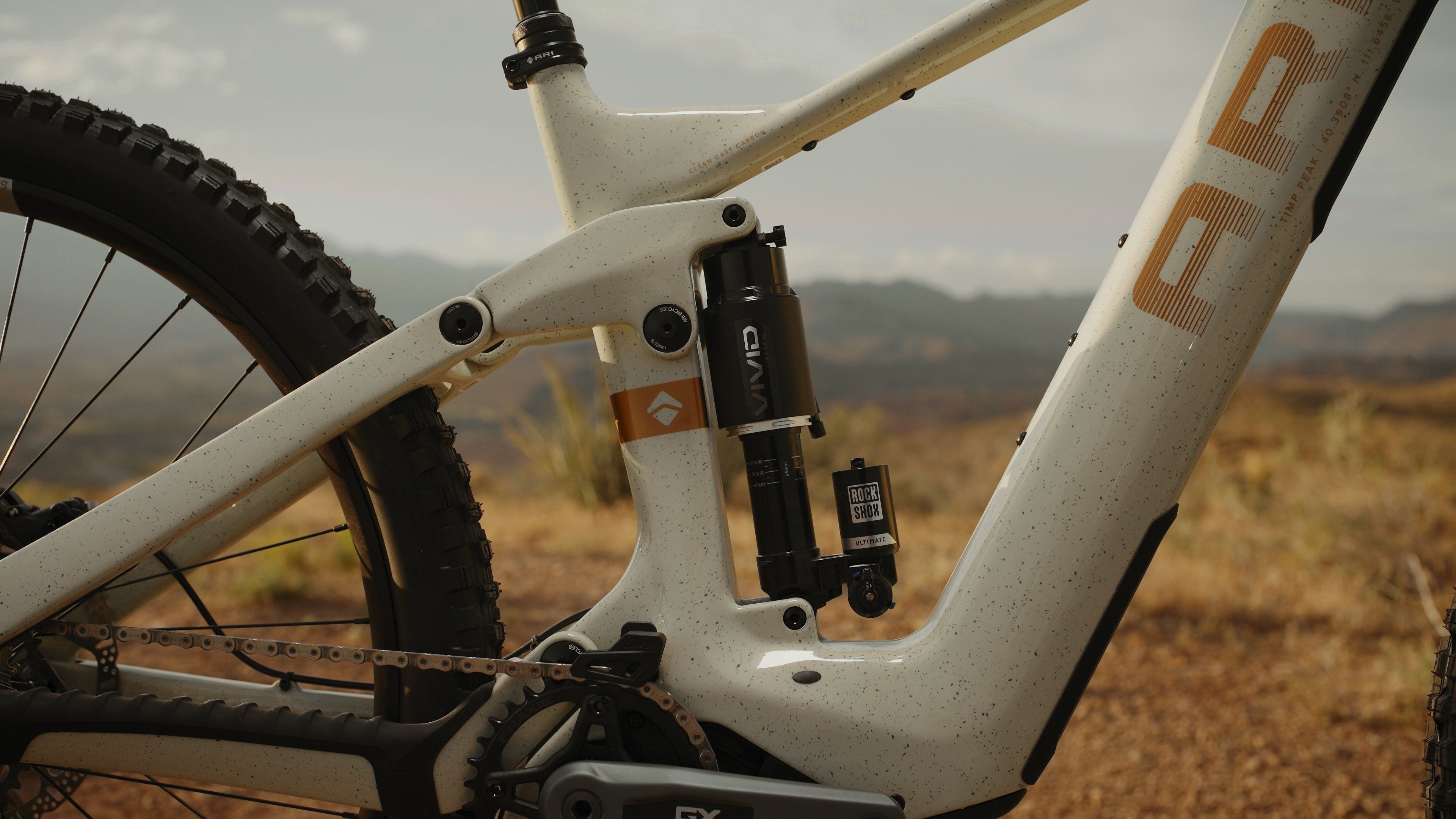

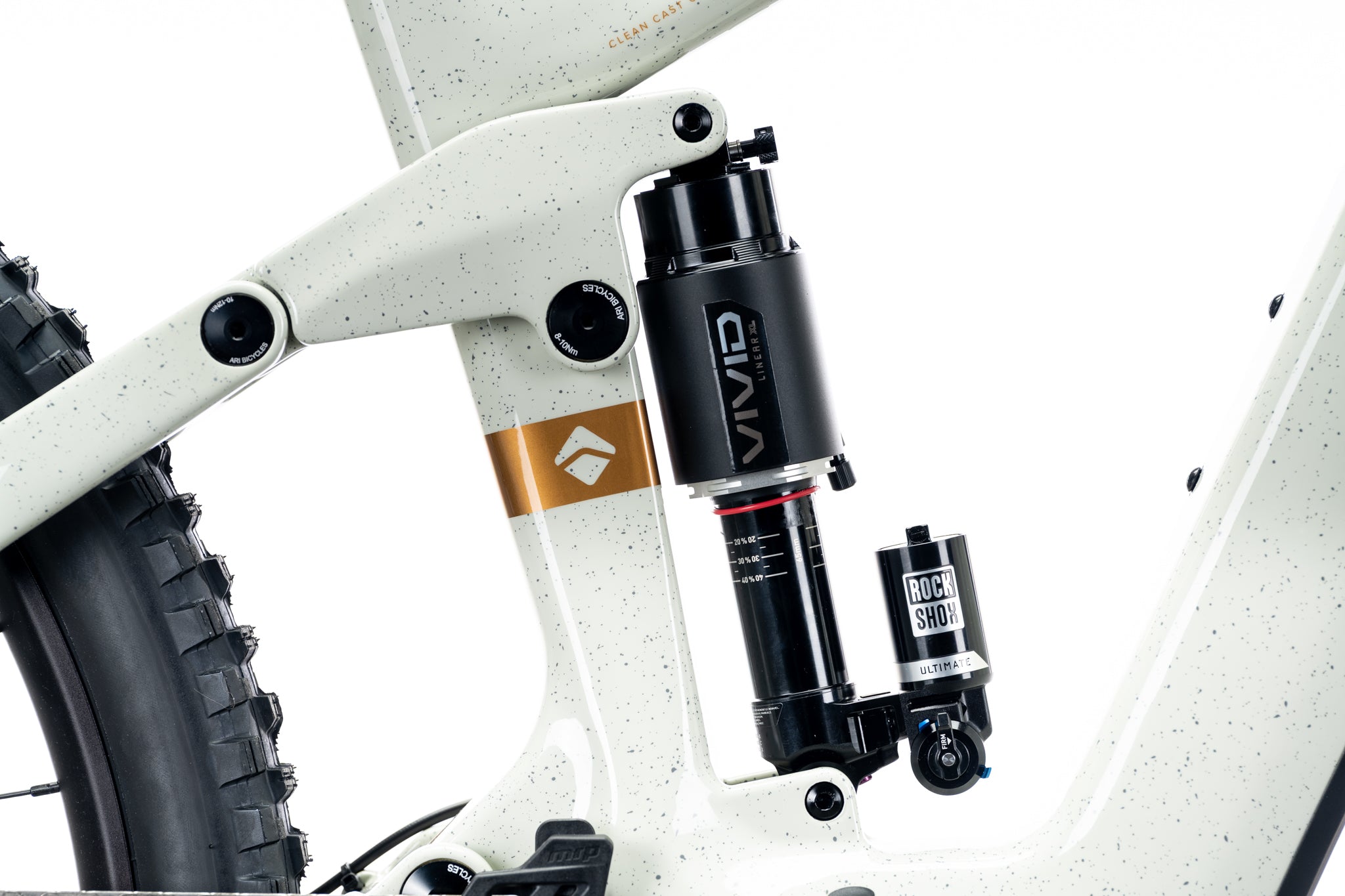

The Tetra-Link suspension platform gives you 170mm of rear travel and a confident, active feel—even under braking. Whether you’re charging into rough sections or feathering the brakes through tech, your suspension stays planted and smooth.

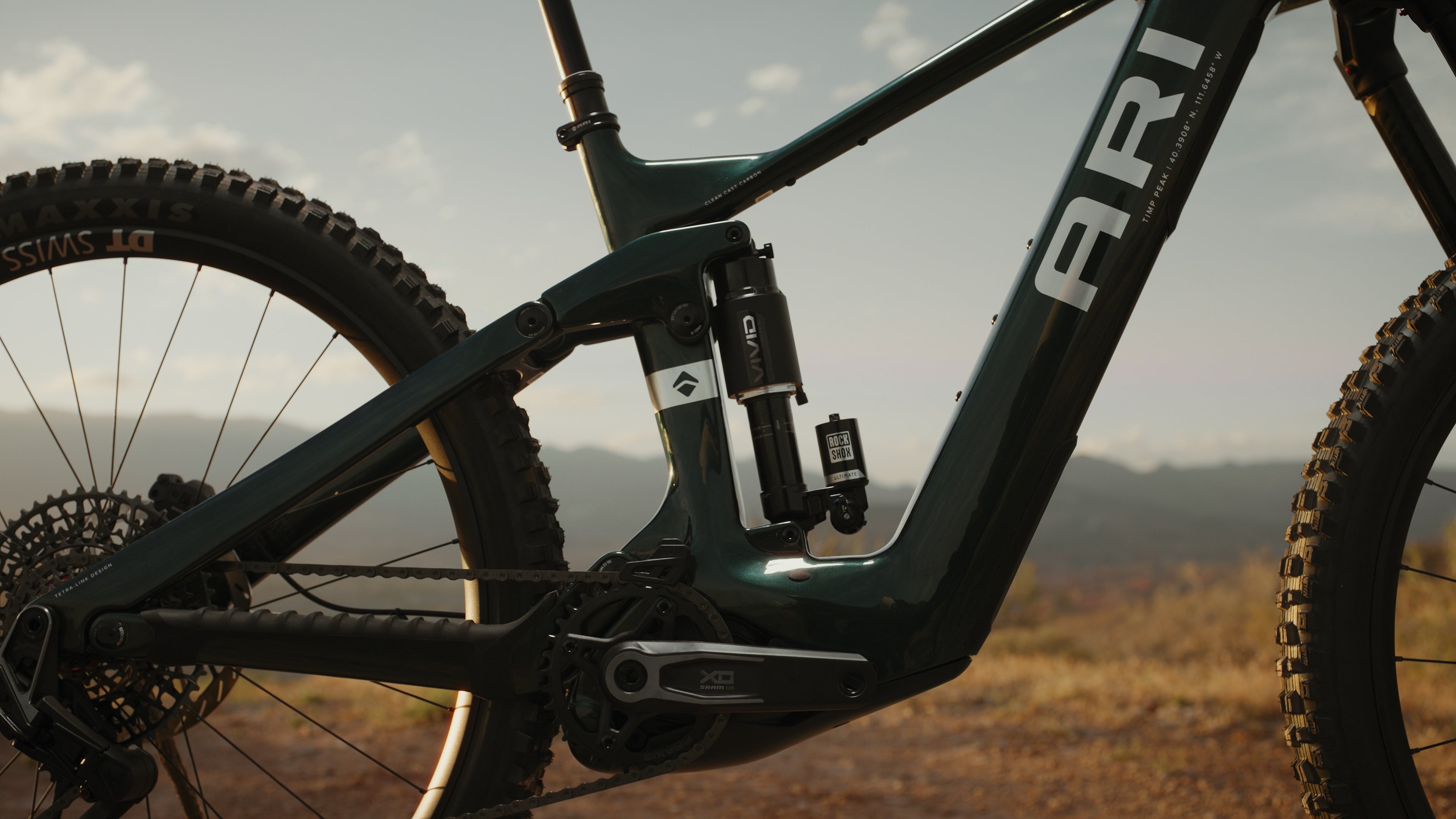

The new vertical shock layout isn’t just sleek—it lowers standover height and allows long dropper posts, so you’re never fighting your bike when the trail gets steep.
Make every ride your best ride.
Geometry That Adapts to You
Every trail is different. Every rider is different. With four-way adjustable GA Link, you can fine-tune your geometry for whatever’s ahead. Want snappier handling or more stability?
Run it with a full 29er wheelset or as a mullet with 27.5 in the rear, tweak your headtube angle from 63.3° to 64.4°, and adjust chainstay length to suit your riding.
The 78° effective seat tube angle keeps you in a powerful, efficient pedaling position, and short cranks reduce pedal strikes so you can maintain momentum.
Ride in Pure Silence
When you're flowing through a descent or threading a rock garden, noise is the last thing you want. Timp Peak is engineered for silence. Tube-in-tube cable routing, custom protectors, and the quieter Gen 5 drive unit mean the only sound you hear is tires on dirt—and maybe your own whoop of stoke.
Everything You Need, Right On Board, On Every Size

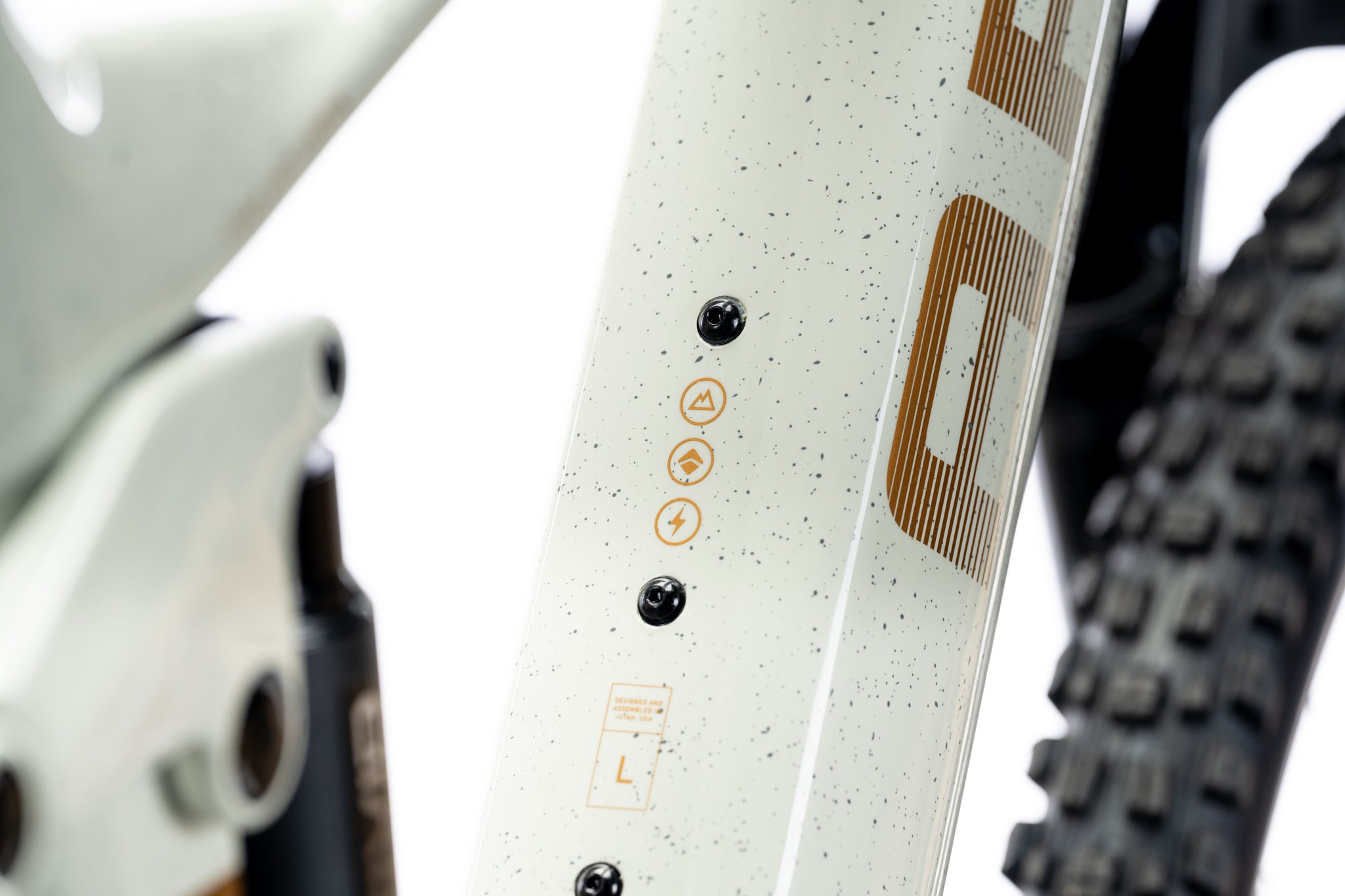

Every size Timp Peak fits a 21oz water bottle in the main triangle, even with the big battery. Plus, there’s a top tube gear mount for tools or extra gear. Stay hydrated. Fix a flat. Fuel up. You’re covered.
Range That Matches Your Ambition
Timp Peak gives you battery options to match your riding style. Choose a 600Wh or 800Wh PowerTube battery and, if you’re chasing extra-long days, add the PowerMore 250Wh range extender.
In testing, a 6’4”, 240lb rider can hit over 8,000 feet of vert using the 800Wh battery + range extender combo in turbo mode. Whether you're climbing all day or squeezing in a post-work lap, you’ve got the juice to ride how you want, as long as you want.
Ready for the Rough
From shuttle laps to sketchy lines, you ride hard—and your bike should too. Timp Peak is built to take a beating. It’s been through the most brutal testing we’ve ever done, and it’s built for the long haul.
Backed for Life
Timp Peak is dialed in just for you with our Ari Custom Setup. That means it arrives ready to rip—no adjustments, no guesswork. And with our Lifetime Warranty, you can focus on riding, not worrying.
Body Armor

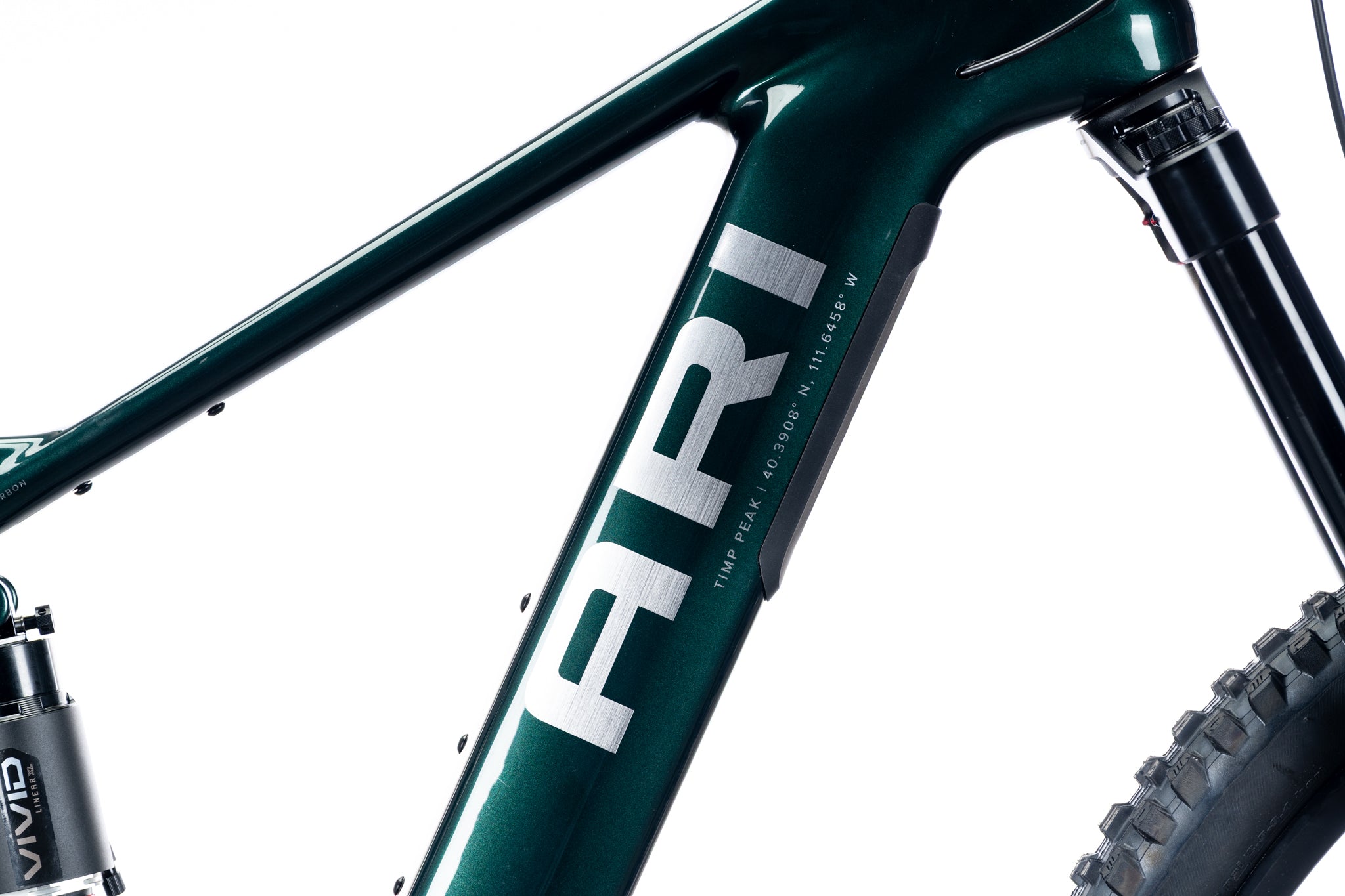

With a fiber-reinforced nylon drive unit cover, integrated downtube guard, and shuttle pad protection, you can toss it in the truck, hammer rock gardens, and keep coming back for more. Again and again.
Timp Peak 2.0

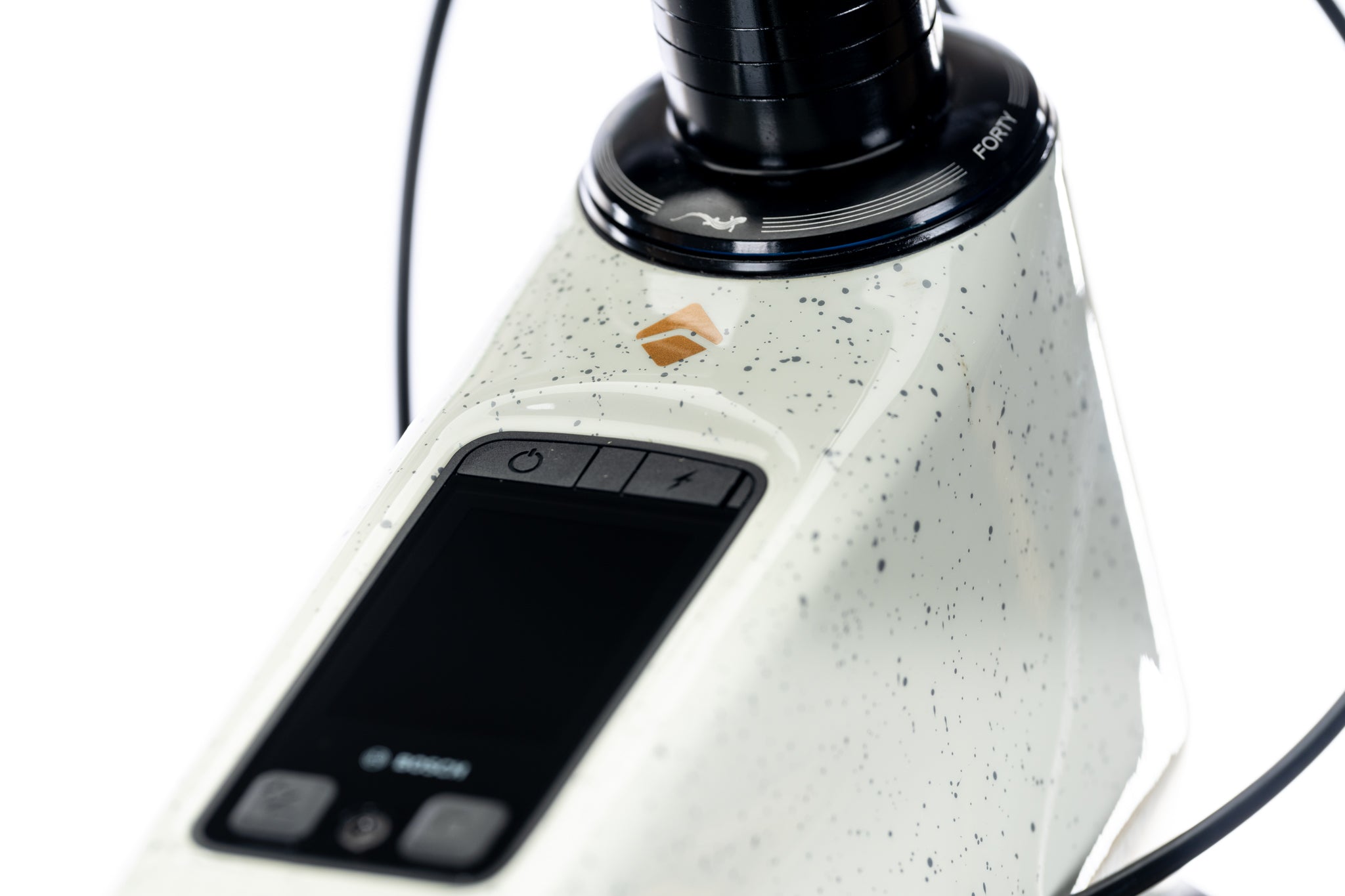

New Bosch Kiox 400C Display
Kiox 400C is the perfect display for the trail. Inconspicuously integrated in the frame and also full of functions. Securely installed in the top tube and therefore ideally protected from bumps and knocks.
The riding modes for eBikes with Bosch system are precisely adapted to your eBike type and the riding situation. You can also customize them using the eBike Flow app.
*Available at checkout
Configuration
Geometry
| S1 | S2 | S3 |
|---|
Wheel size
Geometry
Configuration Description
| Wheel Size | Full | 29"/29" |
|---|---|---|
| Geometry | Stable | Long Chinstay |
| Steep | Low BB/Slack HT |
Controlled and composed for pushing your limits in the bike park. A more progressive kinematic for bottom out support on big hits.
Geometry
| S | M | L | XL |
|---|
3D Model
Click and Drag to see Timp Peak’s All-New Carbon Frame
Industry Reviews
"The new Ari Bikes Timp Peak has left a powerful impression. Maybe it’s the longer travel, it’s perhaps the 800wh battery, or the new Bosch Gen 5 motor, but I suspect it’s a mix of many things that have made this new Timp Peak such a blast to ride."
"It's a bike that morphs well to terrain or how you want to ride. It leans more towards being a poppy, lively, machine-built bike park trail destroyer, but holds its own in rough tech."
"There is nothing you are going to need to change on this bike even if you are a discerning rider."
The best experience for every rider.
Discover the benefits of our direct-to-consumer model, including exclusive discounts, direct communication with our experts, and a hassle-free purchasing process.
Learn More +
Direct to you, the rider
The best bang for your buck. Save up to 40% when buying directly from us, the manufacture.
A warranty that lasts a lifetime
Riding a bike should be an enjoyable and worry-free experience. That's why we offer the best lifetime warranty in the industry.
Custom fit to your body
Give us a few quick measurements and then we custom fit the bike to you. It makes all the difference!
Build Specs
Each Ari bike is built with the best components in a given category so you get the most bang for the buck. Each model has different build specs to choose from usually ranging in good, better, best order.
Comparison TableBuild Level
Specifications
| Timp Peak Comp | Timp Peak Elite | Timp Peak Pro | Timp Peak Team | Timp Peak Frameset & Shock |
|---|---|---|---|---|
|
Price $6,899 $7,499 |
Price $8,099 $8,999 |
Price $9,099 $9,999 |
Price $10,549 $11,999 |
Price $6,349 $6,499 |
|
frame Ari Timp Peak 2.0 CleanCast™ carbon frame, 4-way adjustable TetraLink™ suspension platform, 170mm travel, 29er or mullet compatible, tube-in-tube cable routing, Bosch PowerMore 250 range extender compatible |
frame Ari Timp Peak 2.0 CleanCast™ carbon frame, 4-way adjustable TetraLink™ suspension platform, 170mm travel, 29er or mullet compatible, tube-in-tube cable routing, Bosch PowerMore 250 range extender compatible |
frame Ari Timp Peak 2.0 CleanCast™ carbon frame, 4-way adjustable TetraLink™ suspension platform, 170mm travel, 29er or mullet compatible, tube-in-tube cable routing, Bosch PowerMore 250 range extender compatible |
frame Ari Timp Peak 2.0 CleanCast™ carbon frame, 4-way adjustable TetraLink™ suspension platform, 170mm travel, 29er or mullet compatible, tube-in-tube cable routing, Bosch PowerMore 250 range extender compatible |
frame Ari Timp Peak 2.0 CleanCast™ carbon frame, 4-way adjustable TetraLink™ suspension platform, 170mm travel, 29er or mullet compatible, tube-in-tube cable routing, Bosch PowerMore 250 range extender compatible |
|
fork Marzocchi Bomber Z, 29, 170mm travel, Boost 15x110 , 44mm offset, tapered steerer - Black |
fork Rockshox ZEB Ultimate RC2, Charger 3.2, Linear XL W/ Buttercups, 170mm travel, 15x110 Axle, 44mm offset, tapered steerer |
fork Rockshox ZEB Ultimate RC2, Charger 3.2, Linear XL W/ Buttercups, 170mm travel, 15x110 Axle, 44mm offset, tapered steerer |
fork Rockshox ZEB Ultimate RC2, Charger 3.2, Linear XL W/ Buttercups, 170mm travel, 15x110 Axle, 44mm offset, tapered steerer |
fork Available Separately |
|
rear shock Marzocchi Bomber Air, Sweep-Adjust Compression, EVOL Large Volume Sleeve, 230x65, MCU Bottom-Out Bumper, Custom Tuned |
rear shock RockShox Vivid Ultimate RC2T, Linear XL, Hydraulic Bottom Out, 230x65, Custom Tuned |
rear shock RockShox Vivid Ultimate RC2T, Linear XL, Hydraulic Bottom Out, 230x65, Custom Tuned |
rear shock RockShox Vivid Ultimate RC2T, Linear XL, Hydraulic Bottom Out, 230x65, Custom Tuned |
rear shock RockShox Vivid Ultimate RC2T, Linear XL, Hydraulic Bottom Out, 230x65, Custom Tuned |
|
drivetrain Shimano Deore, 12-Speed |
drivetrain SRAM GX Eagle Transmission, 12-Speed |
drivetrain SRAM X0 Eagle Transmission, Wireless, 12-Speed |
drivetrain SRAM XX Eagle Transmission, Wireles, 12-Speed |
drivetrain N/A |
|
wheels Crankbrothers Synthesis Alloy V2 29, (Size Small: 29/27.5), Carbon wheel upgrade available at checkout |
wheels Crankbrothers Synthesis Alloy V2 29, (Size Small: 29/27.5), Carbon wheel upgrade available at checkout |
wheels DT Swiss HX 1700 Spline 29, (Size Small: 29/27.5), Carbon wheels upgrade available at checkout |
wheels Crankbrothers Synthesis E-MTB Carbon, 29, Disc Specific, Tubeless Ready |
wheels N/A |
|
brakes TRP EVO Expert, 2.3mm 220/220mm |
brakes TRP EVO PRO, 2.3mm 220/220mm |
brakes SRAM Maven Silver, HS2 200/200mm |
brakes SRAM Maven Ultimate, HS2 200/200mm |
brakes N/A |
|
sizes S,M,L,XL |
sizes S,M,L,XL |
sizes S,M,L,XL |
sizes S,M,L,XL |
sizes S,M,L,XL |
|
headset Cane Creek 40 Series ZS ZS56/ZS56 |
headset Cane Creek 40 Series ZS ZS56/ZS56 |
headset Cane Creek 40 Series ZS ZS56/ZS56 |
headset Cane Creek 40 Series ZS ZS56/ZS56 |
headset Cane Creek 40 Series ZS ZS56/ZS56 |
|
shifters Shimano Deore Trigger, 12-Speed |
shifters SRAM AXS Pod |
shifters SRAM AXS Pod |
shifters SRAM AXS Pod |
shifters N/A |
|
front derailleur N/A |
front derailleur N/A |
front derailleur N/A |
front derailleur N/A |
front derailleur N/A |
|
rear derailleur Shimano Deore, 12-Speed |
rear derailleur SRAM GX Eagle Transmission, Wireless, 12-Speed |
rear derailleur SRAM X0 Eagle Transmission, 12-Speed |
rear derailleur SRAM XX Eagle Transmission, 12-Speed |
rear derailleur N/A |
|
cassette Shimano Deore, 10-51T, 12-Speed |
cassette SRAM CS-XS-1275 T-Type Eagle, 10-52t, 12-speed |
cassette SRAM XS-1295 XO Eagle, T-Type, 10-52t, 12-speed |
cassette SRAM XS-1297 XX Eagle, 10-52t, 12-speed |
cassette N/A |
|
crank Praxis Type 2 Alloy (BDU38), S-L: 155mm, XL: 160mm |

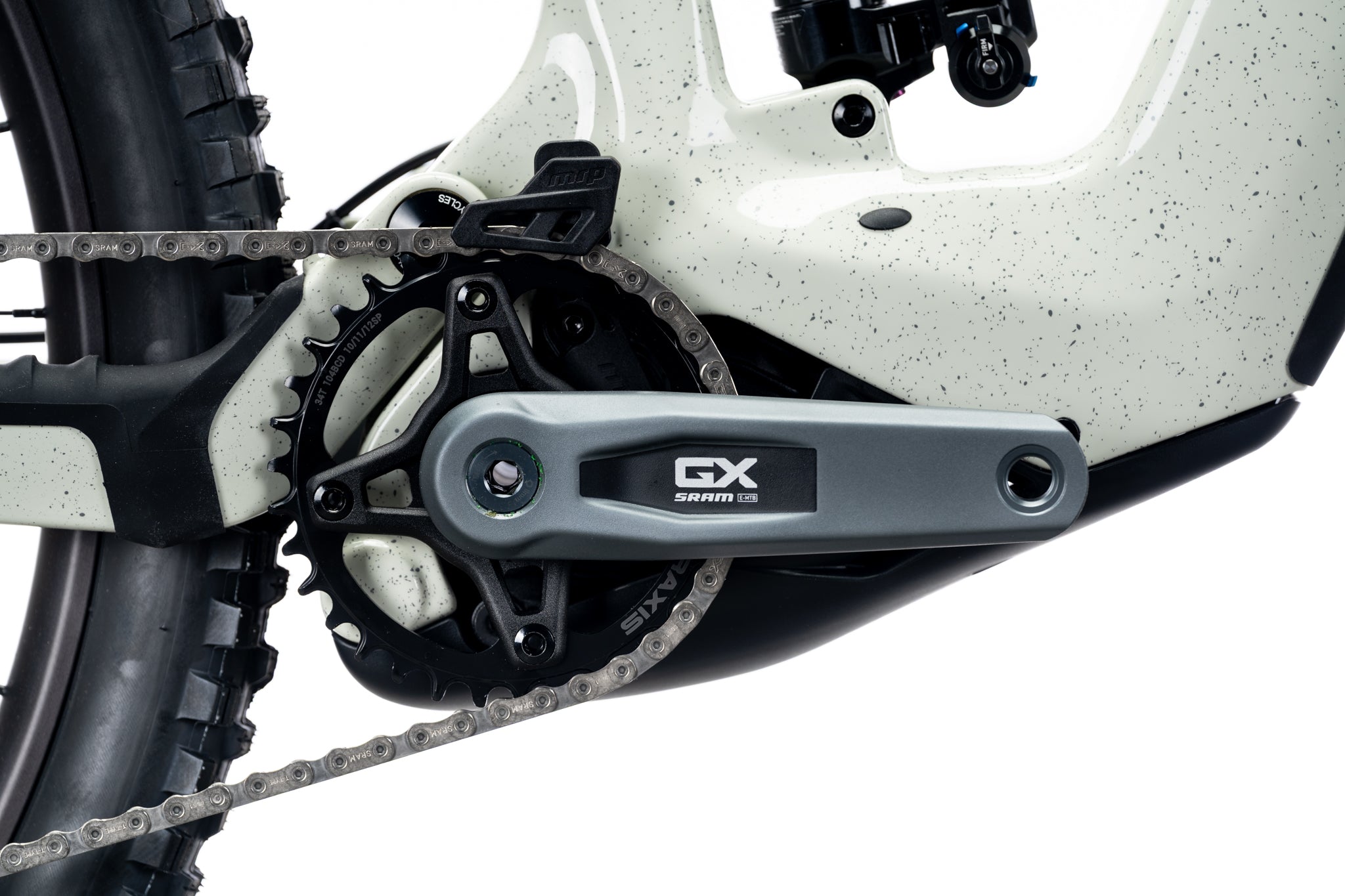

crank SRAM GX (BDU38), S-L: 155mm, XL: 160mm |
crank SRAM X0 (BDU38), S-L: 155mm, XL: 160mm |
crank Praxis Carbon BDU38 Alloy, S-L: 155mm, XL: 160mm |
crank Praxis Carbon BDU38 Alloy, S-L: 155mm, XL: 160mm |
|
chainrings Praxis E-Spider Bosch BDU38, 104BCD, 34T, Steel |
chainrings Praxis E-Spider Bosch BDU38, 104BCD, 34T, Steel |
chainrings Praxis E-Spider Bosch BDU38, 104BCD, 34T, Steel |
chainrings Praxis E-Spider Bosch BDU38, 104BCD, 34T, Steel |
chainrings Praxis E-Spider Bosch BDU38, 104BCD, 34T, Steel |
|
drive unit Bosch Performance Line CX Gen 5 (BDU38) |
drive unit Bosch Performance Line CX Gen 5 (BDU38) |
drive unit Bosch Performance Line CX Gen 5 (BDU38) |
drive unit Bosch Performance Line CX Gen 5 (BDU38) |
drive unit Bosch Performance Line CX Gen 5 (BDU38) |
|
battery Bosch PowerTube 800, range extender available at check-out |
battery Bosch PowerTube 800, range extender available at check-out |
battery Bosch PowerTube 800, range extender available at check-out |
battery Bosch PowerTube 800, range extender available at check-out |
battery Bosch PowerTube 800, range extender available at check-out |
|
chain Shimano Deore, 12-Speed |
chain SRAM GX Eagle Transmission, T-Type, 12-speed |
chain SRAM X0 Eagle Transmission, T-Type, 12-speed |
chain SRAM XX Eagle Transmission, T-Type, 12-speed |
chain N/A |
|
handlebars Ari Team 35, width 780/800mm, 25mm/35mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup |
handlebars Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup |
handlebars Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup |
handlebars Raceface ERA 35mm, bar-customized sizing through Ari Custom Setup™ |
handlebars N/A |
|
stem Ari Charger CNC 35 stem |
stem Ari Charger CNC 35 stem |
stem Ari Charger CNC 35 stem |
stem Raceface Turbine Stem |
stem N/A |
|
tape/grips ODI Elite Pro |
tape/grips ODI Elite Pro |
tape/grips ODI Elite Pro |
tape/grips ODI Elite Pro |
tape/grips N/A |
|
saddle Ergon SM10 |
saddle Ergon SM10 |
saddle Ergon SM10 |
saddle Ergon SM10 |
saddle N/A |
|
seatpost TranzX JD-YSI05J w/ Travel Adj. Dropper, 31.6mm- customized sizing through Ari Custom Setup |
seatpost TranzX JD-YSI05J w/ Travel Adj. Dropper, 31.6mm- customized sizing through Ari Custom Setup |
seatpost Oneup V3 Dropper, 31.6mm- customized sizing through Ari Custom Setup |
seatpost Fox Transfer Performance Elite Dropper, 31.6mm- customized sizing through Ari Custom Setup |
seatpost N/A |
|
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
pedals N/A |
|
rims Crankbrothers Synthesis Alloy V2 Tuned Wheel System, 29, F: 28 Hole, R: 32 Hole, Tubeless ready, (Size Small: 29/27.5) |
rims Crankbrothers Synthesis Alloy V2 Tuned Wheel System, 29, F: 28 Hole, R: 32 Hole, Tubeless ready, (Size Small: 29/27.5) |
rims DT Swiss HX 1700, 29, Tubeless ready, (Size Small: 29/27.5) |
rims Crankbrothers Synthesis E-MTB Carbon, 29, 30mm, F: 28 Hole, R: 32 Hole, Disc, Tubeless Ready |
rims N/A |
|
hubs F: Crankbrothers EMTB Ratchet 28H, Disc, 15x110 thru axle, R: Crankbrothers EMTB Ratchet 36T 32H, Disc, 12x148 thru axle, MicroSpline |
hubs F: Crankbrothers EMTB Ratchet 28H, Disc, 15x110 thru axle, R: Crankbrothers EMTB Ratchet 36T 32H, Disc, 12x148 thru axle, XD |
hubs F: DT Swiss 350 E-Specific, Disc, 15x110 thru axle, R: DT Swiss 350 Ratchet System 24 E-Specific, Disc, 12x148 thru axle, XD |
hubs F: Crankbrothers Ratchet 6-Bolt Disc, 28H 15x110 Thru Axle, R: Crankbrothers Synthesis Ratchet 6-Bolt Disc, 32H, 148x12mm thru axle, XD |
hubs N/A |
|
spokes Pillar PSB34 J-Bend |
spokes Pillar PSB34 J-Bend |
spokes DT Swiss Hybrid 1 Straightpull |
spokes Sapim Race |
spokes N/A |
|
tires F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready, (Size Small R: Minion DHR II, 27x2.5WT, 3C, MaxxTerra, DH, TR Protection) |
tires F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready, (Size Small R: Minion DHR II, 27.5x2.5WT, 3C, MaxxTerra, DH, TR Protection) |
tires F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready, (Size Small R: Minion DHR II, 27.5x2.5WT, 3C, MaxxTerra, DH, TR Protection) |
tires F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready |
tires N/A |
|
tubes Maxxis 29x1.9/2.5, (Small: 29/27.5x2.5) Presta, Tubeless setup available after adding bike to cart |
tubes Maxxis 29x1.9/2.5, (Small: 29/27.5x2.5) Presta, Tubeless setup available after adding bike to cart |
tubes Maxxis 29x1.9/2.5, (Small: 29/27.5x2.5) Presta, Tubeless setup available after adding bike to cart |
tubes Maxxis 29x1.9/2.5 Presta, Tubeless setup available after adding bike to cart |
tubes N/A |
|
extras Chainguide: MRP 1x CS2 32-36T |
extras Bosch Kiox 400c Display, Chainguide: MRP 1x CS2 32-36T |
extras Bosch Kiox 400c Display, Chainguide: MRP 1x CS2 32-36T |
extras Bosch Kiox 400c Display, Chainguide: MRP 1x CS2 32-36T |
extras Chainguide: MRP 1x CS2 32-36T |
Specifications
build
Comp
Price
$6,899
$7,499
frame
Ari Timp Peak 2.0 CleanCast™ carbon frame, 4-way adjustable TetraLink™ suspension platform, 170mm travel, 29er or mullet compatible, tube-in-tube cable routing, Bosch PowerMore 250 range extender compatible
fork
Marzocchi Bomber Z, 29, 170mm travel, Boost 15x110 , 44mm offset, tapered steerer - Black
rear shock
Marzocchi Bomber Air, Sweep-Adjust Compression, EVOL Large Volume Sleeve, 230x65, MCU Bottom-Out Bumper, Custom Tuned
drivetrain
Shimano Deore, 12-Speed
wheels
Crankbrothers Synthesis Alloy V2 29, (Size Small: 29/27.5), Carbon wheel upgrade available at checkout
brakes
TRP EVO Expert, 2.3mm 220/220mm
sizes
S,M,L,XL
headset
Cane Creek 40 Series ZS ZS56/ZS56
shifters
Shimano Deore Trigger, 12-Speed
front derailleur
N/A
rear derailleur
Shimano Deore, 12-Speed
cassette
Shimano Deore, 10-51T, 12-Speed
crank
Praxis Type 2 Alloy (BDU38), S-L: 155mm, XL: 160mm
chainrings
Praxis E-Spider Bosch BDU38, 104BCD, 34T, Steel
drive unit
Bosch Performance Line CX Gen 5 (BDU38)
battery
Bosch PowerTube 800, range extender available at check-out
chain
Shimano Deore, 12-Speed
handlebars
Ari Team 35, width 780/800mm, 25mm/35mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup
stem
Ari Charger CNC 35 stem
tape/grips
ODI Elite Pro
saddle
Ergon SM10
seatpost
TranzX JD-YSI05J w/ Travel Adj. Dropper, 31.6mm- customized sizing through Ari Custom Setup
pedals
Available Separately
rims
Crankbrothers Synthesis Alloy V2 Tuned Wheel System, 29, F: 28 Hole, R: 32 Hole, Tubeless ready, (Size Small: 29/27.5)
hubs
F: Crankbrothers EMTB Ratchet 28H, Disc, 15x110 thru axle, R: Crankbrothers EMTB Ratchet 36T 32H, Disc, 12x148 thru axle, MicroSpline
spokes
Pillar PSB34 J-Bend
tires
F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready, (Size Small R: Minion DHR II, 27x2.5WT, 3C, MaxxTerra, DH, TR Protection)
tubes
Maxxis 29x1.9/2.5, (Small: 29/27.5x2.5) Presta, Tubeless setup available after adding bike to cart
extras
Chainguide: MRP 1x CS2 32-36T
*Specs are subject to change. Any substitutions will be comparable or better.
Spec Comparison
Common Questions*
Do you offer financing?
Yes, at checkout there are several options available for financing.
Who is this bike for?
A Timp Peak owner would typically be an outdoor enthusiast who enjoys off-road biking but also appreciates the added assistance an electric motor provides, especially for tackling challenging terrains and steep inclines. This individual might be looking for a blend of adventure and accessibility, allowing them to explore more rugged trails and natural settings without the same level of physical exertion required by traditional analog mountain bikes. For those seaking even more weight savings, check out the Ari Nebo Peak Electric MTB.
How long will it take to arrive?
Estimated lead times are listed under each model's size in the bike builder. Times may vary a little based on current conditions, frame size, color, and availability.
What is the battery capacity?
Timp Peak can fit either the PowerTube 600 Wh or PowerTube 800 Wh battery in the frame. The PowerMore 250 Wh range extender can also be added to every frame size for up to a 1050 Wh on-board capacity.
How long does it take to charge the battery?
A full charge will take 6-7 hours using the provided 4 Amp Bosch charger.
What charge level and temperature should I store the battery at?
For storage time less than 30 days, the battery can be stored at 100% charge at a temperature between 14F-113F. For storage times longer than 30 days, the battery should be discharged to ~70% prior to storage and kept at temperature between 14F-95F. Every 6-months, the battery should be fully charged (and then discharged to ~70% if stored for longer than 30-days again).
Will the battery be charged when the bike arrives?
The batteries on all our e-bikes are shipped in a ‘deep sleep’ mode and will have about 20%-30% charge when they arrive. Before your first ride, the battery should be fully charged. The initial charge from ‘deep sleep’ to full could take up to 24 hours as the battery’s individual cell charges are equalized. After that, it should only take 6-7 hours for a full charge.
Are the electronic components waterproof?
All the electronic components (drive unit, battery, displays, switches, etc.) are water resistant. Washing the bike with a low-pressure hose, riding through small puddles, and riding in the rain are all activities the electronics are prepared for. That said, submerging the system under water or using high pressure water to wash the bike could allow water ingress and damage the electronic components and should be avoided.
What is the Timp Peak frame made of?
The Timp Peak features a CleanCast™ carbon fiber frame. The front triangle, seat stay, chain stay, and rocker link are all made of carbon. What does that mean? Simply put, a carbon frame provides the perfect blend of stiffness, light weight, and lively riding characteristics.
Can the Timp Peak Carry a Water Bottle?
Yes. Every frame size can carry at least a 21oz bottle inside the front triangle.
What is the tire clearance on the frame?
Rear tire: 29 x 2.6 in. Front tire: suspension manufacturer dependent (typically 29 x 2.6 in).
How far can I ride?
Ah, the age-old question. The range of Timp Peak depends on several factors including: assist mode use, rider weight, terrain, ambient temperature, and rider input. In our testing, we regularly achieved 6000+ vertical climbing feet and 20-30 miles using a mix of all assist modes when using the PowerTube 800 Wh battery. With the combination of the PowerTube 800 Wh battery and PowerMore 250 Wh range extender, a 6’4’’ 240lbs rider in our test group was able to achieve 8100 vertical climbing feet in the Turbo mode.
How do I charge my e-bike battery safely?
To charge an e-bike battery safely, set up your charging station in a cool, dry area between 50°F and 77°F (10°C to 25°C), well away from direct sunlight, heating vents, and moisture. Always use the manufacturer-approved charger specifically designed for your battery to prevent electrical damage or fire hazards. Keep the immediate area clear of flammable materials like blankets, paper, or rugs, and place both the battery and charger on a hard, flat, non-combustible surface such as concrete, tile, or metal to prevent heat buildup. Ensure the room has proper ventilation to allow heat to dissipate, and keep a working smoke detector nearby while avoiding charging near primary escape routes.
How long will the battery last?
Like all lithium-ion batteries, the Timp Peak battery has a usable, non-infinite lifetime. The battery is rated to maintain at least 60% of its capacity after 500 full charge-discharge cycles. For the average rider riding 2-3 days a week, we would expect to see about a 5% capacity loss every year.
Can I charge the battery on and off the bike?
Yes, the integrated charging port on the left side of the bike near the head tube allows for the battery to be charged on the bike. If you would like to charge the battery off the bike, you can easily remove the battery from the bike and charge it. The battery must be charged at temperatures between 32F-100F. Charging outside of this window is potentially hazardous and may cause the battery to malfunction.
What adjustments can be made to the Bosch drive unit?
Riders can choose up to four active assist modes. They can also tune the support characteristics of the drive unit in the Bosch Flow App.
How fast will the Timp Peak go? Does it have a throttle? What class of e-bike is the Timp Peak?
The Timp Peak is a Class 1 e-bike. This means it will provide assistance up to 20mph in the USA and 25kph in the EU. It does not have a throttle and only provides assistance when the rider is pedaling. However, just like a non-assisted bike, your own leg power or gravity will allow the bike to move faster than the assisted limit.
What geometry adjustments does the Timp Peak have?
Four-way adjustable GA Link in the suspension linkage provide geometry adjustments to hone the Timp Peak’s handling for various types of trails. Riders can adjust chainstay length, bottom bracket height, and headtube angle via these GA Link. Headtube angles range from 63.6°- 64.4° (stock setting is 64°) and chainstay lengths can be adjusted between 437mm - 443mm.
Which shocks are compatible with the Timp Peak?
Both air and coil shocks work well on the Timp Peak. The Timp Peak uses a 230 x 65mm shock with M8 x 30mm hardware on both eyelets. Shocks from RockShox, Fox, Marzocchi, DVO, and EXT have been test fit. If you have questions about a shock fitment, please contact us.
What about service?
You can work directly with us, one of our recommended shops, or work through your local shop.
What is the guarantee?
It comes with a 30 Day Love it or Return it Guarantee.
How will it arrive?
All Ari bikes go through our Custom Setup process, making sure the bike is fit and tuned specifically to you. They are test-ridden before delivery. If your bike is shipped to you, it’s still tuned and ready to ride and requires just a few minutes of assembly.
What is the warranty?
Each frame comes with a Lifetime Warranty. Ari branded frames come with a transferable warranty as well.
How does transferable warranty on Ari bikes work?
Ari branded frames come with a transferable frame warranty available to the second owner. The second owner can receive a one-year frame warranty from the date they purchase the bike from the original owner. Warranty only transfers once. All Ari bikes must have the transfer documented from the original owner to the new owner here in order to qualify for a transferable warranty.
What kind of bike is this?

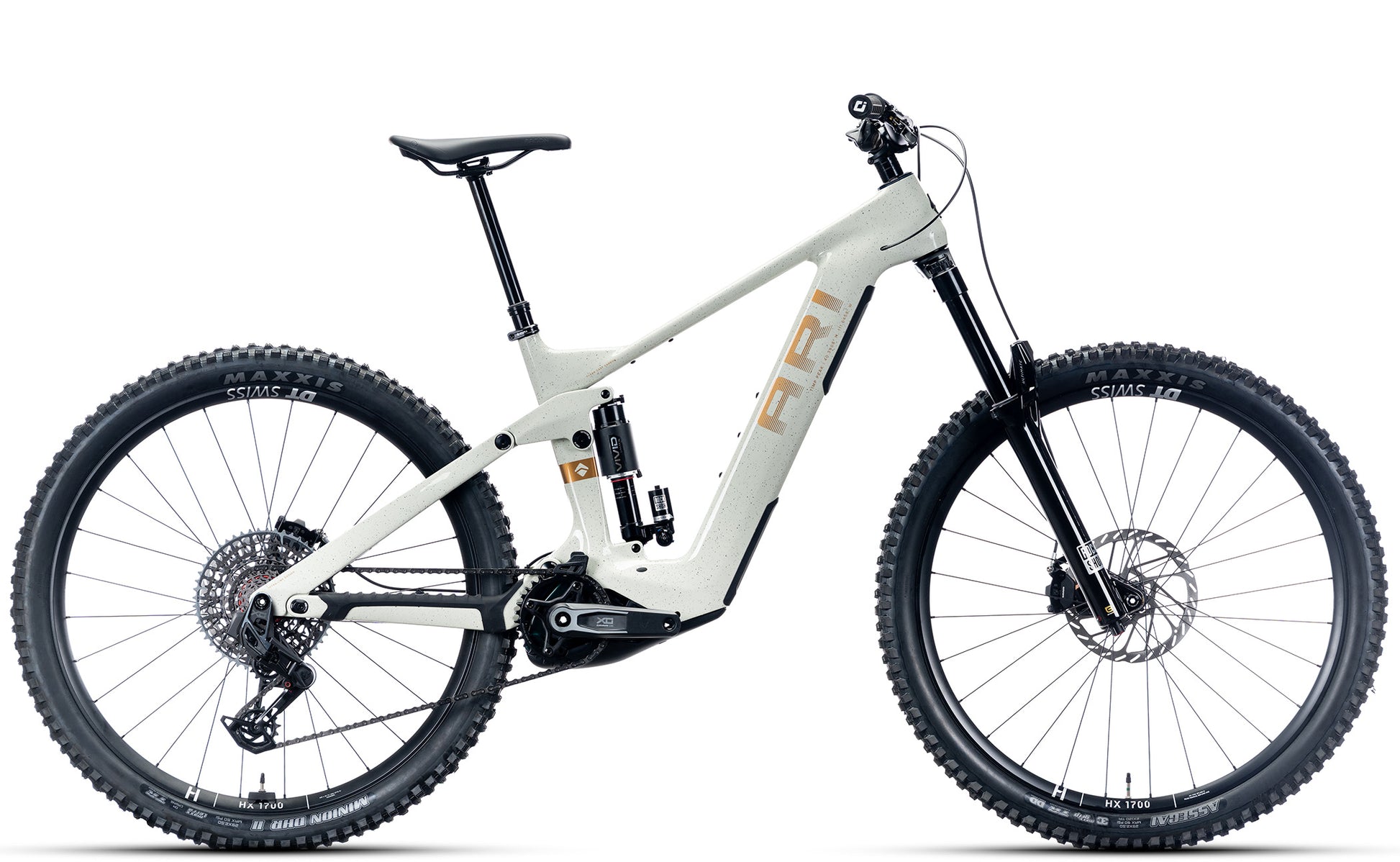

The Timp Peak is Ari’s carbon full-power enduro e-MTB. It uses the Bosch Performance Line CX Gen 5 motor (85Nm, 600W peak) and 170mm rear travel for riders who want to climb steep trails and descend rough terrain with assist. Complete bikes start at $6,249 for the Timp Peak Comp build.
How does Timp Peak compare to other Ari bikes?
Timp Peak is Ari’s carbon full-power enduro e-MTB with Bosch CX Gen 5 and 170mm rear travel. Nebo Peak is the lighter carbon trail e-MTB. Wire Peak is the aluminum full-power trail e-MTB at a lower starting price. See Nebo Peak.
How should I choose a size when buying online?
Use Ari Custom Setup and Ari will fit the bike from your body measurements. There is also a size guide in the bike builder, and the support team can help before you order. Details: Custom Fit.
What does the starting price include?
Complete bikes start at $6,249 for the Timp Peak Comp build. The listed price is the complete bike at that build level; the bike builder shows the selected options, lead time, and any upgrades before checkout.
What assembly is required when the bike arrives?
Bikes ship pre-tuned, test-ridden, and about 95% assembled. Basic at-home assembly remains, and technicians are available for help. See Support.
What do shipping, warranty, and returns actually involve?
Current terms live on the policy pages, not in this summary. Read Shipping, Warranty, Love it or Return it, and Return Policy before you buy. Outlet bikes follow different return rules.
