Setup & assembly
Your bike ships about 85% assembled. Plan on 30–45 minutes with the included tools.
Torque specs
| Diagram number | Bolt | N·m |
|---|---|---|
| 1 | System Controller Mount Bolt | 0.5 |
| 2 | Charging Port Bolts | 0.5 |
| 3 | Seatpost Collar | 4–5 |
| 4 | Shock Mount Bolt | 8 |
| 5 | Seat Stay Rocker Bolt | 10–12 |
| 6 | Seat Tube Rocker Bolt | 10–12 |
| 7 | Motor Mount Bolts | 14 |
| 8 | Motor Cover Bolts | 1.5 |
| 9 | Main Pivot Bolt | 10–12 |
| 10 | Rear Pivot Bolt | 6–8 |
| 11 | Rear Thru Axle | 10 |
| 12 | Battery Bracket Bolts | 2.5 |
| 13 | Crank Arms | 50 |
| 14 | Chain Guide | 2 |
| 15 | Chainring Lockring | 35 (Left–Hand Rotation) |
Carbon parts: always use a torque wrench and carbon assembly paste. Component makers' printed specs take priority.

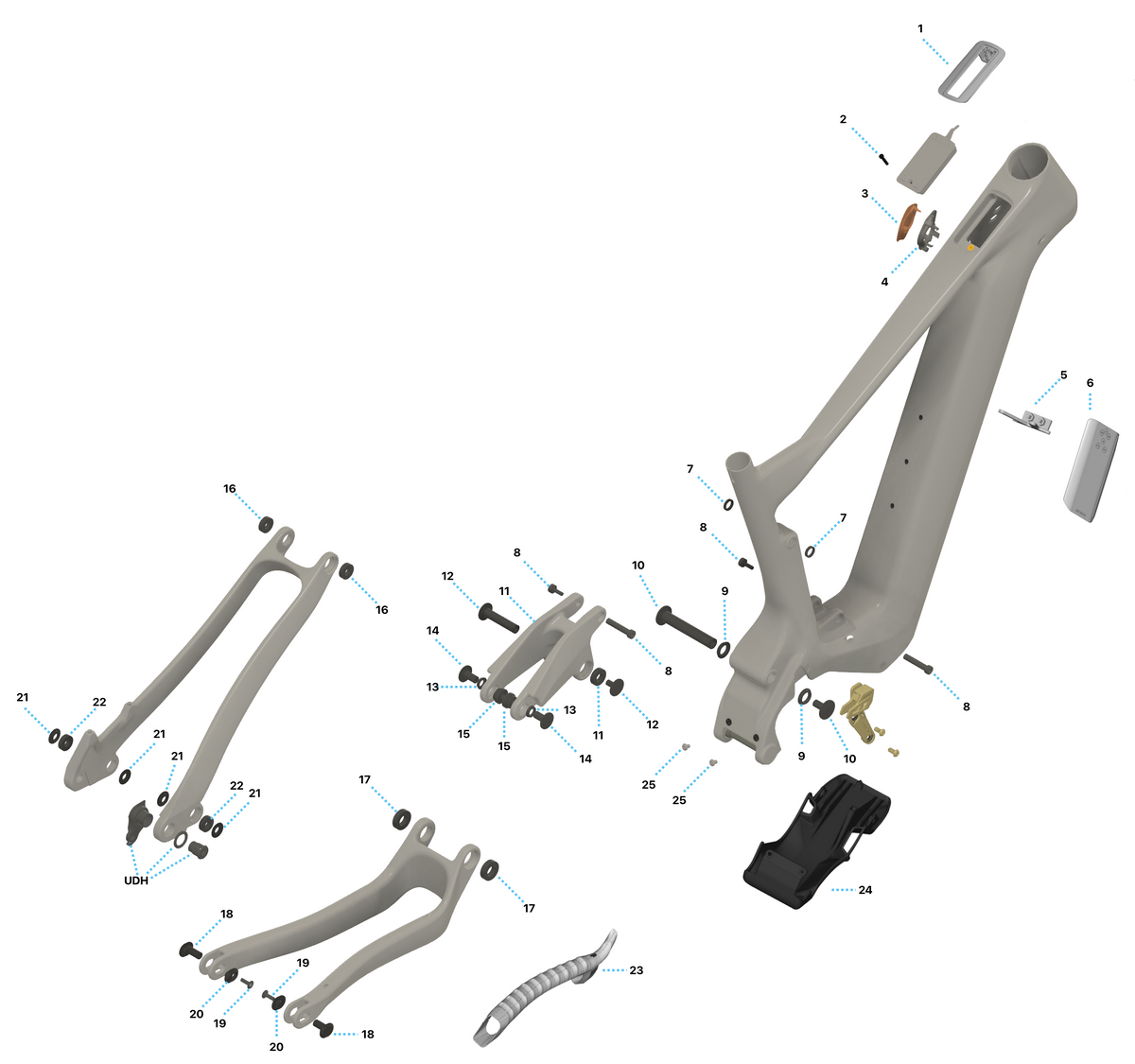

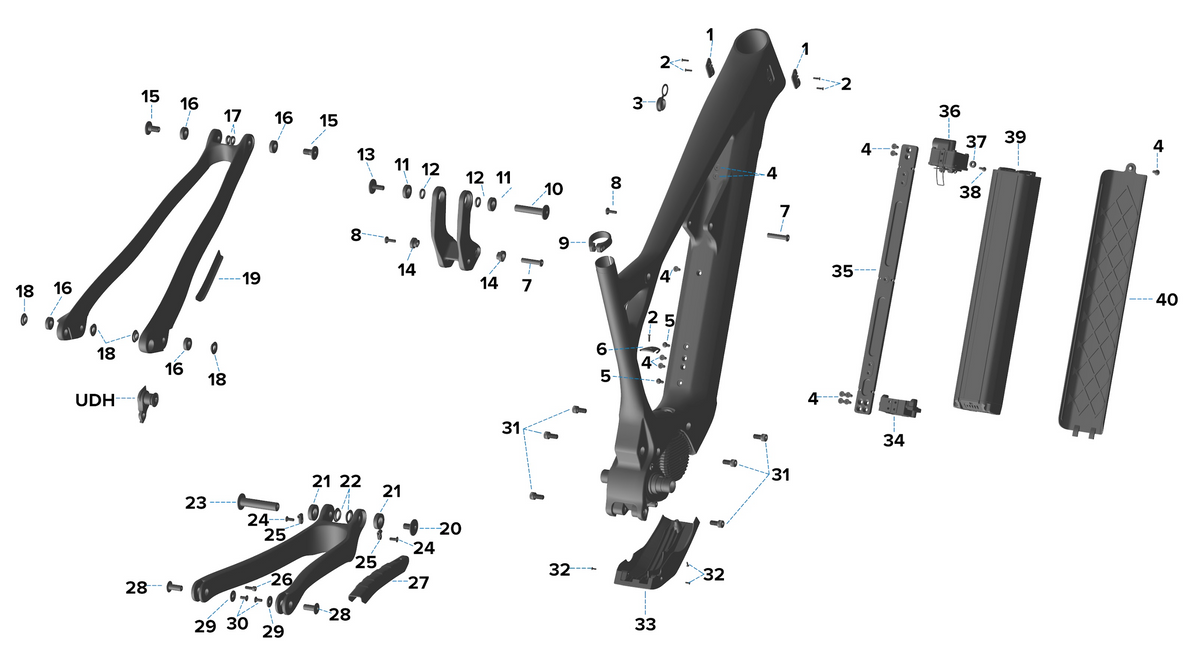

Replacement parts
UDH Derailleur Hanger
Linkage Rebuild Kit with Bearings
Geometry
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Top Tube | 573.9 | 586.4 | 612.5 | 642.1 |
| Seat Tube | 380 | 400 | 420 | 450 |
| Chainstay | 437 | 437 | 437 | 437 |
| Head Angle | 64° | 64° | 64° | 64° |
| Seat Angle (Effective)* | 78° | 78° | 78° | 78° |
| Head Tube | 100 | 105 | 115 | 130 |
| Bottom Bracket Height | 346 | 346 | 346 | 346 |
| Bottom Bracket Drop | 27 | 27 | 27 | 27 |
| Wheelbase | 1212 | 1235 | 1269 | 1300 |
| Fork Offset | 44 | 44 | 44 | 44 |
| Standover Height | 728 | 740 | 750 | 754 |
| Stack | 624.4 | 628.9 | 637.9 | 651.4 |
| Reach | 435 | 455 | 485 | 510 |
| Seat Height for Effective Seat Angle* | 600 | 660 | 720 | 780 |
| Actual Seat Angle | 69.4° | 70.6° | 71.6° | 72.3° |
| Axle to Crown | 583 | 583 | 583 | 583 |
Frame specifications

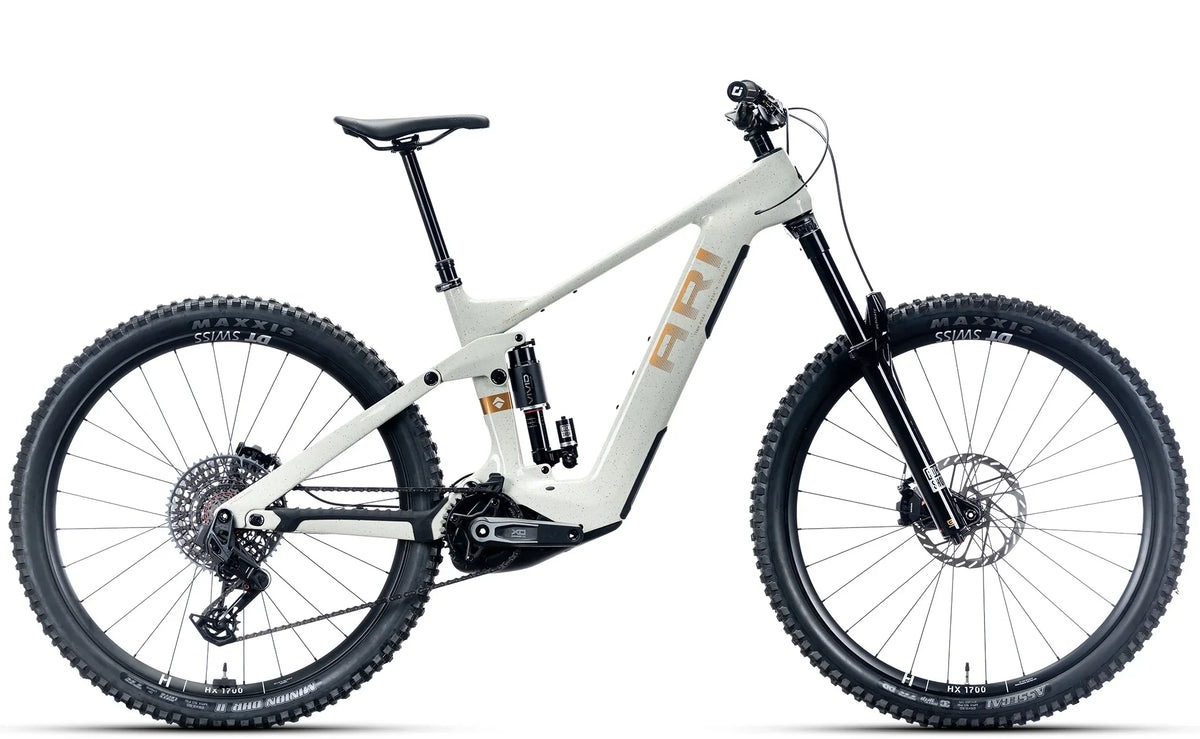

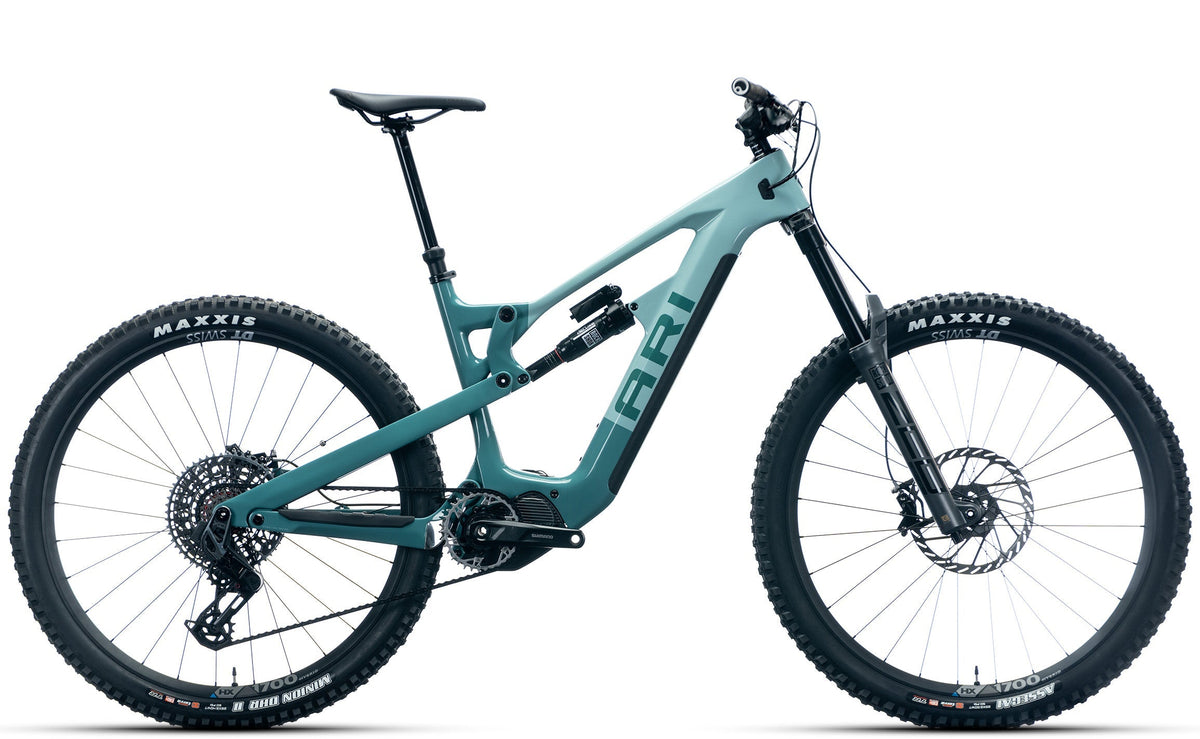

FrameTimp Peak
Wheel Size29 or 29/27.5
MaterialCarbon
Front Travel170mm
Max Fork Length606mm axle to crown
Rear Travel170mm
Tire Compatibility29x2.6, 27.5x2.8
Rear Dropout148mm (Boost)
Rear Axle174x12x1.0mm
Rear Brake Mount200 Post Mount
Bottom BracketBosch Drive Unit
Seatpost Diameter31.6mm
Seatpost Clamp Diameter34.9mm
Dropper RoutingInternal
Headset StandardZS56/ZS56
Shock Length230mm
Shock Stroke65mm
Shock Mount Hardware - FrontM8x30
Shock Mount Hardware - RearM8x30
Max Chainring36T round at 55mm Chainline
