Year-Round Adventure Rig
720Wh
Battery
Any Terrain, Including the Urban Jungle.

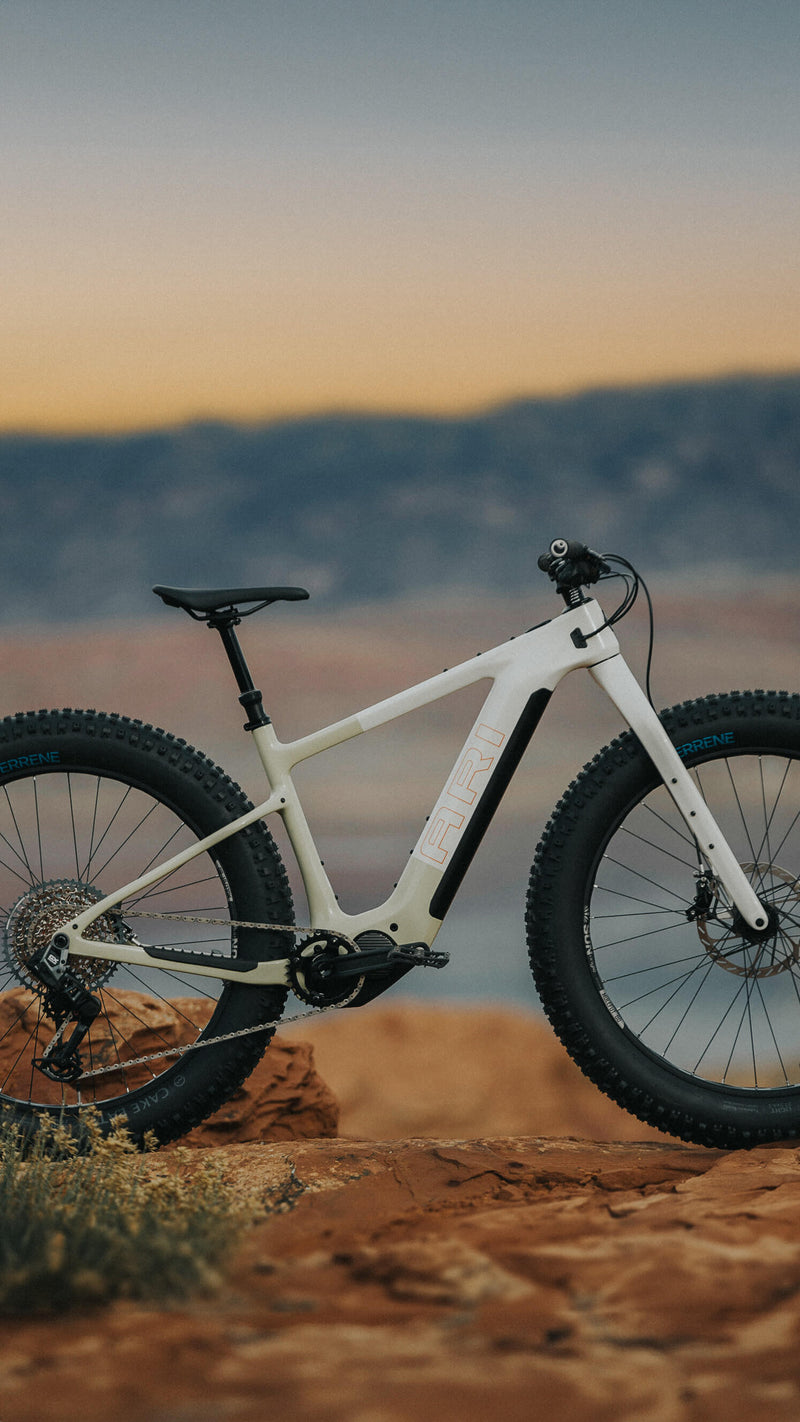

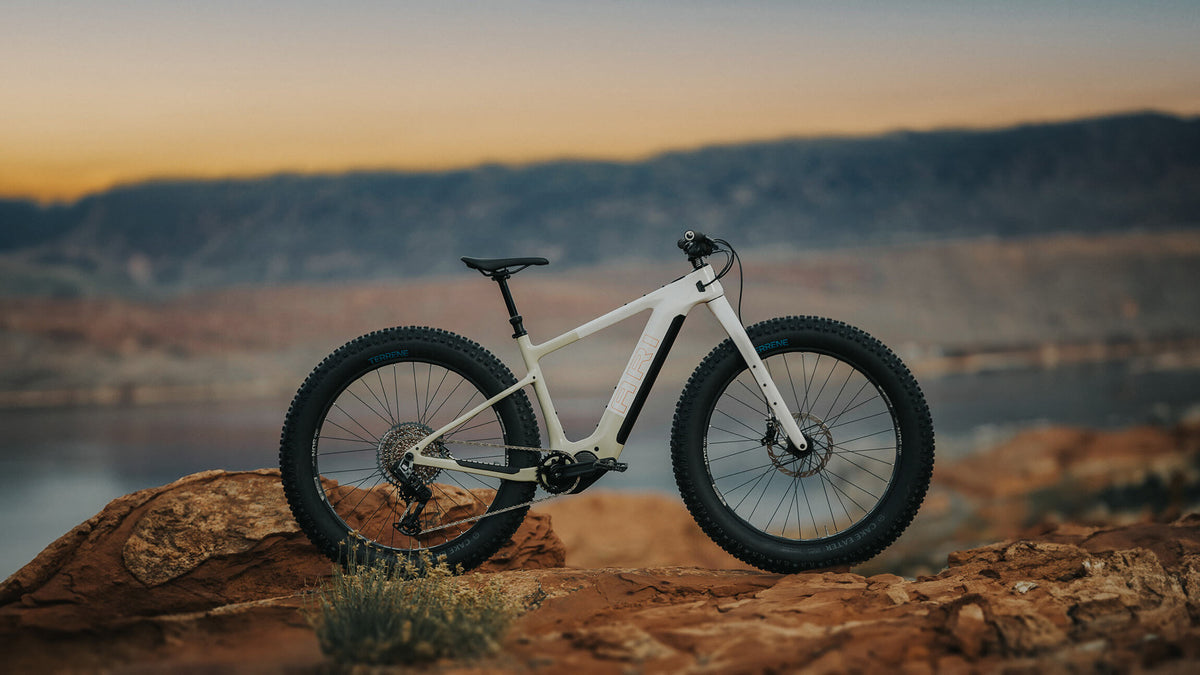

Adventure more with the Explorer Peak, our latest carbon pedal-assist e-Fat Bike. Designed for year-round fun, this bike is built to conquer varied terrains, from snow and sand dunes to trails and city streets.
Full Power, Full Carbon
67° Head Tube
Custom Motor Tuning
Experience the perfect balance of power and handling with the Explorer Peak. The Explorer Peak full-carbon frame is light, strong, and backed with our Lifetime Warranty. Full power pedal-assist allows you to get the torque you need immediately on those tricky segments of the trail.
Tackle Whatever Mother Nature Throws at You
Ride over any landscape with the Explorer Peak's progressive frame geometry. A stable 67-degree head tube angle enhances control, while the comfortable 75-degree seat tube angle ensures powerful and efficient pedaling. The low standover height accommodates riders of all sizes and allows for longer dropper seat posts. 27.5x4.5” wheels and tires roll fast and capably over loose and soft terrain and have maximum traction on hard or rocky trails.
Adventure is out there.
The Explorer Peak is the bike to get you there.
Intelligent Power Management
Ride with precision using the latest Shimano drive units. The Explorer Peak offers custom motor tuning profiles, including "Soft Terrain Mode" and "Hard Terrain Mode," allowing you to fine-tune power output to match specific terrains and situations.
Innovative Battery Technology: Extended Range and Performance
Equipped with a 720Wh battery, the Explorer Peak ensures a large range and balanced ride, and for those seeking more, an 835Wh battery upgrade is available at checkout. Using new battery cell technology, Explorer Peak batteries provide even greater energy density without increasing size.
Modern Luxuries for a Better Ride

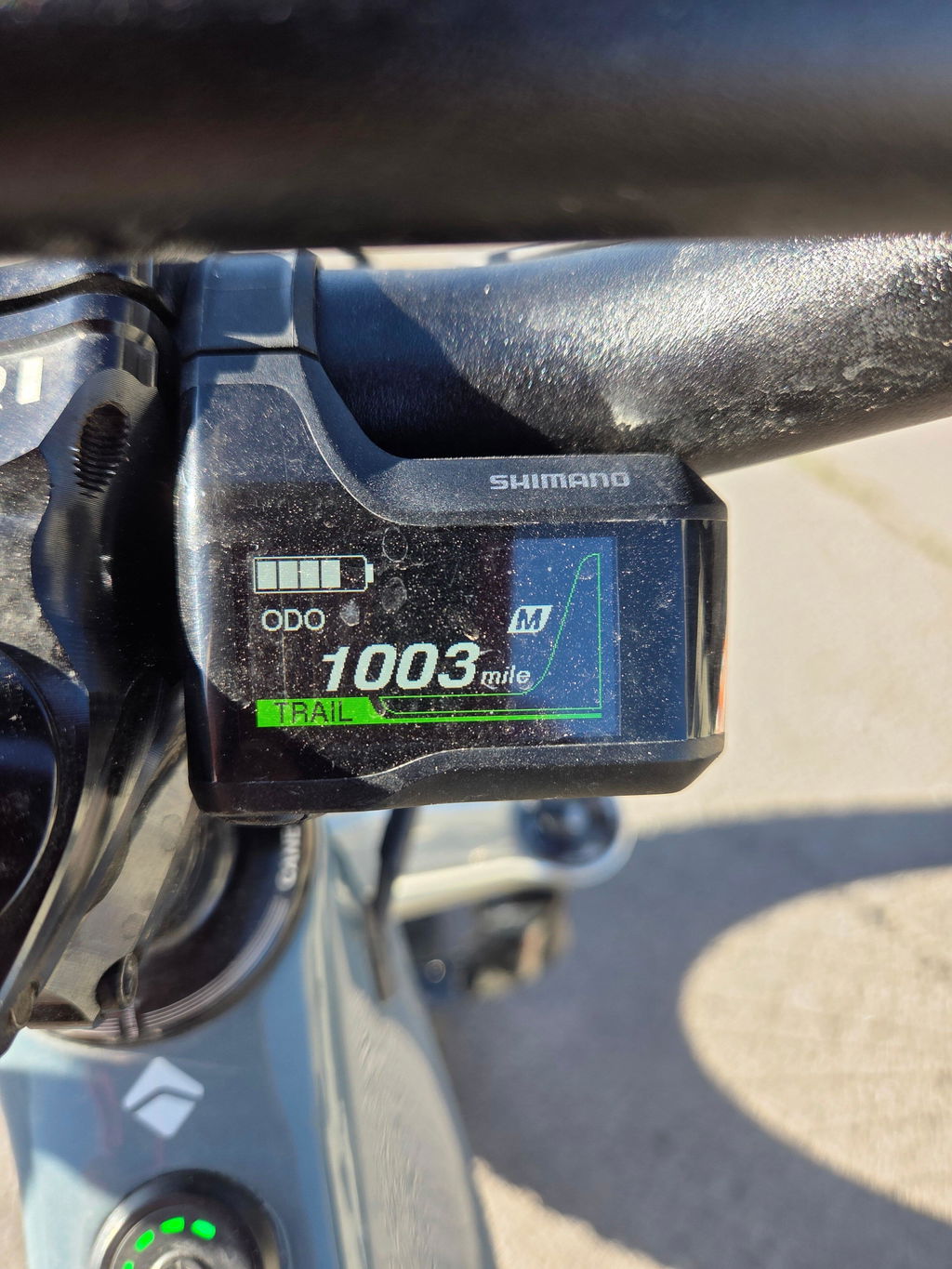

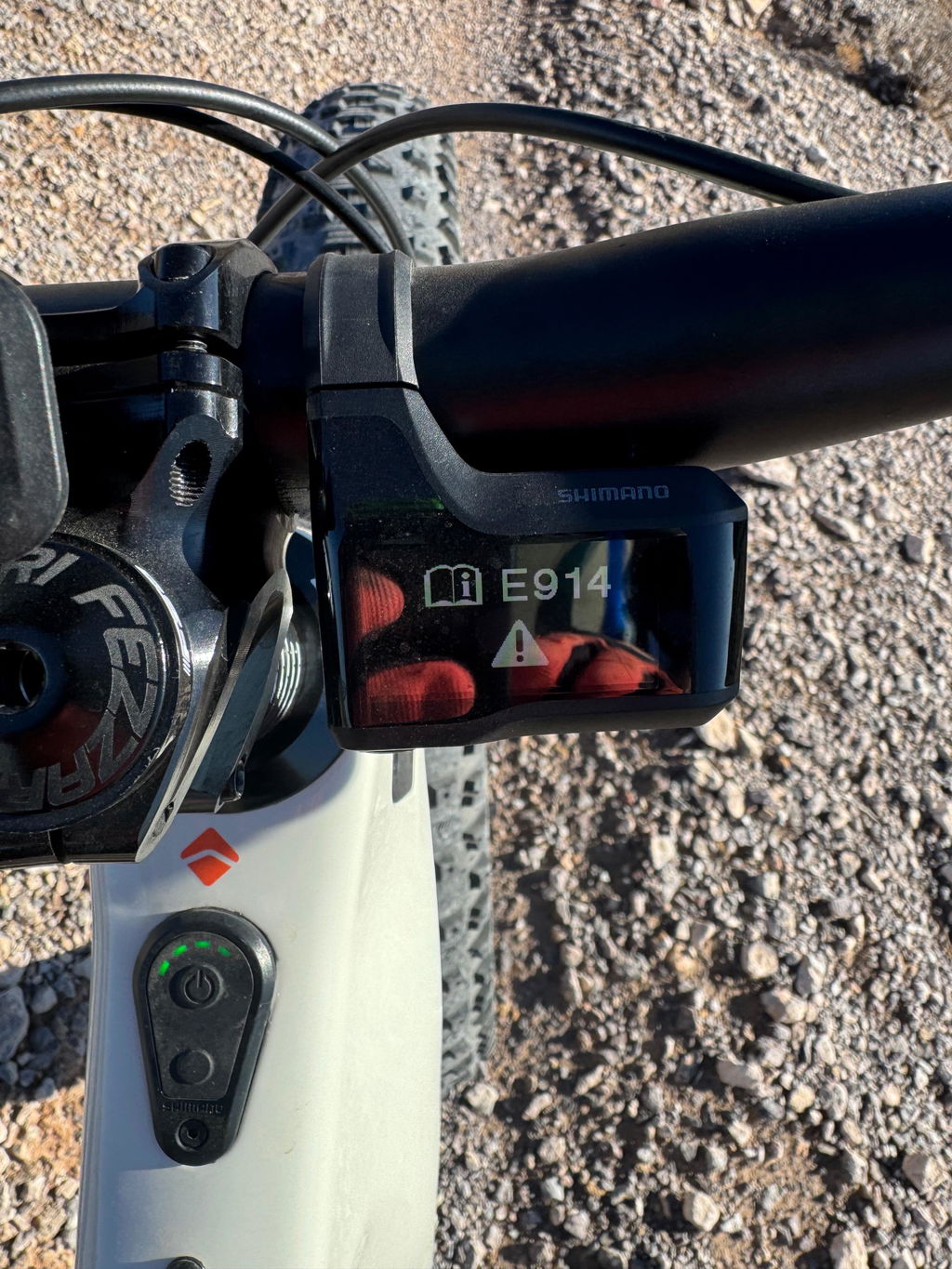

Stay in control with the new integrated top tube display, providing essential information at a glance. The internal noise-canceling design prevents cable rattle, and integrated rubber chainstay protectors reduce chain slap noise, ensuring a smooth and quiet ride. UDH derailleur hanger makes for easy service and is compatible with Transmission drivetrains.
Don’t Stop Riding When the Season Changes
The Explorer Peak is not just a bike, it's an adventure machine for all seasons. Each build option comes equipped with the essentials including powerful 4-piston brakes, 1x drivetrains, and robust tubeless-ready wheels and tires.
Go ahead, take it for a spin.
Size Specific Geo
The Wire Peak geometry is not built around one size and then shrunk or enlarged for each size like most bikes on the market. Instead, each actual angle is adjusted on each frame size to give the same effective angle.
"As you go to purchase your next bike, I encourage you to give Ari a look."
"As you go to purchase your next bike, I encourage you to give Ari a look."
"The geometry is ... revolutionary."
"Ari has smashed one deep into the bleachers."
"Ari offers one of the best warranties in the business, a 30-day money back guarantee, as well as a 23-point custom bike fit to make sure they get the right bike size for you."
"Ari has stuck to its focus on delivering a lot of value to riders without resorting to common cost-cutting measures."
"Ari has established itself as making some pretty darn good bikes, sticking to a consumer direct model, and are also extremely affordable."
"The brand relies heavily on its customer support reputation, and also offers a 30-day "Love It Or Return It" trial period and a limited lifetime warranty on all its products."
"I realized how deeply in touch Ari is with what riders want and what the industry needs."
Customer Reviews

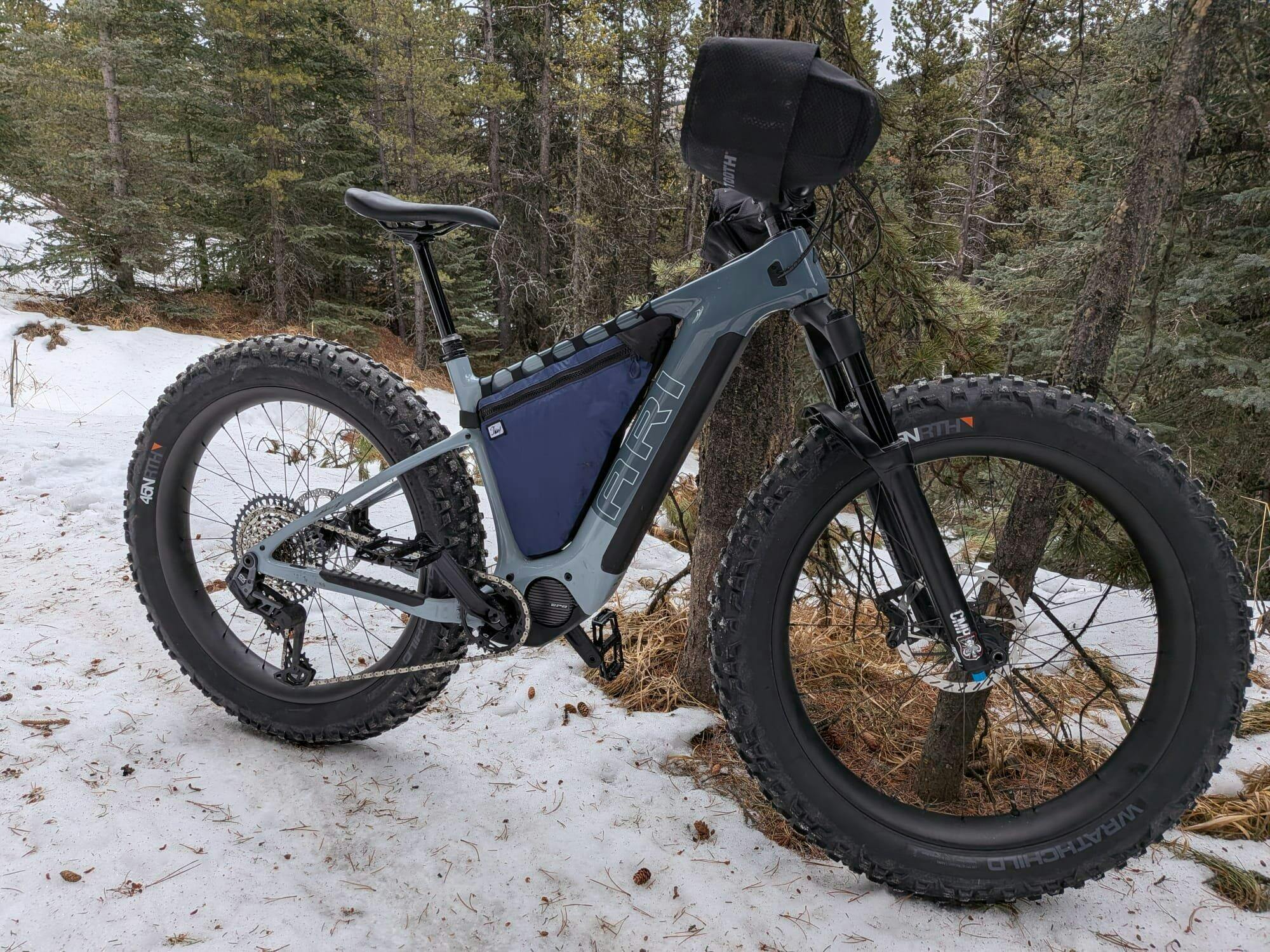

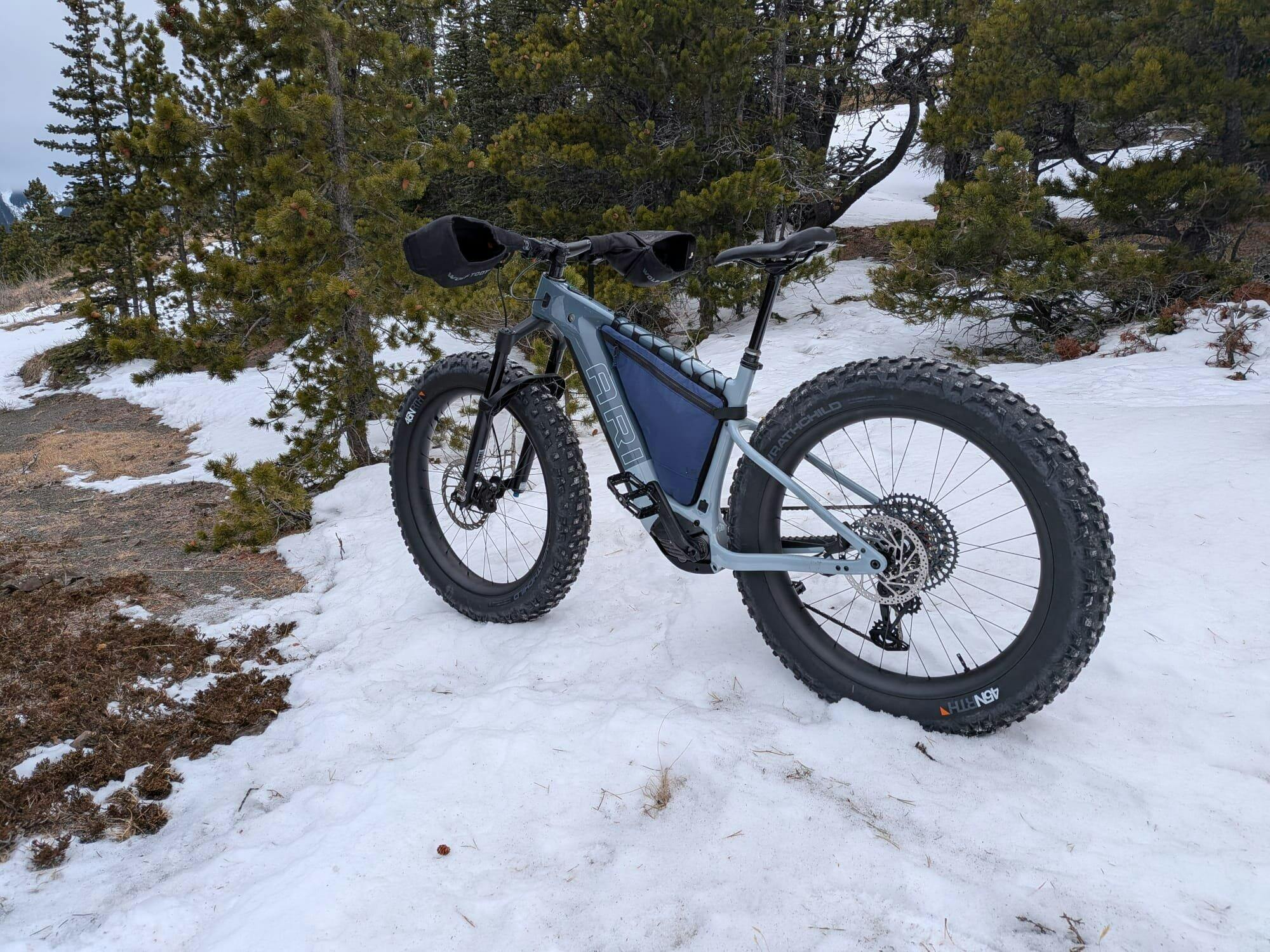

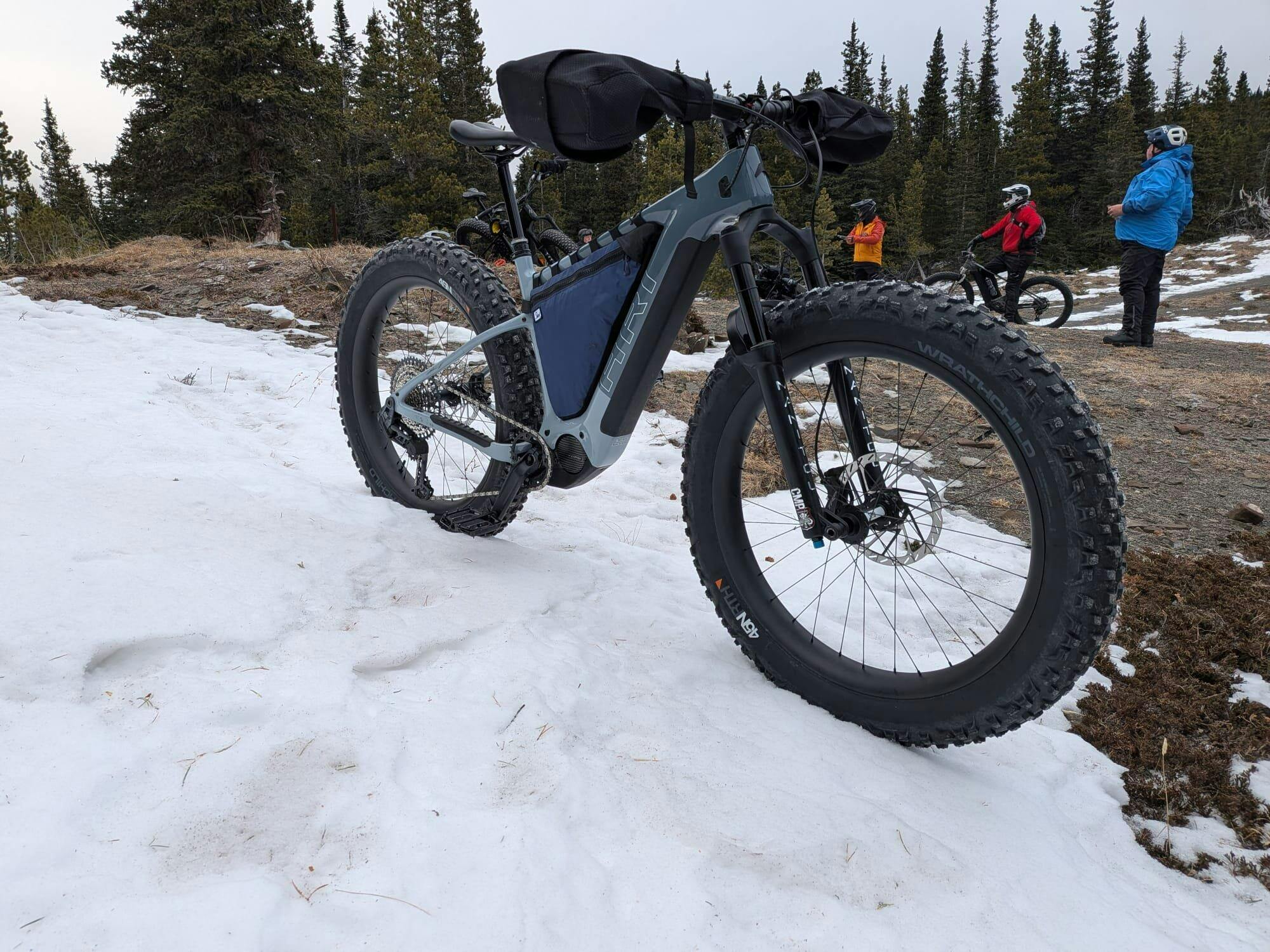

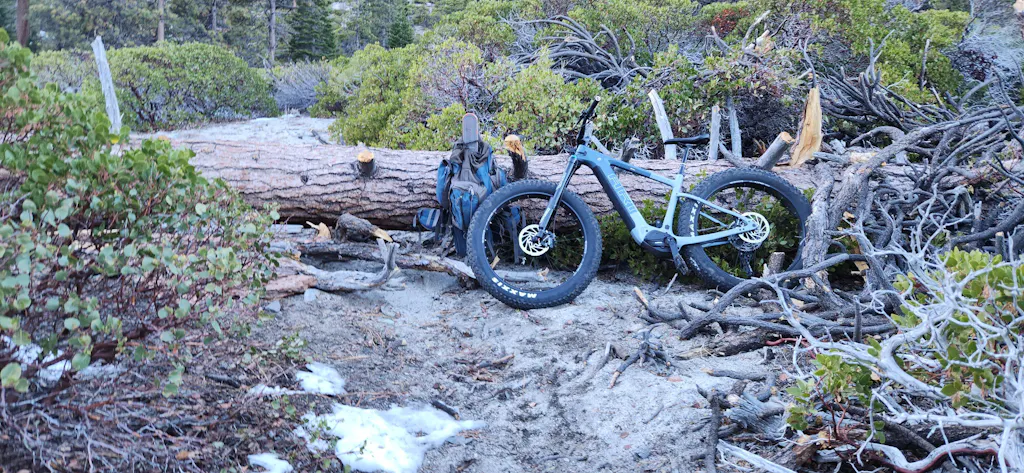

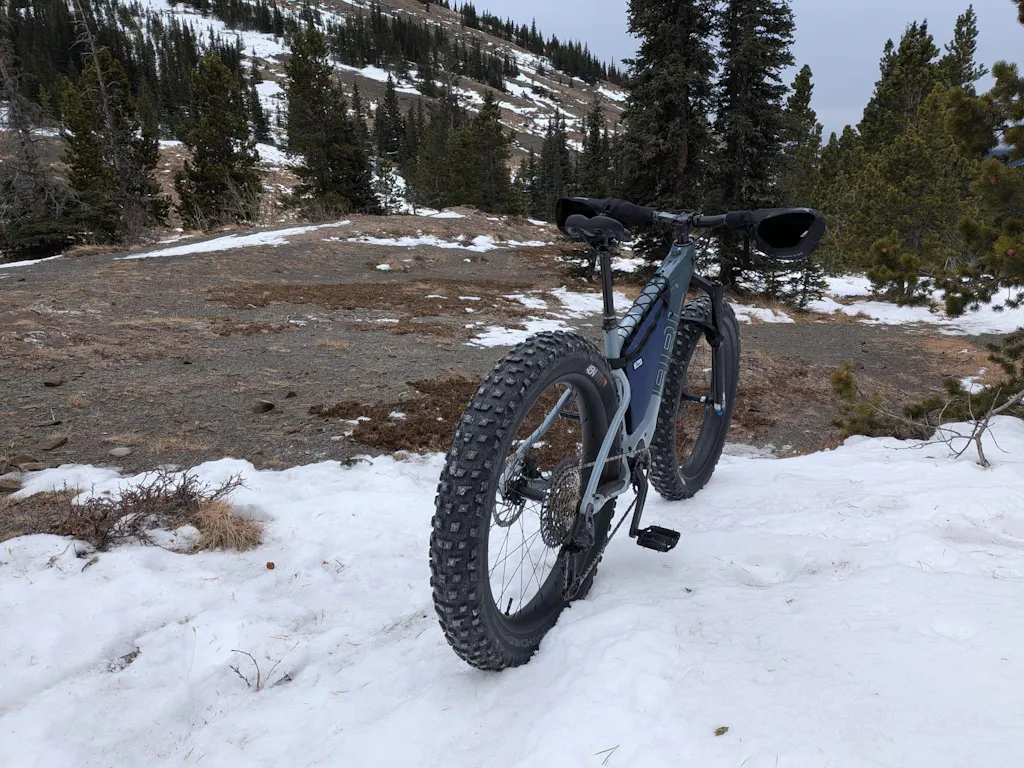

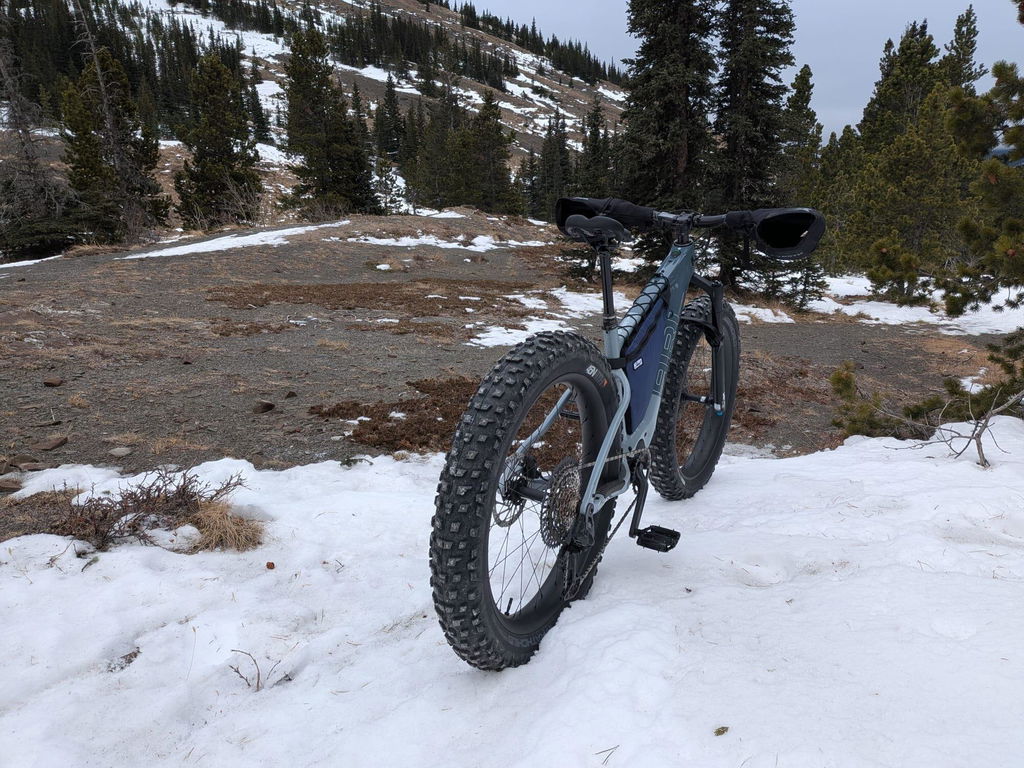

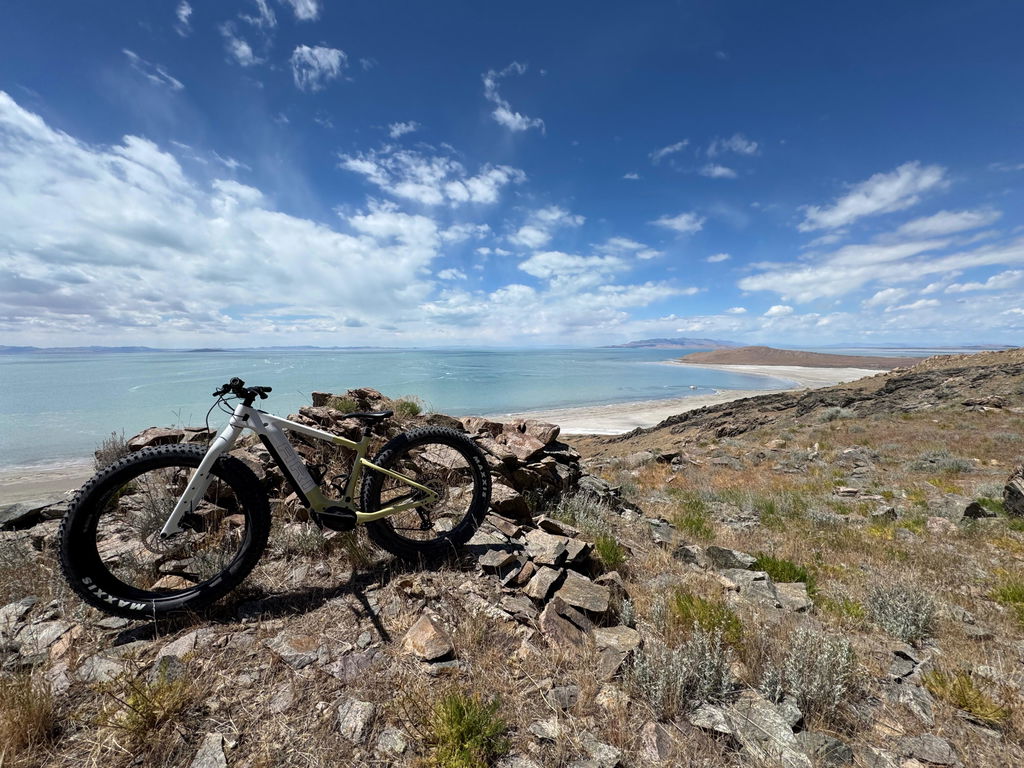

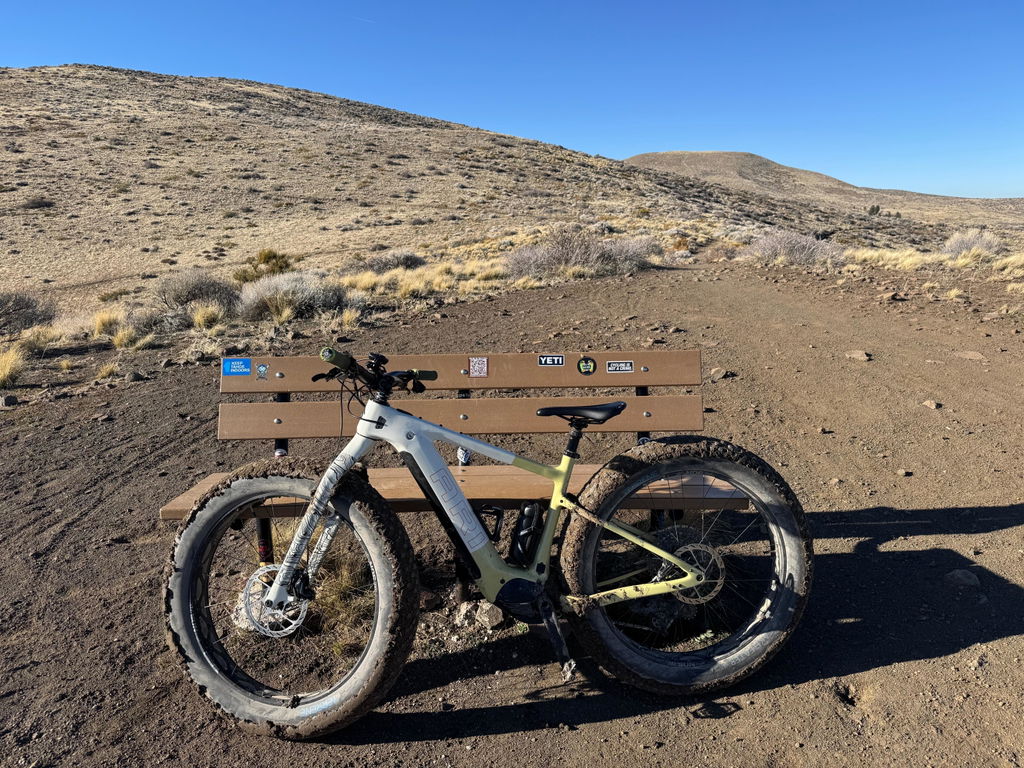

I got the bike with the plan for winter to set track faster.,Steeper and further. We'll so far it's been a great bike for that. I also use it to clear downfalls on trails with my Saws. Unstoppable Steed surefooted steed!.
So so much fun! I’ve ridden a regular fattie for years, but the eFattie brings the speed and distance back into the experience. Further, faster, funner. And the Explorer Peak is dialed in just right. Solid ascents and perfect geometry for descending. Love this thing.

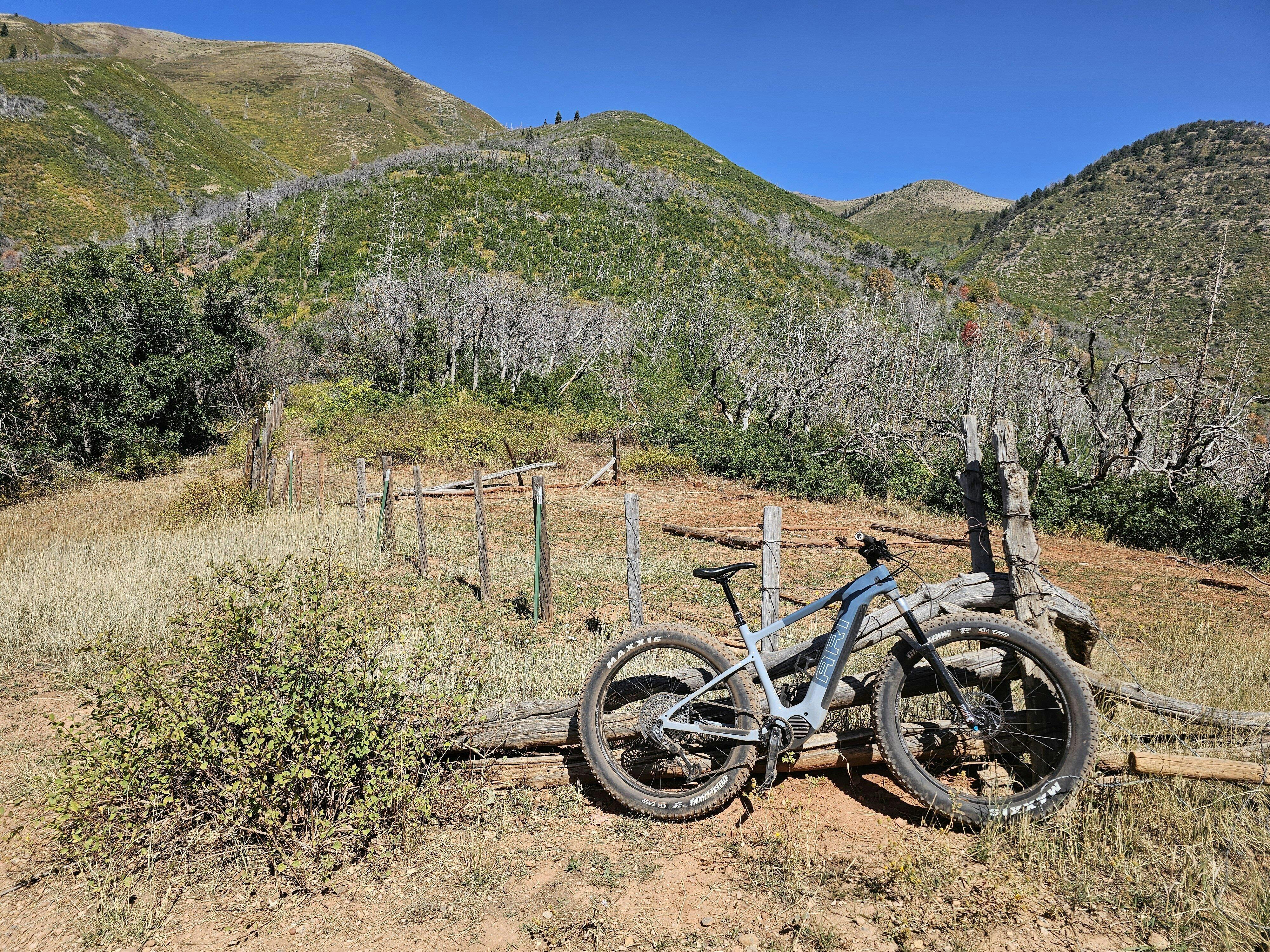

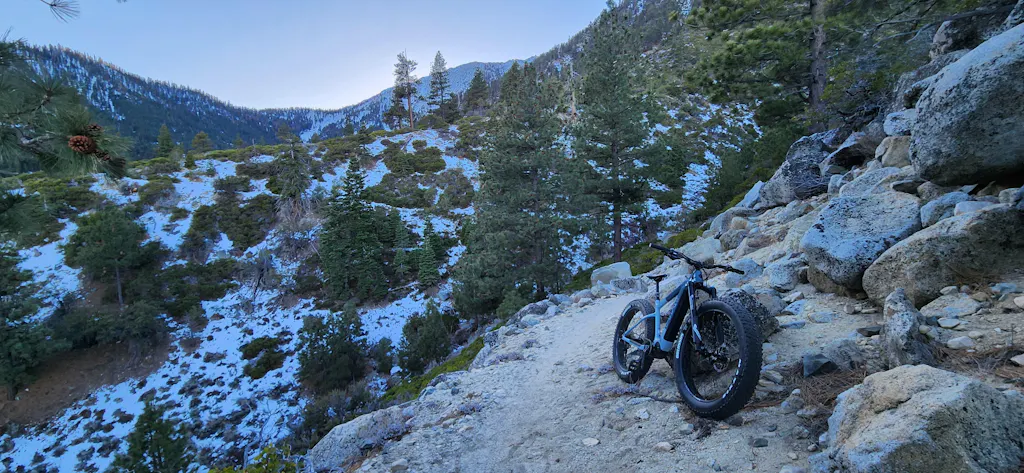

I got my Explorer Peak at the end of August 2024. I did a number of rides (250+ miles worth) on the dirt just to get it warmed up for Winter. I took this bike up trails I never would have attempted on my Delano Peak, mostly 'cuz I'm old (72) and a bit fat. I could not believe the abilities of this bike. I'm glad I ordered it with the Manitu suspension fork for some of those rocky downhills up Payson Canyon.

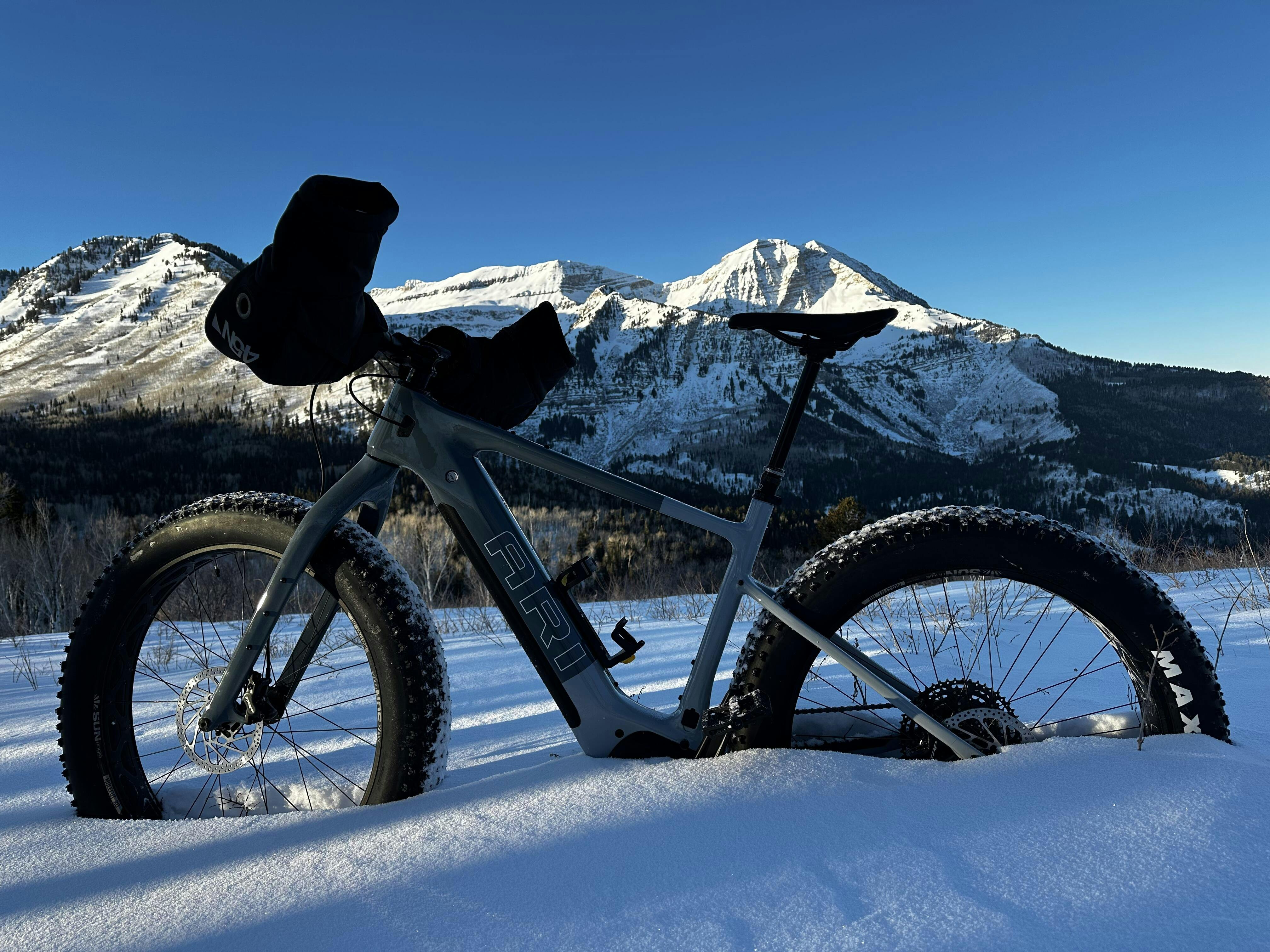

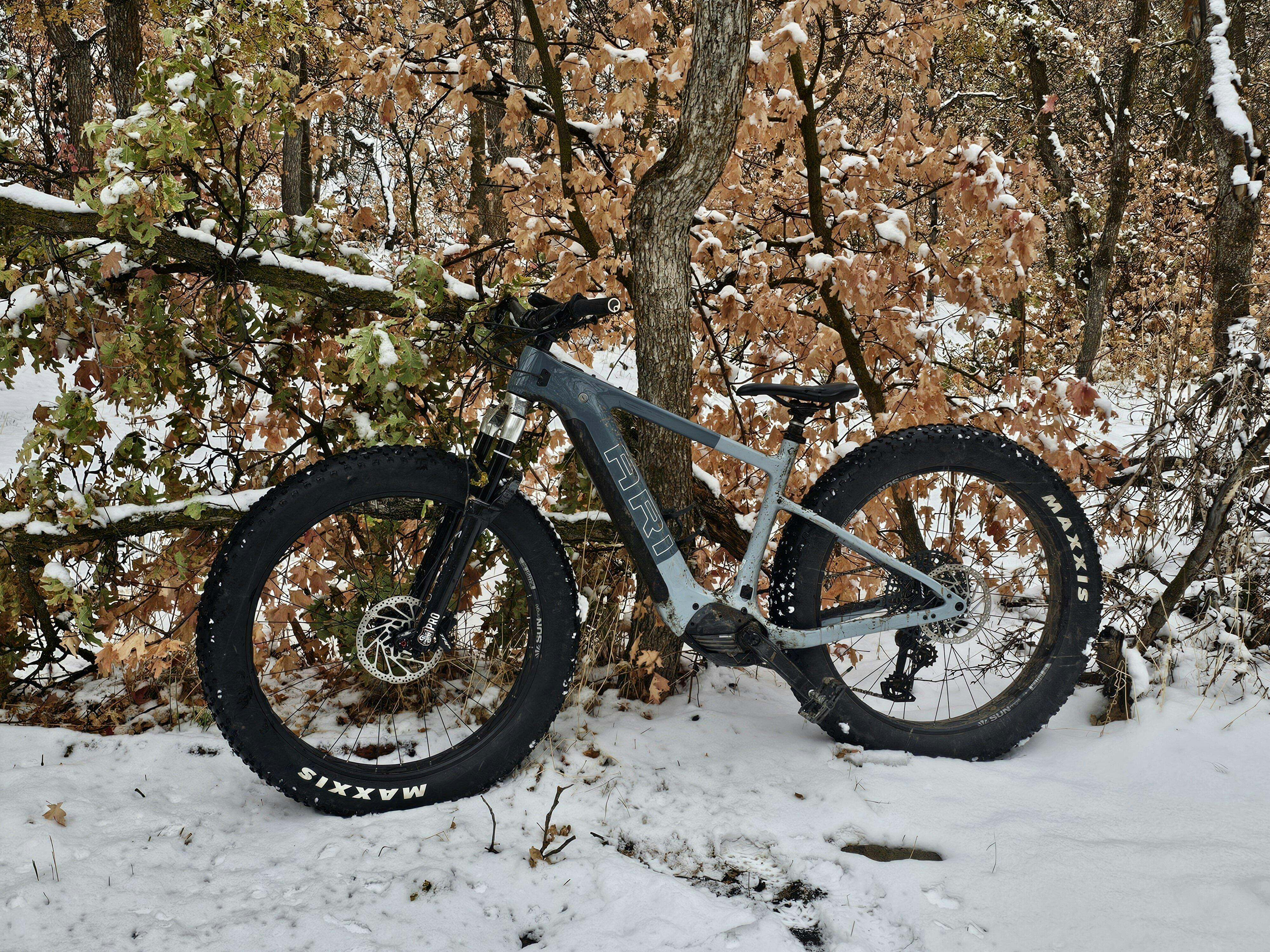

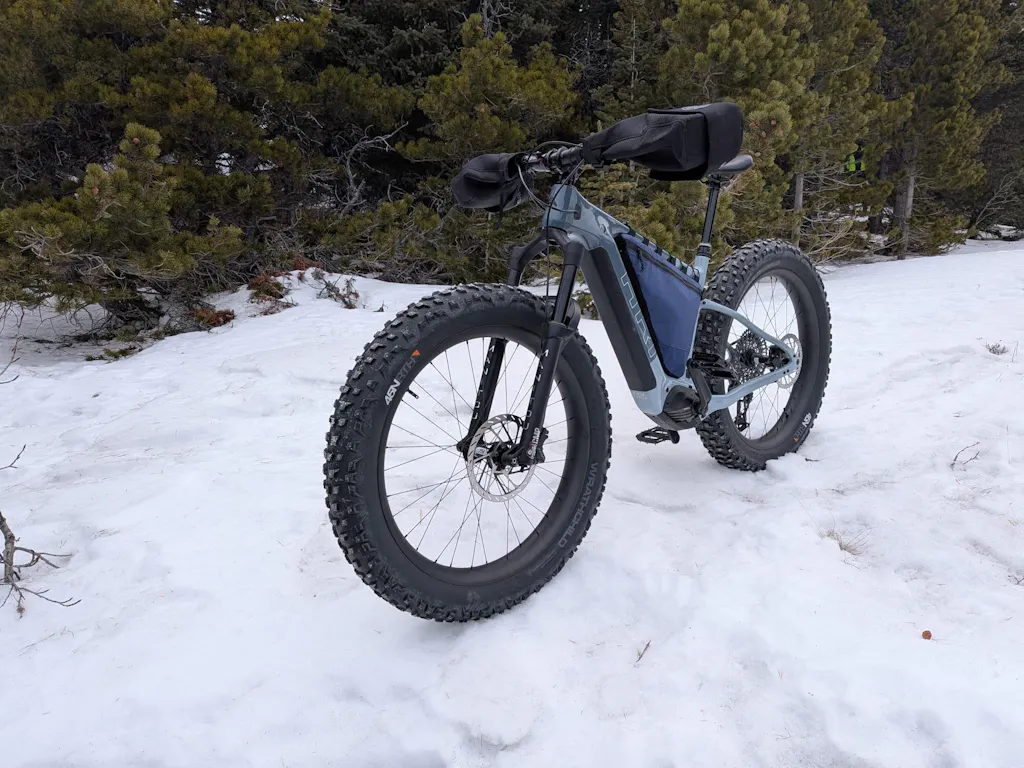

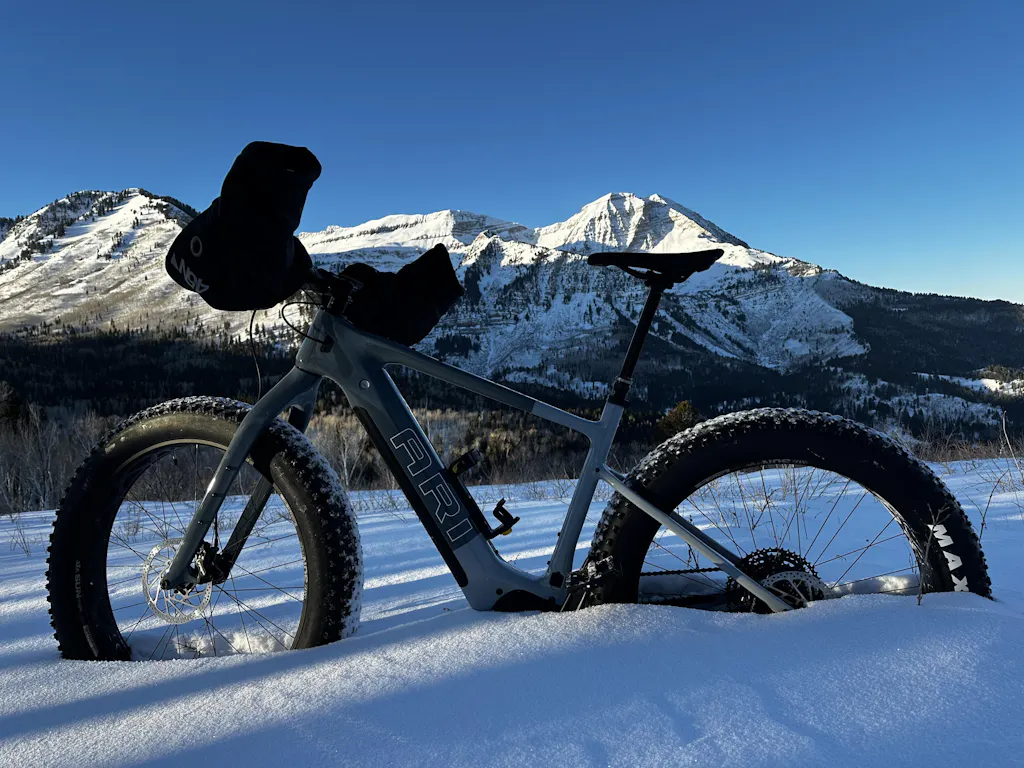

In the snow this thing is a beast. I'm amazed at how well it plows through 6 inches of fresh snow. I'm going to really enjoy this bike this winter.
This bike is so aptly named. It has literally become my exploring bike. I can't recommend it enough.
Have had an absolute blast with the Explorer Peak with all the different assist modes and its versatility. This bike is the new favorite in the lineup now.
Explorer Peak
40° 43' 5'' N, 110° 38' 39'' W
Save up to 40% Buying Direct
Bigger savings and perfect fit.
We sell directly to you, the rider. This gives you unique advantages like getting your Explorer Peak custom fit to your body measurements, big savings on cost, and direct communication with us.
Lifetime Warranty
A warranty that lasts a lifetime.
We tested the Explorer Peak 130% above industry standards. We want you to ride with the peace of mind knowing that this bike performs at an elite level, always. Your bike comes backed with a Lifetime Warranty. Ride it on your own trials for 30 days and if it’s not the best bike you’ve ridden, you can return it.
Geometry
Units
| S | M | L | XL | |
|---|---|---|---|---|
| Top Tube | 590 | 614 | 637 | 660 |
| Seat Tube | 400 | 440 | 460 | 480 |
| Chainstay | 450 | 450 | 450 | 450 |
| Head Angle | 67° | 67° | 67° | 67° |
| Seat Angle | 75° | 75° | 75° | 75° |
| Head Tube | 90 | 100 | 120 | 130 |
| Bottom Bracket Height | 325 | 325 | 325 | 325 |
| Bottom Bracket Drop | 65 | 65 | 65 | 65 |
| Wheelbase | 1156.9 | 1184.1 | 1208.3 | 1232.6 |
| Fork Offset | 51 | 51 | 51 | 51 |
| Standover Height | 700 | 750 | 770 | 780 |
| Stack | 598 | 615 | 625 | 635 |
| Reach | 430 | 450 | 470 | 490 |
What’s my frame size?
Your height will determine a general recommended frame size. Occasionally, based on other body measurements, you may feel more comfortable on a different size. We recommend completing the 23-Point Custom Setup when completing your order.
Recommend a frame size for meBuild Specs
Each Ari bike is built with the best components in a given category so you get the most bang for the buck. Each model has different build specs to choose from usually ranging in good, better, best order.
Comparison TableBuild Level
Specifications
build
Comp
Price
$3,999.00
$4,599.00
frame
Ari Explorer Peak Carbon. UDH derailleur hanger.
fork
Ari Racing Design Explorer Peak Carbon, tapered, 150x15mm thru axle, 180mm post mount
rear shock
N/A
drivetrain
Shimano CUES U6000 11-Speed
wheels
Sun Ringle Mulefut SL 80mm, 32 hole, 27.5
brakes
TRP Slate EVO, 180/180mm rotors
sizes
S,M,L,XL
headset
Cane Creek 40 ZS56/ZS56 sealed cartridge bearing
shifters
Shimano CUES SL-U6000-11R
front derailleur
N/A
rear derailleur
Shimano CUES RD-U6000
cassette
Shimano CS-LG400-11, 11-50t, 11-Speed
crank
SAMOX E-Fat Bike Shimano Interface
chainrings
SAMOX E-Fat Bike 32t narrow wide, steel
drive unit
Shimano EP6 motor system
battery
Darfon 720w integrated battery
chain
Shimano CN-LG500
handlebars
Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup
stem
Ari Alloy, 31.8mm
tape/grips
Ergon GA20, black
saddle
WTB Volt
seatpost
TranzX JD-YS105J, travel adjust 30mm- customized sizing through Ari Custom Setup
pedals
Available Separately
rims
Sun Ringle Mulefut SL 80mm, 32 hole, 27.5, Disc, Tubeless Ready
hubs
Sun Ringlé SRC 197x12, 150x15, HG, E-Bike specific (steel axel and freehub)
spokes
Wheelsmith DB14
tires
Maxxis Colossus 27.5x4.5, EXO, tubeless ready
tubes
27.5x4.5 Presta Valve for Fat Bike
*Specs are subject to change. Any substitutions will be comparable or better.
Spec Comparison
Common Questions*
Do you offer financing?
Yes, at checkout there are several options available for financing.
Who is this bike for?
Explorer Peak is an e-fat bike designed for those who want to ride anywhere and anytime of year - from soft snow and sand to rough trails and city streets. For the analog version check out Kings Peak.
How long will it take to arrive?
Estimated lead times are listed under each model's size in the bike builder. Times may vary a little based on current conditions, frame size, color, and availability.
How much suspension does this bike have?
The Explorer Peak comes with a 120mm suspension-corrected rigid fork, and can run up to a 120mm travel fat bike suspension fork. We have tested the Manitou Mastodon Gen 3 fork for adequate clearance.
What is the bottom bracket frame spec?
73mm BSA English thread. Our philosophy is simple, if the bike is intended to be ridden on dirt, it gets a threaded bottom bracket. Threaded bottom brackets are easier to service.
What are the dimensions of the front hub and fork axle?
Front Hub: 150x15mm | Front Axle: M15 - 198xL20xP1.5
How are the cables routed?
The cables are routed internally through ports on the side of the headtube and are mounted to zip tie cable guides inside the downtube providing simple, controlled, quiet cable routing.
What is the frame weight?
1780g (size medium)
What is the biggest tire size it can accommodate?
The frame will clear 27.5x4.5 or 26x5.0 tires. Tire clearance around the rigid fork is 27.5x4.5 or 26x5.0. Tire clearance around a suspension fork is defined by the fork manufacturer.
What are the headset dimensions?
Upper: ZS56 | Lower: ZS56
What are the dimensions of the rear hub and rear axle?
Rear Hub: 197x12mm | Rear Axle: M12 - 224xL12xP1.0
What is the drive unit frame spec?
The Explorer Peak frame is designed to interface with Shimano drive units.
Can it run an internal dropper post?
Yes! The frame and cable routing are compatible with internally routed dropper posts.
How many water bottles can it hold?
There are two mounts for water bottles inside the front triangle of the size medium, large, and extra large. There is one mount for a water bottle inside the front triangle of the size small.
What about service?
You can work directly with us, one of our recommended shops, or work through your local shop.
What is the guarantee?
It comes with a 30 Day Love it or Return it Guarantee.
How will it arrive?
All Ari bikes go through our 23-Point Custom Setup making sure the bike is fit and tuned specifically to you. They are test-ridden before delivery. If your bike is shipped to you, it’s still tuned and ready to ride and requires just a few minutes of assembly.
What is the warranty?
Each frame comes with a Lifetime Warranty. Ari branded frames come with a transferable warranty as well.
How does transferable warranty on Ari bikes work?
Ari branded frames come with a transferable frame warranty available to the second owner. The second owner can receive a one-year frame warranty from the date they purchase the bike from the original owner. Warranty only transfers once. All Ari bikes must have the transfer documented from the original owner to the new owner at www.aribikes.com/pages/register in order to qualify for a transferable warranty.
