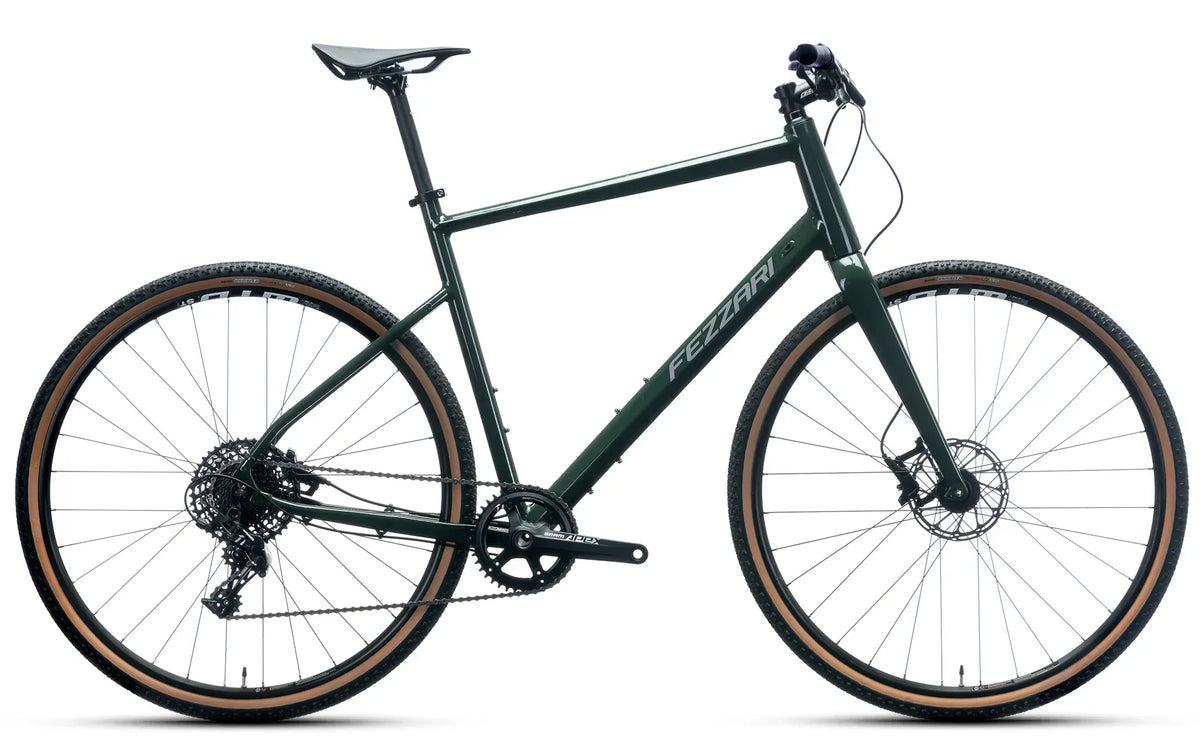

Murdock 1.0

Not your version? Switch
Murdock 1.0

Setup & assembly

Your bike ships about 85% assembled. Plan on 30–45 minutes with the included tools.

Torque specs

Torque diagram for Murdock 1.0
BoltN·m
Front Thru Axle 10
Seatpost Clamp 4–5
Carbon parts: always use a torque wrench and carbon assembly paste. Component makers' printed specs take priority.

Replacement parts

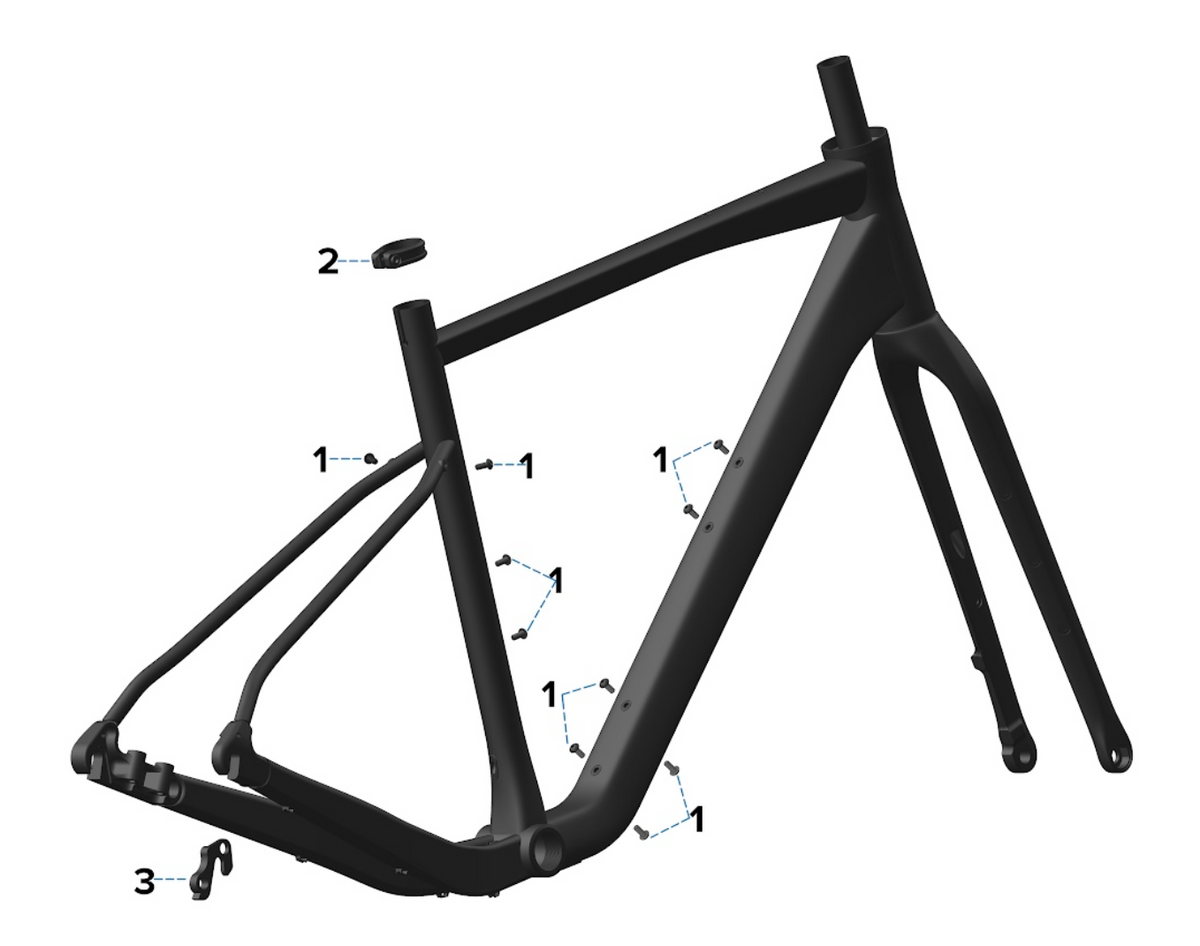

Murdock 1.0 Replacement Parts

Frame specifications

FrameMurdock
MaterialAluminum
Wheel Size700c
Tire Compatibility700x40mm max
Front Dropout100x12
Front Axle120x12x1.5mm
Rear Dropout135mm
Rear Axle135x9mm QR
Front Brake MountFlat Mount, 140 Direct
Rear Brake Mount140 Flat Mount Disc
Bottom Bracket68mm English Threaded
Seatpost Diameter27.2mm
Seatpost Clamp Diameter31.8mm
Front Derailleur Mount13.8mm band clamp
Headset SpecZS 44/28.6 ,ZS 56/40

Warranty

Ari Bikes Warranty & Registration Guide

Lifetime Frame Warranty

  • Ari warrants frames against defects in materials and craftsmanship for the lifetime of the original owner.
  • Carbon mountain frames purchased prior to August 28, 2017, carry a 5-year warranty.
  • Framesets purchased separately are only covered under the lifetime warranty when assembled directly by Ari staff using approved Ari stock build components. Framesets assembled by the customer, third parties, or with non-stock parts are not covered.

Transferable Warranty

  • Subsequent owners receive a 1-year frame warranty starting from their purchase date.
  • Limited to a single transfer and must be officially registered via the Transferable Warranty Registration Form.
  • Legacy "Fezzari" branded frames are not eligible for transfer.

Crash Replacement Program

  • Accidents, collisions, and non-warranty damage qualify for discounted crash replacement parts.
  • Support can be reached directly by phone at 801-471-0440.

Terms, Exclusions & Owner Responsibilities

  • Rider Weight Limits: Maximum recommended rider weight is 280 lbs for suspension bikes and 300 lbs for non-suspension bikes; exceeding these limits may void frame/component warranties.
  • Exclusions: Normal wear and tear, abuse, neglect, improper assembly or maintenance, alterations, collisions, crashes, or misuse.
  • Associated Fees: The customer is responsible for all labor charges, shipping/expedited shipping costs, duties, and taxes.
  • Discontinued Stock: If a damaged frame is discontinued or out of stock, Ari may provide store credit toward replacement frame parts at its discretion.

Registration & Service Links

Read the warranty Start a warranty claim
