Setup & assembly
Your bike ships about 85% assembled. Plan on 30–45 minutes with the included tools.
Torque specs

BoltN·m
Front Thru Axle
10
Seatpost Clamp
8–10
Rear Thru Axle
10
Carbon parts: always use a torque wrench and carbon assembly paste. Component makers' printed specs take priority.

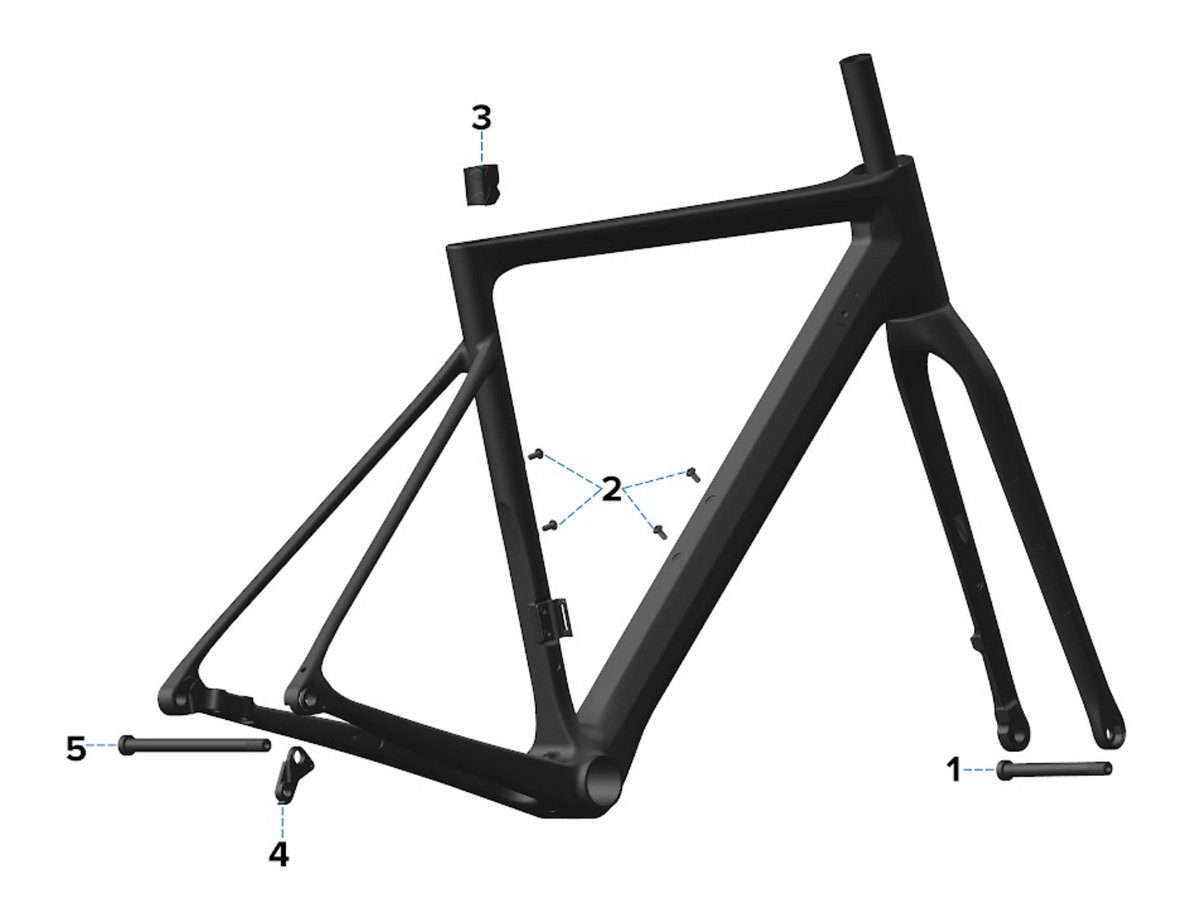

Replacement parts
Geometry
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Top Tube | 510.0 | 530.0 | 550.0 | 570.0 | 590.0 |
| Seat Tube | 452.0 | 482.0 | 513.0 | 541.0 | 564.0 |
| Chainstay | 410.0 | 410.0 | 410.0 | 410.0 | 410.0 |
| Head Angle | 71.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| Seat Angle | 75.0° | 74.5° | 74.5° | 73.5° | 73.5° |
| Head Tube | 115.0 | 130.0 | 160.0 | 180.0 | 200.0 |
| Bottom Bracket Height | 271.0 | 271.0 | 271.0 | 271.0 | 271.0 |
| Bottom Bracket Drop | 72.0 | 72.0 | 72.0 | 72.0 | 62.0 |
| Wheelbase | 975.0 | 990.0 | 1002.0 | 1014.0 | 1024.0 |
| Fork Offset | 45.0 | 45.0 | 45.0 | 45.0 | 45.0 |
| Standover height | 726.0 | 751.0 | 776.0 | 810.0 | 829.0 |
| Stack | 518.0 | 533.0 | 563.0 | 582.0 | 603.0 |
| Reach | 371.0 | 382.0 | 388.0 | 397.0 | 405.0 |
Frame specifications
FrameEmpire
MaterialCarbon
Wheel Size700c
Tire Compatibilitymax 700x32mm
Front Dropout100x12
Front Axle120x12x1.5mm
Rear Dropout142x12
Rear Axle174x12x1.5mm
Front Brake Mount140 Flat Mount Disc
Rear Brake Mount140 Flat Mount Disc
Bottom BracketBB86
Seatpost Diameter27.2mm
Front Derailleur MountBraze On
Headset StandardIS52 / 28.6 | IS52 / 40(45°)
Warranty
Read the warranty
Start a warranty claim
FAQs
Book a service
Bring your Empire to one of our service centers.
