Setup & assembly
Your bike ships about 85% assembled. Plan on 30–45 minutes with the included tools.
Torque specs

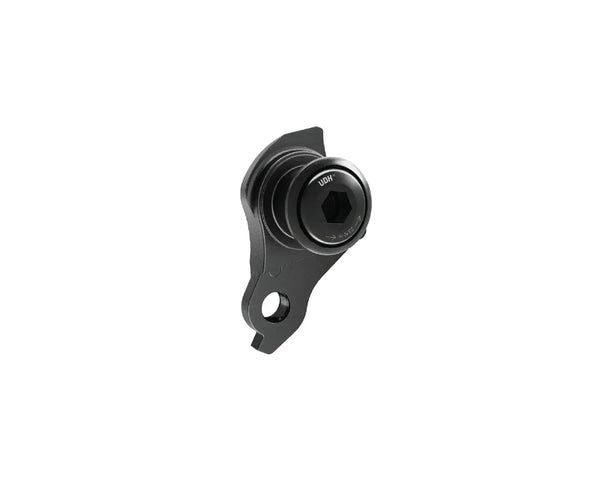

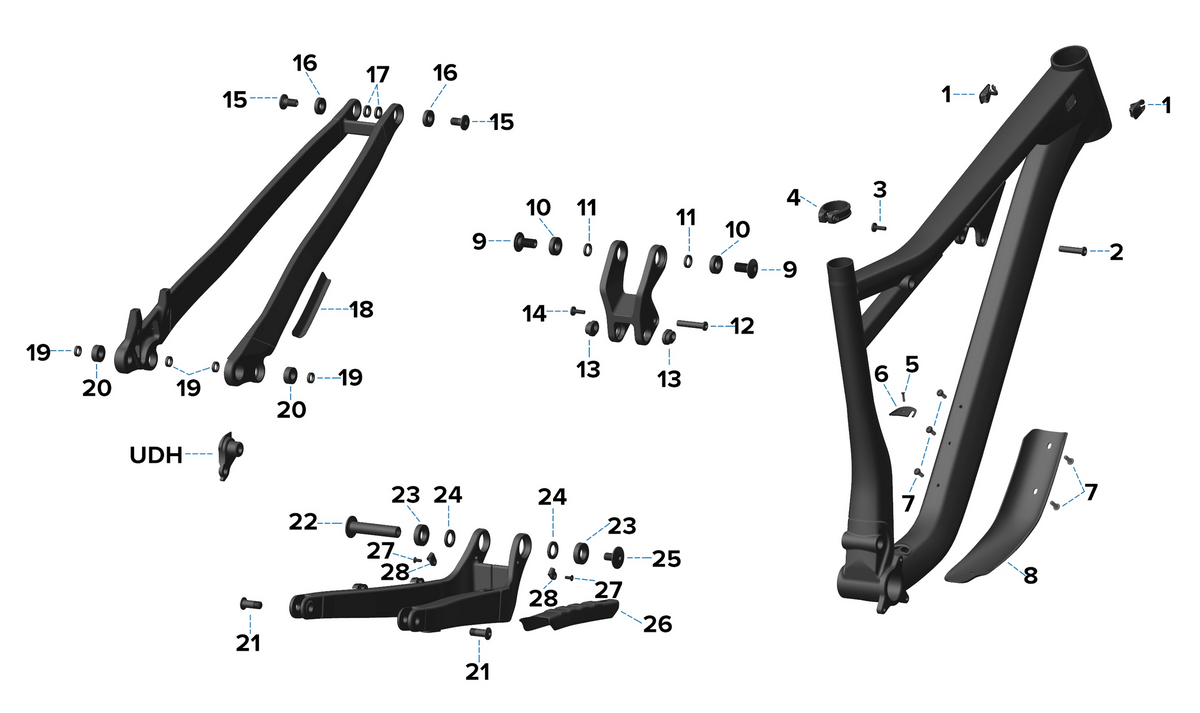

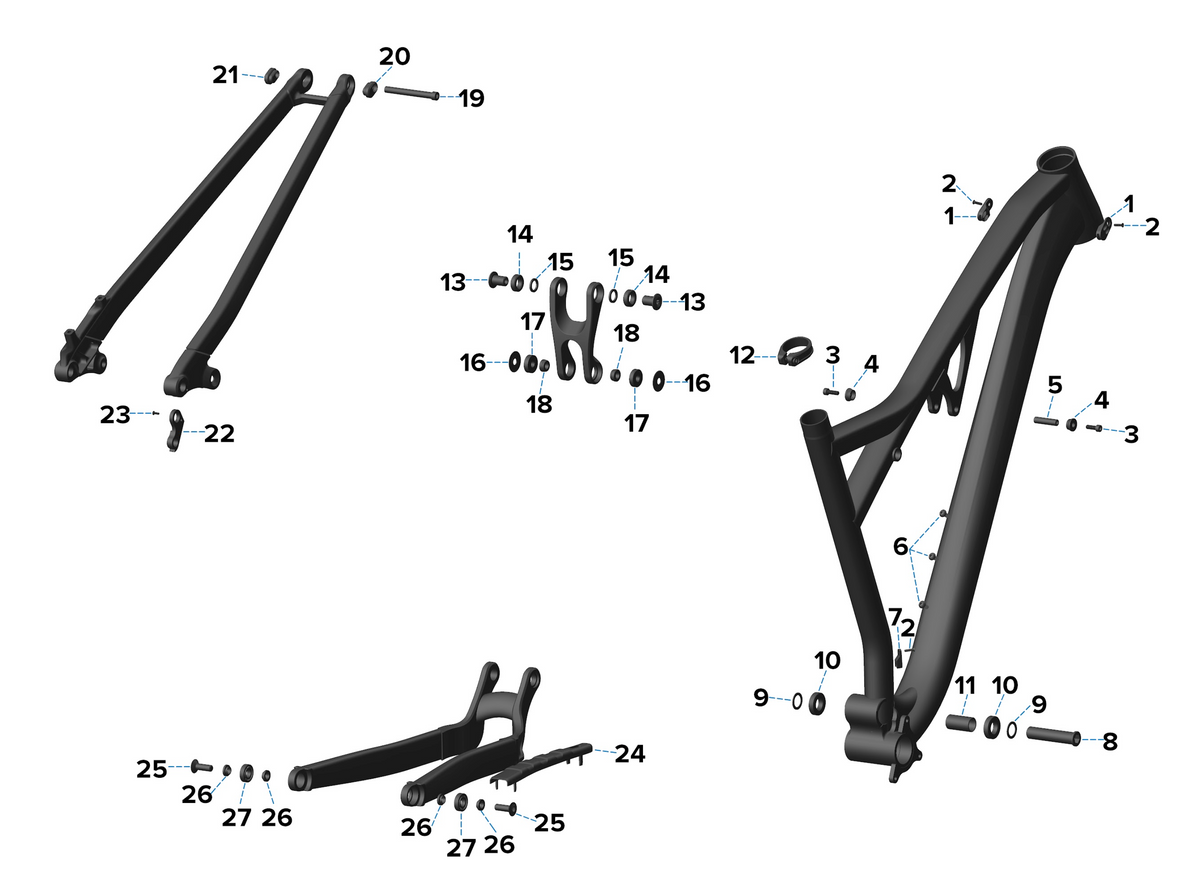

Replacement parts
Geometry
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Top Tube | 560 | 593 | 613 | 637 |
| Seat Tube | 400 | 420 | 440 | 460 |
| Chainstay | 434 | 434 | 434 | 434 |
| Head Angle | 65° | 65° | 65° | 65° |
| Seat Angle (Effective)* | 78° | 78° | 78° | 78° |
| Head Tube | 95 | 95 | 115 | 130 |
| Bottom Bracket Height | 345 | 345 | 345 | 345 |
| Bottom Bracket Drop | 28 | 28 | 28 | 28 |
| Wheelbase | 1180.8 | 1205.8 | 1239.2 | 1265.5 |
| Fork Offset | 44 | 44 | 44 | 44 |
| Standover Height | 734 | 741 | 751 | 763 |
| Stack | 604 | 603.9 | 622 | 636 |
| Reach | 430 | 455 | 480 | 500 |
Frame specifications
Warranty
FAQs
General

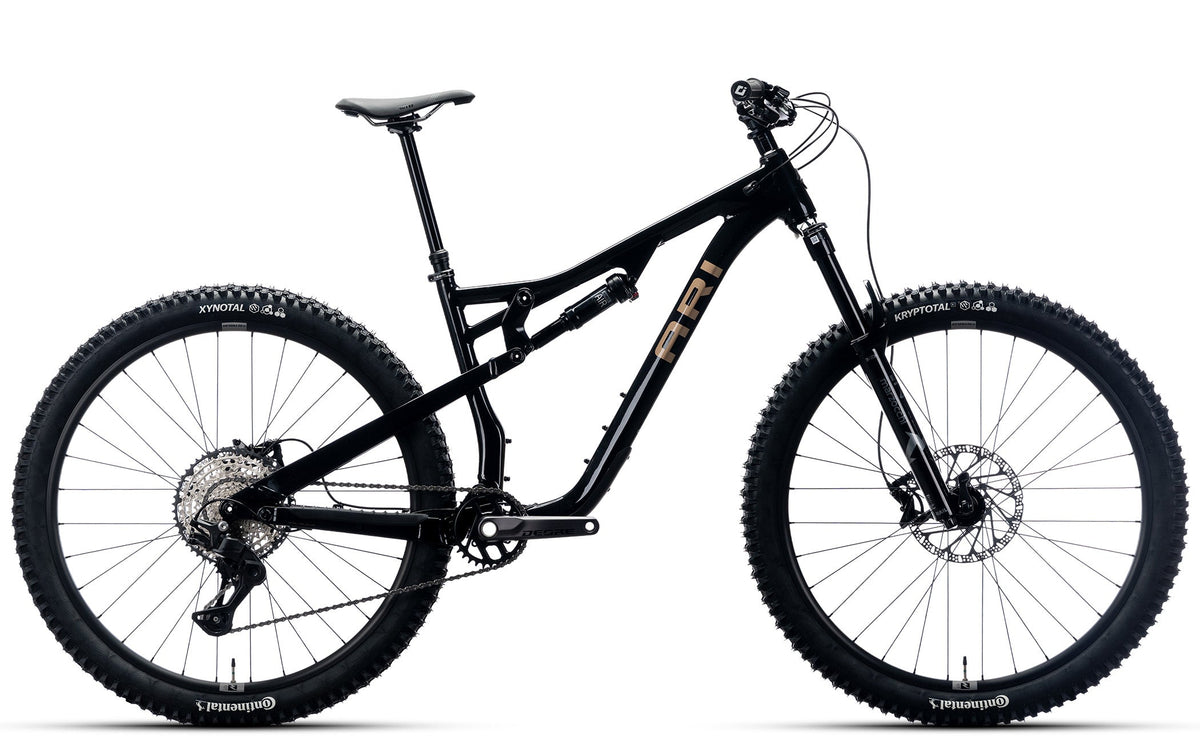

Who is the Cascade Peak for?
It is for riders who want one approachable full-suspension trail bike for technical climbs, fast descents, and everyday trail riding. Riders looking for the closest carbon option should compare the Delano Peak.
How does Ari Custom Setup work?
Share your body measurements and riding preferences during checkout. Ari uses them to recommend size and dial in touch points and suspension before the bike ships.
Can I run a mullet wheel setup?
Yes. The Cascade Peak is designed for a full 29-inch setup or a 29-inch front and 27.5-inch rear wheel. GA-Link helps preserve the intended geometry.
How long will my bike take to arrive?
Current lead times are shown for each size and configuration inside the bike builder because timing can vary by build, color, size, and availability.
What if it is not the right bike?
Every Cascade Peak includes Ari’s 30-day Love It or Return It program and a lifetime frame warranty. Review the current policies for full terms.
Technical
What is the biggest tire size it can accommodate?
The frame will clear 29 x 2.6 or 27.5 x 2.8 tires. Tire clearance around the fork is defined by the fork manufacturer, but typically 29 x 2.6 or 27.5 x 2.8 will fit.
What are the headset dimensions?
Upper: ZS44 | Lower: ZS56
What are the dimensions of the rear hub and rear axle?
Rear Hub: Boost 148x12mm | Rear Axle: M12 - 174xL12xP1.0
Can it run an internal dropper post?
Yes! The frame and cable routing are compatible with internally routed dropper posts.
How many water bottles can it hold?
There are two mounts for water bottles inside the front triangle of every size.
How much suspension does this bike have?
135mm of Tetra-Link rear suspension. 140mm front suspension fork.
What is the bottom bracket frame spec?
73mm BSA English thread. Our philosophy is simple, if the bike is intended to be ridden on dirt, it gets a threaded bottom bracket. Threaded bottom brackets are easier to service.
How are the cables routed?
The cables are routed internally through ports on the side of the headtube and inside the downtube providing clean, simple routing.
What is the frame weight?
3327g (size medium)
Support
How will it arrive?
All Ari bikes go through our Custom Setup process, making sure the bike is fit and tuned specifically to you. They are test-ridden before delivery. If your bike is shipped to you, it’s still tuned and ready to ride and requires just a few minutes of assembly.
What is the warranty?
Each frame comes with a Lifetime Warranty. Ari branded frames come with a transferable warranty as well.
How does transferable warranty on Ari bikes work?
Ari branded frames come with a transferable frame warranty available to the second owner. The second owner can receive a one-year frame warranty from the date they purchase the bike from the original owner. Warranty only transfers once. All Ari bikes must have the transfer documented from the original owner to the new owner here in order to qualify for a transferable warranty.
