Carbon · Aero Road · 700c

Veyo

Fast track to the finish line.

Explore the ride Build yours

700c

Wheel size

Carbon

Frame

Performance

Our Lightest Performance Bike Yet

Industry-leading carbon layup design puts Veyo’s ultra lightweight frame (860g: size medium) in the top 1% of performance race bikes on the market. Veyo punches above its lightweight class with a full UCI certification. Veyo is ready for a WorldTour stage race or draft-legal triathlon, not solely because of its weight, but also its performance, durability, and safety.

Road cyclist riding in motion blur on a yellow-lined road

Go fast... like, really fast.

No rider likes wasting energy. Power transfer and acceleration are the keys to speed. Focusing largely on lateral stiffness at the rear axle, the Veyo ensures that every watt is optimized for pushing the rider forward. We did this with meticulous planning on Veyo’s carbon layup structure and frame tube shaping.

Rider leaning an Ari Veyo road bike through a curve with fine technical graph lines overlaid

Unleash Your Best

Veyo is the ultimate do-everything performance road bike. For those looking for fun and speed while racing, training, or on their weekend club ride, Veyo is the bike for you.

Cyclist riding a blue road bike along a coastal road with waves beyond the guardrail

Featherlight Aero

By using a truncated airfoil design on the downtube, seat tube, and seat post, Veyo makes the most of aero benefits in real-world wind conditions while maximizing weight savings. Veyo is not only aero itself, but with size-specific geometry, the rider can comfortably maintain an aero position longer and be faster overall.

FeedTheHabit

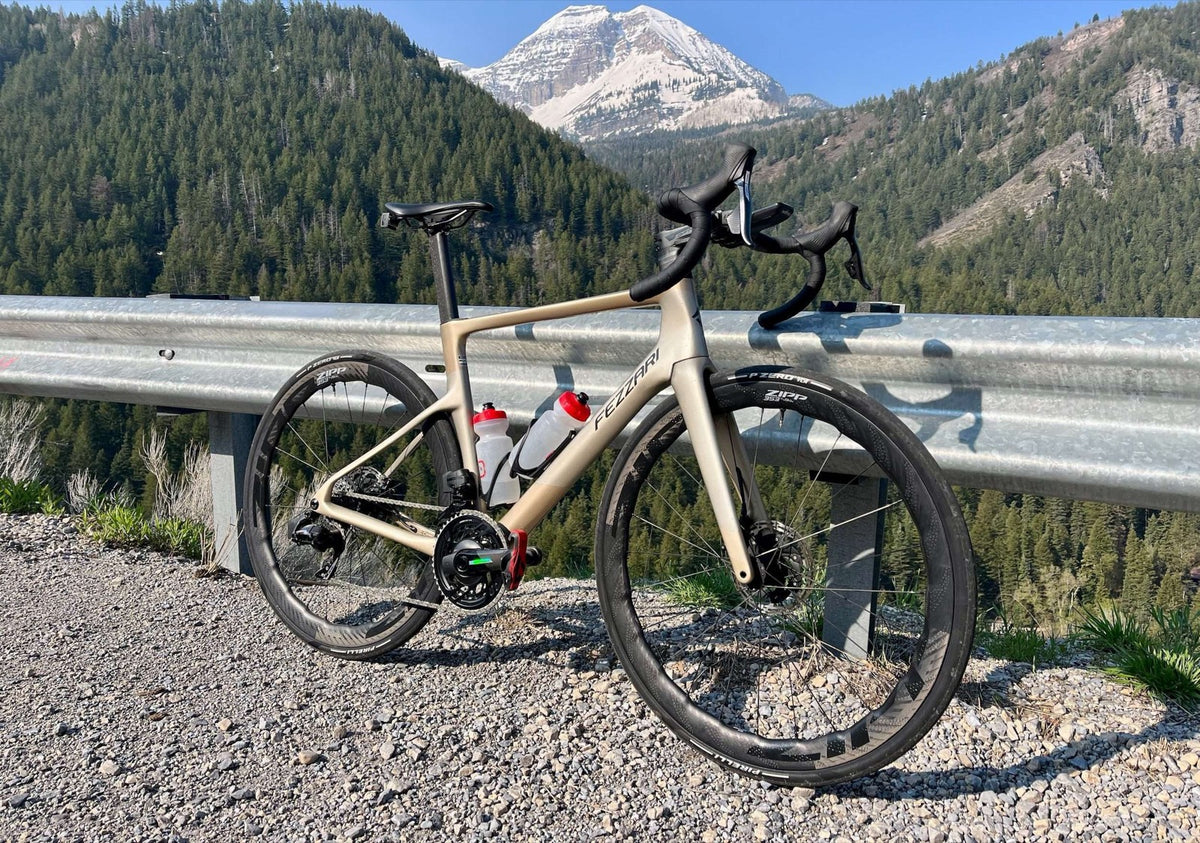

Gear of the Year

The Veyo SL is the best road bike ever to come out of their Lindon, UT headquarters. Heck, it’s among the most capable aero all-rounders on the market today and goes toe-to-toe with bikes from the biggest brands.

By Jason Mitchell

Read the review

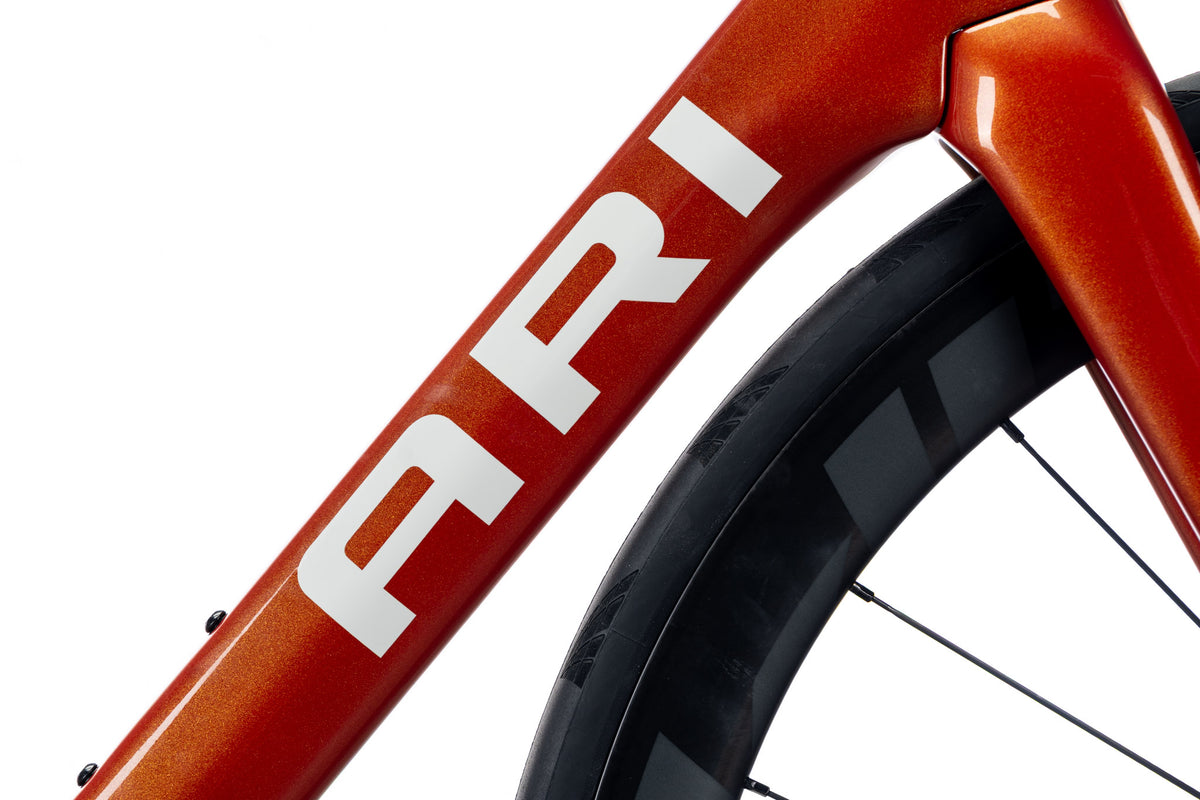

Orange Veyo down tube with a large white Ari decal above the front wheel

Frame

Aero Over Time

Anyone can get into an extremely tucked aero position for a short period of time, but how long can you hold it? The least aerodynamic thing on a bike is you. Veyo's aero properties make it fast, but its geometry allows you to be in an aggressive but practical riding position for hours at a time.

Real-World Aero

It’s easy to show impressive aerodynamic numbers in an artificially perfect setting in a wind tunnel, but we built Veyo for real riding. When the road gets rough or the wind picks up, Veyo is still the right bike.

Is comfort a thing on aero bikes?

Veyo is not only aero itself, but is designed to put the rider in an aero position comfortably.

Frame

Built to fit you. Handles like a go-kart.

Size-optimized geometry delivers the ideal balance of fit, agility, and stability—quick through criterium corners and the peloton, confident on fast descents and rough roads, and comfortable over long training days.

Optimized weight distribution creates a lively, responsive ride built for rapid acceleration, precise cornering, and high-speed control. Purpose-built for professional racing, yet equally rewarding for everyday riders.

UCI certified and ready for WorldTour competition.

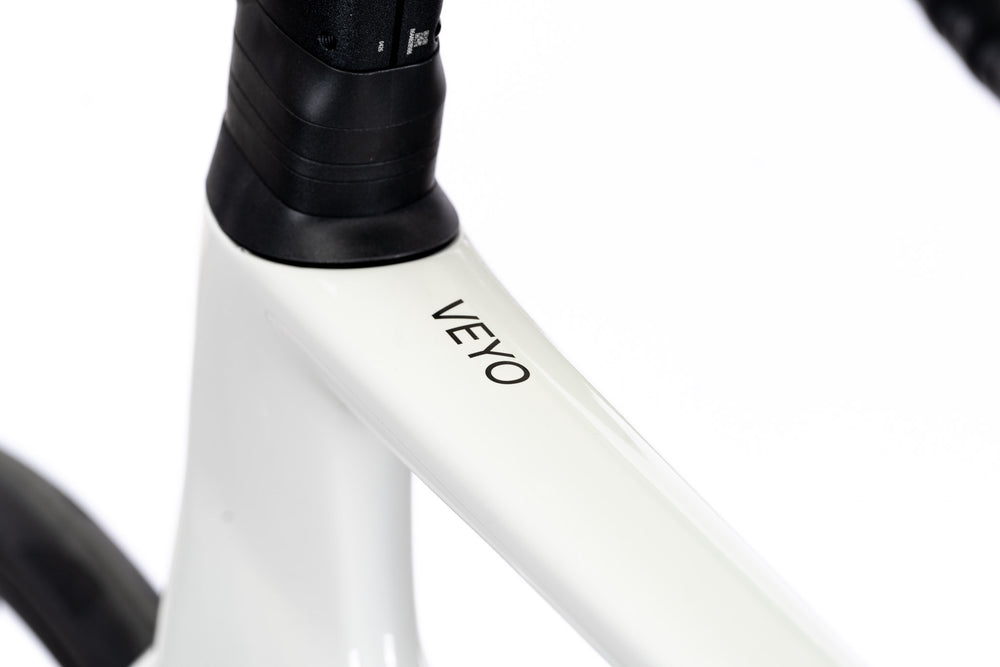

White Veyo head tube with the Veyo decal and black headset cover — Our Lightest Performance Bike Yet

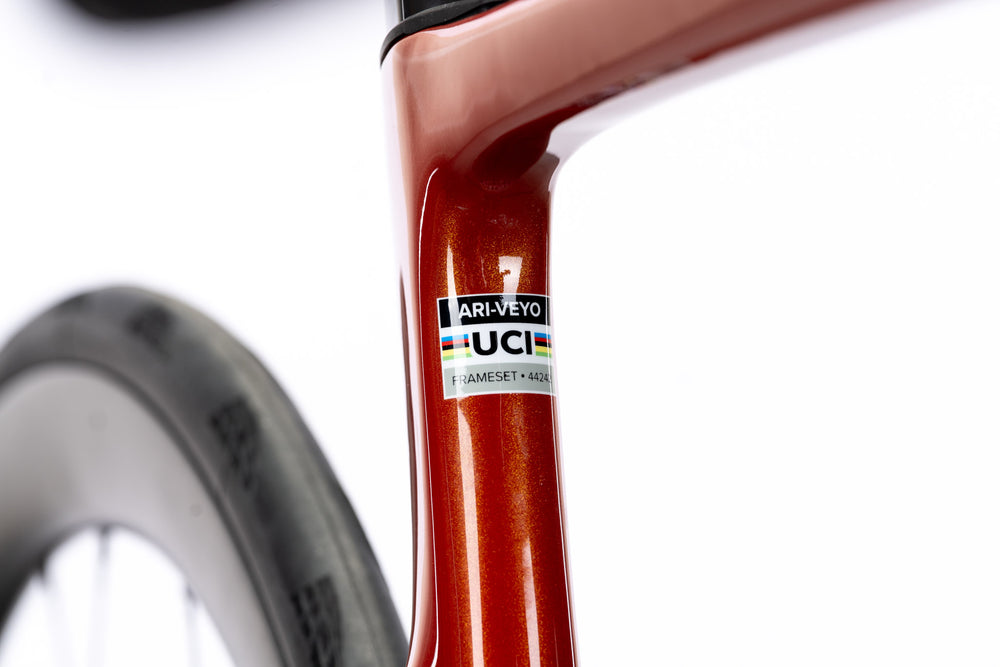

Orange Veyo seat tube with an Ari-Veyo frameset sticker and UCI label — Go fast... like, really fast.

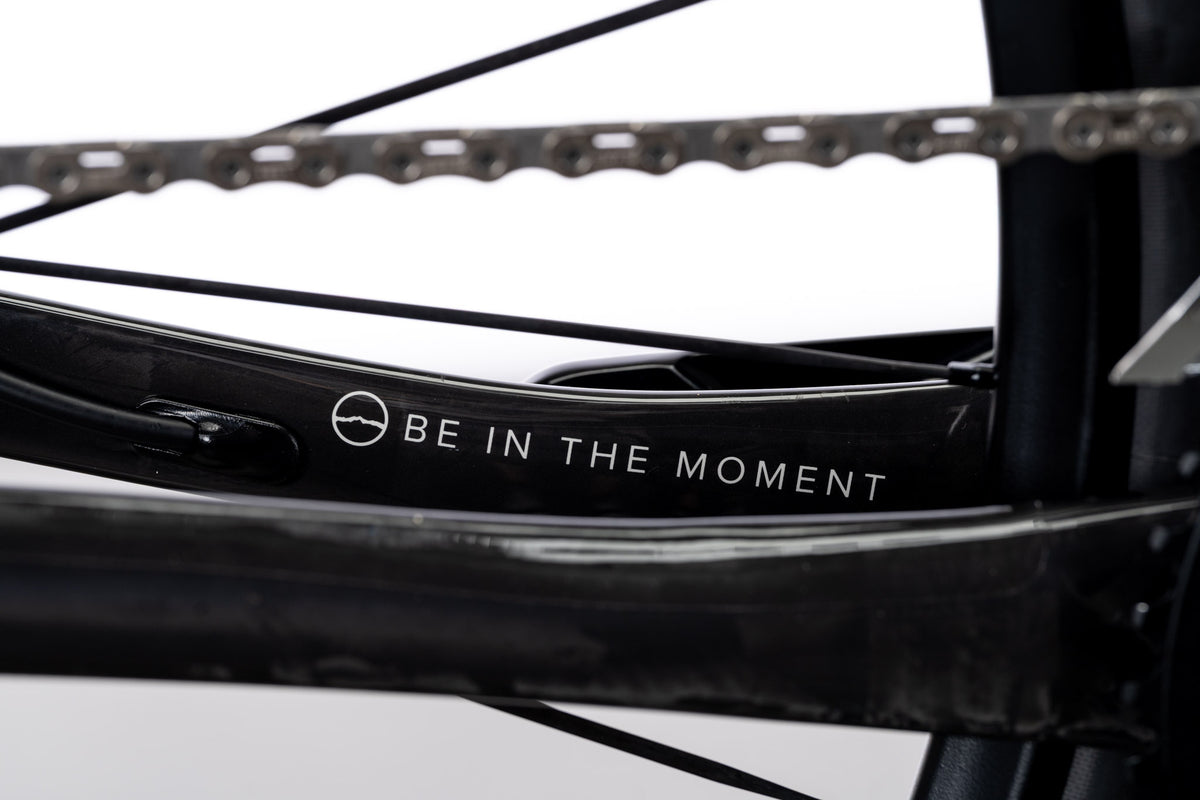

Black Veyo chainstay with Be in the Moment text and the chain above it — Unleash Your Peak Performance

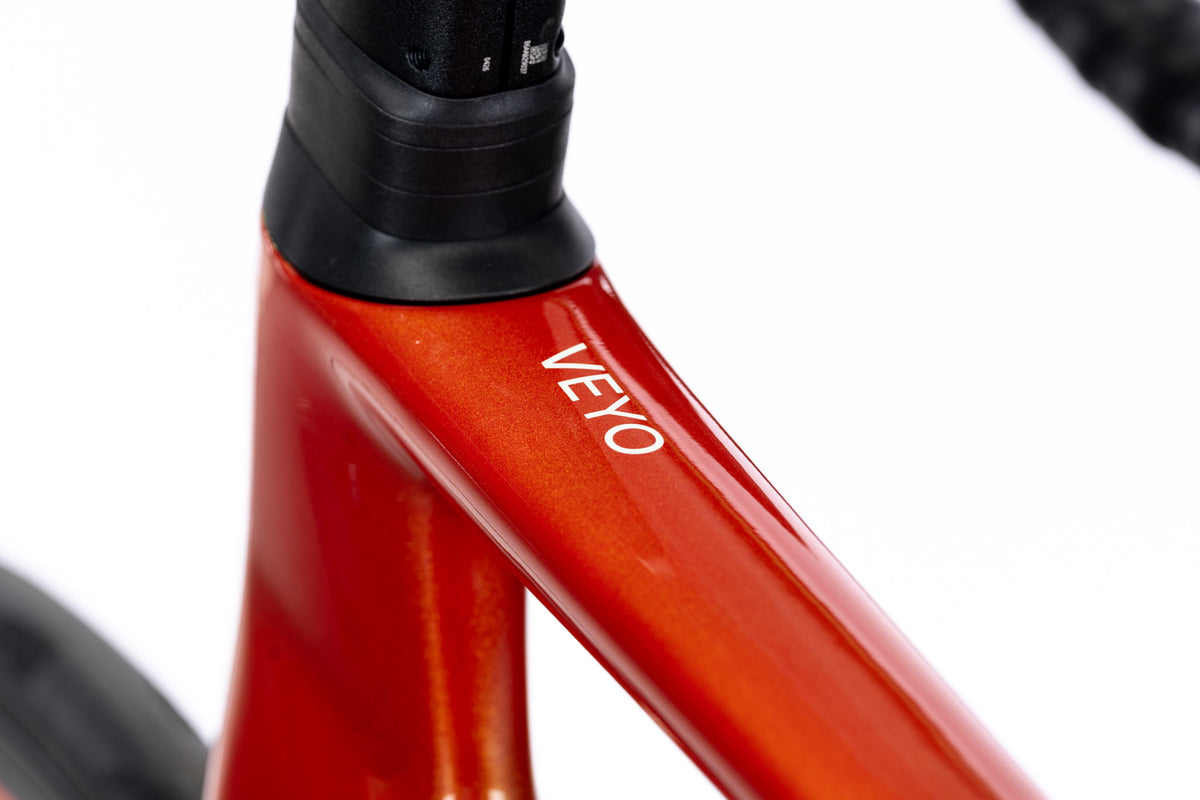

Orange-red Veyo head tube and top of the down tube with the Veyo decal — Featherlight Aero

Colorways

Burnt Orange Metallic

White Raw Carbon

Every complete build is available in both finishes. Choose a color here, then select the exact build, size, and setup in the configurator.

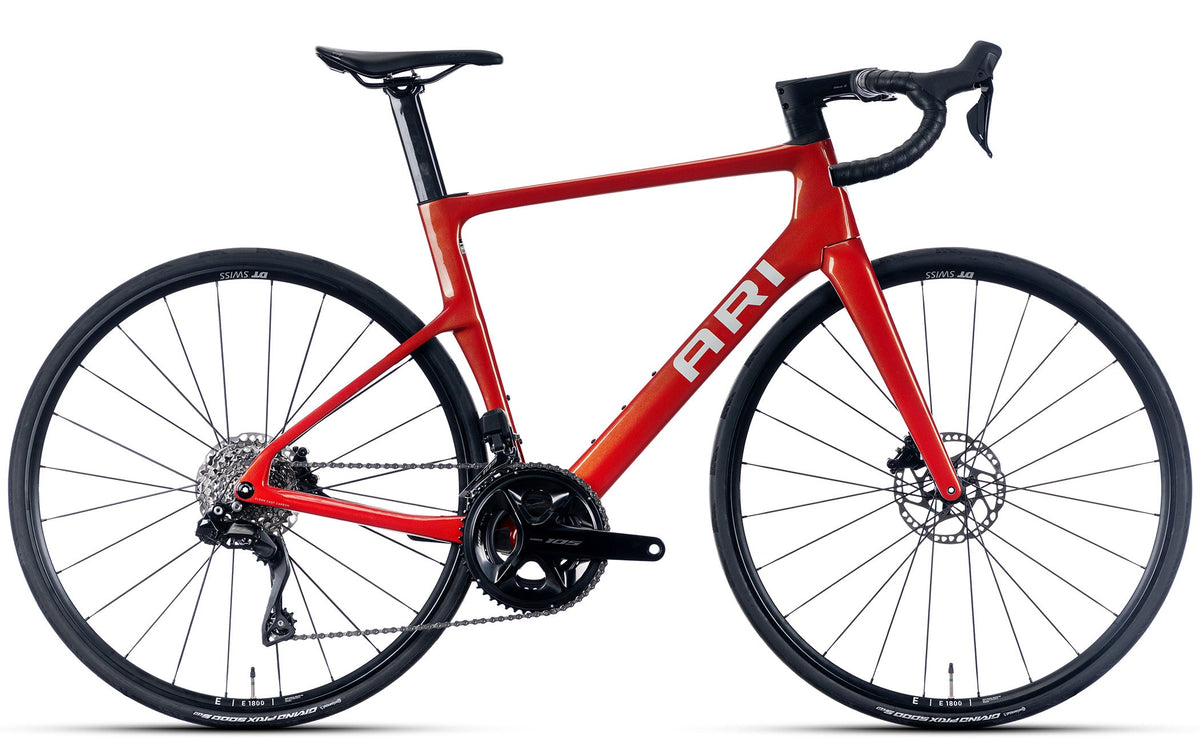

Burnt Orange Metallic Veyo in Burnt Orange Metallic

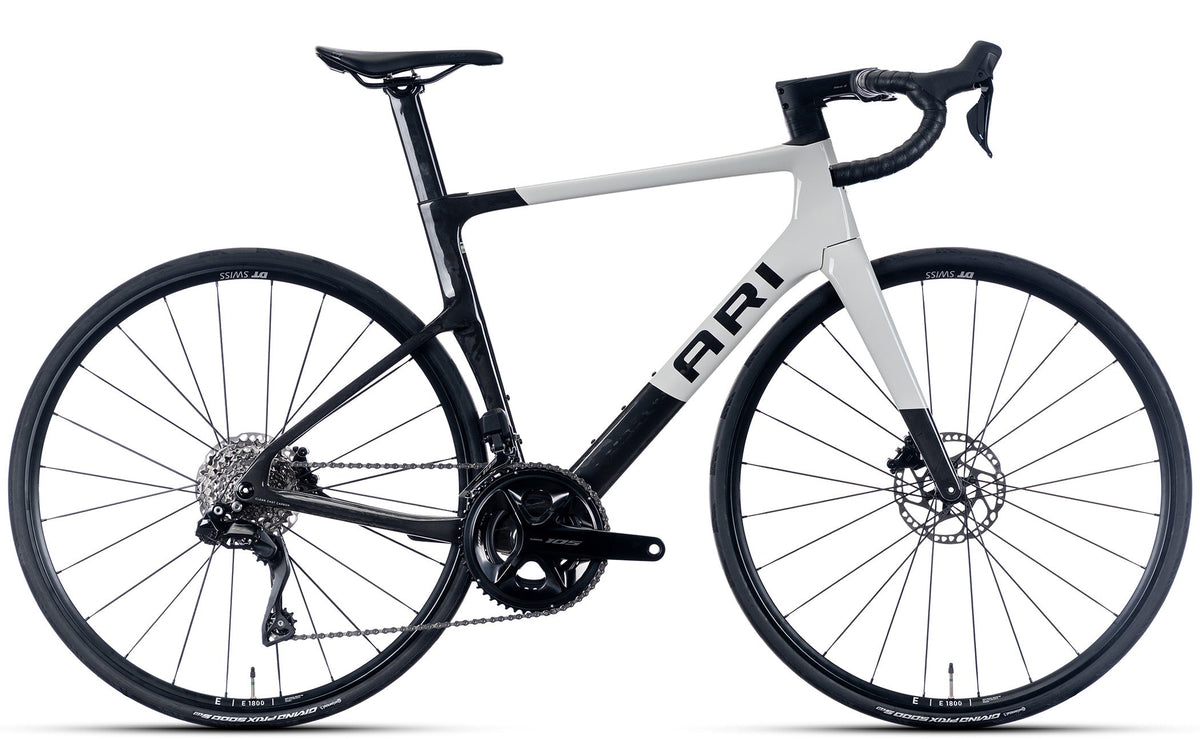

White Raw Carbon Veyo in White Raw Carbon

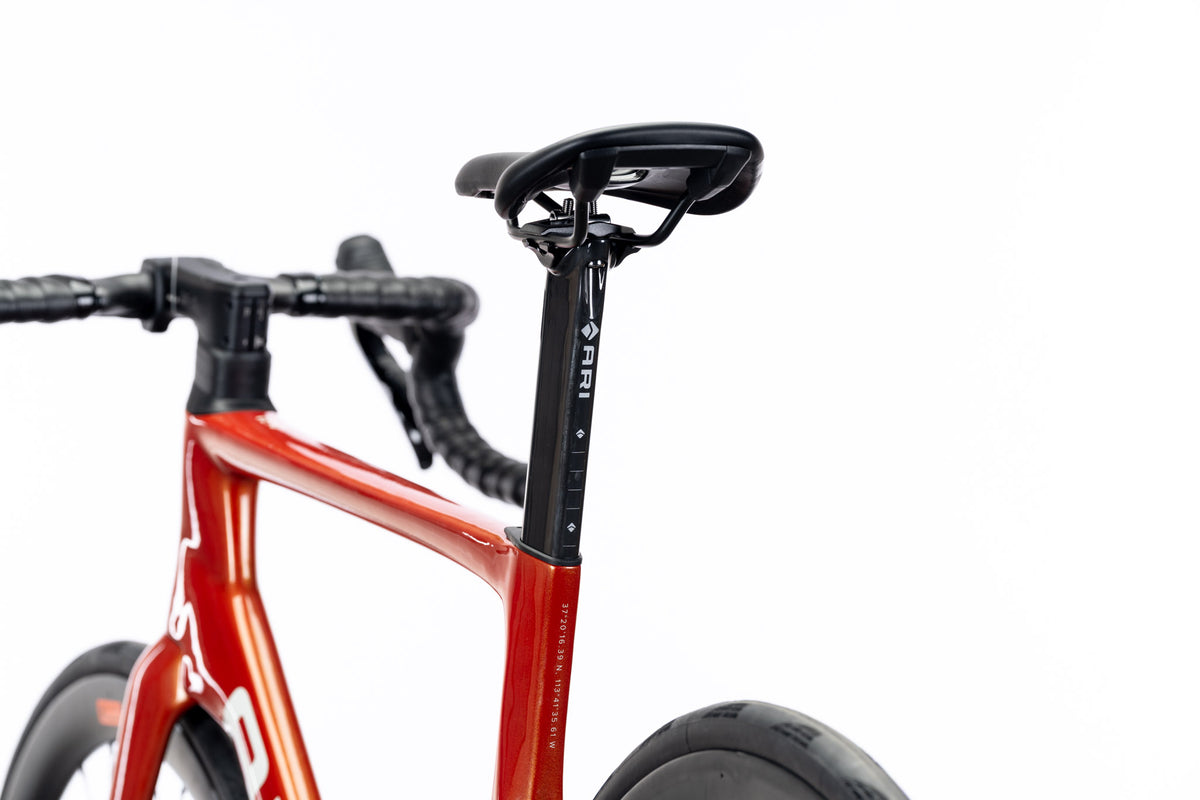

Rear view of an orange Veyo road bike with Ari seatpost, saddle and drop handlebar

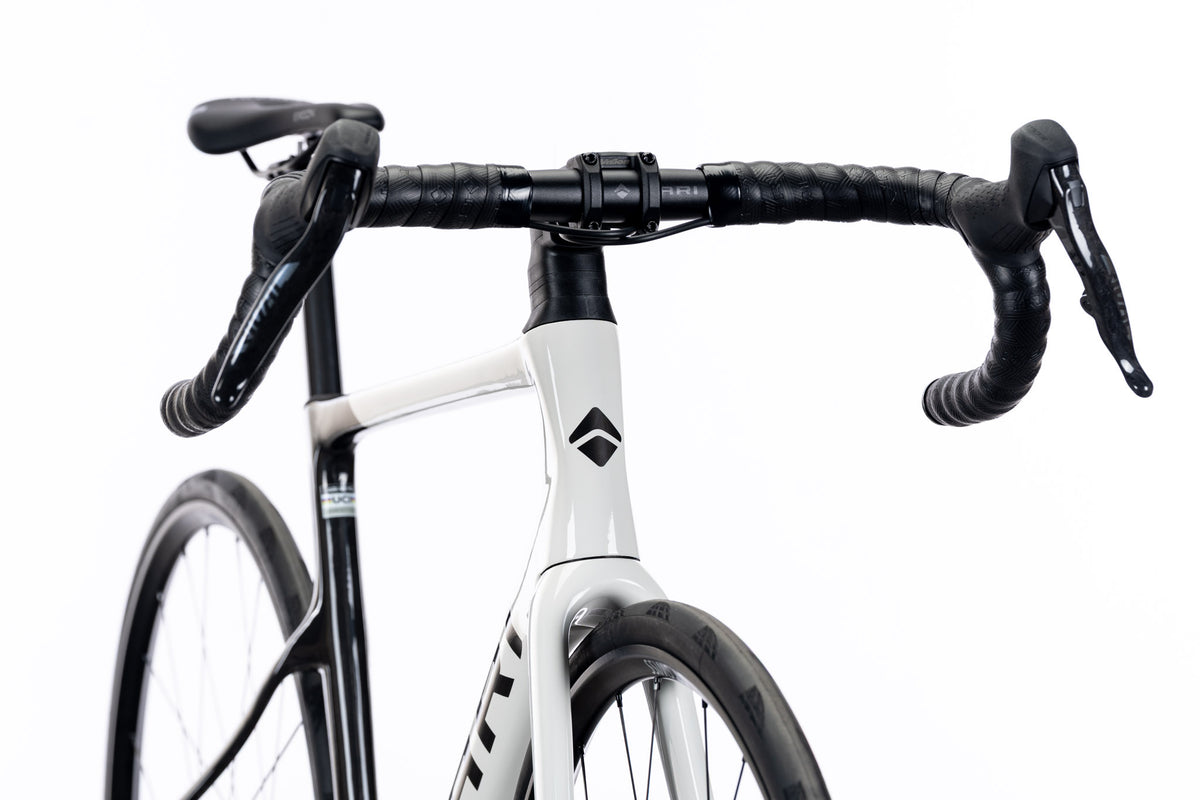

Front view of a black and white Veyo road bike with drop handlebar and brake levers

Comp

NEW

$3,699

Veyo SL Comp

Shimano 105 Di2 R7170 , 12-Speed
DT Swiss E 1800

Configure

Elite

Pro

$4,699

Veyo SL Pro

SRAM Force AXS E1 w/ Power Meter, 12-Speed
DT Swiss PR 1600 Spline

Configure

Team SRAM

$7,499

Veyo SL Team SRAM

SRAM Red eTap AXS E1 w/ Power Meter, 12-Speed
Zipp 303s Carbon

Configure

Team Shimano

NEW

$7,799

Veyo SL Team Shimano

Shimano Dura-Ace Di2, 12-Speed
Zipp 303s Carbon

Configure

Veyo build component comparison
Comp	Elite	Pro	Team Sram	Team Shimano	Frame
PriceNEW $3,699	Price $4,129	Price $4,699	Price —	PriceNEW $7,799	PriceNew $2,799
Chassis & suspension
Frame Ari Veyo SL Aero Carbon Frame	Frame Ari Veyo SL Aero Carbon Frame —	Frame Ari Veyo SL Aero Carbon Frame —	Frame Ari Veyo SL Aero Carbon Frame —	Frame Ari Veyo SL Aero Carbon Frame —	FrameUpgraded Ari Veyo SL Aero Carbon Frame<br>Headset, derailleur hanger, axles, seatpost, and seatpost clamp included.
Fork Ari Veyo SL Aero Carbon Fork	Fork Ari Veyo SL Aero Carbon Fork —	Fork Ari Veyo SL Aero Carbon Fork —	Fork Ari Veyo SL Aero Carbon Fork —	Fork Ari Veyo SL Aero Carbon Fork —	Fork Ari Veyo SL Aero Carbon Fork —
Sizes XS,S,M,L,XL	Sizes XS,S,M,L,XL —	Sizes XS,S,M,L,XL —	Sizes XS,S,M,L,XL —	Sizes XS,S,M,L,XL —	Sizes XS,S,M,L,XL —
Drivetrain & brakes
Drivetrain Shimano 105 Di2 R7170, 12-Speed	DrivetrainUpgraded SRAM Rival AXS E1, 12-Speed, w/ Power Meter	DrivetrainUpgraded SRAM Force AXS E1, 12-Speed, w/ Power Meter	DrivetrainUpgraded SRAM Red AXS E1, 12-Speed, w/ Power Meter	DrivetrainUpgraded Shimano Dura-Ace Di2, 12-Speed	Drivetrain N/A
Brakes Shimano 105 R7170 Hydraulic Road Disc, Rotors: 160mm/160mm	BrakesUpgraded SRAM Rival Hydraulic Road Disc E1, Centerline Rotors: 160mm/160mm	BrakesUpgraded SRAM Force Hydraulic Road Disc E1, Paceline Rotors: 160mm/160mm	BrakesUpgraded SRAM Red AXS HRD Hydraulic Disc E1, Rotors: SRAM Centerline X 160/160mm	BrakesUpgraded Shimano Dura-Ace Di2 Hydraulic Road Disc, Rotors: 160mm/160mm	Brakes N/A
Shifters Shimano 105 Di2 R7170, 2x12	ShiftersUpgraded SRAM Rival AXS eTap E1, Wireless	ShiftersUpgraded SRAM Force AXS eTap E1, Wireless	ShiftersUpgraded SRAM Red AXS E1, Wireless	ShiftersUpgraded Shimano Dura-Ace Di2 R9270	Shifters N/A
Rear derailleur Shimano 105 Di2 R7170, 12-speed	Rear derailleurUpgraded SRAM Rival AXS E1, 12-speed, 36T Max	Rear derailleurUpgraded SRAM Force AXS E1, 12-speed, 36T Max	Rear derailleurUpgraded SRAM Red AXS E1, 12-speed, 36T Max	Rear derailleurUpgraded Shimano Dura-Ace Di2 R9250	Rear derailleur N/A
Cassette Shimano HG710, 12-Speed, 11-36T	CassetteUpgraded SRAM XG-1250, 10-36T	CassetteUpgraded SRAM 1270, 10-36T	CassetteUpgraded SRAM RED XG-1290, 10-36t 12-Speed	CassetteUpgraded Shimano Dura-Ace, 11-30t 12-Speed	Cassette N/A
Crank Shimano 105 R7100, English	CrankUpgraded SRAM Rival AXS E1 Power Meter, DUB	CrankUpgraded SRAM Force AXS E1 Power Meter, DUB	CrankUpgraded SRAM Red AXS E1 Power Meter Carbon, DUB	CrankUpgraded Shimano Dura-Ace R9200	Crank N/A
Chainrings Shimano 52/36T	ChainringsUpgraded SRAM Rival 48/35T	ChainringsUpgraded SRAM Force 48/35T	ChainringsUpgraded SRAM RED 48/35T	ChainringsUpgraded Shimano Dura-Ace 52/36T	Chainrings N/A
Bottom bracket Shimano RS-500 Pressfit	Bottom bracketUpgraded SRAM DUB, BB86	Bottom bracket SRAM DUB, BB86 —	Bottom bracketUpgraded SRAM DUB BB86	Bottom bracketUpgraded Shimano Dura-Ace	Bottom bracket N/A
Chain Shimano M7100, 12-Speed	ChainUpgraded SRAM Rival E1, 12-Speed	ChainUpgraded SRAM Force E1, 12-Speed	ChainUpgraded SRAM RED, 12-Speed	ChainUpgraded Shimano Dura-Ace, 12-Speed	Chain N/A
Cockpit & contact points
Handlebars Ari Road Alloy Compact. 31.8 diameter, 70mm reach, 125mm drop, 12-degree flare	Handlebars Ari Road Alloy Compact. 31.8 diameter, 70mm reach, 125mm drop, 12-degree flare —	HandlebarsUpgraded Zipp SL 80 Carbon	Handlebars Zipp SL 80 Carbon —	HandlebarsUpgraded Vision Metron Aero Compact Handlebar Carbon Integrated	Handlebars N/A
Stem FSA SMRII (customized sizing through Ari Custom Setup)	Stem FSA SMRII (customized sizing through Ari Custom Setup) —	Stem FSA SMRII (customized sizing through Ari Custom Setup) —	StemUpgraded FSA SMR (customized sizing through Ari Custom Setup) Alloy	Stem FSA SMR (customized sizing through Ari Custom Setup) Alloy —	Stem N/A
Grips Ari Super-Shock Pro w/ Anti-Slip, Black	Grips Ari Super-Shock Pro w/ Anti-Slip, Black —	Grips Ari Super-Shock Pro w/ Anti-Slip, Black —	GripsUpgraded Lizard Skins DSP 2.5	Grips Lizard Skins DSP 2.5 —	Grips N/A
Saddle Ergon SR Sport	Saddle Ergon SR Sport —	Saddle Ergon SR Sport —	SaddleUpgraded Ergon SR Pro Titanium	Saddle Ergon SR Pro Titanium —	Saddle N/A
Seatpost Ari Aero Carbon, Dual Bolt	Seatpost Ari Aero Carbon, Dual Bolt —	Seatpost Ari Aero Carbon, Dual Bolt —	SeatpostUpgraded Ari Aero Carbon Dual Bolt	Seatpost Ari Aero Carbon Dual Bolt —	Seatpost Ari Aero Carbon Dual Bolt —
Pedals Available Separately	Pedals Available Separately —	Pedals Available Separately —	Pedals Available Separately —	Pedals Available Separately —	Pedals Available Separately —
Wheels & tires
Wheels DT Swiss E 1800 (Carbon wheels upgrade available at checkout)	Wheels DT Swiss E 1800 (Carbon wheels upgrade available at checkout) —	WheelsUpgraded DT Swiss PR 1600 Spline (Carbon wheels upgrade available at checkout)	WheelsUpgraded Zipp 303s Carbon, (Zipp Firecrest or NSW Available at checkout)	Wheels Zipp 303s Carbon, (Zipp Firecrest or NSW Available at checkout) —	Wheels N/A
Rims DT Swiss E 1800	Rims DT Swiss E 1800 —	RimsUpgraded DT Swiss PR 1600	RimsUpgraded Zipp 303s Carbon	Rims Zipp 303s Carbon —	Rims N/A
Hubs DT Swiss 370 Ratchet LN 18	Hubs DT Swiss 370 Ratchet LN 18 —	HubsUpgraded DT Swiss 350 Ratchet LN 36 SL	HubsUpgraded Zipp 176D, 76D 142x12/100x12	Hubs Zipp 176D, 76D 142x12/100x12 —	Hubs N/A
Spokes DT aero comp wide straightp, DT aero II straightpull	Spokes DT aero comp wide straightp, DT aero II straightpull —	SpokesUpgraded DT aero comp wide straightpull	SpokesUpgraded Sapim CX-Spirit	Spokes Sapim CX-Spirit —	Spokes N/A
Tires Continental Grand Prix 500S TR 28c	Tires Continental Grand Prix 500S TR 28c —	Tires Continental Grand Prix 500S TR 28c —	TiresUpgraded Continental GP5000 S 32c Tubeless Ready	Tires Continental GP5000 S 32c Tubeless Ready —	Tires N/A
Tubes 700x28 Presta Valve (Tubeless setup available at Checkout)	Tubes 700x28 Presta Valve (Tubeless setup available at Checkout) —	Tubes 700x28 Presta Valve (Tubeless setup available at Checkout) —	TubesUpgraded 700x32 Presta Valve (Tubeless setup available at Checkout)	Tubes 700x32 Presta Valve (Tubeless setup available at Checkout) —	Tubes N/A

Specs are subject to change. Any substitutions will be comparable or better.

Loading geometry chart Hover a measurement

Veyo geometry by frame size — mm
Measurement	XS	S	M	L	XL
Top Tube	505.0	525.0	545.0	565.0	585.0
Seat Tube	423.0	466.0	497.0	525.0	555.0
Chainstay	410.0	410.0	410.0	410.0	410.0
Head Angle (degrees)	72.0°	72.5°	73.0°	73.0°	73.5°
Seat Angle (degrees)*	75.0°	75.0°	74.5°	74.0°	73.5°
Head Tube	98.0	119.0	146.0	159.0	180.0
Bottom Bracket Height	271.0	273.0	273.0	273.0	275.0
Bottom Bracket Drop	72.0	70.0	70.0	70.0	68.0
Wheelbase	961.0	979.0	990.0	1005.0	1016.0
Fork Offset	45.0	45.0	45.0	45.0	45.0
Standover height	716.0	748.0	777.0	798.0	822.0
Stack	510.0	530.0	557.0	570.0	590.0
Reach	368.0	382.0	391.0	401.0	411.0
Fork Length	377.0	377.0	377.0	377.0	377.0
Trail	63.0	60.0	57.0	57.0	54.0

Veyo geometry by frame size — cm
Measurement	XS	S	M	L	XL
Top Tube	50.5	52.5	54.5	56.5	58.5
Seat Tube	42.3	46.6	49.7	52.5	55.5
Chainstay	41.0	41.0	41.0	41.0	41.0
Head Angle (degrees)	72.0°	72.5°	73.0°	73.0°	73.5°
Seat Angle (degrees)*	75.0°	75.0°	74.5°	74.0°	73.5°
Head Tube	9.8	11.9	14.6	15.9	18.0
Bottom Bracket Height	27.1	27.3	27.3	27.3	27.5
Bottom Bracket Drop	7.2	7.0	7.0	7.0	6.8
Wheelbase	96.1	97.9	99.0	100.5	101.6
Fork Offset	4.5	4.5	4.5	4.5	4.5
Standover height	71.6	74.8	77.7	79.8	82.2
Stack	51.0	53.0	55.7	57.0	59.0
Reach	36.8	38.2	39.1	40.1	41.1
Fork Length	37.7	37.7	37.7	37.7	37.7
Trail	6.3	6.0	5.7	5.7	5.4

Measurements are shown in the selected unit. Angle values remain in degrees.

Impressive quality for its price tag and solid on-trail performance to go with it.
The Loam Wolf

An extensive fit process before sending the bike so that it’s ready to rock.
Singletracks

A lot of value without resorting to common cost-cutting measures.
Bicycling

Be the first to review the Veyo.

Share your ride once you have put the bike through its paces.

01 Unbox and check contents

Remove packaging foam and zip-ties. Confirm the small-parts box has pedals, thru-axle and multitool.
02 Install the handlebar

Center the bar, set roll, and tighten faceplate bolts evenly in a cross pattern.
03 Fit the front wheel

Seat the rotor between the pads, insert the thru-axle from the non-drive side and close to spec.
04 Set saddle height

With the dropper fully extended, set height so your knee is slightly bent at the bottom of the stroke.
05 Install pedals

Grease threads. The left pedal is reverse-threaded.
06 Set suspension and tires
Set sag for your weight using your fork and shock manuals, then check tire pressure against the sidewall range.

View support docs Hide support docs

Owner's Manual PDF Torque Wrench Link

Ready to help

Support

Common questions

Still deciding? Our team rides these bikes and can help you find the right setup.

Phone Text Email

General Technical Support

Who is this bike for?

Veyo is designed with the competitive racer in mind. It prioritizes speed, agility, and efficiency. A Veyo owner is focused on improving personal bests, participating in races, or undertaking challenging cycling routes. But don’t let Veyo fool you. It’s also a great commuter as its geometry enables comfortable riding for hours at a time.

How does the bike handle?

Veyo is lightning fast. Agile directional changes, carving turns at high speed, and riding shoulder-to-shoulder in the peloton are where Veyo thrives. If we could embody the nature of Veyo in one word, it would be spirited—it’s gutsy, dynamic power purposefully designed for the fastest bike situations imaginable. Veyo is your new category leader.

Do you offer financing?

Yes! At checkout, several financing options are available to ensure a purchasing experience that works for you.

When should I expect my bike to arrive?

Estimated lead times are listed under each model's size in the bike builder. Times may vary slightly based on current conditions, frame size, color, and availability.

What is the frame weight?

A Medium SL frame weighs 860g. Veyo’s fork weighs just 350g, 15% lighter than most other premier forks on the market.

What sizes is the Veyo offered in?

5 sizes — XS, S, M, L, and XL. Our 23-Point Custom Setup uses your measurements to help determine your frame size and component setup to fit your Veyo to you. Also, with geometry-specific sizing, you can be assured that you will get the exact fit and intended performance on any size of Veyo.

What is the maximum tire clearance?

Veyo is designed with extra space around the wheels to increase airflow with 28mm tires. However, the space can also be used to accommodate up to 32mm wide tires.

How many water bottles can it hold?

Two inside the front triangle on every size.

What drivetrains are compatible with the Veyo?

Veyo is designed around a standard 43.5mm chainline and is compatible with both 1x and 2x drivetrains. All mechanical drivetrains, SRAM eTap and AXS drivetrains, and Shimano Di2 drivetrains are compatible with Veyo.

What type of derailleur hanger is used?

A custom Ari Road Derailleur Hanger (ARDH) is utilized on the frame. It is optimized for road rear derailleurs. A spare ARDH can be purchased from Ari. Alternatively, a SRAM Universal Derailleur Hanger (UDH) can be used with cassettes that have largest cogs of 28T or greater.

What is the disc brake mounting standard?

Flat mount 140/160. The rear brake mount thickness is 25mm, so 32mm bolt length is required to mount your brakes.

What are the headset dimensions?

The Standardized Headset Identification System (SHIS) is IS52 / 28.6 | IS52 / 40 (45°). This is used with the 1.5”/1.5” headtube. We have chosen to use the FSA SRS headsets for simple, clean cable management with a custom Ari upper bearing cap. FSA ACR is also compatible if the matching stem is also used in conjunction with the custom Ari upper bearing cap. Both custom top caps for ACR/SRS and standard road stems are included with every bike and frameset.

What is the bottom bracket on Veyo?

Veyo uses a BB86 bottom bracket standard.

What are the front and rear axle dimensions?

The front axle is M12x118mmxP1.5. Rear: M12x168mmxP1.0.

What is the seat clamp on Veyo?

Veyo includes an integrated seat clamp design that is included with every complete bike and frameset.

How will it arrive?

All Ari bikes go through our Custom Setup process, making sure the bike is fit and tuned specifically to you. They are test-ridden before delivery. If your bike is shipped to you, it’s still tuned and ready to ride and requires just a few minutes of assembly.

What about service?

You can work directly with us, one of our recommended shops, or work through your local shop.

What is the warranty?

Each frame comes with a Lifetime Warranty. Ari-branded frames come with a transferable warranty as well.

What is the guarantee?

It comes with a 30-Day Love It or Return It Guarantee.

How does transferable warranty on Ari bikes work?

Ari-branded frames come with a transferable frame warranty available to the second owner. The second owner can receive a one-year frame warranty from the date they purchase the bike from the original owner. Warranty only transfers once. All Ari bikes must have the transfer documented from the original owner to the new owner here in order to qualify for a transferable warranty.
