Engineered for a lively yet planted feeling
170mm
Rear/Front Suspension
Something you need to experience for yourself to believe.

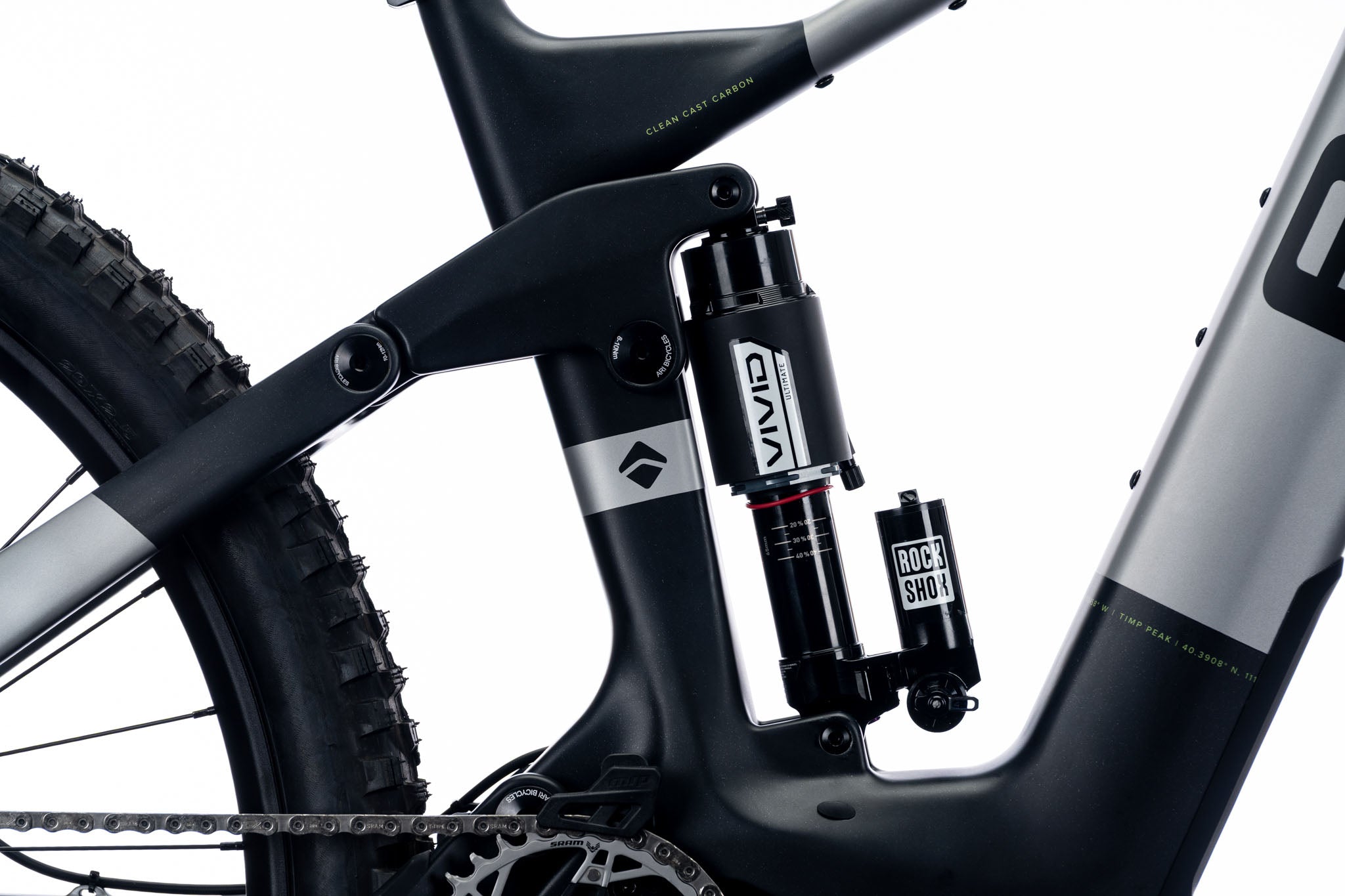

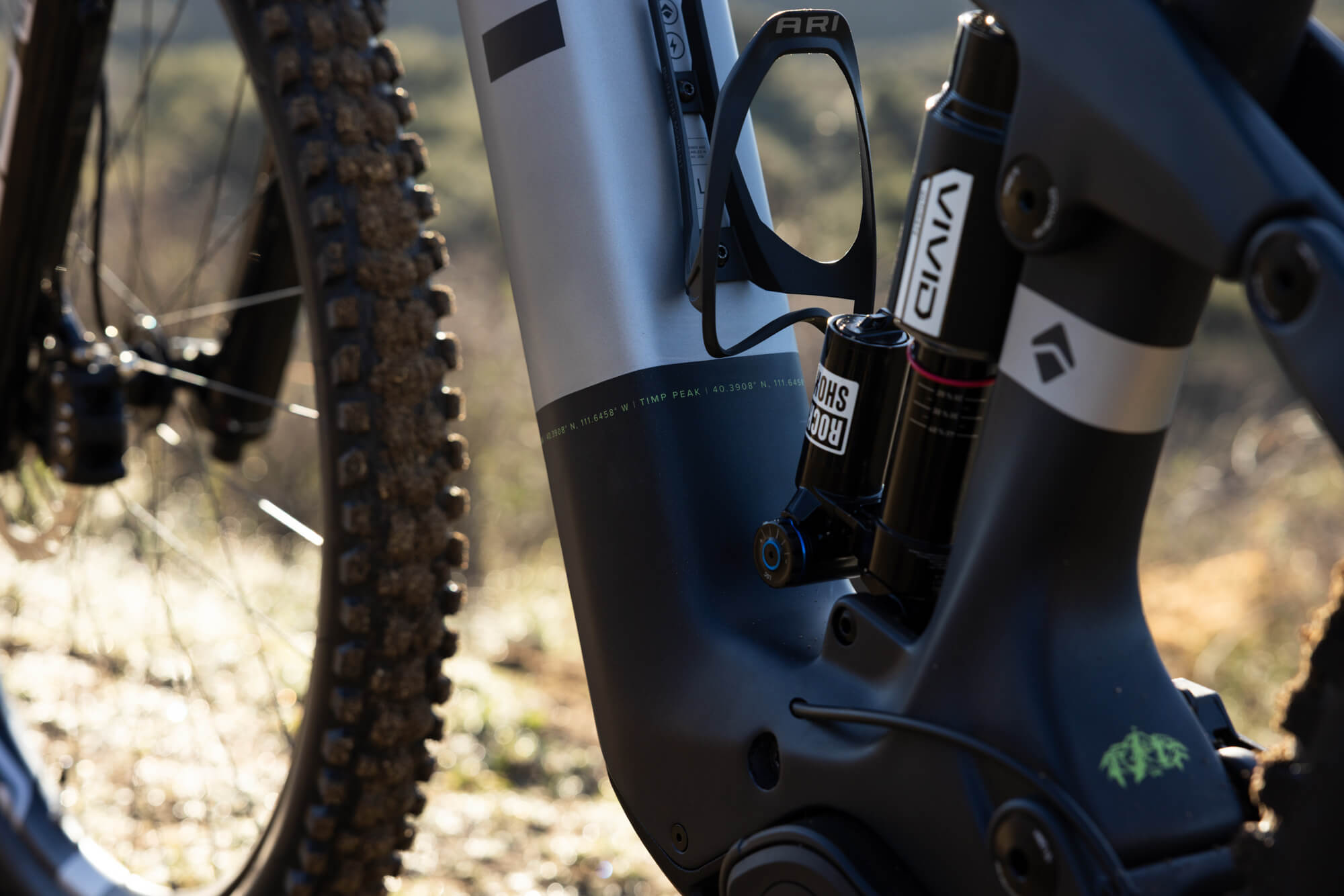

We optimized the La Sal Peak's proven and award-winning platform to match the Timp Peak weight, torque, and power. The result? Suspension performance that delivers a lively yet planted feeling.

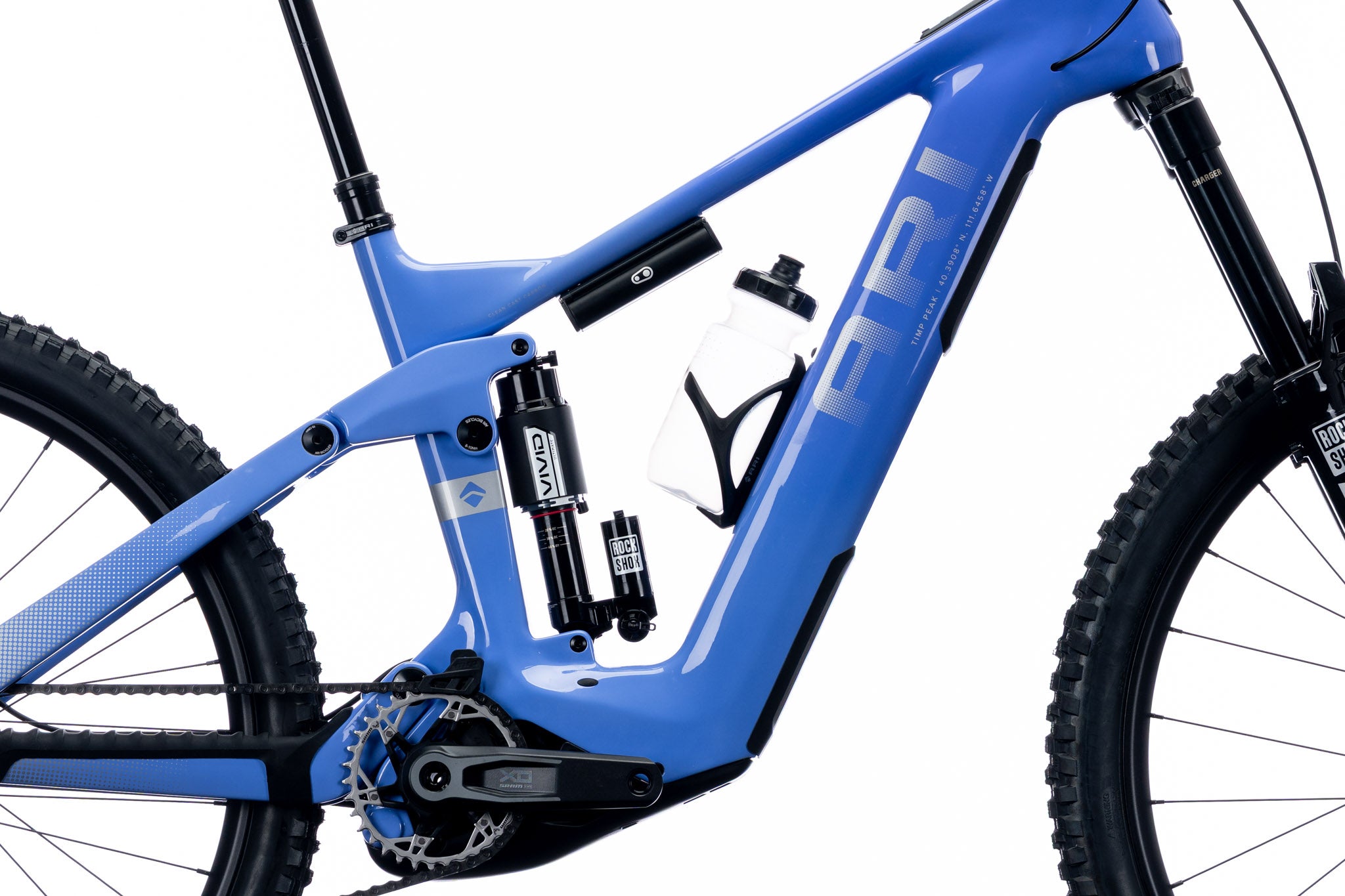

Full Carbon Frame
85Nm Torque
EP801 Motor
Frameset Options

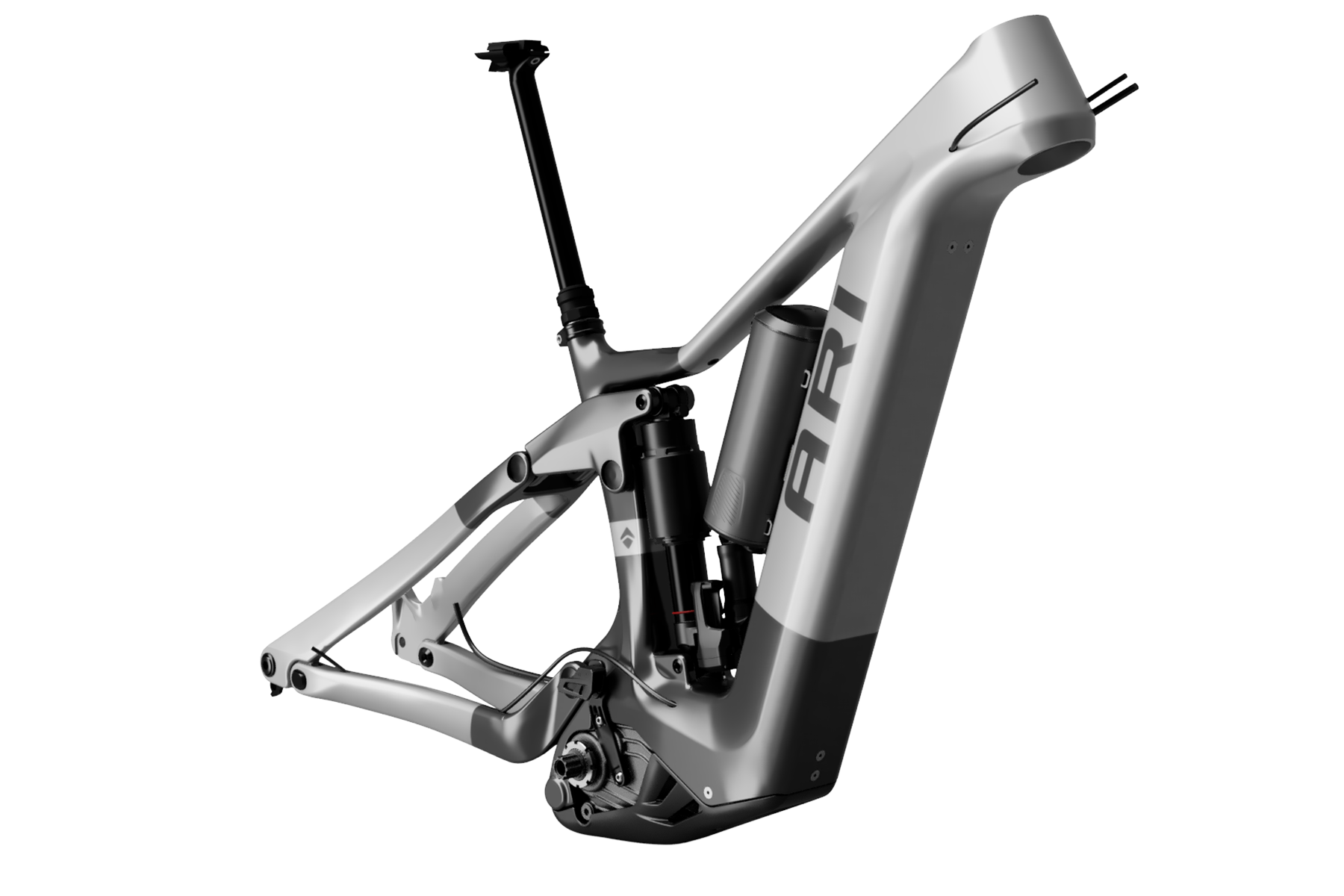

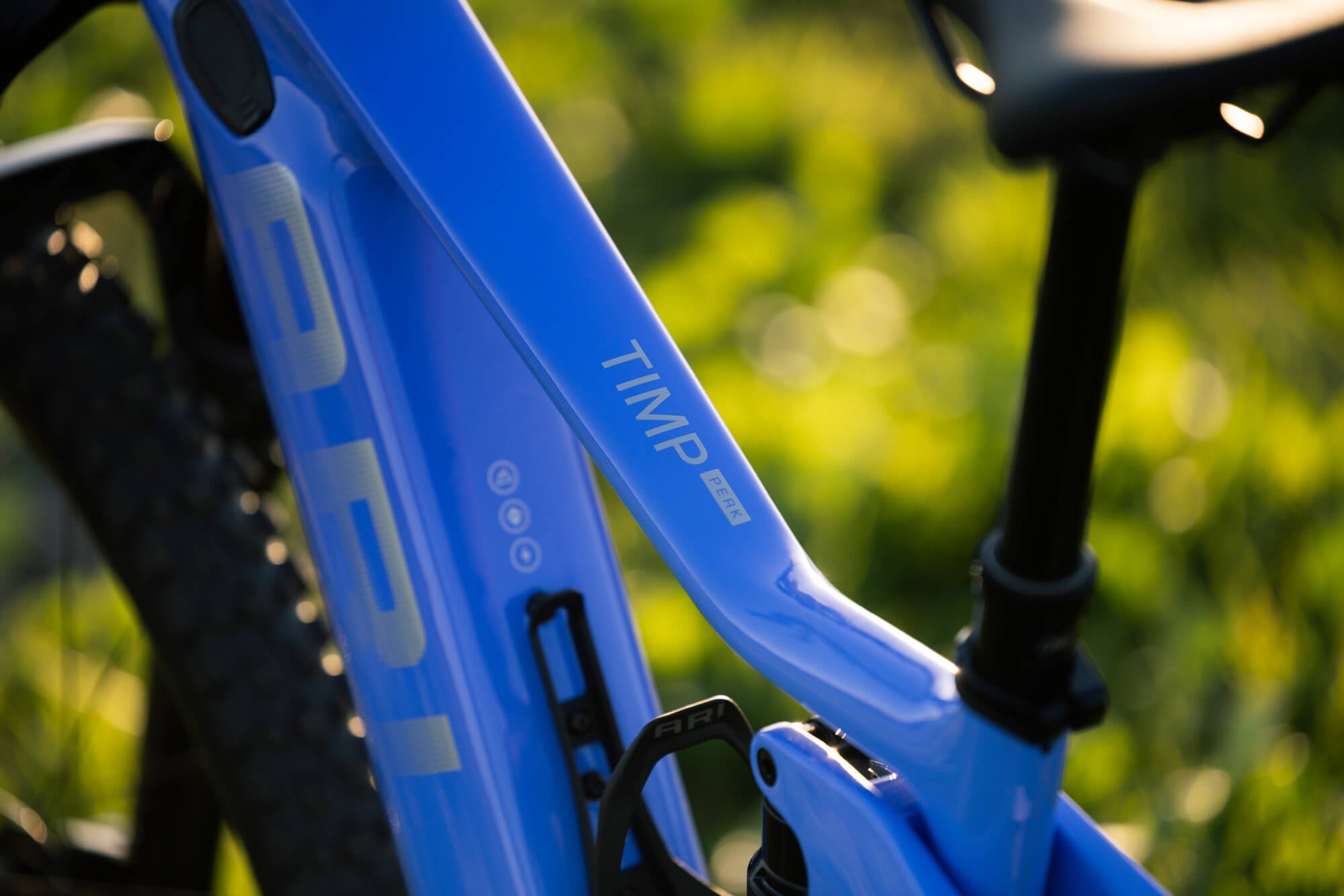

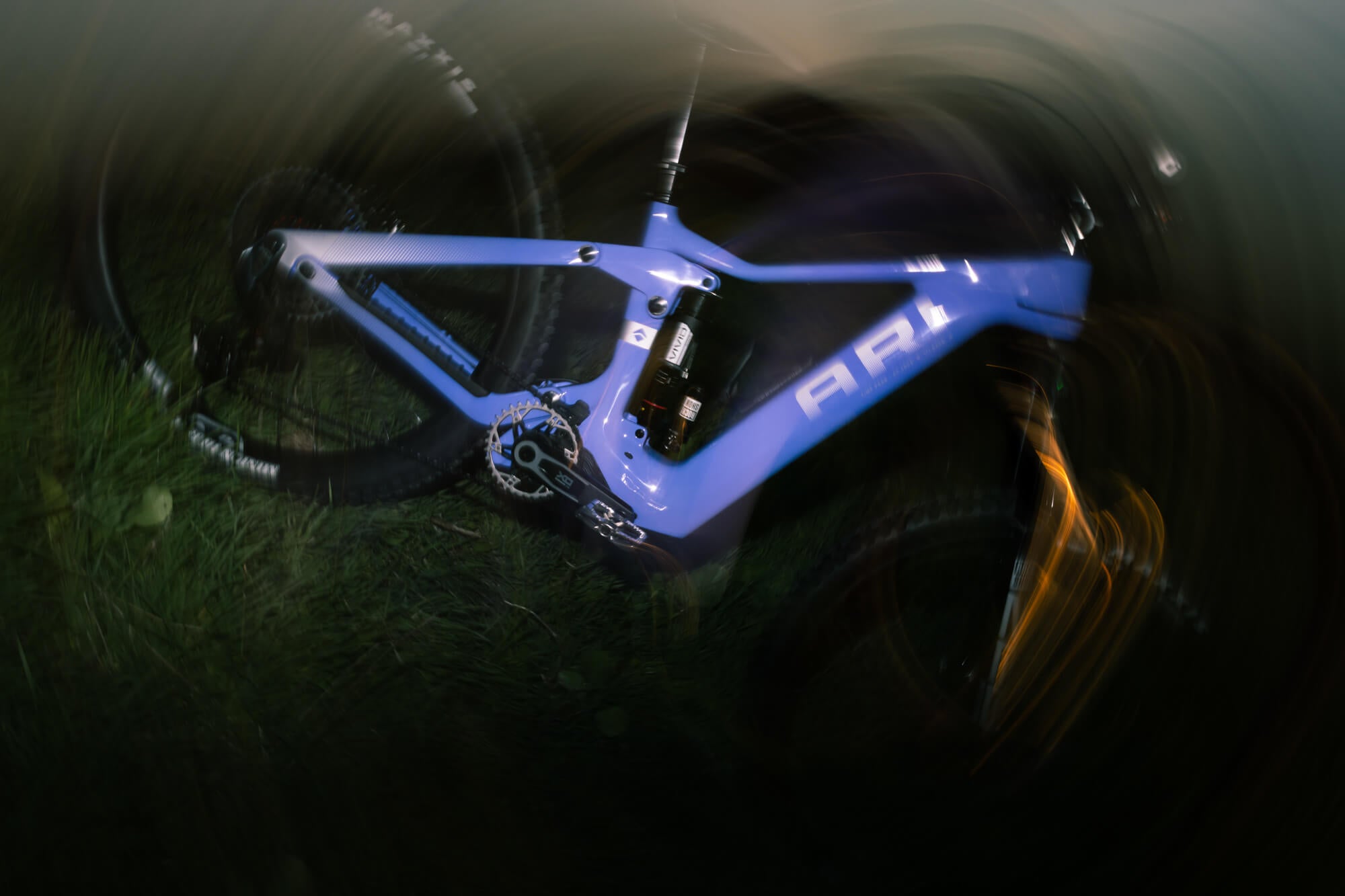

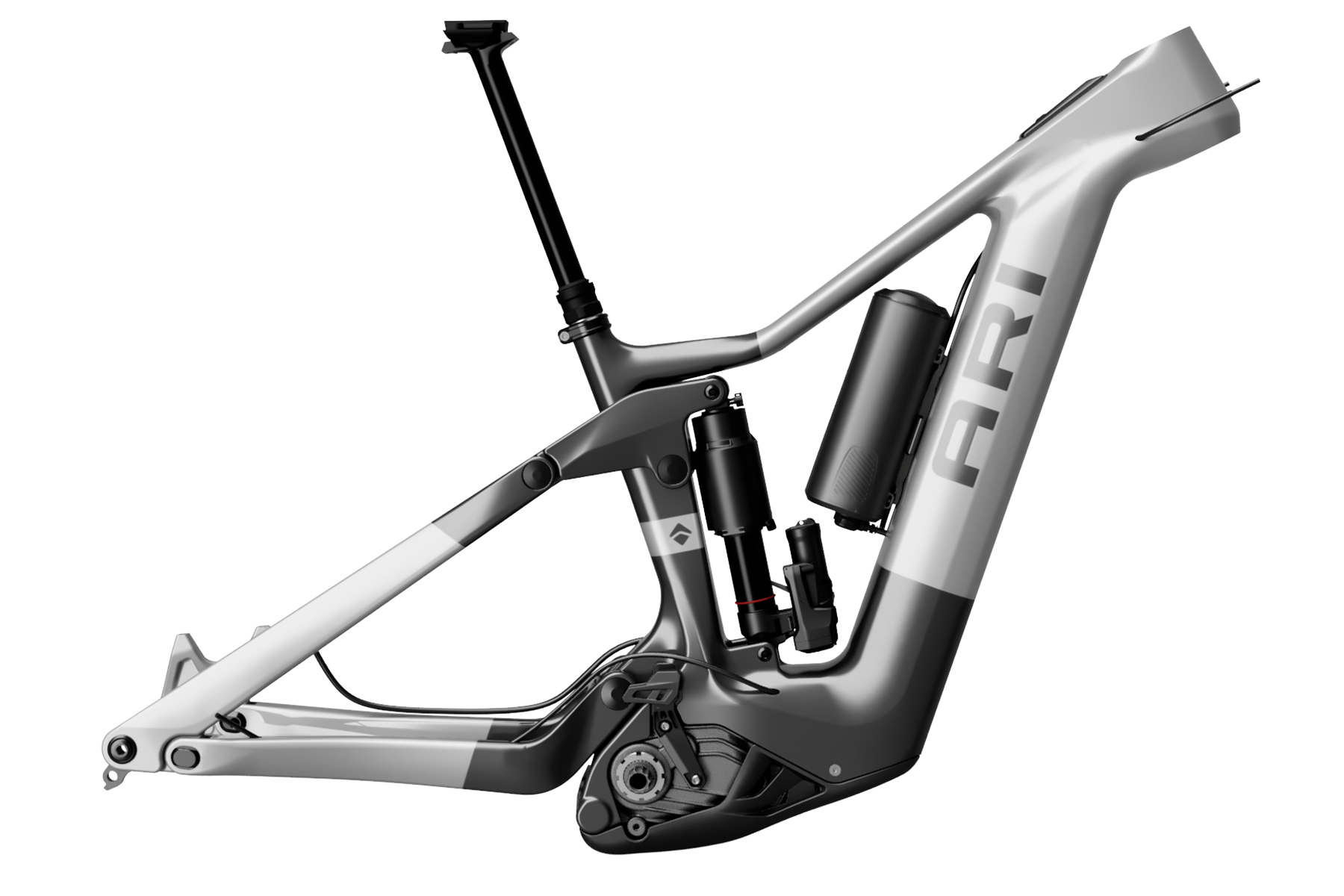

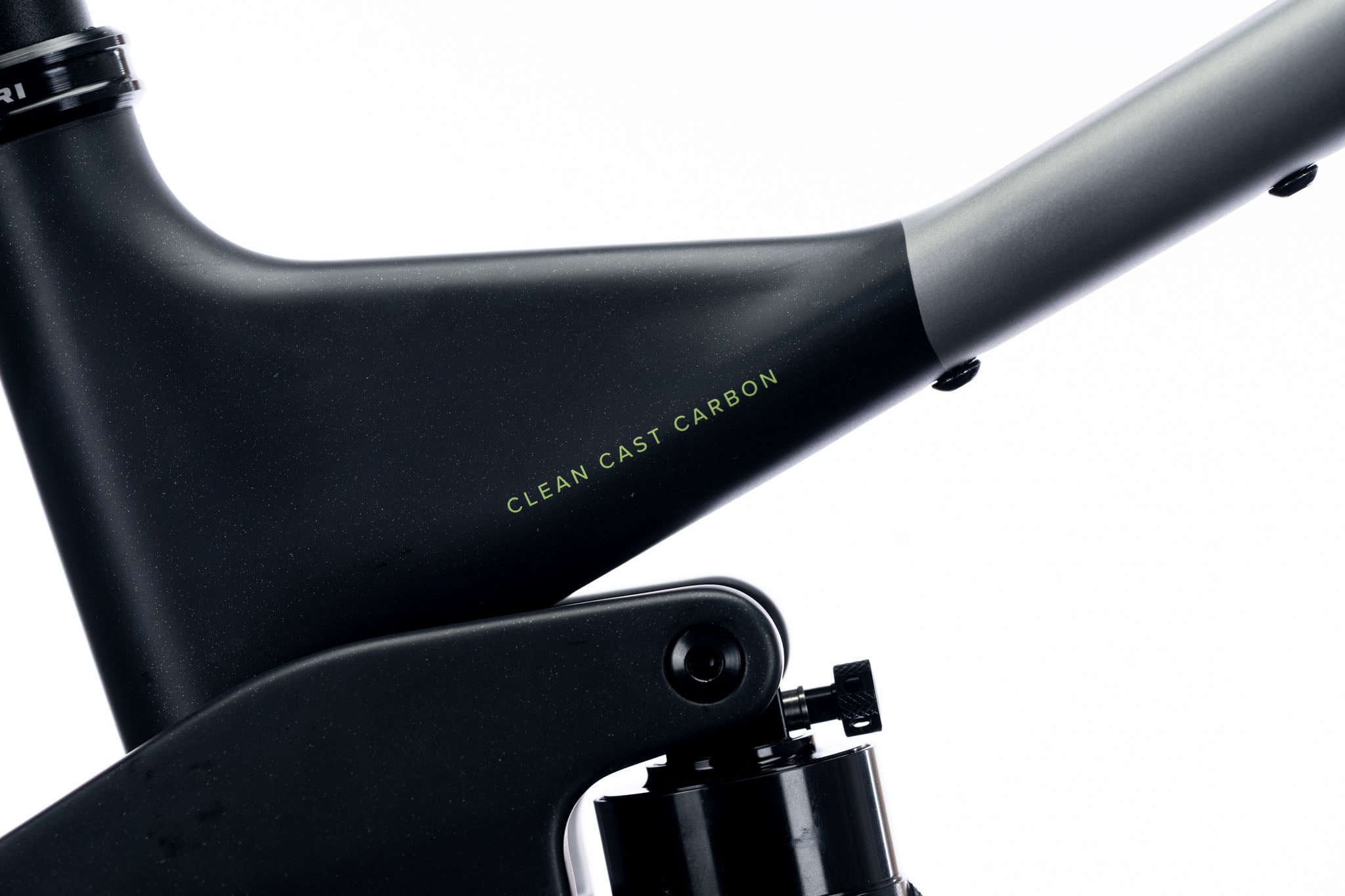

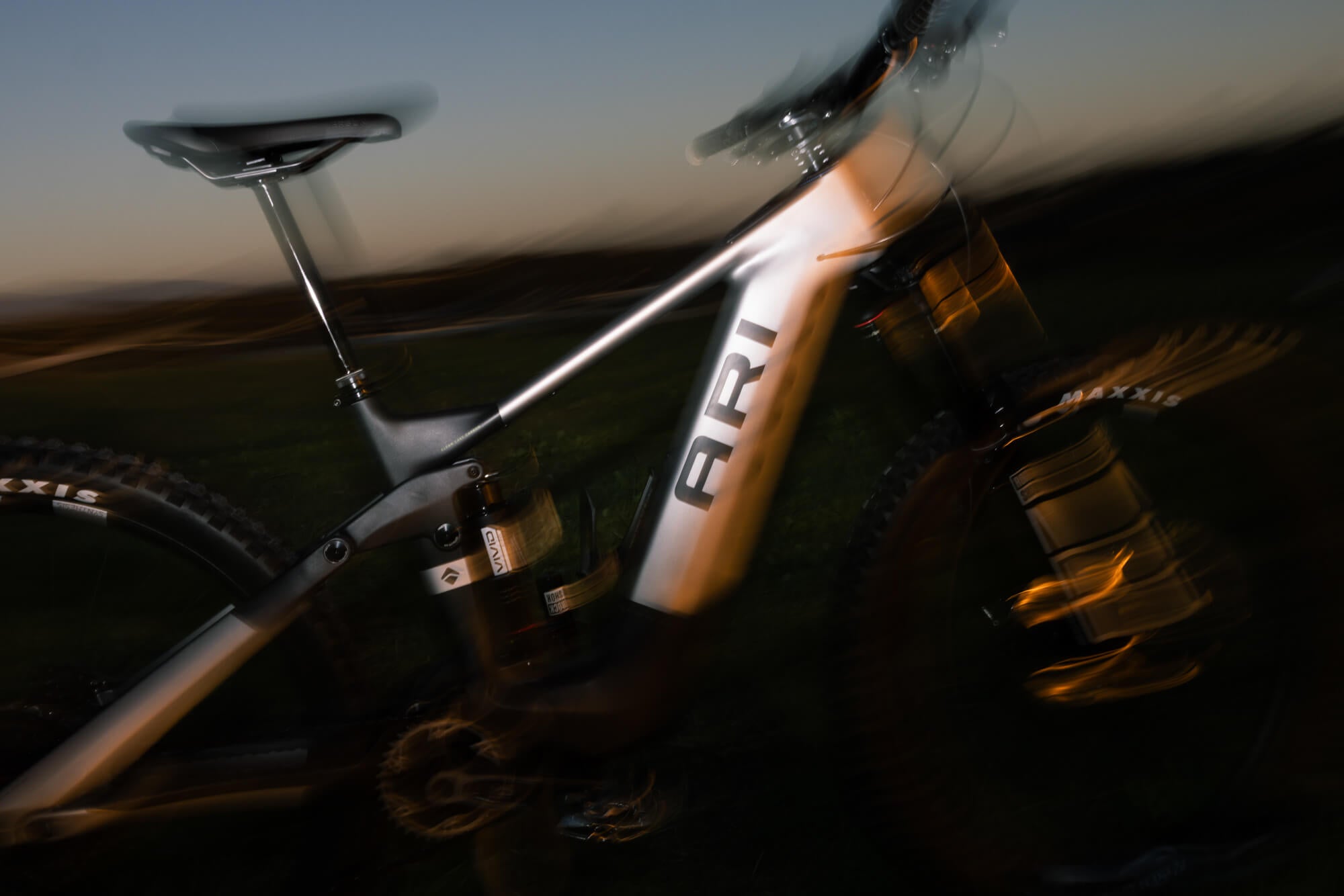

The Timp Peak features a full carbon frame (including front and rear triangles and shock link) that offers a lightweight and stiff platform for high-performance riding - all backed by our Lifetime Warranty. The use of carbon allows Fezzari to manipulate tubing shapes, control stiffness, and tune desired flex.
Powerful Riding
Timp Peak is equipped with a Shimano EP8 motor that has been custom tuned to unlock the full 85 Nm of functional torque. The Timp Peak's custom tuning profile amplifies the rider's natural power output.
The ultimate riding experience
designed to unlock the entire mountain.
Faster, Farther, Funner
Designed to take you up and down the steepest trails, get more laps on your favorite technical loops, and let you explore more remote terrain than you could on a traditional analog bike.
Explore Everything Range
Timp Peak allows you to explore for hours on one charge. Whether you want to boost mode your lunch ride or explore a new trail system, Timp Peak is ready to launch you up into the mountains.
Spec’d for Real Life Use

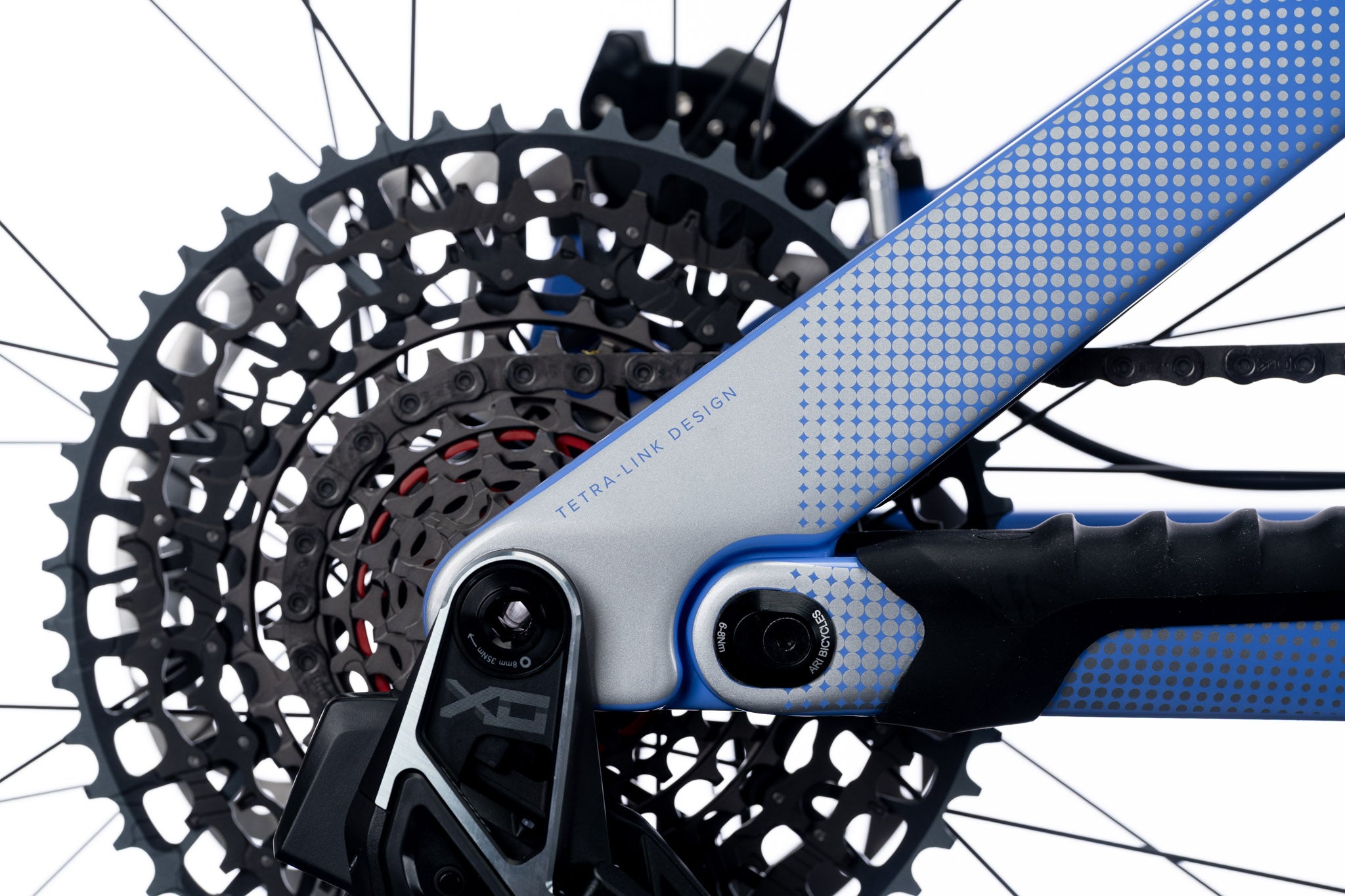

Every spec comes with the most capable components needed for a long travel E-bike. Top shelf suspension, premium wheels, reliable groupset and powerful brakes work together to elevate the ride experience at every build level. Out of the box, Timp Peak is ready to rip.

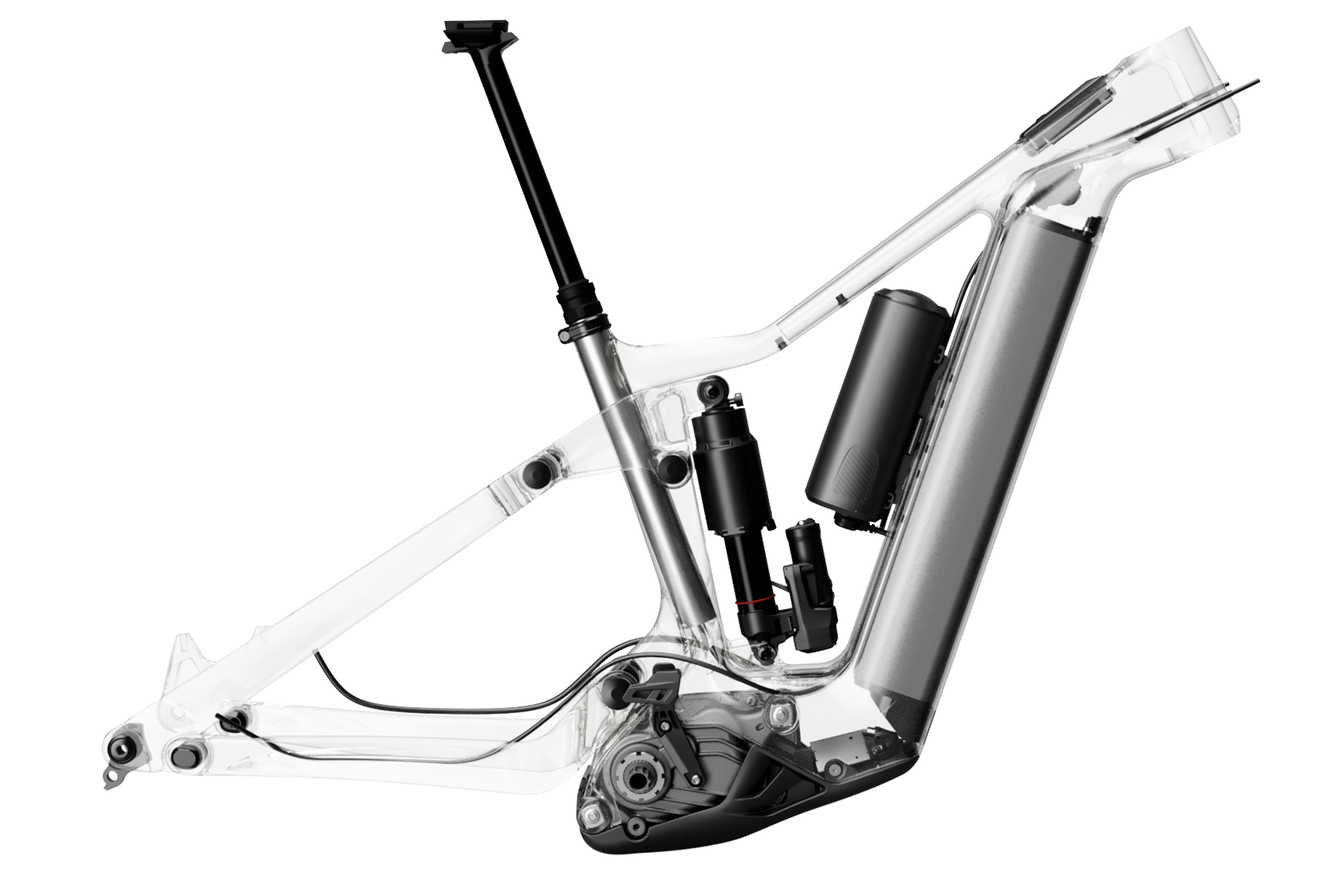

Proprietary Rail System

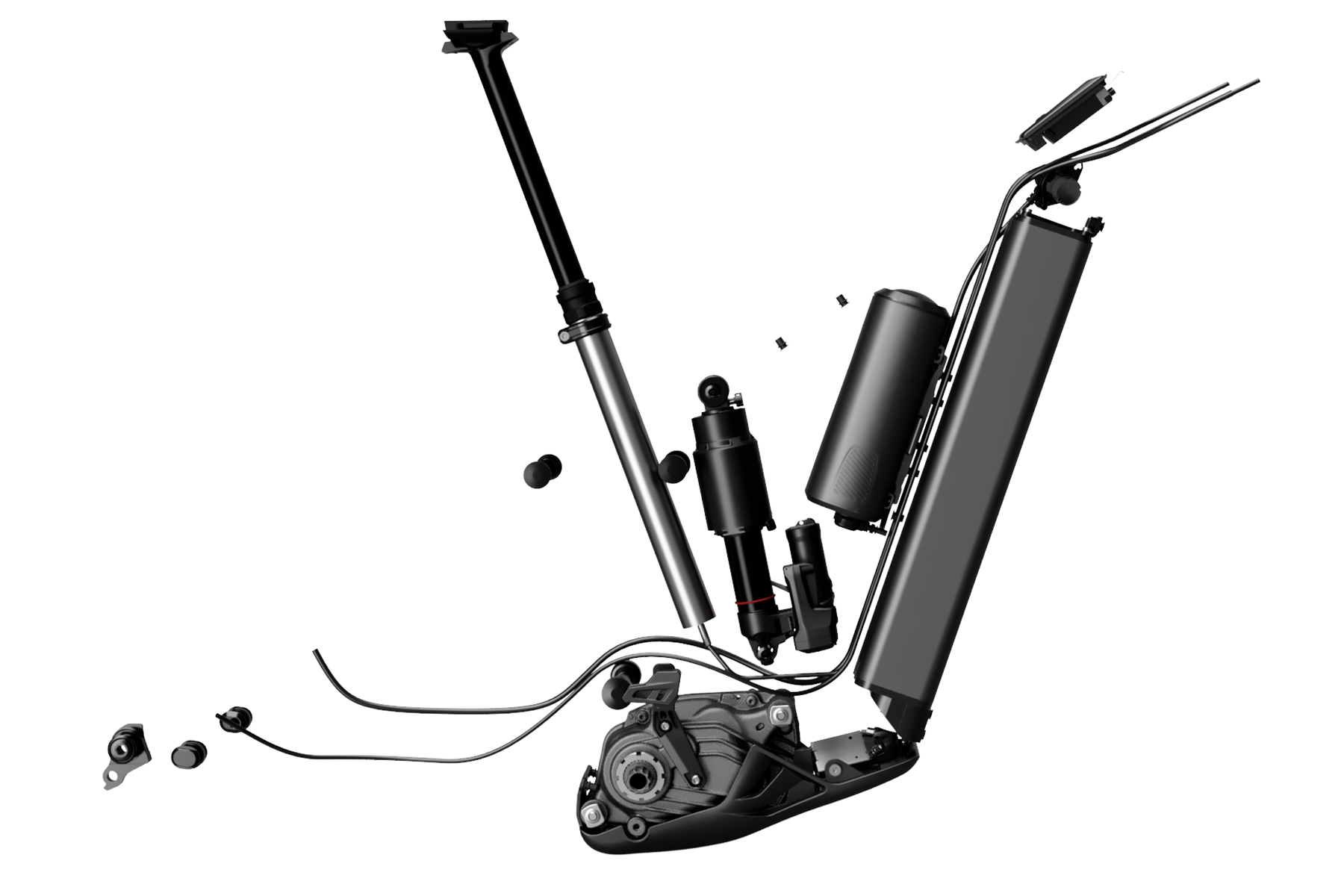

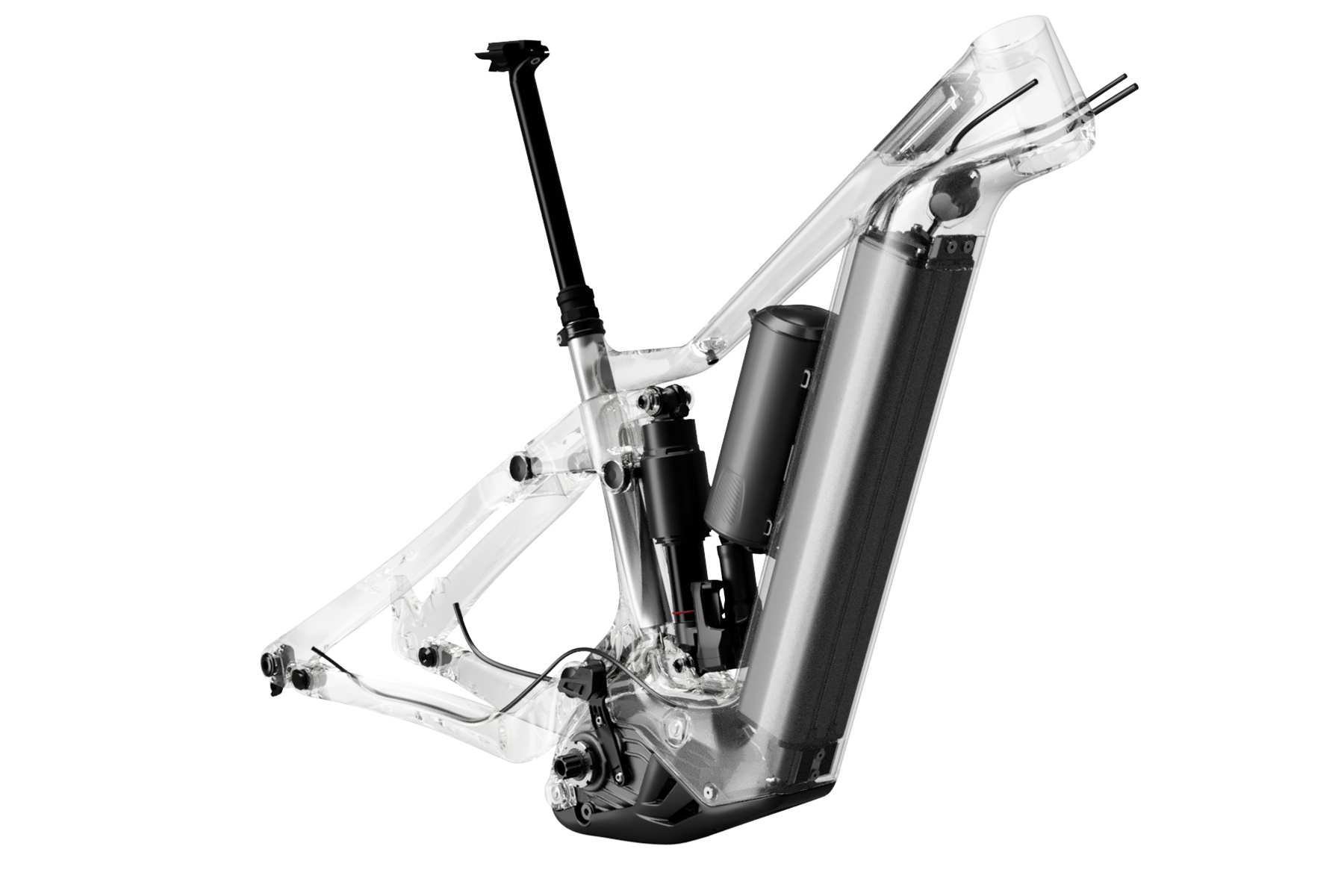

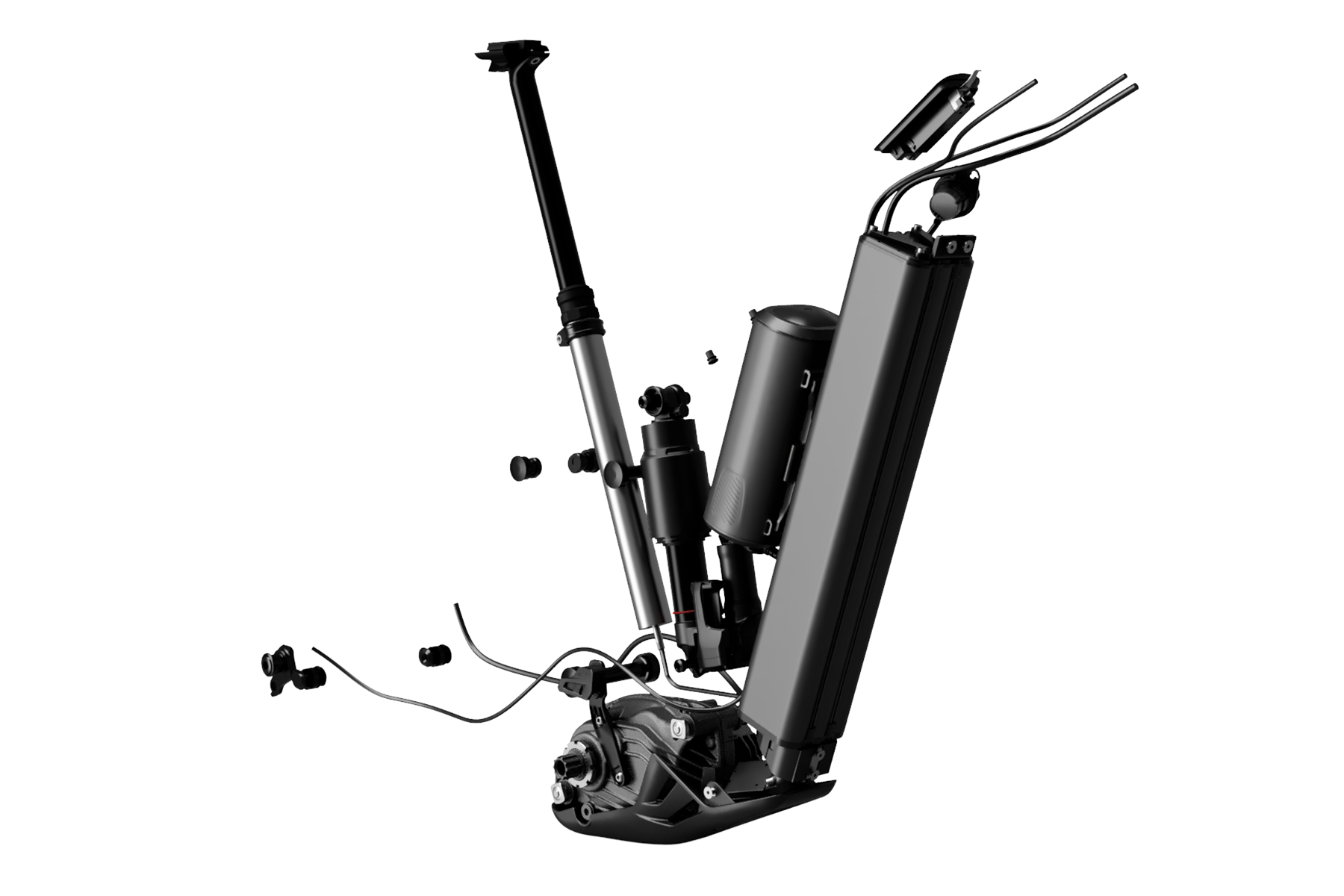

Our modular rail system enables the battery to sit at the lowest possible position. This results in a low center of gravity that improves traction and suspension performance. With a low center of gravity, Timp Peak has a light cockpit for great steering and handling.
Go ahead, take it for a spin.
Optimal Design

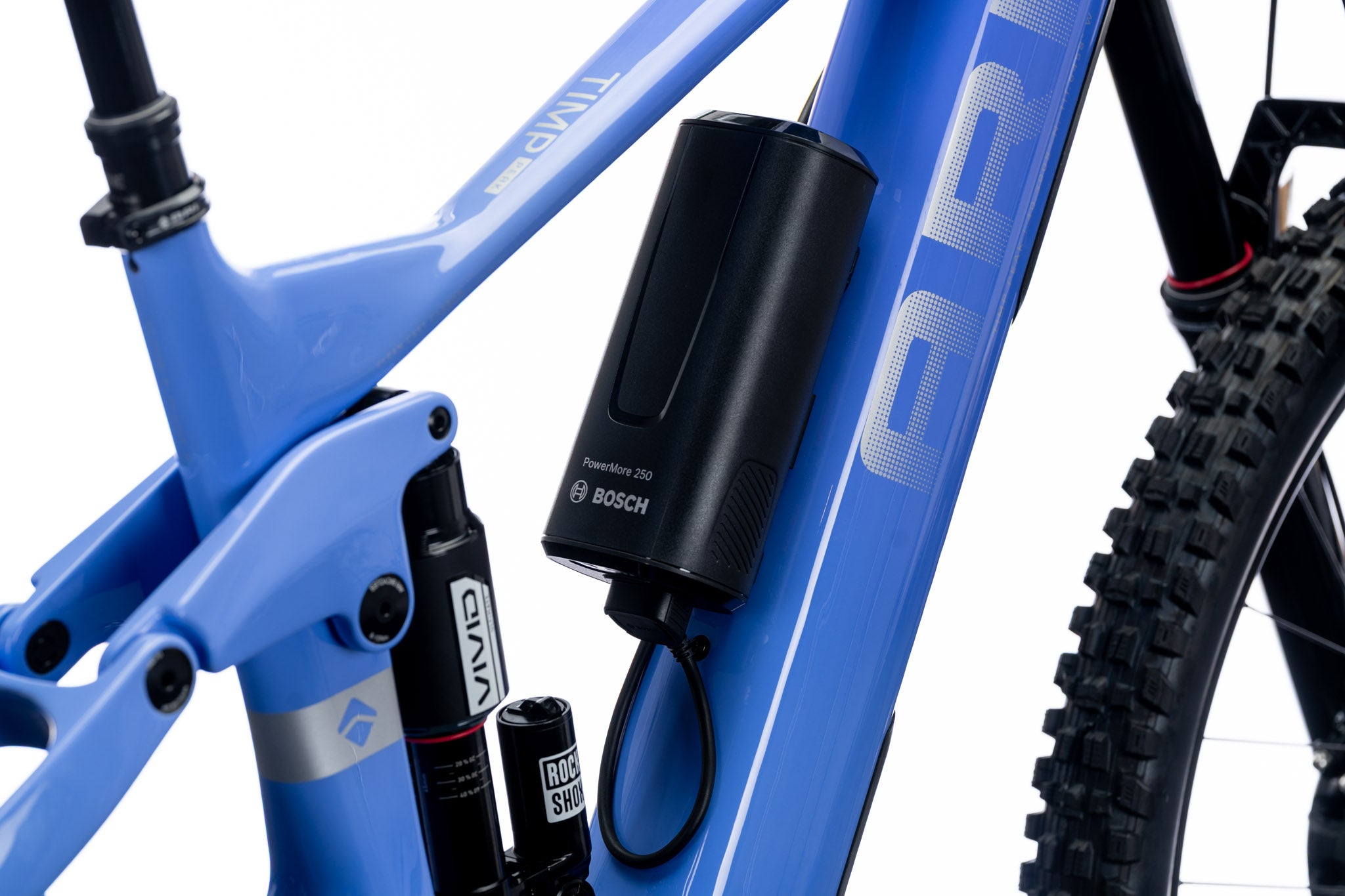

The Timp Peak is equipped with the perfect battery size to give you optimal range without sacrificing performance.
"The Timp Peak doesn’t exactly behave like the typical enduro ebike we’ve experienced. It’s livelier and allows for a more active riding style."
"The Timp…my new favorite bike. It’s a time-machine that takes me back to childhood and an engineering marvel that allows me to ride at a level I didn’t think possible. It’s fun personified."
"One of the best handling e-bikes at any price."
"I found the bike to be very playful, fun and lively"
"With new buyers, the brand will go through an extensive fit process before sending the bike so that it’s ready to rock."
"Ari has stuck to its focus on delivering a lot of value to riders without resorting to common cost-cutting measures."
"The geometry is ... revolutionary."
"I realized how deeply in touch Ari is with what riders want and what the industry needs."
Mt. Timpanogos
40.3908° N, 111.6458° W
Mount Timpanogos, often referred to as Timp, is one of the highest mountains in Utah's Wasatch Range. Timpanogos towers over Ari HQ at 11,753 ft above sea level. Timp is a breath-taking mountain with great prominence and also offers world-class trails surrounding it on all sides. With Ari located at the base of the mountain, it was the inspiration for Timp Peak and where it was tested and proven.
Save up to 40% Buying Direct
Bigger savings and perfect fit.
We sell directly to you, the rider. This gives you unique advantages like getting your Timp Peak custom fit to your body measurements, big savings on cost, and direct communication with us.
Lifetime Warranty
A warranty that lasts a lifetime.
We tested the Timp Peak 130% above industry standards. We want you to ride with the peace of mind knowing that this bike performs at an elite level, always. Your bike comes backed with a Lifetime Warranty. Ride it on your own trials for 30 days and if it’s not the best bike you’ve ridden, you can return it.
Geometry
Wheel Size
Units
| S | M | L | XL | |
|---|---|---|---|---|
| Top Tube | 568.1 | 584.9 | 613.1 | 637.2 |
| Seat Tube | 400.0 | 420.0 | 440.0 | 460.0 |
| Chainstay | 437.0 | 437.0 | 437.0 | 437.0 |
| Head Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| Seat Angle (Effective)* | 77.5° | 77.5° | 77.5° | 77.5° |
| Head Tube | 90.0 | 100.0 | 110.0 | 120.0 |
| Bottom Bracket Height | 347.6 | 347.6 | 347.6 | 347.6 |
| Bottom Bracket Drop | 26.4 | 26.4 | 26.4 | 26.4 |
| Wheelbase | 1206.1 | 1230.4 | 1264.8 | 1294.2 |
| Fork Offset | 44.0 | 44.0 | 44.0 | 44.0 |
| Standover Height | 739.6 | 741.6 | 742.6 | 744.6 |
| Stack | 612.6 | 621.6 | 630.6 | 639.5 |
| Reach | 435.0 | 455.0 | 485.0 | 510.0 |
| S | M | L | XL | |
|---|---|---|---|---|
| Top Tube | 568.1 | 584.9 | 613.1 | 637.2 |
| Seat Tube | 400.0 | 420.0 | 440.0 | 460.0 |
| Chainstay | 437.0 | 437.0 | 437.0 | 437.0 |
| Head Angle | 64.2° | 64.2° | 64.2° | 64.2° |
| Seat Angle (Effective)* | 78.7° | 78.7° | 78.7° | 78.7° |
| Head Tube | 90.0 | 100.0 | 110.0 | 120.0 |
| Bottom Bracket Height | 355.1 | 355.1 | 355.1 | 355.1 |
| Bottom Bracket Drop | 18.9 | 18.9 | 18.9 | 18.9 |
| Wheelbase | 1213 | 1233 | 1263 | 1290 |
| Fork Offset | 44.0 | 44.0 | 44.0 | 44.0 |
| Standover Height | 739.6 | 741.6 | 742.6 | 744.6 |
| Stack | 606.9 | 615.9 | 625.0 | 634.0 |
| Reach | 450.7 | 465.7 | 491.9 | 514.3 |
What’s my frame size?
Your height will determine a general recommended frame size. Occasionally, based on other body measurements, you may feel more comfortable on a different size. We recommend completing the 23-Point Custom Setup when completing your order.
Recommend a frame size for meBuild Specs
Each Ari bike is built with the best components in a given category so you get the most bang for the buck. Each model has different build specs to choose from usually ranging in good, better, best order.
Comparison TableBuild Level
*Specs are subject to change. Any substitutions will be comparable or better.
