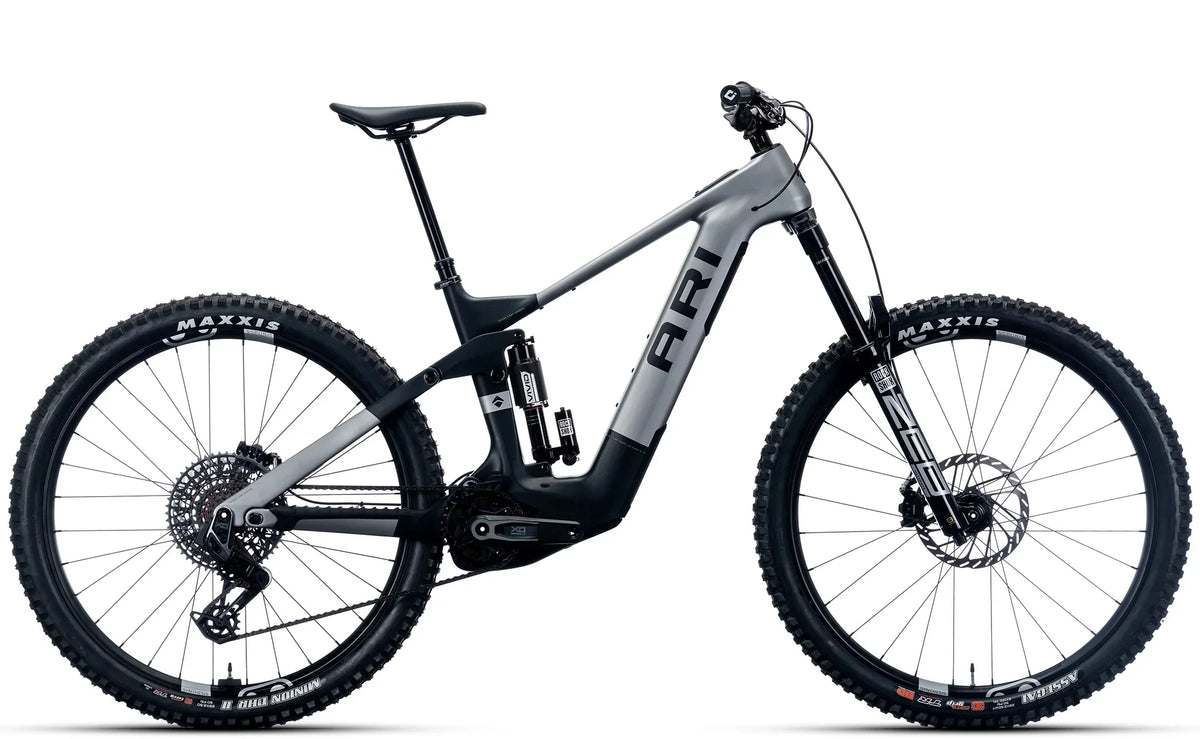

Timp Peak 2.0 Pro - Outlet
$8,799
$9,699
Save $900
New
Lead Time: Requires 5–7 business days for complete build prior to shipping or local pickup.
Warranty: Includes Ari’s Lifetime Frame Warranty for the original owner (covers frame defects in materials and craftsmanship).
Limited supplies available. All outlet sales are final (no returns or exchanges).
Build specs
- Frame Ari Timp Peak 2.0 CleanCast™ carbon frame, 4-way adjustable TetraLink™ suspension platform, 170mm travel, 29er or mullet compatible, tube-in-tube cable routing, Bosch PowerMore 250 range extender compatible
- Fork Rockshox ZEB Ultimate RC2, Charger 3.1 Buttercups, 170mm travel, 15x110 Axle, 42mm offset, tapered steerer
- Shock RockShox Vivid Ultimate RC2T, Hydraulic Bottom Out, 230x65, Custom Tuned
- Drivetrain SRAM X0 Eagle Transmission, Wireless, 12-Speed
- Wheelset Crankbrothers Synthesis Enduro Alloy, F: 28-hole, R: 32-hole, Disc, Tubeless Ready, 29er
- Brakes SRAM Maven Silver, HS2 200/200mm
- Seatpost Oneup V3 Dropper
- Motor Bosch Performance Line CX Gen 5 (BDU38) 800Wh Bosch PowerTube battery (Kiox 400 display upgrade available above)
In stockSKU: TP15WB5PRO-OUT
About the Timp Peak
Timp Peak
From shuttle laps to sketchy lines, you ride hard—and your bike should too. Timp Peak is built to take a beating. It’s been through the most brutal testing we’ve ever done, and it’s built for the long haul.
Watch the model video
Timp Peak · Watch the model video
Geometry
mm unless noted · your size highlighted
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Top Tube | 573.9 mm | 586.4 mm | 612.5 mm | 642.1 mm |
| Seat Tube | 380 mm | 400 mm | 420 mm | 450 mm |
| Chainstay | 437 mm | 437 mm | 437 mm | 437 mm |
| Head Angle | 64° | 64° | 64° | 64° |
| Seat Angle (Effective)* | 78° | 78° | 78° | 78° |
| Head Tube | 100 mm | 105 mm | 115 mm | 130 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Wheelbase | 1212 mm | 1235 mm | 1269 mm | 1300 mm |
| Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 728 mm | 740 mm | 750 mm | 754 mm |
| Stack | 624.4 mm | 628.9 mm | 637.9 mm | 651.4 mm |
| Reach | 435 mm | 455 mm | 485 mm | 510 mm |
| Seat Height for Effective Seat Angle* | 600 mm | 660 mm | 720 mm | 780 mm |
| Actual Seat Angle | 69.4° | 70.6° | 71.6° | 72.3° |
| Axle to Crown | 583 mm | 583 mm | 583 mm | 583 mm |
See it before you buy
Take a closer look.
Have questions about this outlet bike? Talk with our team about its condition, fit, and build, or schedule a video call to see it up close.
