New

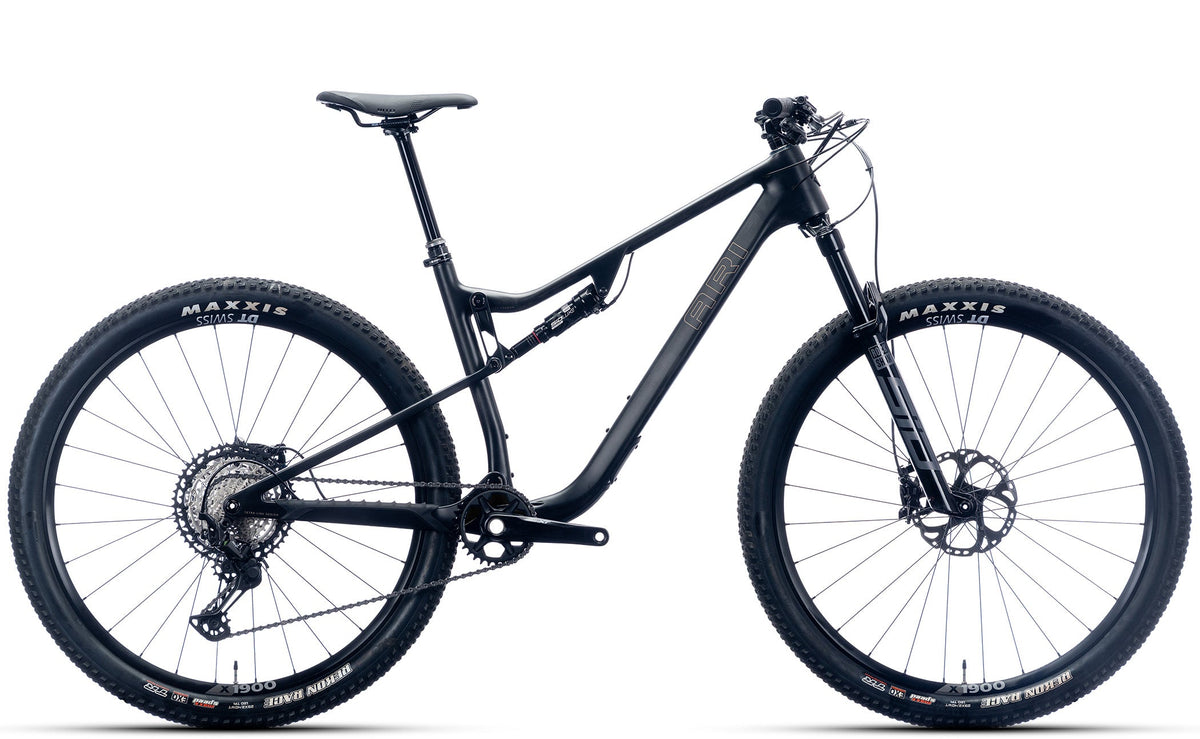

Signal Peak 3.0 Elite - Outlet

$4,699 ~~$5,199~~ Save $500

New

Brand new condition. Bike will be built and tested prior to pickup or delivery. Last of its kind. Limited quantities.

Lead Time: Requires 5–7 business days for complete build prior to shipping or local pickup.

Warranty: Includes Ari’s Lifetime Frame Warranty for the original owner (covers frame defects in materials and craftsmanship).

Limited supplies available. All outlet sales are final (no returns or exchanges).

Build specs

Frame Ari Signal Peak 3.0 Clean Cast™ Carbon, 110mm of Tetra-Link™ Race Lite suspension travel.
Fork Rockshox SID Select+, 3 Position Remote, Charger Race Day 2, DebonAir+ 120mm travel, 15x110 Axle, tapered steerer
Shock Rockshox SIDLuxe Select+, 3 Position Remote, 190x45mm, Custom Tuned
Drivetrain Shimano M8100 XT, 12-Speed
Wheelset DT Swiss X 1900, 29, 28 hole
Brakes Shimano XT M8120, 4-Piston, 180/180 F/R rotors
Seatpost TranzX JD-YSI05J 200mm

Choose an option

Size S

S

Color Raw Carbon Podium Gold

Raw Carbon Podium Gold

Tubeless Setup

+$85

Ari 175 Pedals

+$70

RideWrap Essential Deluxe Frame Protector Kit - Matte

+$69

Pelli RideRepel Coating + Deluxe Frame Protectors - Matte

+$150$170

$4,699 $5,199 Save $500

As low as $196/mo

HSA/FSA eligible

Learn more

Tax and shipping calculated at checkout

In stockSKU: SP15CG5ELT-OUT

About the Signal Peak

Our Lightest Full-Suspension Frame Ever

mm unless noted · your size highlighted

Geometry — Signal Peak
Measurement	S	M	L	XL
Top Tube	574.1 mm	596.3 mm	623.6 mm	662.1 mm
Seat Tube	400.0 mm	420.0 mm	450.0 mm	500.0 mm
Chainstay	430.0 mm	430.0 mm	430.0 mm	430.0 mm
Head Angle	66.5 mm	66.5 mm	66.5 mm	66.5 mm
Seat Angle (Effective)*	76.0 mm	76.0 mm	76.0 mm	76.0 mm
Head Tube	100.0 mm	110.0 mm	120.0 mm	135.0 mm
Bottom Bracket Height	341.0 mm	341.0 mm	341.0 mm	341.0 mm
Bottom Bracket Drop	35.0 mm	35.0 mm	35.0 mm	35.0 mm
Wheelbase	1146.3 mm	1170.2 mm	1200.7 mm	1240.3 mm
Fork Offset	44.0 mm	44.0 mm	44.0 mm	44.0 mm
Standover Height	748.0 mm	748.0 mm	748.2 mm	758.0 mm
Stack	597.9 mm	607.1 mm	616.3 mm	630.1 mm
Reach	425.0 mm	445.0 mm	470.0 mm	505.0 mm
Seat Height	600.0 mm	660.0 mm	720.0 mm	780.0 mm
Actual Seat Angle (degrees)	71.6 mm	72.2 mm	72.7 mm	73.1 mm
Axle to Crown	530.0 mm	530.0 mm	530.0 mm	530.0 mm

See it before you buy

Have questions about this outlet bike? Talk with our team about its condition, fit, and build, or schedule a video call to see it up close.
