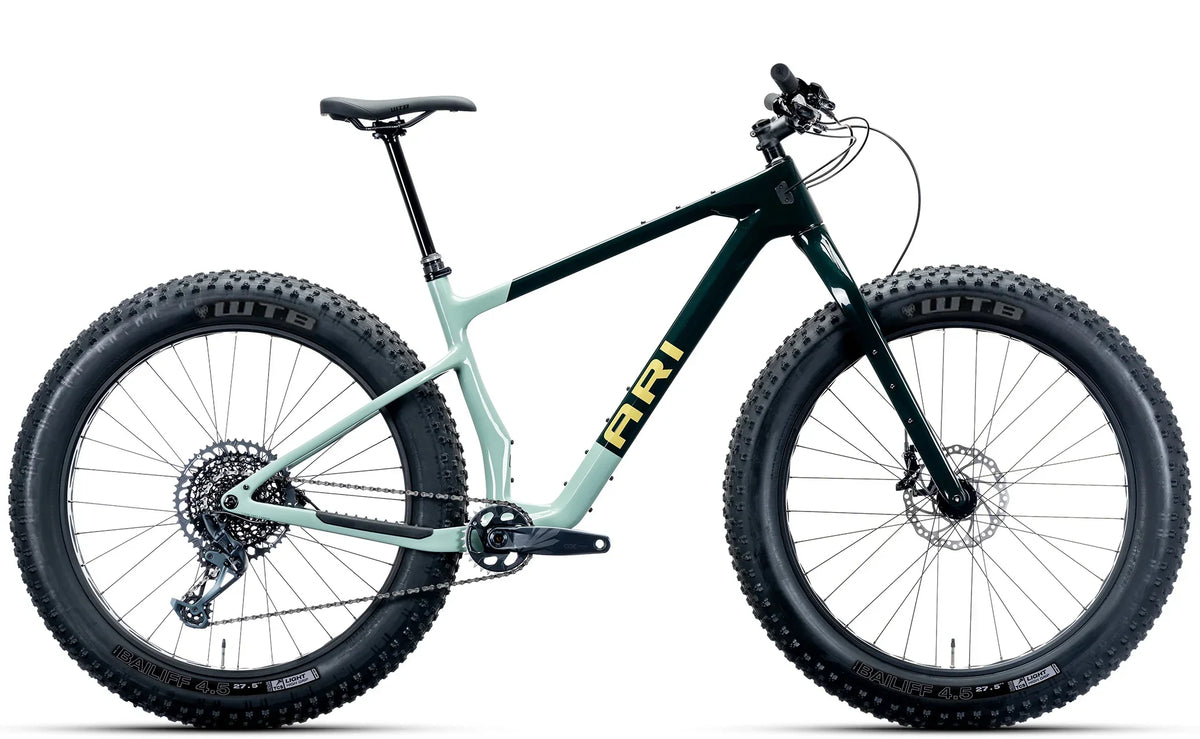

Kings Peak Elite - Outlet
$2,699
$3,499
Save $800
New
Lead Time: Requires 5–7 business days for complete build prior to shipping or local pickup.
Warranty: Includes Ari’s Lifetime Frame Warranty for the original owner (covers frame defects in materials and craftsmanship).
Limited supplies available. All outlet sales are final (no returns or exchanges).
Build specs
- Frame Ari Racing Design Fat King Carbon V3, full carbon construction, 197x12mm rear axle, 100mm english thread BB, tapered headtube, internal cable routing, UDH, 31.6 seatpost size, max frame rotor size 160mm
- Fork Ari Racing Design Kings Peak Carbon V3, tapered, 150x15mm thru axle
- Drivetrain SRAM GX Eagle 12-Speed 170mm 30t crank
- Wheelset WTB ST i76 76mm, 32 hole, 27.5, Hubs: Sun Ringlé SRC 197x12, 150x15, XD, Tires: WTB Bailiff TCS Light/High Grip, 27.5x4.5 Tubeless Ready
- Brakes TRP Trail EVO, 180/160mm Rotors
- Seatpost TranzX JD-YSI05J
In stockSKU: KP15GG5ELT-OUT
About the Kings Peak
Kings Peak
Enjoy no chain slap noise and the UDH (Universal Derailleur Hanger) system, ensuring easy serviceability no matter where you are.
Watch the model video
Kings Peak · Watch the model video
Geometry
mm unless noted · your size highlighted
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Top Tube | 590 mm | 614 mm | 637 mm | 660 mm |
| Seat Tube | 400 mm | 440 mm | 460 mm | 480 mm |
| Chainstay | 450 mm | 450 mm | 450 mm | 450 mm |
| Head Angle | 67° | 67° | 67° | 67° |
| Seat Angle (Effective) | 75° | 75° | 75° | 75° |
| Head Tube | 90 mm | 100 mm | 120 mm | 130 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheelbase | 1156.9 mm | 1184.1 mm | 1208.3 mm | 1232.6 mm |
| Fork Offset | 51 mm | 51 mm | 51 mm | 51 mm |
| Fork Axle to Crown | 511 mm | 511 mm | 511 mm | 511 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Standover Height | 700 mm | 750 mm | 770 mm | 780 mm |
| Stack | 598 mm | 615 mm | 625 mm | 635 mm |
| Reach | 430 mm | 450 mm | 470 mm | 490 mm |
See it before you buy
Take a closer look.
Have questions about this outlet bike? Talk with our team about its condition, fit, and build, or schedule a video call to see it up close.
