Your Year-Round Adventure Rig
Any Terrain, from urban jungle to Iceland's harshest winter crossings. Explorer Peak's 27.5x4.5” wheels and tires roll fast and capably over loose and soft terrain and have maximum traction on hard or rocky trails.
Carbon · E-MTB · 27.5 Fat
Adventure Further in the Extremes
Adventure Optimized
Any Terrain, from urban jungle to Iceland's harshest winter crossings. Explorer Peak's 27.5x4.5” wheels and tires roll fast and capably over loose and soft terrain and have maximum traction on hard or rocky trails.
The Explorer Peak full-carbon frame is light, strong, and backed with our Lifetime Warranty. Full power pedal-assist allows you to get the torque you need immediately on those tricky segments of the trail.
Unlock the ability to go over any landscape anywhere with Explorer Peak's progressive frame geometry. A stable 67-degree head tube angle enhances control, while the comfortable 75-degree seat tube angle ensures powerful and efficient pedaling. The low standover height accommodates riders of all sizes and allows for longer dropper seat posts.
Ride with precision using the latest Shimano drive units. The Explorer Peak offers custom motor tuning profiles, including "Soft Terrain Mode" and "Hard Terrain Mode," allowing you to fine-tune power output to match specific terrains and situations.
In the press
01 / 01

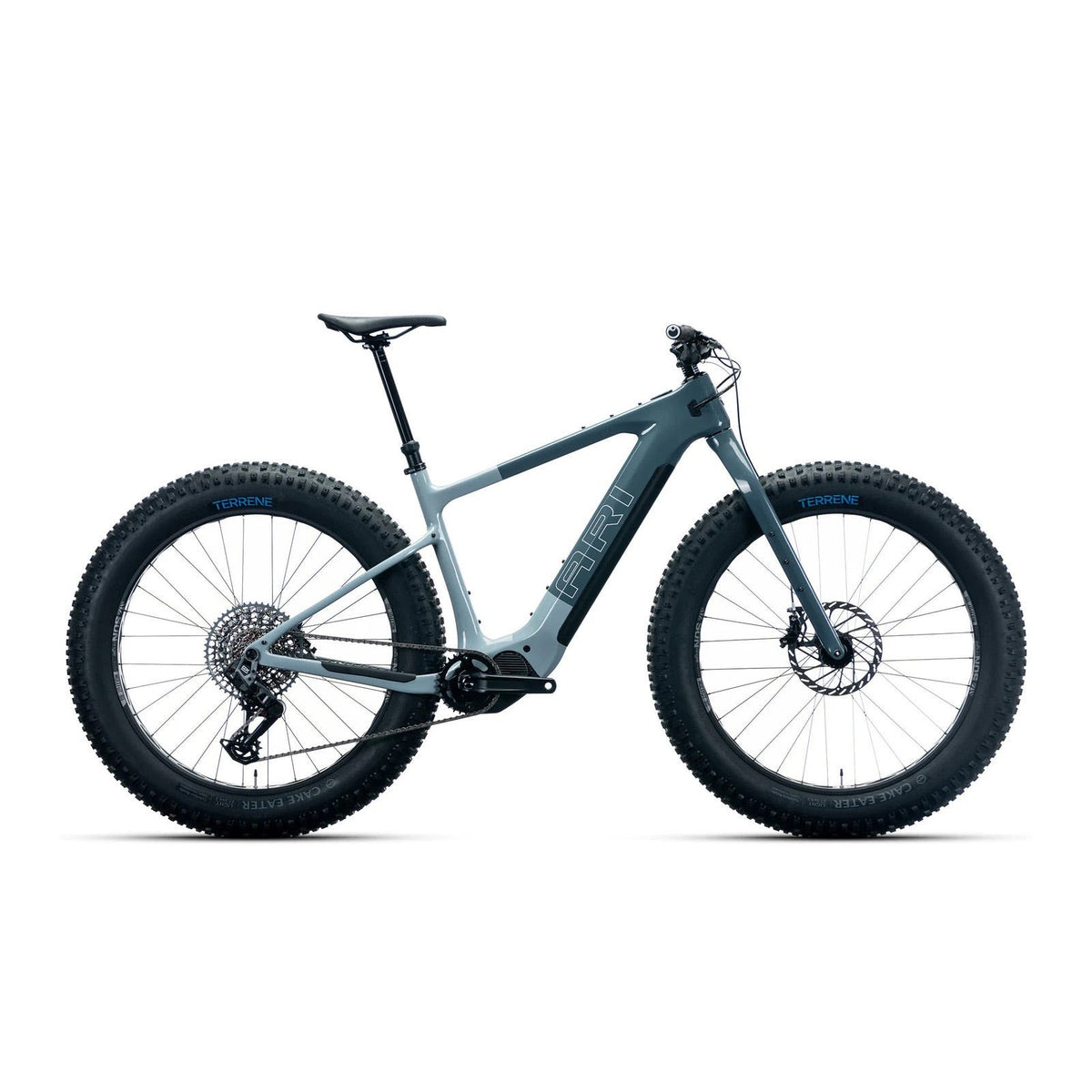

Bicycling’s fat-tire e-bike guide names the Ari Explorer Peak the best trail-ready fat bike. The write-up calls out the carbon frame and the Shimano motor and drivetrain.
Frame
Explorer Peak is not just a bike, it's an adventure machine for all seasons. Each build option comes equipped with the essentials including powerful 4-piston brakes, 1x drivetrains, and robust tubeless-ready wheels and tires.
Chassis
Custom-molded protection quiets chain slap and shields high-impact areas. UDH compatibility simplifies service, while the epoxy-infused finish is made to resist chips and scratches.
Watch
The Explorer Peak is not just a bike, it's an adventure machine for all seasons. Each build option comes equipped with the essentials including powerful 4-piston brakes, 1x drivetrains, and robust tubeless-ready wheels and tires.

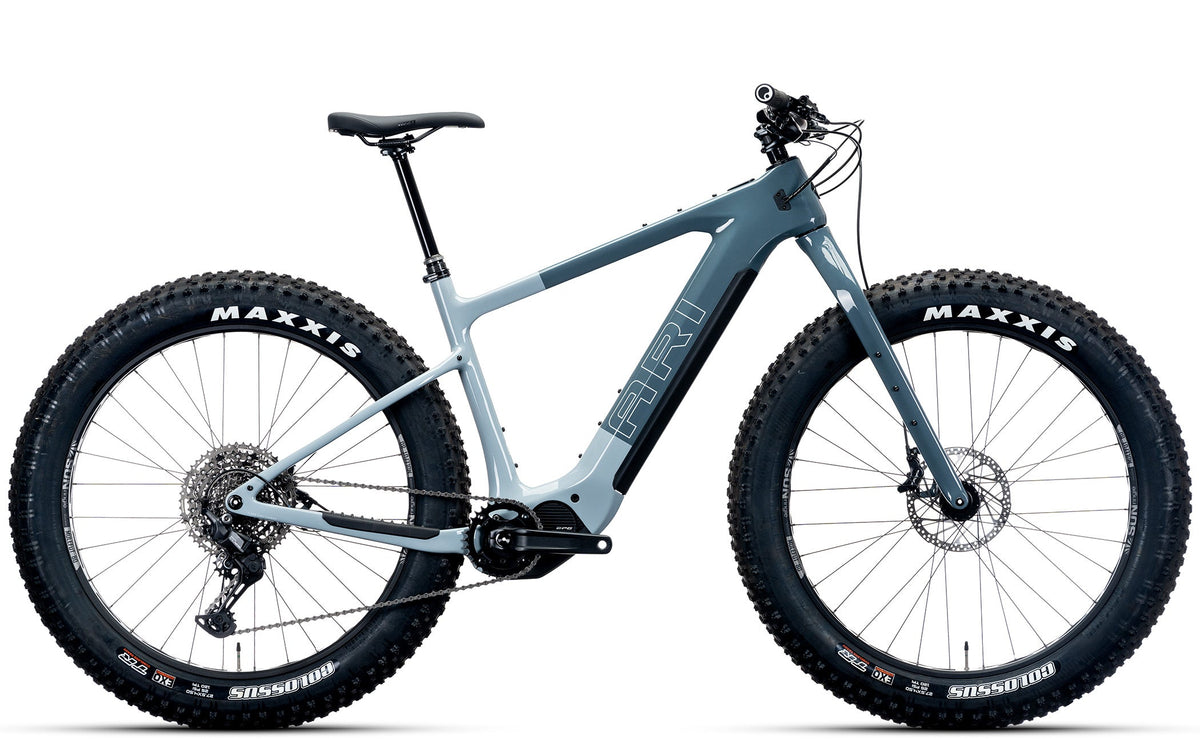

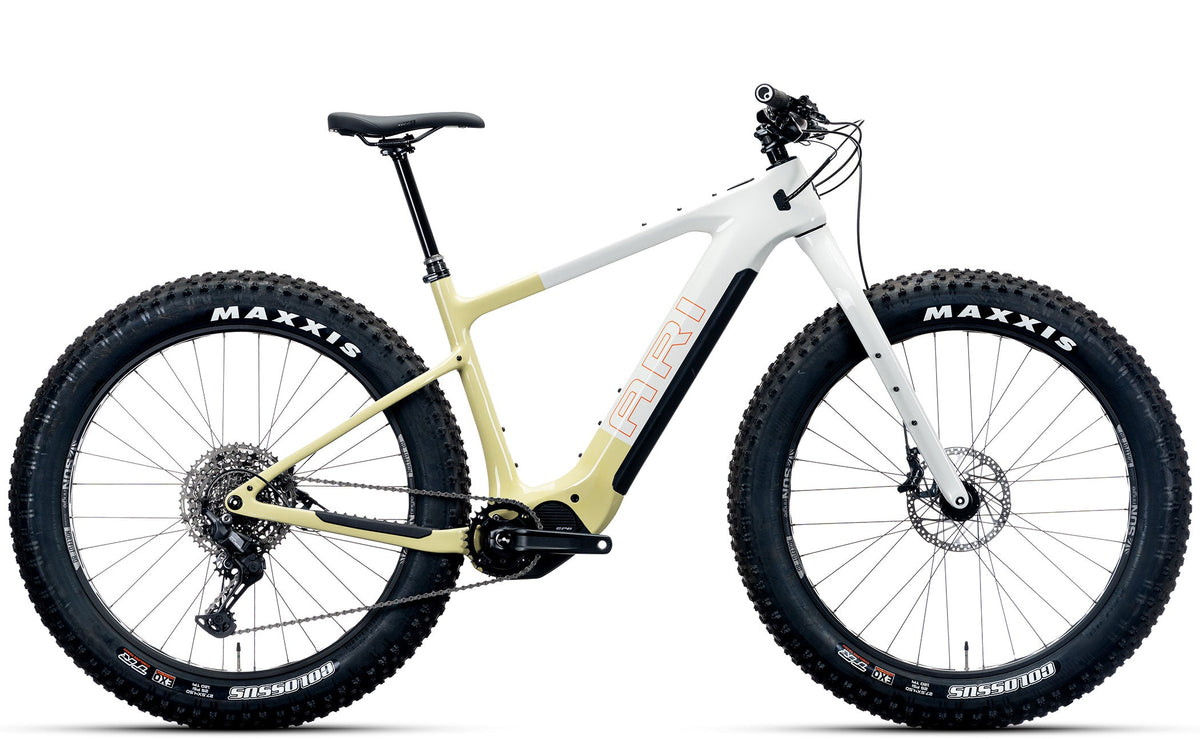

Colorways
Every complete build is available in both finishes. Choose a color here, then select the exact build, size, and setup in the configurator.
Studio
The details that define the ride.
Configuration
Every build shares the same Explorer Peak frame and ride character. Choose the component level, then configure size, color, custom setup, and upgrades.
Build specifications
| Comp | Elite |
|---|---|
|
PriceSALE
$4,899$5,499 |
PriceSALE
$5,999$6,499 |
| Chassis & suspension | |
|
Frame
Ari Explorer Peak Carbon. UDH derailleur hanger.
|
FrameUpgraded
Ari Explorer Peak Carbon. Fullmount/UDH interface.
|
|
Fork
Ari Racing Design Explorer Peak Carbon, tapered, 150x15mm thru axle, 180mm post mount
|
Fork
Ari Racing Design Explorer Peak Carbon, tapered, 150x15mm thru axle, 180mm post mount
—
|
|
Drive unit
Shimano EP801 motor system
|
Drive unit
Shimano EP801 motor system
—
|
|
Battery
Darfon 720w integrated battery
|
Battery
Darfon 720w integrated battery
—
|
|
Sizes
S,M,L,XL
|
Sizes
S,M,L,XL
—
|
| Drivetrain & brakes | |
|
Drivetrain
Shimano CUES U6000 11-Speed
|
DrivetrainUpgraded
SRAM GX Eagle Transmission, 12-Speed
|
|
Brakes
TRP Slate EVO, 180/180mm rotors
|
BrakesUpgraded
TRP Trail EVO, 180/180mm rotors
|
|
Shifters
Shimano CUES SL-U6000-11R
|
ShiftersUpgraded
SRAM AXS Pod
|
|
Rear derailleur
Shimano CUES RD-U6000
|
Rear derailleurUpgraded
SRAM GX Eagle Transmission, 12-Speed
|
|
Cassette
Shimano CS-LG400-11, 11-50t, 11-Speed
|
CassetteUpgraded
SRAM XS-1275 GX Eagle, 10-52t, 12-speed
|
|
Crank
SAMOX E-Fat Bike Shimano Interface
|
Crank
SAMOX E-Fat Bike Shimano Interface
—
|
|
Chainrings
SAMOX E-Fat Bike 32t narrow wide, steel
|
ChainringsUpgraded
SRAM T-Type 32t
|
|
Chain
Shimano CN-LG500
|
ChainUpgraded
SRAM GX Eagle Transmission Flat-Top, 12-Speed
|
| Cockpit & contact points | |
|
Handlebars
Ari Team 31.8, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup
|
Handlebars
Ari Team 31.8, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup
—
|
|
Stem
Ari Alloy, 31.8mm
|
Stem
Ari Alloy, 31.8mm
—
|
|
Grips
Ergon GA20, black
|
Grips
Ergon GA20, black
—
|
|
Saddle
WTB Volt
|
Saddle
WTB Volt
—
|
|
Seatpost
TranzX JD-YS105J, travel adjust 30mm- customized sizing through Ari Custom Setup
|
Seatpost
TranzX JD-YS105J, travel adjust 30mm- customized sizing through Ari Custom Setup
—
|
|
Pedals
Available Separately
|
Pedals
Available Separately
—
|
| Wheels & tires | |
|
Wheels
WTB ST i76 76mm, 32 hole, 27.5
|
Wheels
WTB ST i76 76mm, 32 hole, 27.5
—
|
|
Rims
WTB ST i76 76mm, 32 hole, 27.5, Disc, Tubeless Ready
|
Rims
WTB ST i76 76mm, 32 hole, 27.5, Disc, Tubeless Ready
—
|
|
Hubs
WTB Frequency 197x12, 150x15, HG, E-Bike specific (steel axel and freehub)
|
HubsUpgraded
WTB Frequency 197x12, 150x15, XD, E-Bike specific (steel axel and freehub)
|
|
Spokes
Wheelsmith DB14
|
Spokes
Wheelsmith DB14
—
|
|
Tires
WTB Bailiff, TCS Light, High Grip, 27.5x4.5, EXO, tubeless ready
|
Tires
WTB Bailiff, TCS Light, High Grip, 27.5x4.5, EXO, tubeless ready
—
|
|
Tubes
27.5x4.5 Presta Valve for Fat Bike
|
Tubes
27.5x4.5 Presta Valve for Fat Bike
—
|
Specs are subject to change. Any substitutions will be comparable or better.
Fit & geometry
Compare every Explorer Peak frame size. Measurements match our bike comparison tool.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Top Tube | 590.0 | 614.0 | 637.0 | 660.0 |
| Seat Tube | 400.0 | 440.0 | 460.0 | 480.0 |
| Chainstay | 450.0 | 450.0 | 450.0 | 450.0 |
| Head Angle | 67.0° | 67.0° | 67.0° | 67.0° |
| Seat Angle | 75.0° | 75.0° | 75.0° | 75.0° |
| Head Tube | 90.0 | 100.0 | 120.0 | 130.0 |
| Bottom Bracket Height | 325.0 | 325.0 | 325.0 | 325.0 |
| Bottom Bracket Drop | 65.0 | 65.0 | 65.0 | 65.0 |
| Wheelbase | 1156.9 | 1184.1 | 1208.3 | 1232.6 |
| Fork Offset | 51.0 | 51.0 | 51.0 | 51.0 |
| Standover Height | 700.0 | 750.0 | 770.0 | 780.0 |
| Stack | 598.0 | 615.0 | 625.0 | 635.0 |
| Reach | 430.0 | 450.0 | 470.0 | 490.0 |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Top Tube | 59.0 | 61.4 | 63.7 | 66.0 |
| Seat Tube | 40.0 | 44.0 | 46.0 | 48.0 |
| Chainstay | 45.0 | 45.0 | 45.0 | 45.0 |
| Head Angle | 67.0° | 67.0° | 67.0° | 67.0° |
| Seat Angle | 75.0° | 75.0° | 75.0° | 75.0° |
| Head Tube | 9.0 | 10.0 | 12.0 | 13.0 |
| Bottom Bracket Height | 32.5 | 32.5 | 32.5 | 32.5 |
| Bottom Bracket Drop | 6.5 | 6.5 | 6.5 | 6.5 |
| Wheelbase | 115.7 | 118.4 | 120.8 | 123.3 |
| Fork Offset | 5.1 | 5.1 | 5.1 | 5.1 |
| Standover Height | 70.0 | 75.0 | 77.0 | 78.0 |
| Stack | 59.8 | 61.5 | 62.5 | 63.5 |
| Reach | 43.0 | 45.0 | 47.0 | 49.0 |
Measurements are shown in the selected unit. Angle values remain in degrees.
Press reviews
Impressive quality for its price tag and solid on-trail performance to go with it.
The Loam Wolf
An extensive fit process before sending the bike so that it’s ready to rock.
Singletracks
A lot of value without resorting to common cost-cutting measures.
Bicycling
Customer reviews
Tech support
Specs and setup for your first ride and beyond. Every bike comes with support from our team in Utah.
Remove packaging foam and zip-ties. Confirm the small-parts box has pedals, thru-axle and multitool.
Center the bar, set roll, and tighten faceplate bolts evenly in a cross pattern.
Seat the rotor between the pads, insert the thru-axle from the non-drive side and close to spec.
With the dropper fully extended, set height so your knee is slightly bent at the bottom of the stroke.
Grease threads. The left pedal is reverse-threaded.
Set sag for your weight using your fork and shock manuals, then check tire pressure against the sidewall range.
Frame and Ari-supplied hardware. Numbers match the diagram.

Hangers, bearings, shock hardware, and the rest of the replacement parts for the Explorer Peak are listed on the support page, with current stock.
Support
Still deciding? Our team rides these bikes and can help you find the right setup.
Explorer Peak is an e-fat bike designed for those who want to ride anywhere and any time of year - from soft snow and sand to rough trails and city streets. For the analog version check out Kings Peak.
Yes, at checkout there are several options available for financing.
Estimated lead times are listed under each model's size in the bike builder. Times may vary a little based on current conditions, frame size, color, and availability.
To charge an e-bike battery safely, set up your charging station in a cool, dry area between 50°F and 77°F (10°C to 25°C), well away from direct sunlight, heating vents, and moisture. Always use the manufacturer-approved charger specifically designed for your battery to prevent electrical damage or fire hazards. Keep the immediate area clear of flammable materials like blankets, paper, or rugs, and place both the battery and charger on a hard, flat, non-combustible surface such as concrete, tile, or metal to prevent heat buildup. Ensure the room has proper ventilation to allow heat to dissipate, and keep a working smoke detector nearby while avoiding charging near primary escape routes.
The frame will clear 27.5x4.5 or 26x5.0 tires. Tire clearance around the rigid fork is 27.5x4.5 or 26x5.0. Tire clearance around a suspension fork is defined by the fork manufacturer.
The Explorer Peak comes with a 120mm suspension-corrected rigid fork, and can run up to a 120mm travel fat bike suspension fork. We have tested the Manitou Mastodon Gen 3 fork for adequate clearance.
Upper: ZS56 | Lower: ZS56
73mm BSA English thread. Our philosophy is simple: if the bike is intended to be ridden on dirt, it gets a threaded bottom bracket. Threaded bottom brackets are easier to service.
Rear Hub: 197x12mm | Rear Axle: M12 - 224xL12xP1.0
Front Hub: 150x15mm | Front Axle: M15 - 198xL20xP1.5
The Explorer Peak frame is designed to interface with Shimano drive units.
The cables are routed internally through ports on the side of the headtube and are mounted to zip tie cable guides inside the downtube providing simple, controlled, quiet cable routing.
Yes! The frame and cable routing are compatible with internally routed dropper posts.
1780g (size medium)
There are two mounts for water bottles inside the front triangle of the size medium, large, and extra large. There is one mount for a water bottle inside the front triangle of the size small.
All Ari bikes go through our Custom Setup process, making sure the bike is fit and tuned specifically to you. They are test-ridden before delivery. If your bike is shipped to you, it’s still tuned and ready to ride and requires just a few minutes of assembly.
You can work directly with us, one of our recommended shops, or work through your local shop.
Each frame comes with a Lifetime Warranty. Ari-branded frames come with a transferable warranty as well.
It comes with a 30-Day Love It or Return It Guarantee.
Ari-branded frames come with a transferable frame warranty available to the second owner. The second owner can receive a one-year frame warranty from the date they purchase the bike from the original owner. Warranty only transfers once. All Ari bikes must have the transfer documented from the original owner to the new owner here in order to qualify for a transferable warranty.
