Balanced Performance
142mm rear suspension and 150mm front suspension coupled with Delano Peak’s award-winning frame geometry are the perfect recipe for a perfect day on the trails.
Carbon · MTB · 29"
Delano Peak
All Mountains, Any Adventure
142/150mm
Suspension
29"
Wheel size
Carbon
Frame
All-Mountain/Trail
Category
All Mountains, Any Adventure
A Masterclass of Balance & Fun

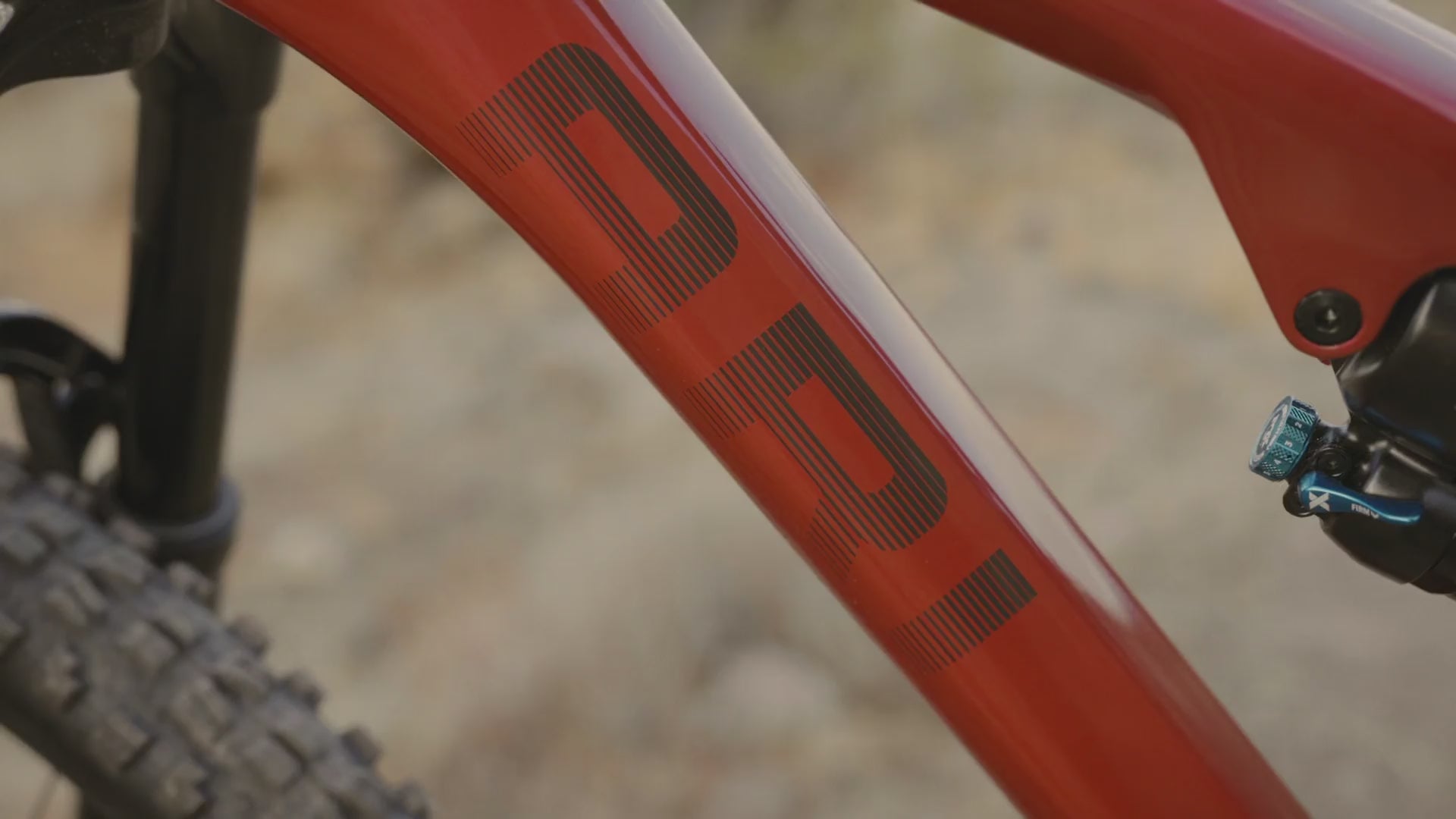

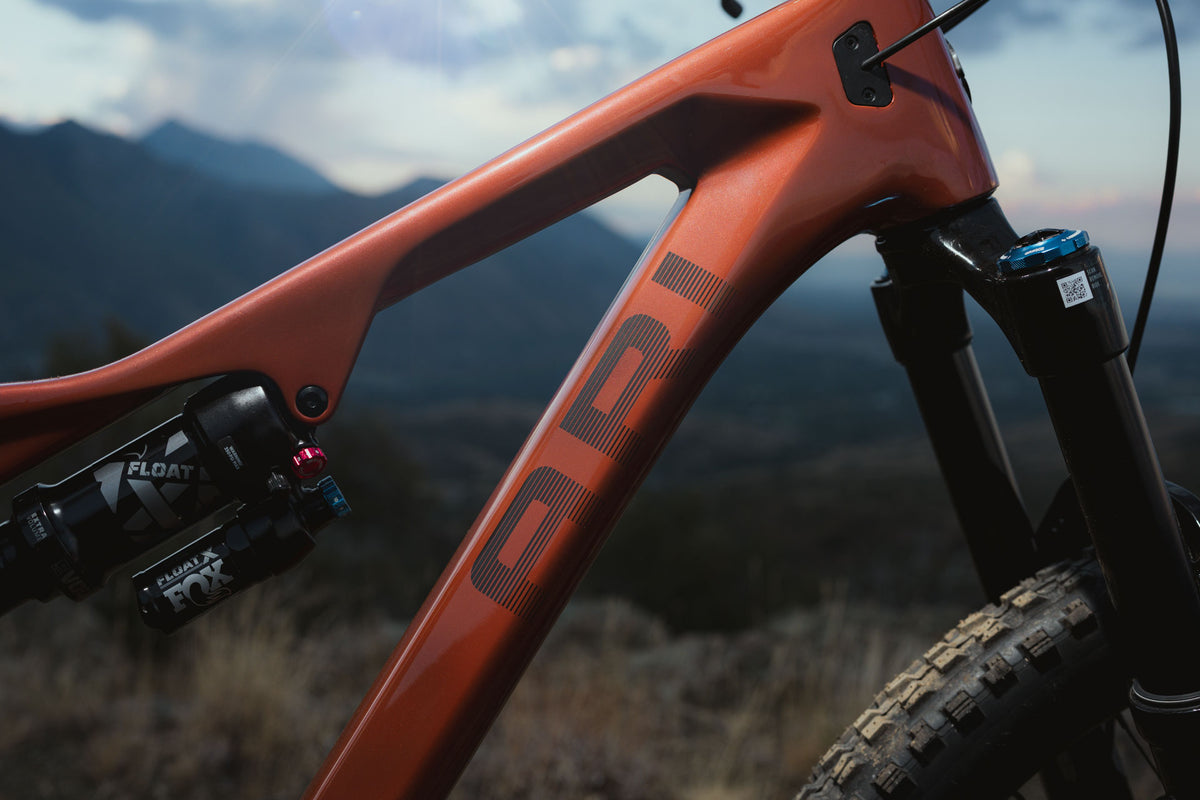

CleanCast™ Carbon Frame
Our unique carbon layup process cuts excess waste by 30% while still increasing strength and reducing weight, making our bikes both lighter and more environmentally friendly.

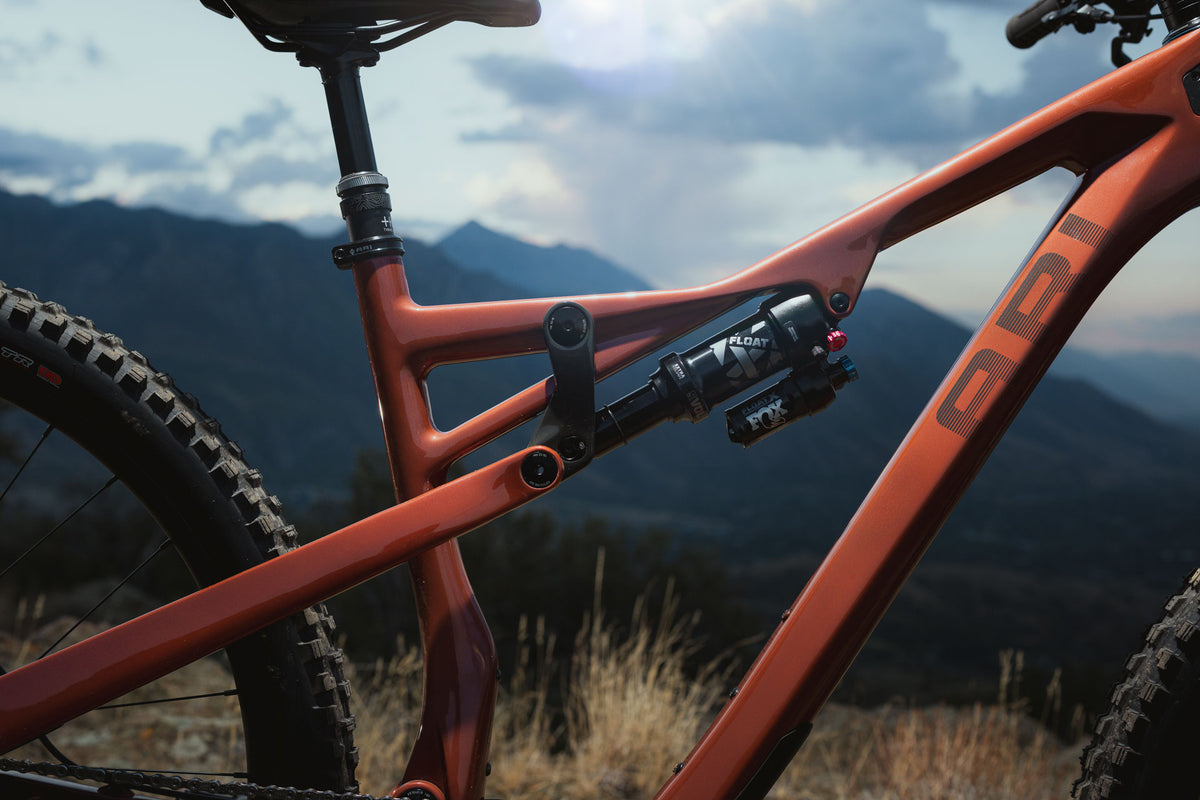

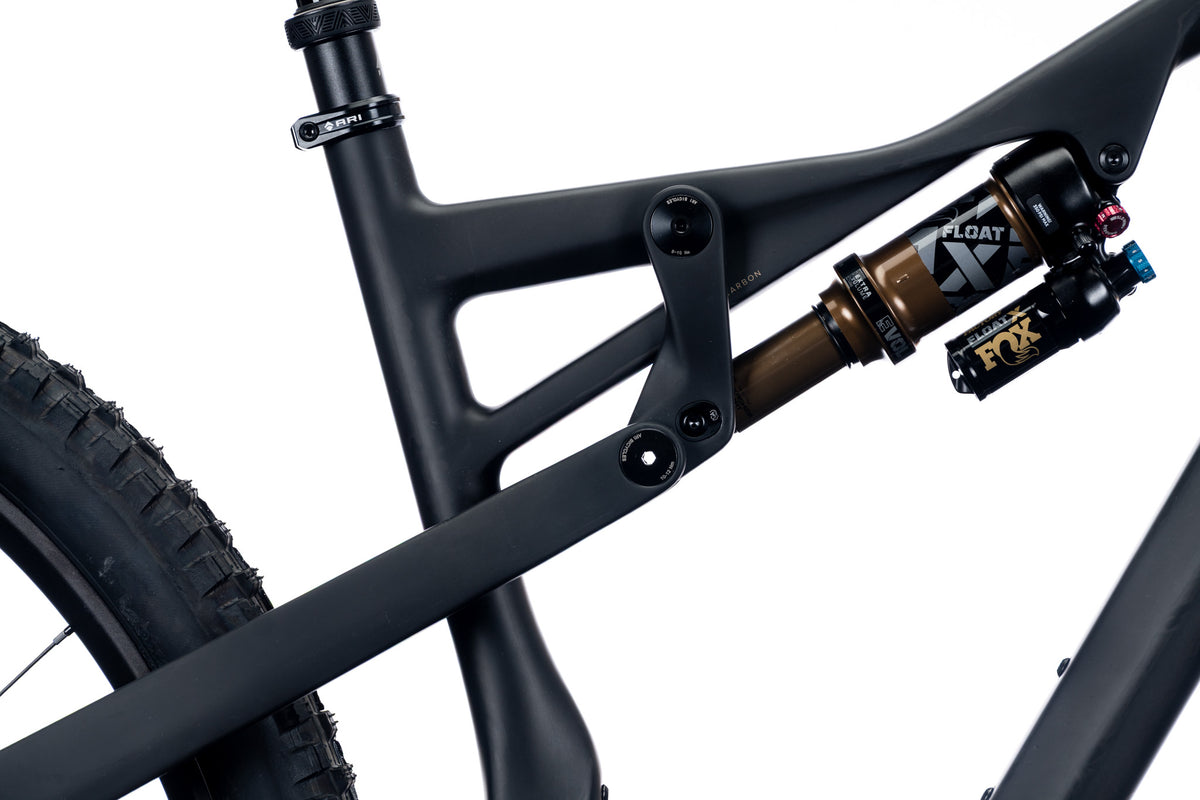

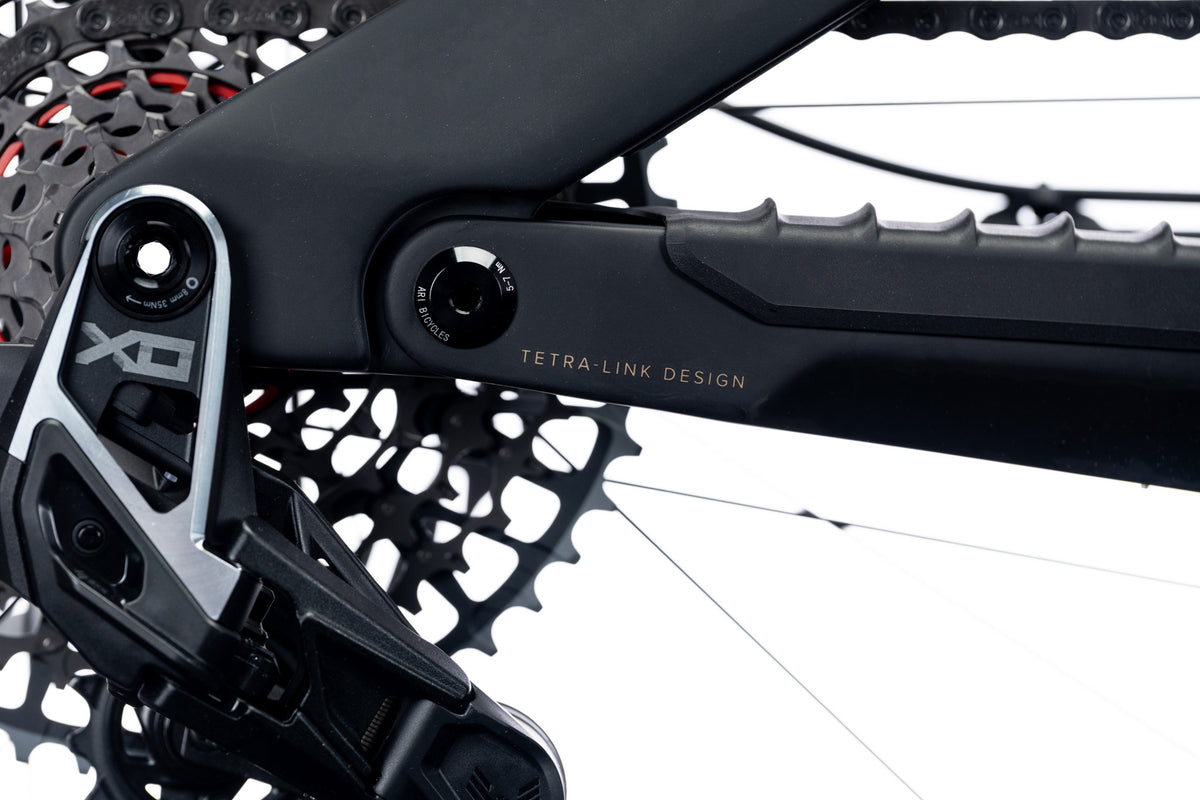

Proven TetraLink™ Platform
Snappy and energetic when you’re pedaling or pumping through rollers, yet composed and confident when the trail gets rough. It pops off rocks and roots with ease, then progressively soaks up bumps and landings to keep you centered and in control on every ride.
Clean and Quiet by Design

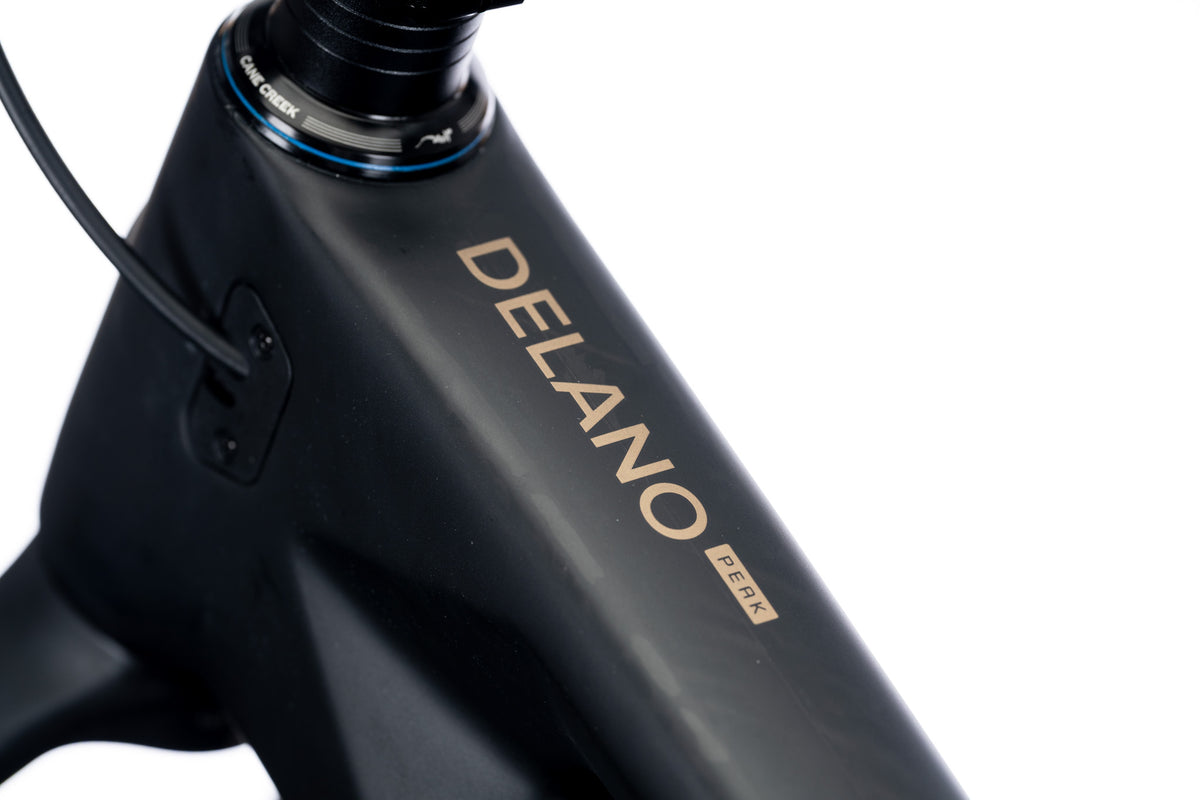

Clean-catch internal cable routing keeps everything tidy and rattle-free, giving you a truly silent ride even over the roughest terrain. A rubberized chainstay protector and downtube guard add extra defense against rock strikes and chain slap, ensuring your bike stays protected and quiet mile after mile.
In the press
Reviewed. Ridden. Recognized.
01 / 06
10 Best Trail Mountain Bikes
Ari’s bespoke all-mountain option, the Delano Peak, is engineered to balance hard-hitting downhill stability with a responsive, playful, and efficient nature. With a frame built from Ari’s unique CleanCast Carbon layup, it made Mountain Bike Action’s 2025 trail-bike roundup.
Best Value Trail Bike
The ARI Delano Peak won the award for Best Value Trail Bike in 2025 and has easily been one of our favorite trail bikes we have had a chance to test.
Hannah’s Favorite Trail Bike
The Delano Peak climbs really well and is very capable across a wide variety of terrain downhill which is perfect for me. We travel a lot and I don’t like to switch my bike setups too much after I get comfortable on one.
Editors’ Choice
Ari dropped their Delano Peak in July giving riders an option between their other two full-carbon, full-suspension MTBs. In between the Signal Peak and the La Sal Peak, the Delano has 135mm of rear travel with a 150mm fork.
Honorable Mention: Mountain Bike
To be fair, with the absence of launch events to ride new bikes, I haven’t been on enough new mountain bikes to definitively claim a best bike of the year. Tyler Benedict still gave the Ari Delano Peak an honorable mention among the mountain bikes in his 2020 Editor’s Choice awards.
Value Mountain Bike of the Year Nominee
Ari’s Delano Peak Comp is a well spec’d bike for the price, and like the other full-suspension bikes nominated, it offers a lot of versatility. Pinkbike nominated it for 2020 Value Mountain Bike of the Year.
Frame
Swiss Army Knife
Perfect balance of climbing and descending. Your go-to bike for most rides.
Balanced Performance
142mm/150mm of travel - Delano Peak is built to climb and descend with confidence.
Adventure's Bicycle
Delano Peak drives you to be creative and turn any line into the fun line.

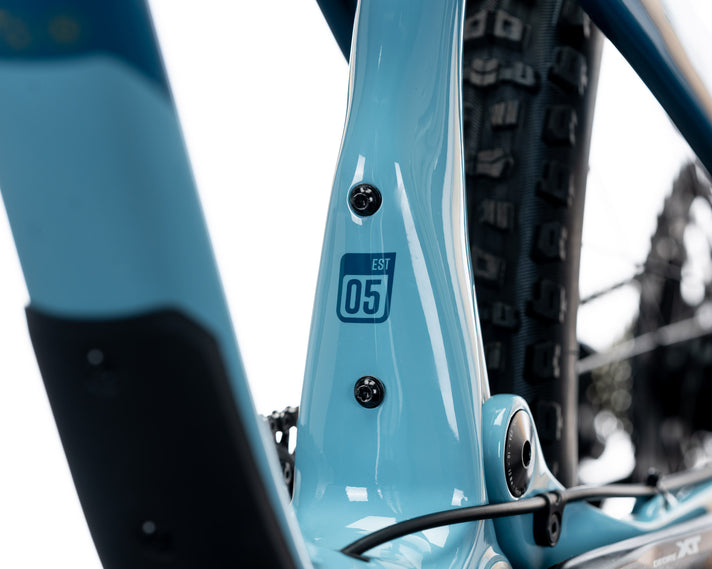

Chassis
Built tough. Finished thoughtfully.

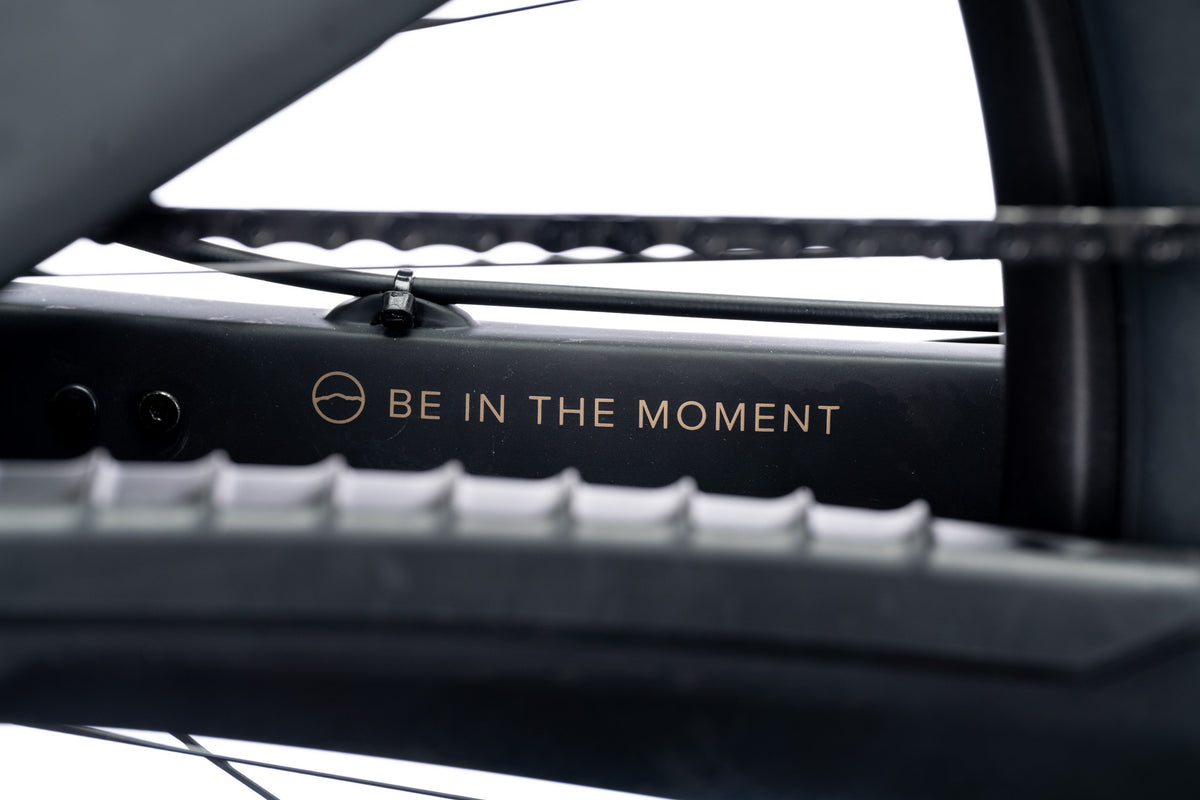

Custom-molded protection quiets chain slap and shields high-impact areas. UDH compatibility simplifies service, while the epoxy-infused finish is made to resist chips and scratches.
Watch
If you had to pick one to do it all.
If you're the type of rider who wants a well-rounded bike for just about anything, Delano Peak is for you.
Colorways
Red Rock
Raw Carbon/Bronze
Every complete build is available in both finishes. Choose a color here, then select the exact build, size, and setup in the configurator.
Red Rock
Raw Carbon/Bronze

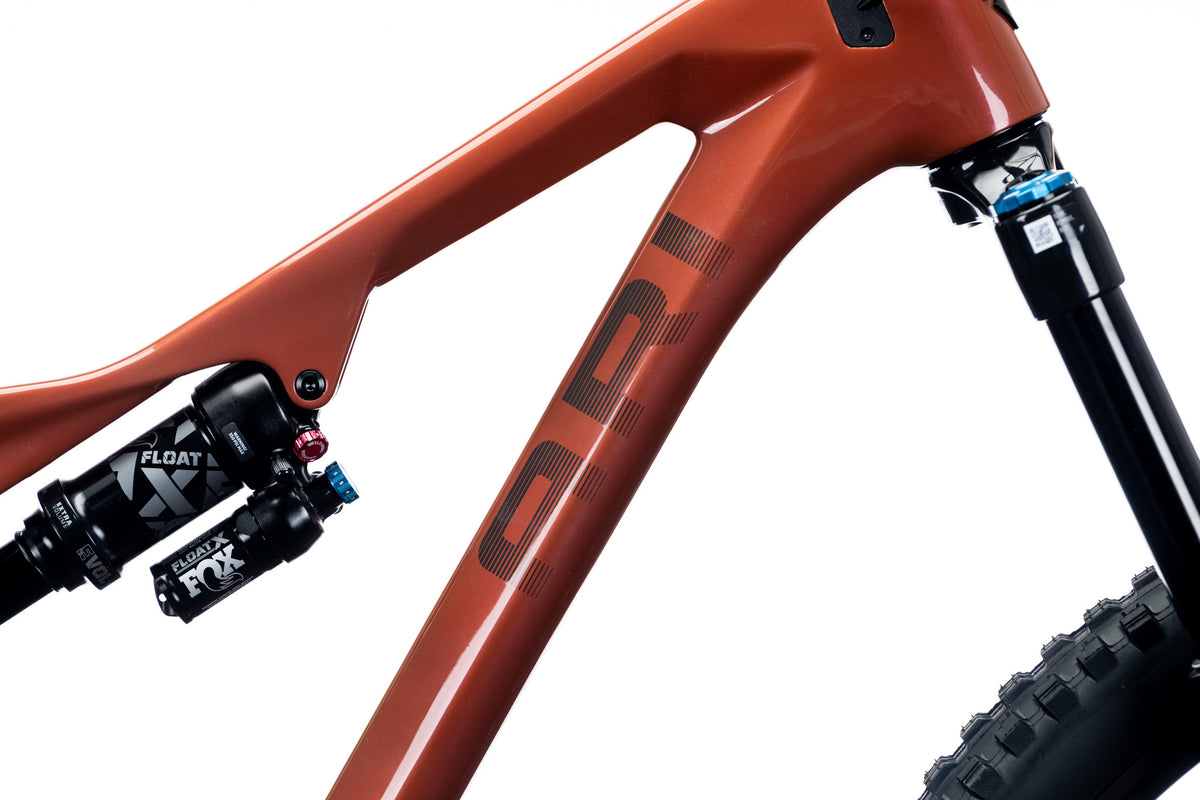

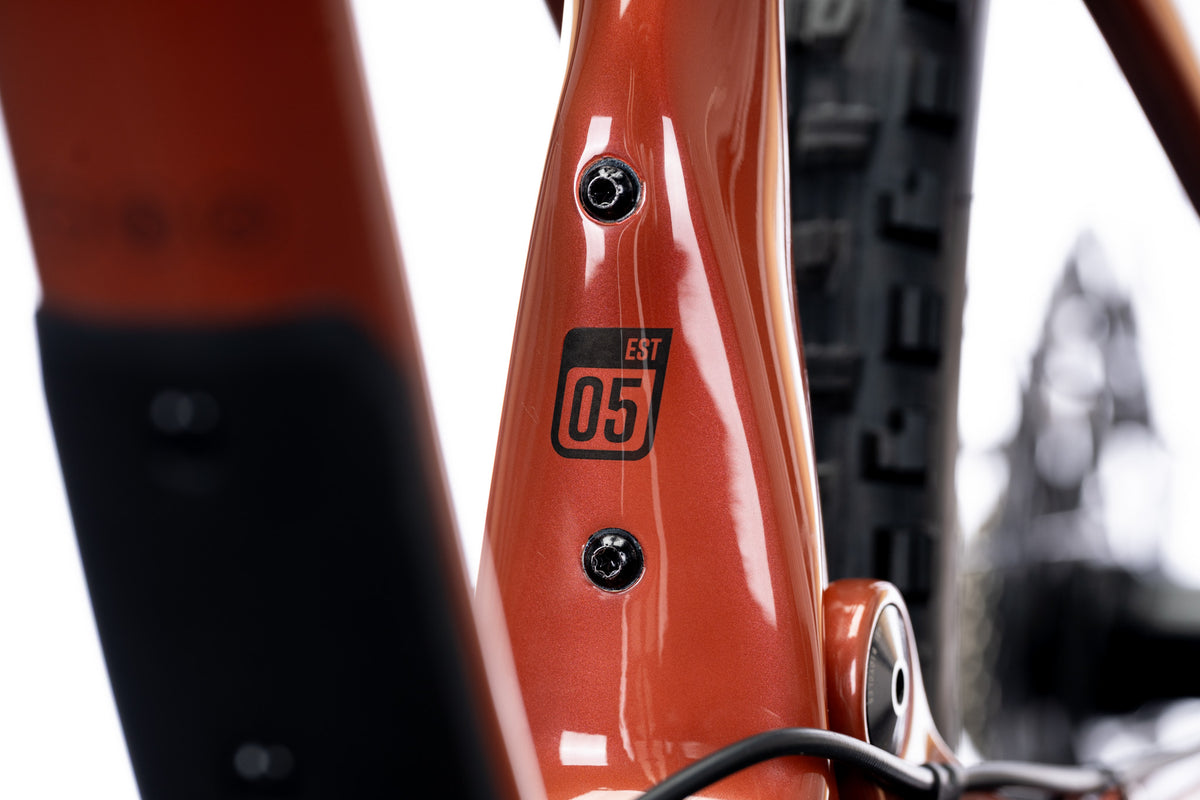

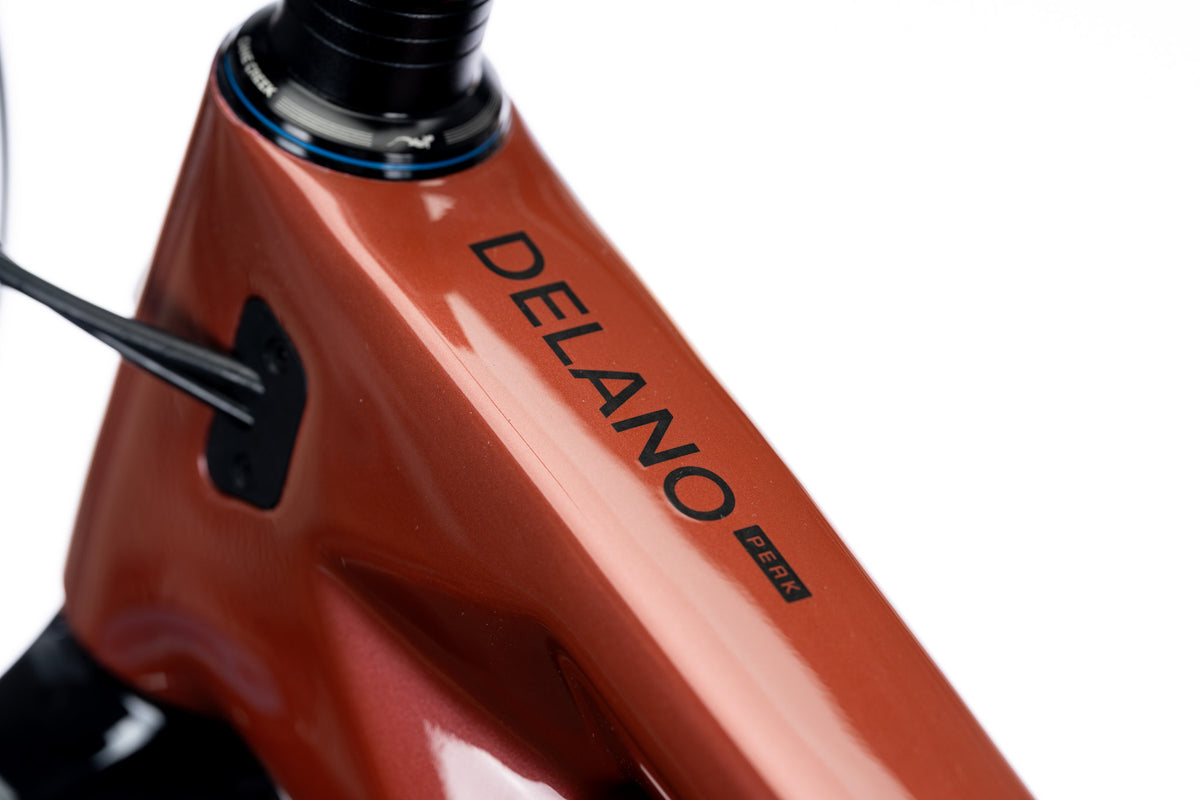

Studio
Up close.
The details that define the ride.
Configuration
Choose a build.
Every build shares the same Delano Peak frame and ride character. Choose the component level, then configure size, color, custom setup, and upgrades.
Comp
SALE
$4,099
$4,199
Delano Peak Comp
- DVO Diamond 36 D1 SL
- DVO Topaz Gen 3
- Shimano Deore 12-Speed
- WTB i30 Sporterra
Elite
SALE
$5,199
$5,299
Delano Peak Elite
- Fox 36 Grip X2 Peformance Elite
- Fox Float X Performance Elite
- Shimano XT, 12 speed
- Crankbrothers Synthesis Enduro Alloy
Pro
SALE
$6,099
$6,799
Delano Peak Pro
- Fox 36 Grip X2 Factory
- Fox Float X Factory
- SRAM X0 Eagle Transmission Wireless 12-Speed
- Crankbrothers Synthesis Enduro Alloy
Team
NEW
$8,999
Delano Peak Team
- Fox 36 Grip X2 Factory
- Fox Float X Factory
- SRAM XX Eagle Transmission Wireless 12-Speed
- Crankbrothers Synthesis Enduro Carbon
Build specifications
Compare every component.
| Comp | Elite | Pro | Team | Frame & Shock |
|---|---|---|---|---|
|
PriceSALE
$4,099$4,199 |
PriceSALE
$5,199$5,299 |
PriceSALE
$6,099$6,799 |
PriceNEW
$8,999 |
Price
—
|
| Chassis & suspension | ||||
|
Frame
Ari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 142mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
|
Frame
Ari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 142mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
—
|
Frame
Ari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 142mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
—
|
Frame
Ari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 142mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
—
|
Frame
Ari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 142mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
—
|
|
Fork
DVO Diamond 36 D1 SL, 29, 150mm travel, Boost 15x110 , 44mm offset, tapered steerer
|
ForkUpgraded
Fox 36 Grip X2, Performance Elite, HSC, LSC, HSR, LSR, 150mm travel, 15x110 Axle, 44mm offset, tapered steerer
|
ForkUpgraded
Fox 36 Grip X2, Factory, HSC, LSC, HSR, LSR, 150mm travel, 15x110 Axle, 44mm offset, tapered steerer
|
Fork
Fox 36 Grip X2, Factory, HSC, LSC, HSR, LSR, 150mm travel, 15x110 Axle, 44mm offset, tapered steerer
—
|
ForkUpgraded
Available at Checkout
|
|
Sizes
S,M,L,XL
|
Sizes
S,M,L,XL
—
|
Sizes
S,M,L,XL
—
|
Sizes
S,M,L,XL
—
|
Sizes
S,M,L,XL
—
|
| Drivetrain & brakes | ||||
|
Drivetrain
Shimano Deore, 12-Speed
|
DrivetrainUpgraded
Shimano XT, 12 Speed
|
DrivetrainUpgraded
SRAM X0 Eagle Transmission Wireless, 12-Speed
|
DrivetrainUpgraded
SRAM XX Eagle Transmission Wireless, 12-Speed
|
Drivetrain
N/A
|
|
Brakes
TRP Slate EVO, HD-M807 Centerline 203/203mm F/R rotors
|
BrakesUpgraded
TRP DH-R EVO PRO, HD-M9040, 4-piston, 203/203mm 2.3 F/R rotors
|
BrakesUpgraded

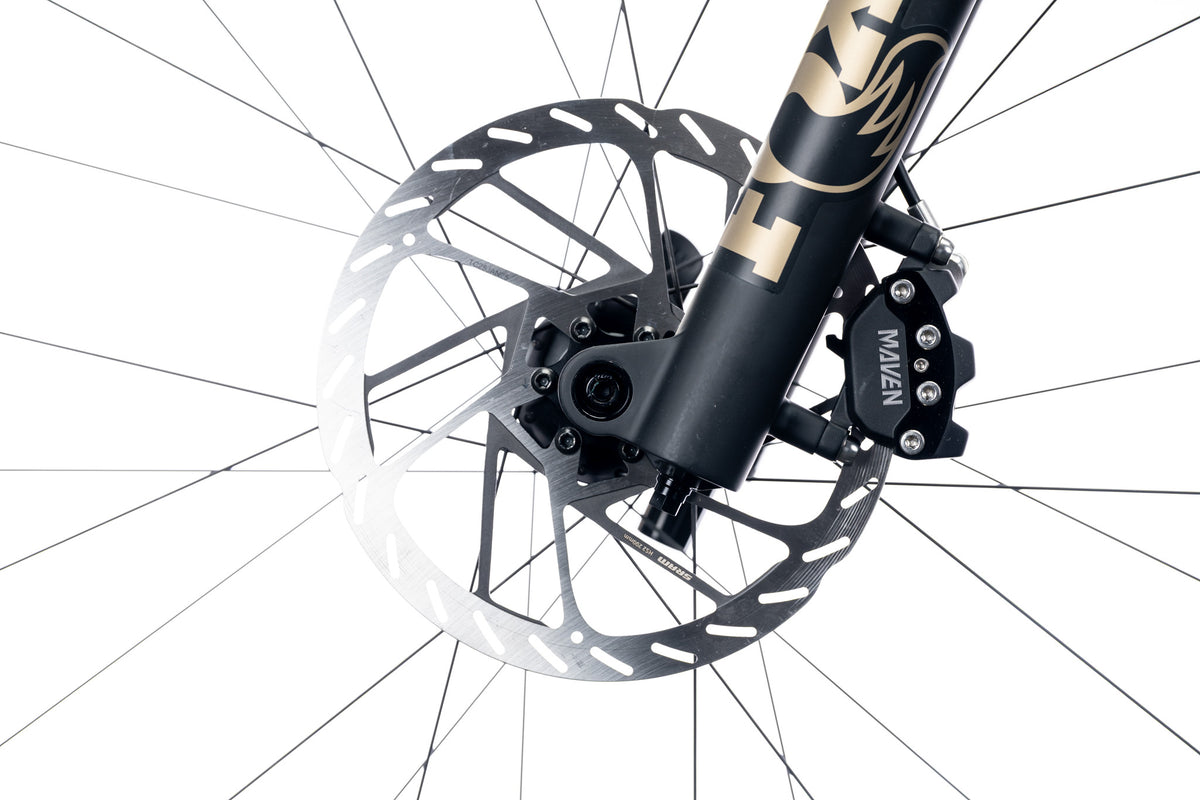

SRAM Maven Silver, HS2 180/180 F/R rotors
|
BrakesUpgraded
SRAM CODE Ultimate Stealth, HS2 200/200mm F/R rotors
|
Brakes
N/A
|
|
Shifters
Shimano Deore Trigger, 12-Speed
|
ShiftersUpgraded
Shimano XT Trigger, 12-Speed
|
ShiftersUpgraded
SRAM AXS POD, 12-Speed
|
Shifters
SRAM AXS POD, 12-Speed
—
|
Shifters
N/A
|
|
Rear derailleur
Shimano Deore, 12-Speed
|
Rear derailleurUpgraded
Shimano XT, 12-Speed
|
Rear derailleurUpgraded
SRAM X0 Eagle Transmission, 12-Speed
|
Rear derailleurUpgraded
SRAM XX Eagle Transmission, 12-Speed
|
Rear derailleur
N/A
|
|
Cassette
Shimano Deore Hyperglide+, 10-51t, 12-Speed
|
CassetteUpgraded
Shimano XT Hyperglide+, 10-51t, 12-Speed
|
CassetteUpgraded
SRAM XS-1295 T-Type X0 Eagle, 10-52t, 12-Speed
|
CassetteUpgraded
SRAM XS-1297 T-Type XX Eagle, 10-52t, 12-Speed
|
Cassette
N/A
|
|
Crank
Shimano FC-MT512-1, 12-Speed
|
CrankUpgraded
Shimano XT FC-M8120, 12-Speed
|
CrankUpgraded
SRAM X0 Eagle Dual Guard, DUB Wide, 12-Speed
|
CrankUpgraded
SRAM XX Eagle Dual Guard, DUB Wide, 12-Speed
|
Crank
N/A
|
|
Chainrings
Shimano Narrow-wide, 32t, Steel
|
ChainringsUpgraded
Shimano XT, 32t, Aluminum
|
ChainringsUpgraded
SRAM X0 Eagle T-Type, 32t, Aluminum
|
ChainringsUpgraded
SRAM Eagle Transmission, 32t, Aluminum
|
Chainrings
—
|
|
Bottom bracket
Shimano BB-MT501 English Thread
|
Bottom bracketUpgraded
Shimano MT800 English Thread
|
Bottom bracketUpgraded
SRAM Dub English Thread
|
Bottom bracket
SRAM Dub English Thread
—
|
Bottom bracket
N/A
|
|
Chain
Shimano Deore, 12-Speed
|
ChainUpgraded
Shimano XT, 12-Speed
|
ChainUpgraded
SRAM X0 Eagle T-Type, 12-Speed
|
ChainUpgraded
SRAM XX Eagle T-Type, 12-Speed
|
Chain
N/A
|
| Cockpit & contact points | ||||
|
Handlebars
Ari Team 35 Aluminum, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup
|
Handlebars
Ari Team 35 Aluminum, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup
—
|
Handlebars
Ari Team 35 Aluminum, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup
—
|
HandlebarsUpgraded
Raceface ERA 35mm, bar-customized sizing through Ari Custom Setup™
|
Handlebars
N/A
|
|
Stem
Ari Charger CNC 35 stem
|
Stem
Ari Charger CNC 35 stem
—
|
Stem
Ari Charger CNC 35 stem
—
|
StemUpgraded
Raceface Turbine Stem
|
Stem
N/A
|
|
Grips
ODI Elite Pro
|
Grips
ODI Elite Pro
—
|
Grips
ODI Elite Pro
—
|
Grips
ODI Elite Pro
—
|
Grips
N/A
|
|
Saddle
Ergon SM10
|
Saddle
Ergon SM10
—
|
Saddle
Ergon SM10
—
|
Saddle
Ergon SM10
—
|
Saddle
N/A
|
|
Seatpost
TranzX JD-YSI05J w/ Travel Adj. 30mm, Dropper- customized sizing through Ari Custom Setup
|
SeatpostUpgraded
TranzX JD-YSI05J w/ Travel Adj. 30mm Dropper- customized sizing through Ari Custom Setup
|
SeatpostUpgraded
Oneup V3 Dropper- customized sizing through Ari Custom Setup
|
SeatpostUpgraded
Fox Transfer Factory Dropper- customized sizing through Ari Custom Setup
|
Seatpost
N/A
|
|
Pedals
Available Separately
|
Pedals
Available Separately
—
|
Pedals
Available Separately
—
|
Pedals
Available Separately
—
|
Pedals
N/A
|
| Wheels & tires | ||||
|
Wheels
WTB Sporterra i30 29, TCS, 32-hole, Disc, Tubeless Ready, Carbon wheels upgrade available at checkout
|
WheelsUpgraded
Crankbrothers Synthesis Enduro Alloy, F: 28-hole, R: 32-hole, Disc, Tubeless Ready, Carbon wheels upgrade available at checkout
|
Wheels
Crankbrothers Synthesis Enduro Alloy, F: 28-hole, R: 32-hole, Disc, Tubeless Ready, Carbon wheels upgrade available at checkout
—
|
WheelsUpgraded
Crankbrothers Synthesis Enduro Carbon, 29, Disc Specific, Tubeless Ready
|
Wheels
N/A
|
|
Rims
WTB i30, 29, 32 hole, Disc, Tubeless Ready
|
RimsUpgraded
Crankbrothers Synthesis Enduro Alloy, F: 28-hole, R: 32-hole, Disc, Tubeless Ready
|
Rims
Crankbrothers Synthesis Enduro Alloy, F: 28-hole, R: 32-hole, Disc, Tubeless Ready
—
|
RimsUpgraded
Crankbrothers Synthesis Enduro Carbon, 29, 30mm, F: 28 Hole, R: 32 Hole, Disc, Tubeless Ready
|
Rims
N/A
|
|
Hubs
F: WTB Frequency Sealed Bearing Disc, 110x15mm thru axle, 32 hole, 6 bolt; R: WTB Frequency Sealed Bearing Disc, 148x12mm thru axle, 32 hole, 6 bolt
|
HubsUpgraded
F: Crankbrothers Synthesis Standard, Sealed Bearing Disc, 110x15mm thru axle, 28-hole, 6 bolt; R: Crankbrothers Synthesis Standard Ratchet 36T Disc, 148x12mm thru axle, 32-hole, 6 bolt, MicroSpline
|
Hubs
F: Crankbrothers Synthesis Standard, Sealed Bearing Disc, 110x15mm thru axle, 28-hole, 6 bolt; R: Crankbrothers Synthesis Standard Ratchet 36T Disc, 148x12mm thru axle, 32-hole, 6 bolt, MicroSpline
—
|
HubsUpgraded
F: Crankbrothers Ratchet 6-Bolt Disc, 28H 15x110 Thru Axle, R: Crankbrothers Synthesis Ratchet 6-Bolt Disc, 32H, 148x12mm thru axle, XD
|
Hubs
N/A
|
|
Spokes
Stainless, black, with brass nipple
|
SpokesUpgraded
Pillar, J-Bend, Butted, w/ brass nipples
|
Spokes
Pillar, J-Bend, Butted, w/ brass nipples
—
|
SpokesUpgraded
Sapim Race
|
Spokes
N/A
|
|
Tires
MINION DHF 29X2.50 WT 3C MaxxTerra, EXO+, Tubeless Ready. MINION DHR II 29X2.40 WT 3C MaxxTerra, DoubleDown, Tubeless Ready
|
Tires
MINION DHF 29X2.50 WT 3C MaxxTerra, EXO+, Tubeless Ready. MINION DHR II 29X2.40 WT 3C MaxxTerra, DoubleDown, Tubeless Ready
—
|
Tires
MINION DHF 29X2.50 WT 3C MaxxTerra, EXO+, Tubeless Ready. MINION DHR II 29X2.40 WT 3C MaxxTerra, DoubleDown, Tubeless Ready
—
|
Tires
MINION DHF 29X2.50 WT 3C MaxxTerra, EXO+, Tubeless Ready. MINION DHR II 29X2.40 WT 3C MaxxTerra, DoubleDown, Tubeless Ready
—
|
Tires
N/A
|
|
Tubes
Maxxis 29x1.9/2.5 Presta, Tubeless setup available after adding bike to cart
|
Tubes
Maxxis 29x1.9/2.5 Presta, Tubeless setup available after adding bike to cart
—
|
Tubes
Maxxis 29x1.9/2.5 Presta, Tubeless setup available after adding bike to cart
—
|
Tubes
Maxxis 29x1.9/2.5 Presta, Tubeless setup available after adding bike to cart
—
|
Tubes
N/A
|
|
Extras
Ari custom molded downtube, chainstay, and seat stay protectors
|
Extras
Ari custom molded downtube, chainstay, and seat stay protectors
—
|
Extras
Ari custom molded downtube, chainstay, and seat stay protectors
—
|
Extras
Ari custom molded downtube, chainstay, and seat stay protectors
—
|
ExtrasUpgraded
Ari custom molded downtube, chainstay, and seat stay protectors,axle,seat clamp
|
Specs are subject to change. Any substitutions will be comparable or better.
Fit & geometry
Find your numbers.
Compare every Delano Peak frame size. Measurements match our bike comparison tool.
Loading geometry chart
Hover a measurement
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Top Tube | 560.0 | 593.0 | 613.0 | 637.0 |
| Seat Tube | 400.0 | 420.0 | 445.0 | 460.0 |
| Chainstay | 434.0 | 434.0 | 434.0 | 434.0 |
| Head Angle | 65.0° | 65.0° | 65.0° | 65.0° |
| Seat Angle (Effective)* | 77.5° | 77.5° | 77.5° | 77.5° |
| Head Tube | 95.0 | 95.0 | 115.0 | 130.0 |
| Bottom Bracket Height | 345.0 | 345.0 | 345.0 | 345.0 |
| Bottom Bracket Drop | 28.3 | 28.3 | 28.3 | 28.3 |
| Wheelbase | 1176.7 | 1209.7 | 1234.0 | 1260.0 |
| Fork Offset | 44.0 | 44.0 | 44.0 | 44.0 |
| Standover Height | 734.0 | 741.0 | 751.0 | 763.0 |
| Stack | 610.0 | 610.0 | 628.0 | 642.0 |
| Reach | 430.0 | 455.0 | 480.0 | 500.0 |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Top Tube | 56.0 | 59.3 | 61.3 | 63.7 |
| Seat Tube | 40.0 | 42.0 | 44.5 | 46.0 |
| Chainstay | 43.4 | 43.4 | 43.4 | 43.4 |
| Head Angle | 65.0° | 65.0° | 65.0° | 65.0° |
| Seat Angle (Effective)* | 77.5° | 77.5° | 77.5° | 77.5° |
| Head Tube | 9.5 | 9.5 | 11.5 | 13.0 |
| Bottom Bracket Height | 34.5 | 34.5 | 34.5 | 34.5 |
| Bottom Bracket Drop | 2.8 | 2.8 | 2.8 | 2.8 |
| Wheelbase | 117.7 | 121.0 | 123.4 | 126.0 |
| Fork Offset | 4.4 | 4.4 | 4.4 | 4.4 |
| Standover Height | 73.4 | 74.1 | 75.1 | 76.3 |
| Stack | 61.0 | 61.0 | 62.8 | 64.2 |
| Reach | 43.0 | 45.5 | 48.0 | 50.0 |
Measurements are shown in the selected unit. Angle values remain in degrees.
Press reviews
Serious performance. Straightforward value.
Impressive quality for its price tag and solid on-trail performance to go with it.
The Loam Wolf
An extensive fit process before sending the bike so that it’s ready to rock.
Singletracks
A lot of value without resorting to common cost-cutting measures.
Bicycling
Customer reviews
Trail-tested by owners.
5.0
★★★★★
Based on 14 reviews
Leave a review
Customer Reviews
Based on 14 reviews
100%
(14)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
When I demo the Delano few years ago I was very impressed how playful and comfortable are the bike and since then I was always think to get one. Fortunately I get one now with the new Color. I love it and is going to be my favorite bike. Thanks Ari for build a great bike Models
R
I bought a size large Delano back when I was first getting into MTB, and wanted a good all-arounder bike that I could do anything with.. Eventually, being challenged by my riding friends, who were all faster than me, my riding drifted into more all-out XC/downcountry riding and I put the Delano aside for an EPIC EVO. The EPIC is definitely fast and maneuverable, and lighter than my Delano, but can get a little unsettled on the rougher stuff. My Delano is one of the earlier models back when the company was still Fezarri, and as such came spec'd for a 140mm fork up front. I was running it with a FOX 36 at 160mm and it just never really felt as good as I remember it being. Replaced the FOX 36 with a marzocchi Z2 140mm, re-set air and rebound to Fox recommendations, and just had the best ride of my life on the Delano. When this thing is dialled-in, it is incredibly comfortable, climbs very well, soaks up trail chatter and rough stuff with ease, and pedals almost like the EVO with the suspension locked-out. It can go from being efficient like a hardtail, to a very capable, and comfortable trail machine just by using your suspension lock-outs. This bike is excellent value for your money, just like it was for me when I bought mine. Today reminded me how much I like this bike, and sometimes, I even like it better than my EPIC EVO, which is very, very high praise, indeed !!
K
On yr 3 riding the DP , this bike is one killer all day tackle anything mtb . Zero issues with build quality, great customer service, awesome price point . Everything about Ari is nothing but top notch ,
K
I've been on the Delano for 2 seasons and have no complaints. purchased the Sram Comp. Rad price for what you get. I ride a small and its quite agile for a 29er set up. Climbs all day and descends confidently. I've put over 2,000 miles on it of enduro-all mountain Washington/BC riding and nothing has broken or failed or leaked. Pivots move without a sound. still sounds new going down the hill. I would recommend to anyone looking for a bike in this range and I would buy again without a doubt.
R
Best bike you will ever own. Perfect geometry that lets you fly up and down the hills. All around great bike for smooth trail/XC rides to gnarly and techy DH rides.
Tech support
Set up your Delano Peak
Specs and setup for your first ride and beyond. Every bike comes with support from our team in Utah.
-
01 Unbox and check contents
Remove packaging foam and zip-ties. Confirm the small-parts box has pedals, thru-axle and multitool.
-
02 Install the handlebar
Center the bar, set roll, and tighten faceplate bolts evenly in a cross pattern.
-
03 Fit the front wheel
Seat the rotor between the pads, insert the thru-axle from the non-drive side and close to spec.
-
04 Set saddle height
With the dropper fully extended, set height so your knee is slightly bent at the bottom of the stroke.
-
05 Install pedals
Grease threads. The left pedal is reverse-threaded.
-
06 Set suspension and tires
Set sag for your weight using your fork and shock manuals, then check tire pressure against the sidewall range.
View support videos & docs Hide support videos & docs
Frame and Ari-supplied hardware. Numbers match the diagram.
BoltN·m
1Shock Mount Bolt
8–10
2Shock Mount Bolt
8–10
3Lower Rocker Bolt
10–12
4Upper Rocker Bolt
8–10
5Seatpost Collar
4–5
6Main Pivot Bolt
10–12
7Rear Pivot Bolt
5–7
8Rear Thru Axle
10
Carbon parts: always use a torque wrench and carbon assembly paste. Component makers' printed specs take priority.
FrameDelano Peak
Wheel Size29
MaterialCarbon
Front Travel150mm
Max Fork Length160mm
Rear Travel135mm or 142mm
Tire Compatibility29x2.6 (for 210x50 shock; 29x2.5 for 210x55), 27.5x2.8
Rear Dropout148mm (Boost)
Rear Axle174x12x1.0mm
Rear Brake Mount160 Post Mount (203 max)
Bottom Bracket73mm English Thread
Seatpost Diameter31.6mm
Seatpost Clamp Diameter34.9mm
Dropper RoutingInternal
Headset StandardZS44/ZS56
Shock Length210mm
Shock Stroke2018-2023=50mm for 135mm travel
2024+ = 55mm for 142mm travel
2024+ = 55mm for 142mm travel
Shock Mount Hardware - FrontM8x25
Shock Mount Hardware - RearM8x30
Max Chainring34T round
Bashguard MountISCG-05
Hangers, bearings, shock hardware, and the rest of the replacement parts for the Delano Peak are listed on the support page, with current stock.
Ready to help
Support
Common questions
Still deciding? Our team rides these bikes and can help you find the right setup.
Who is this bike for?
This individual seeks a versatile bike that can handle steep climbs, technical descents, and everything in between. They are likely passionate about exploring the outdoors and pushing their limits on various trails, from rocky paths to forested singletracks.
Do you offer financing?
Yes, at checkout there are several options available for financing.
How long will it take to arrive?
Estimated lead times are listed under each model's size in the bike builder. Times may vary a little based on current conditions, frame size, color, and availability.
How many water bottles fit inside the frame?
Medium, Large and XL frames can accommodate two 21 oz. water bottles inside the front triangle; one on the down tube, and one on the seat tube. Small frames allow for the versatility of placing a water bottle on the down tube or seat tube mounts and using the other mount for tools. All sizes can have an optional third bottle mounted on the underside of the downtube. Longer bolts need to be used to accommodate the bottle cage with the down tube guard installed.
What length dropper post will fit inside the frame?
Every frame size has a 300mm insertion depth. This will fit almost every size dropper post. The exact dropper post length installed will depend on several factors including: rider inseam, crank arm length, stack height of the dropper post seat clamp, stack height of the bushing collar of the dropper post, and seat height. As part of our 23-Point Custom Setup™, we ensure that each rider’s bike comes custom set up with the longest possible dropper post that will fit you so that you have the most comfortable and confident ride in every situation.
What is the bottom bracket frame spec?
73mm English thread. Our philosophy is simple: if the bike is intended to be ridden in the dirt, it gets a threaded bottom bracket. Threaded bottom brackets are easier to service.
What type of derailleur hanger does the Delano use?
The Delano features the all-new SRAM Universal Derailleur Hanger (UDH). We chose this derailleur hanger for simplicity, reliability, and performance. In the event of an impact to your rear derailleur, the derailleur hanger will bend away and help protect the frame and derailleur from irreparable damage. The UDH can be purchased directly from aribikes.com.
What is the biggest tire size it can accommodate?
The frame will clear 29 x 2.6 or 27.5 x 2.8 tires. Tire clearance around the fork is defined by the fork manufacturer, but typically 29 x 2.6 or 27.5 x 2.8 will fit.
How much suspension does this bike have?
142mm of TetraLink rear suspension. 150mm front suspension fork.
What are the headset dimensions?
Upper: ZS44 | Lower: ZS56
What are the dimensions of the rear hub and rear axle?
Rear Hub: Boost 148x12mm | Rear Axle: M12 - 174xL12xP1.0
How are the cables routed?
The cables are routed internally through ports on the side of the headtube and inside the downtube providing clean, simple routing.
Can it run an internal dropper post?
Yes! The frame and cable routing are compatible with internally routed dropper posts.
What is the frame weight?
2570g (size medium)
How will it arrive?
All Ari bikes go through our Custom Setup process, making sure the bike is fit and tuned specifically to you. They are test-ridden before delivery. If your bike is shipped to you, it’s still tuned and ready to ride and requires just a few minutes of assembly.
What about service?
You can work directly with us, one of our recommended shops, or work through your local shop.
What is the warranty?
Each frame comes with a Lifetime Warranty. Ari-branded frames come with a transferable warranty as well.
What is the guarantee?
It comes with a 30-Day Love It or Return It Guarantee.
How does transferable warranty on Ari bikes work?
Ari-branded frames come with a transferable frame warranty available to the second owner. The second owner can receive a one-year frame warranty from the date they purchase the bike from the original owner. Warranty only transfers once. All Ari bikes must have the transfer documented from the original owner to the new owner here in order to qualify for a transferable warranty.
Build your Delano Peak.
Custom setup included
Lifetime warranty
30-day ride guarantee
From
$4,099
