Outlet · Road

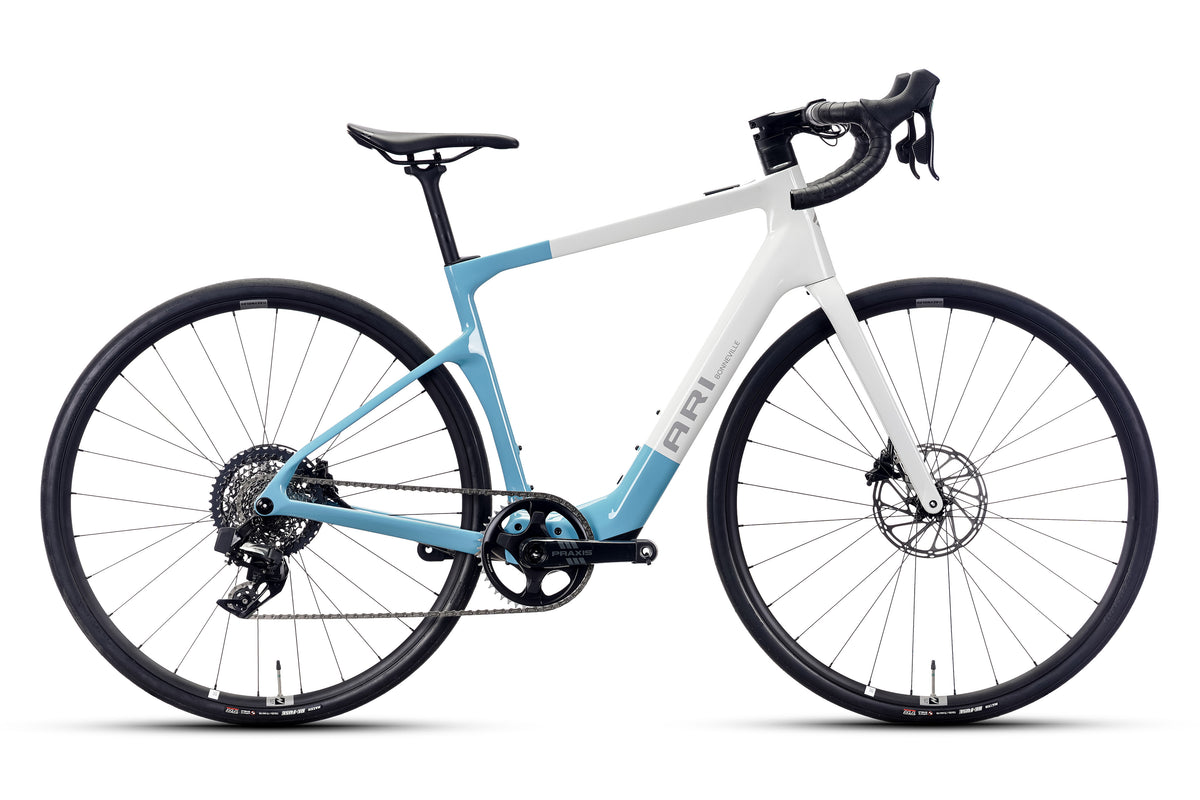

Bonneville Pro - (1326)
$4,295
$7,299
Save $3,004
Like-New
Lead Time: Ready for local pickup today, or ships within 3-5 days.
Warranty: Includes Ari’s Lifetime Frame Warranty for the original owner (covers frame defects in materials and craftsmanship).
Limited supplies available. All outlet sales are final (no returns or exchanges).
Build specs
- Frame Ari Bonneville Frameset - CleanCast™ Carbon, 12x142 rear. UDH compatible.
- Fork Ari Racing Design Bonneville Monoform™ CleanCast™, tapered, 12x100 thru axle, Internal Brake Routing
- Drivetrain SRAM Force XPLR AXS 12-Speed
- Wheelset Reynolds G30 Expert Alloy
- Brakes SRAM Force 1x12, Hydraulic Disc Brake
- Seatpost Ari Carbon 27.2
In stockSKU: BVPROMDGA4-O1326
About the Bonneville
Bonneville
Bonneville’s carbon frame offers exceptional power transfer and vertical compliance. It doesn’t compromise on the performance metrics you’d demand from an analog road bike just because it is pedal-assist.
Geometry
mm unless noted · your size highlighted
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Top Tube | 517.8 mm | 529.7 mm | 547.7 mm | 567.2 mm | 581.6 mm |
| Seat Tube | 388.0 mm | 435.0 mm | 460.0 mm | 490.0 mm | 520.0 mm |
| Chainstay | 421.5 mm | 421.5 mm | 421.5 mm | 421.5 mm | 421.5 mm |
| Head Angle | 70.5° | 70.5° | 70.5° | 71.5° | 72.0° |
| Seat Angle | 74.5° | 74.5° | 74.0° | 73.5° | 73.5° |
| Head Tube | 131.3 mm | 157.9 mm | 179.0 mm | 198.0 mm | 224.3 mm |
| Bottom Bracket Height | 267.0 mm | 269.0 mm | 269.0 mm | 269.0 mm | 271.0 mm |
| Bottom Bracket Drop | 76.0 mm | 74.0 mm | 74.0 mm | 74.0 mm | 72.0 mm |
| Wheelbase | 1002.1 mm | 1012.1 mm | 1025.9 mm | 1035.5 mm | 1046.3 mm |
| Fork Offset | 52.0 mm | 52.0 mm | 52.0 mm | 52.0 mm | 52.0 mm |
| Standover height | 711.0 mm | 750.0 mm | 771.0 mm | 797.0 mm | 827.0 mm |
| Stack | 540.0 mm | 565.0 mm | 585.0 mm | 605.0 mm | 630.0 mm |
| Reach | 368.0 mm | 373.0 mm | 380.2 mm | 388.0 mm | 395.0 mm |
See it before you buy
Take a closer look.
Have questions about this outlet bike? Talk with our team about its condition, fit, and build, or schedule a video call to see it up close.
