Shafer HP

Overview Specs Geometry Reviews

From

$4,899

Build yours

Carbon · E-Gravel · TQ HPR60

Shafer HP

Power meets adventure.

Explore the ride Build yours

60Nm

TQ HPR60

360Wh

Integrated battery

58c

Max tire clearance

28mph

Class 3 assist

Power that feels like you

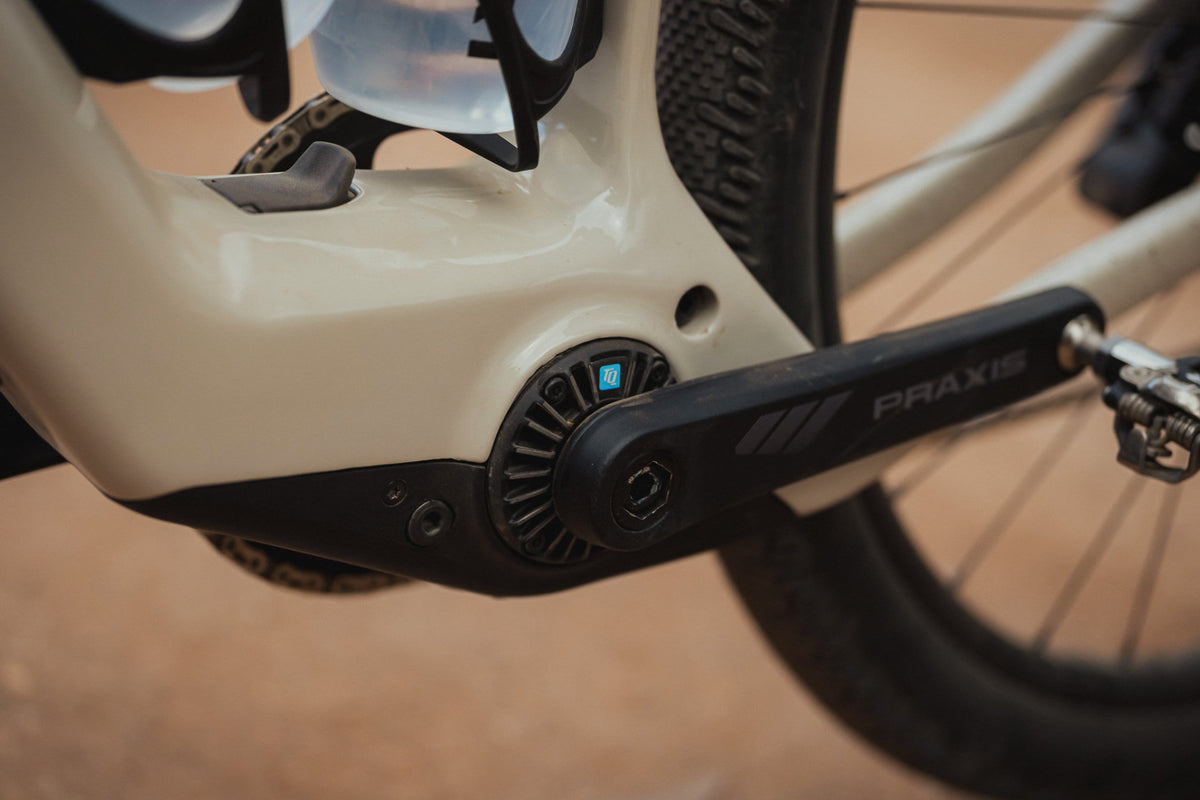

The TQ HPR60 delivers 60Nm of torque and 350W of power in a drive unit that weighs just 1.9kg. Choose Eco, Mid, or High to match the ride.

Range for real rides

A 360Wh integrated battery gives you range for climbing on your favorite rides. Add the optional 160Wh range extender for even longer days in the saddle.

Proven geometry, evolved

Shafer HP is built upon Shafer’s award-winning platform that keeps the stable, confident feel riders love.

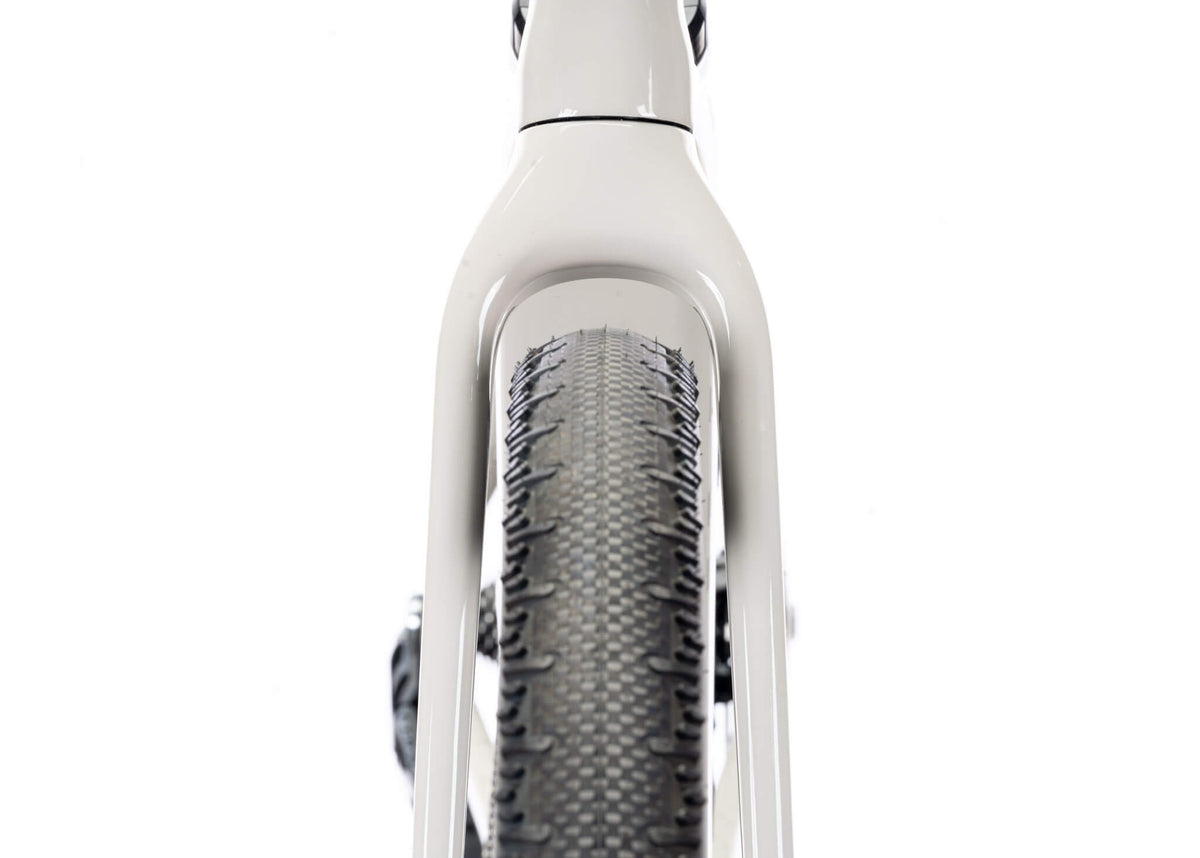

Wide open

Clearance for 700x58c (29x2.25") tires with wide rims adds traction, comfort, and speed over rough terrain.

Shafer HP lifestyle 1 ShaferHP_Vernal_087

Gravel first

Performance, with a natural feel.

Shafer HP is a gravel bike first. It’s stable and planted but still nimble, with engineered flex that smooths rough roads and the strength to take on singletrack. The assist is smooth and whisper quiet.

Go farther, go anywhere.

Gravel roads, asphalt, singletrack, commutes, or multi-day bikepacking trips.

CleanCast + Monoform

Ari’s carbon layup and Monoform construction create a light, strong frame backed by a Lifetime + Transferable Warranty.

Shafer HP lifestyle 1 ShaferHP_Vernal_070

Electric assist

More ride. Same you.

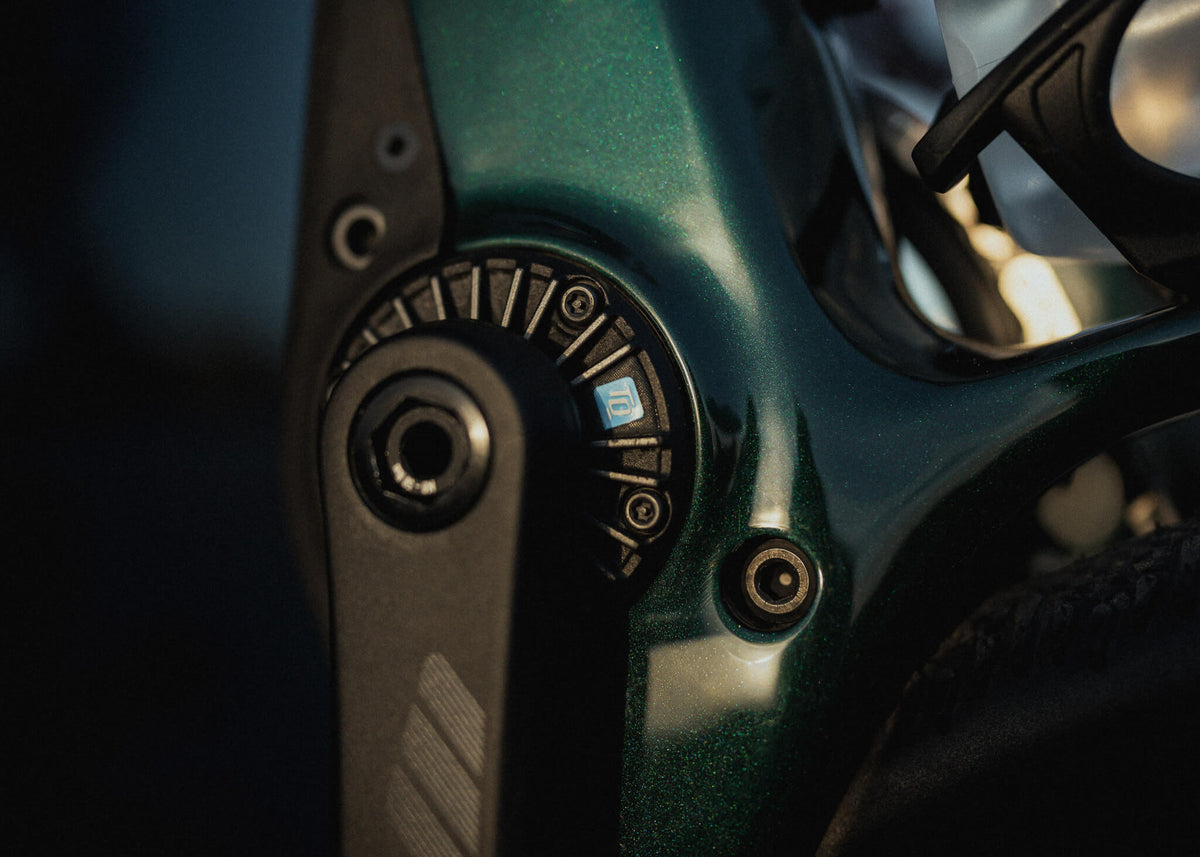

The TQ HPR60 adds smooth, natural, lightweight assist for long, high-output days. A 360Wh integrated battery keeps the electric system tucked into the ride.

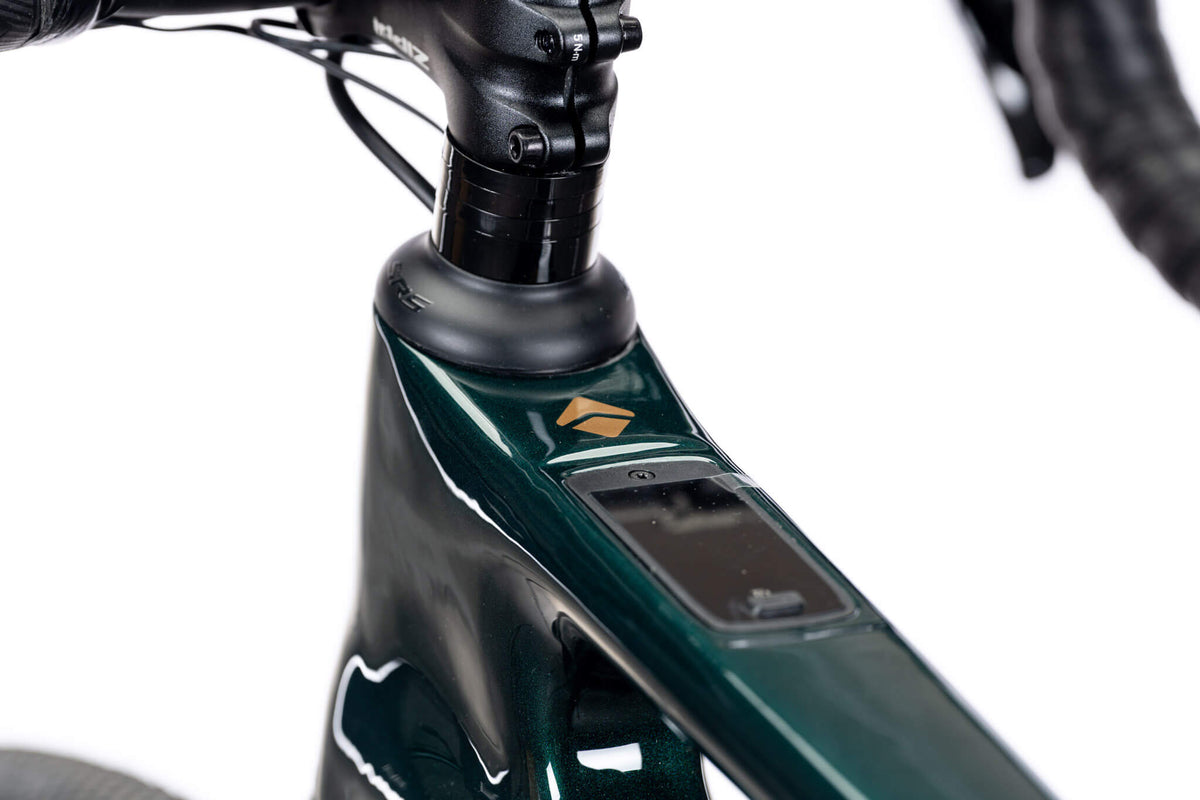

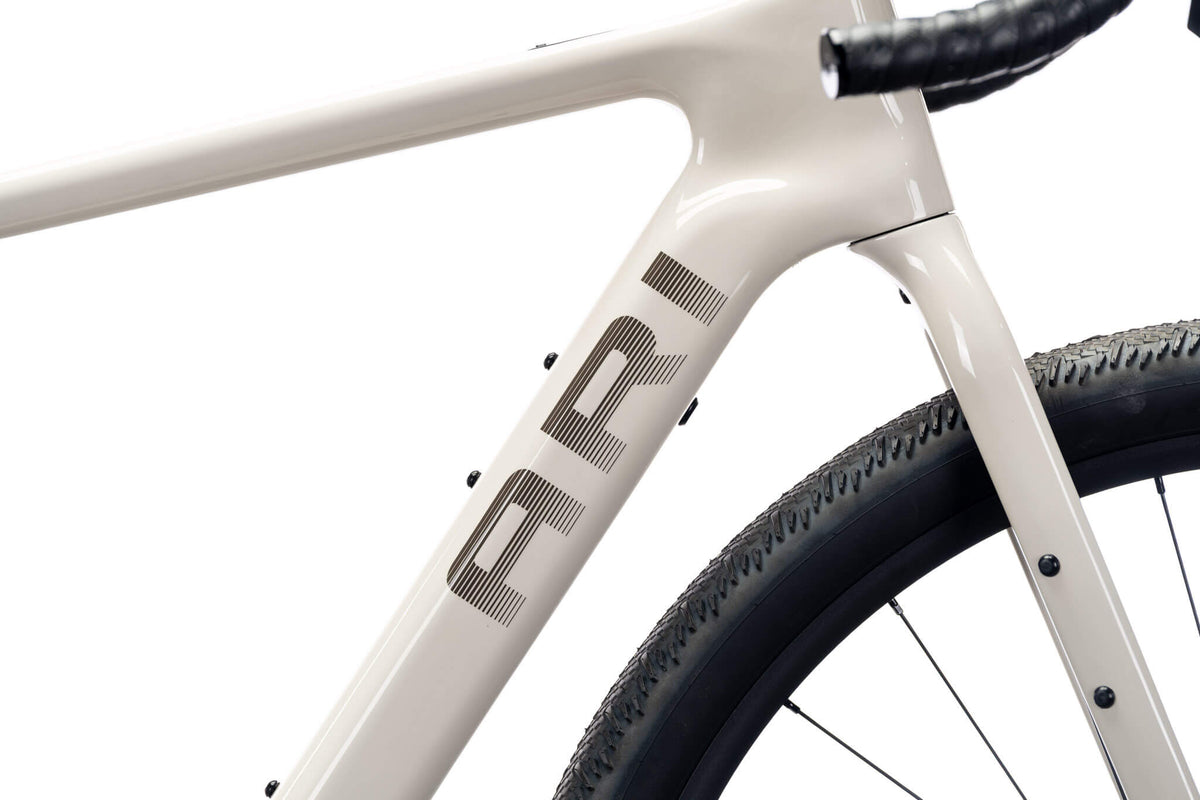

Shafer HP details 26 ShaferHP Details 27 — Monoform carbon construction

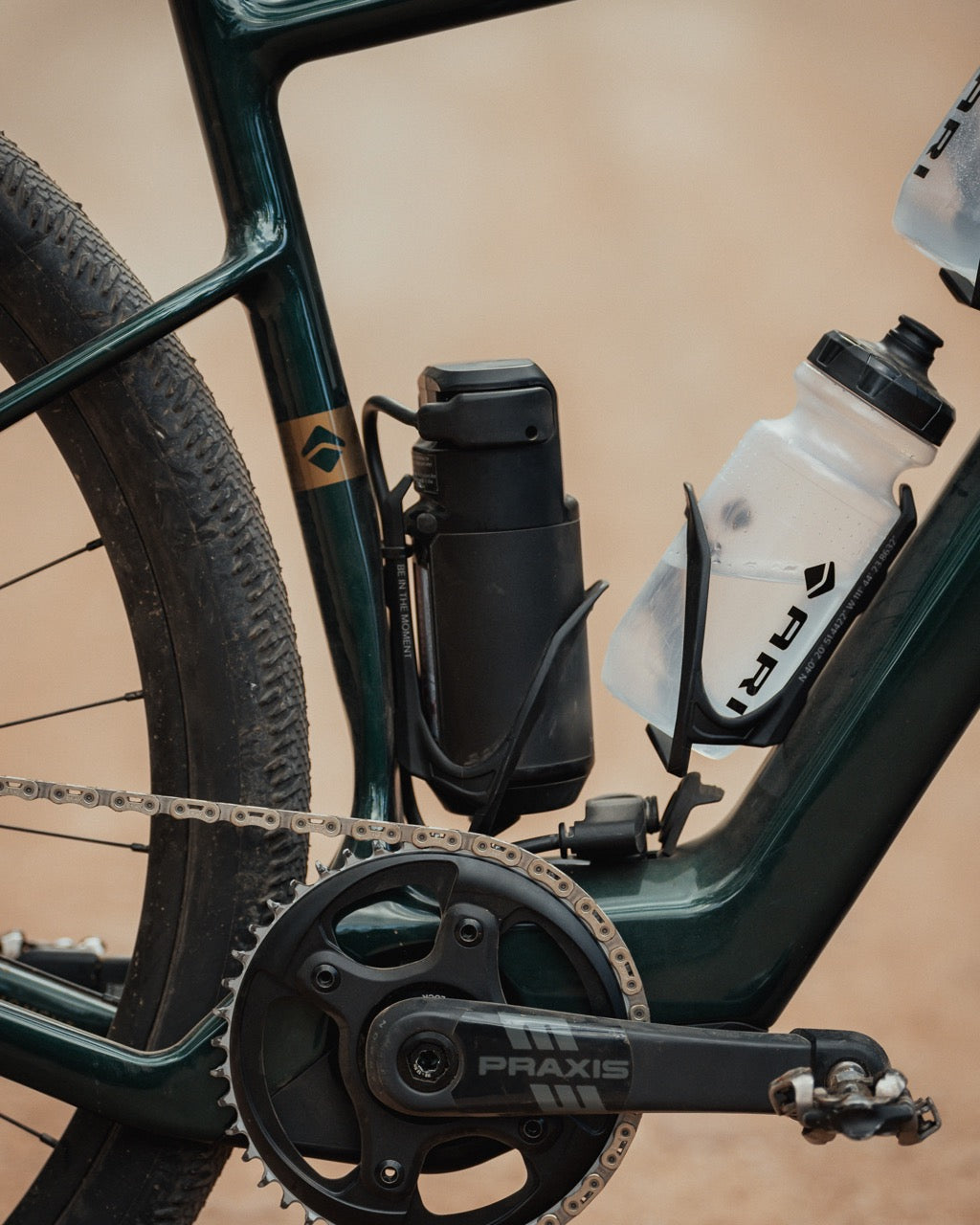

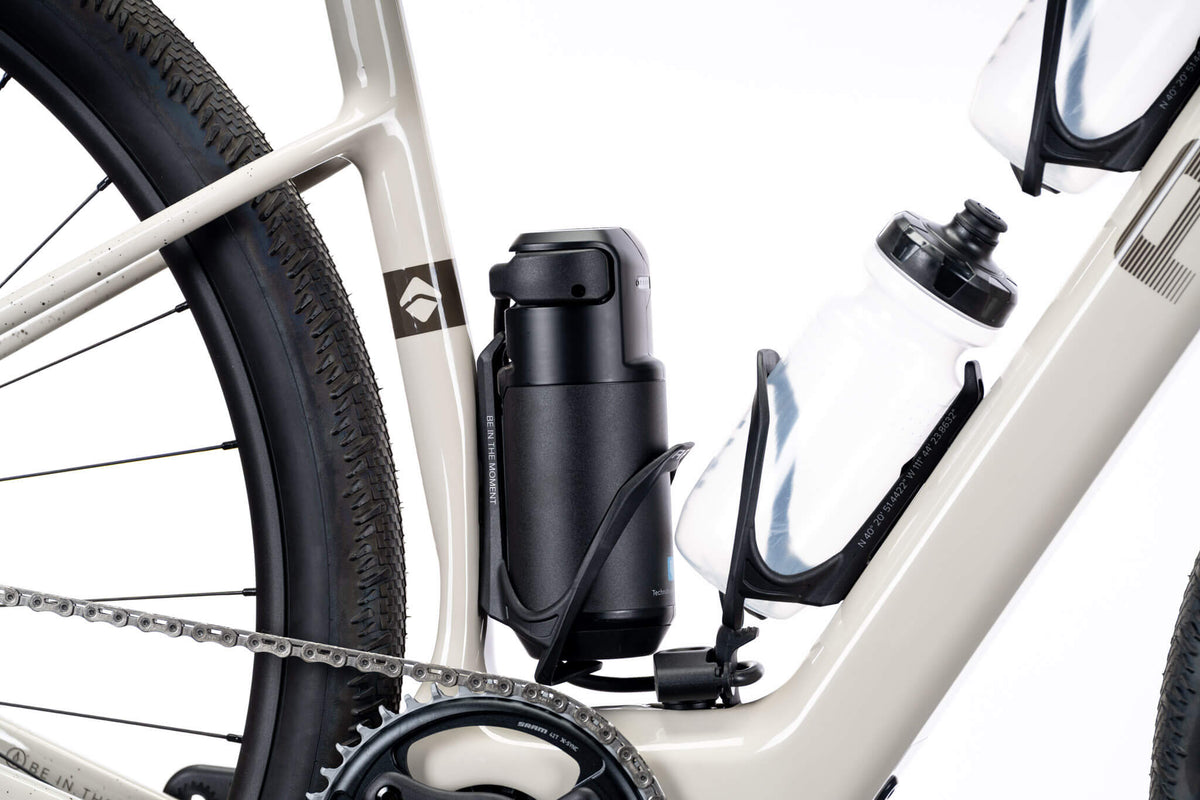

Shafer HP range extender 09 — Optional 160Wh range extender

Colorways

Clay Gray Bone

Emerald Metallic

Choose Clay Gray Bone or Emerald Metallic, then select your build and frame size in the configurator.

Clay Gray Bone Shafer HP in Clay Gray Bone

Emerald Metallic Shafer HP in Emerald Metallic

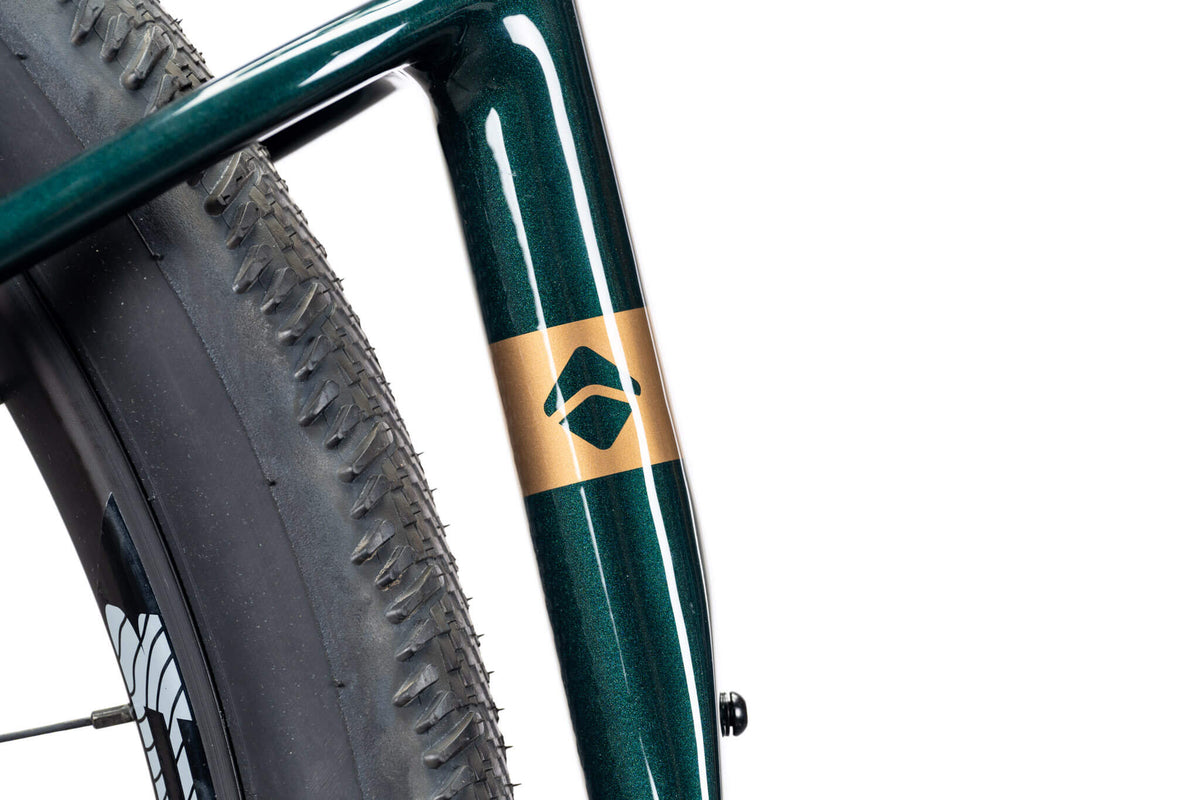

Shafer HP details 26 ShaferHP Details 15

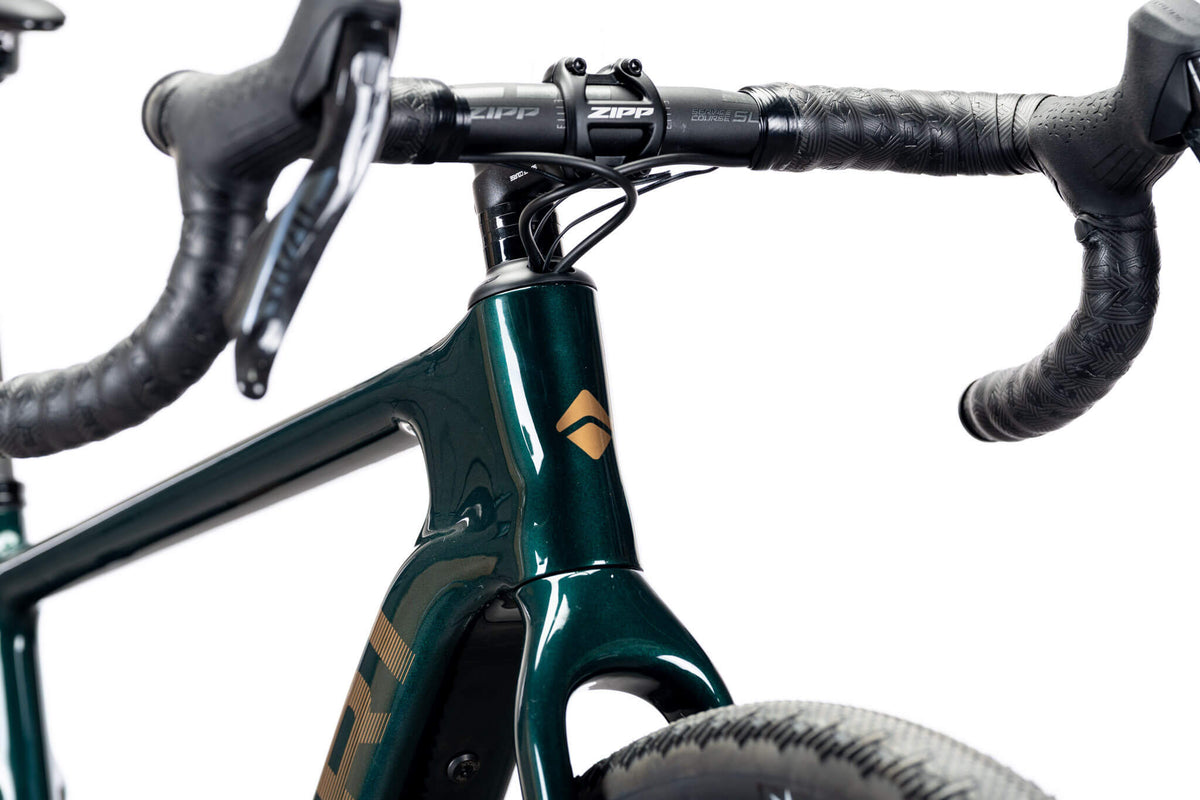

Shafer HP details 26 ShaferHP Details 25

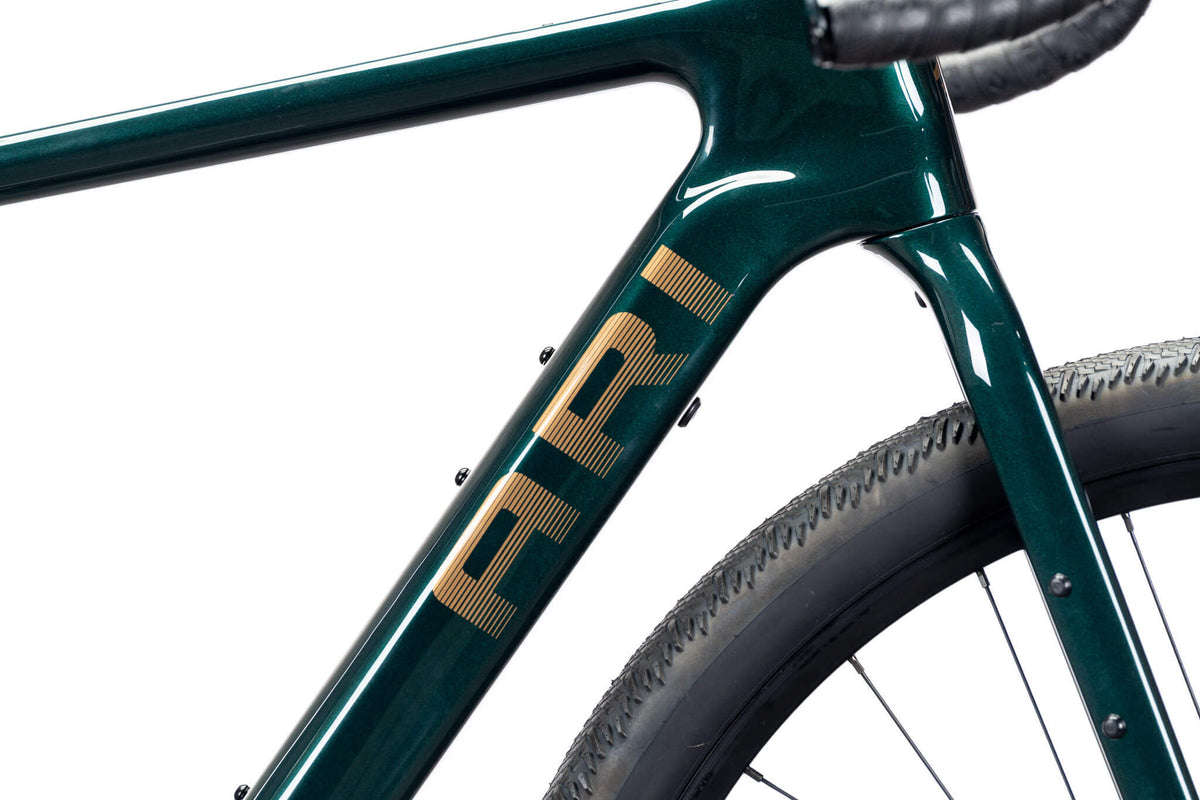

Shafer HP details 26 ShaferHP Details 17

Shafer HP details 26 ShaferHP Details 21

Sport

NEW

$4,899

Shimano CUES 1×11

Shimano CUES 11-Speed Hydraulic
WTB Sportterra i25
Schwalbe G-One RS 700x50c
TQ HPR60
TQ HPR 360 Wh

Configure

Comp

NEW

$5,499

SRAM Apex Eagle 1×12

SRAM Apex Eagle 12-Speed Hydraulic
WTB Speedterra i25
Schwalbe G-One RS 700x50c
TQ HPR60
TQ HPR 360 Wh

Configure

Elite

NEW

$5,999

SRAM Rival XPLR AXS 1×13

SRAM Rival XPLR AXS E1 13-Speed
WTB Speedterra i25
Schwalbe G-One RS 700x50c
TQ HPR60
TQ HPR 360 Wh

Configure

Pro

NEW

$6,999

SRAM Force XPLR AXS 1×13

SRAM Force XPLR AXS E1, 13-Speed
Reynolds G30 Expert
Schwalbe G-One RS 700x50c
TQ HPR60
TQ HPR 360 Wh

Configure

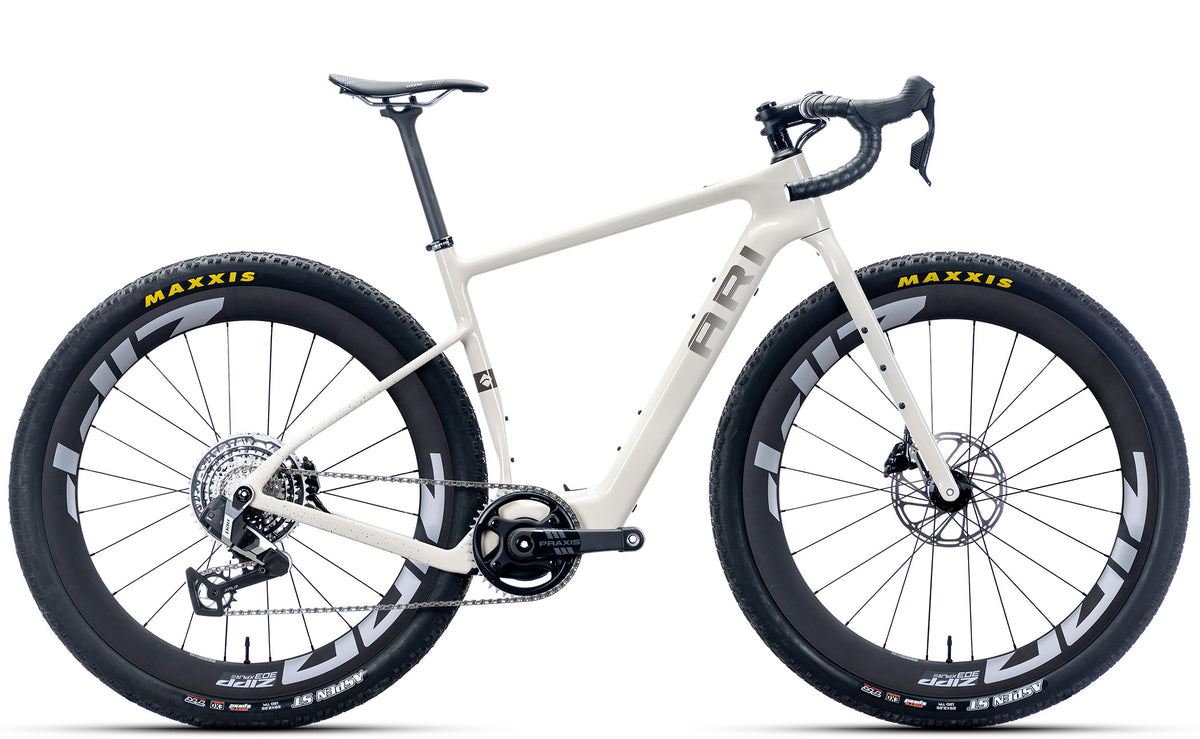

Team

NEW

$9,899

SRAM RED XPLR AXS 1×13

SRAM Red XPLR AXS E1, 13-Speed
Zipp 303s XPLR
Maxxis Aspen ST 29x2.25
TQ HPR60
TQ HPR 360 Wh

Configure

Frame

NEW

$4,199

Carbon frame, fork, and TQ system

TQ HPR60
TQ HPR 360 Wh

Configure

Shafer HP build component comparison
Sport	Comp	Elite	Pro	Team	Frame
PriceNEW $4,899	PriceNEW $5,499	PriceNEW $5,999	PriceNEW $6,999	PriceNEW $9,899	PriceNEW $4,199
Chassis & suspension
Frame Shafer HP Monoform Carbon, 12x142mm thru-axle, flat-mount disc, UDH dropout. Max tire clearance 58c.	Frame Shafer HP Monoform Carbon, 12x142mm thru-axle, flat-mount disc, UDH dropout. Max tire clearance 58c. —	Frame Shafer HP Monoform Carbon, 12x142mm thru-axle, flat-mount disc, UDH dropout. Max tire clearance 58c. —	Frame Shafer HP Monoform Carbon, 12x142mm thru-axle, flat-mount disc, UDH dropout. Max tire clearance 58c. —	Frame Shafer HP Monoform Carbon, 12x142mm thru-axle, flat-mount disc, UDH dropout. Max tire clearance 58c. —	Frame Shafer HP Monoform Carbon, 12x142mm thru-axle, flat-mount disc, UDH dropout. Max tire clearance 58c. —
Fork Shafer HP Carbon, 12x100mm thru-axle, flat-mount disc, dynamo routing. Max tire clearance 58c.	Fork Shafer HP Carbon, 12x100mm thru-axle, flat-mount disc, dynamo routing. Max tire clearance 58c. —	Fork Shafer HP Carbon, 12x100mm thru-axle, flat-mount disc, dynamo routing. Max tire clearance 58c. —	Fork Shafer HP Carbon, 12x100mm thru-axle, flat-mount disc, dynamo routing. Max tire clearance 58c. —	Fork Shafer HP Carbon, 12x100mm thru-axle, flat-mount disc, dynamo routing. Max tire clearance 58c. —	Fork Shafer HP Carbon, 12x100mm thru-axle, flat-mount disc, dynamo routing. Max tire clearance 58c. —
Sizes XS,S,M,L,XL	Sizes XS,S,M,L,XL —	Sizes XS,S,M,L,XL —	Sizes XS,S,M,L,XL —	Sizes XS,S,M,L,XL —	Sizes XS,S,M,L,XL —
Drive unit TQ HPR60	Drive unit TQ HPR60 —	Drive unit TQ HPR60 —	Drive unit TQ HPR60 —	Drive unit TQ HPR60 —	Drive unit TQ HPR60 —
Battery TQ HPR 360 Wh	Battery TQ HPR 360 Wh —	Battery TQ HPR 360 Wh —	Battery TQ HPR 360 Wh —	Battery TQ HPR 360 Wh —	Battery TQ HPR 360 Wh —
Drivetrain & brakes
Drivetrain Shimano Cues, 1x11, Hydraulic	DrivetrainUpgraded SRAM Apex Eagle, 1x12, Hydraulic	DrivetrainUpgraded SRAM Rival XPLR AXS E1, 1x13, Hydraulic	DrivetrainUpgraded SRAM Force XPLR AXS E1, 1x13, Hydraulic	DrivetrainUpgraded SRAM RED XPLR AXS E1, 1x13, Hydraulic	Drivetrain N/A
Brakes Shimano Cues ST-U6030, hydraulic disc, 180mm rotors	BrakesUpgraded SRAM Apex, hydraulic disc, SRAM Centerline 180mm rotors	BrakesUpgraded SRAM Rival HRD Shift-Brake System, SRAM Centerline 180mm rotors	BrakesUpgraded SRAM Force HRD Shift-Brake System, SRAM Centerline 180mm rotors	BrakesUpgraded SRAM RED HRD Shift-Brake System, SRAM Centerline 180mm rotors	Brakes N/A
Shifters Shimano CUES ST-U6030, 1x11, Hydraulic	ShiftersUpgraded SRAM Apex, 1x12, Hydraulic	ShiftersUpgraded SRAM Rival HRD E1, 1x13, Hydraulic	ShiftersUpgraded SRAM Force HRD E1, 1x13, Hydraulic	ShiftersUpgraded SRAM RED HRD Shift-Brake System, 1x13, Hydraulic	Shifters N/A
Rear derailleur Shimano CUES RD-U6000, 1x11	Rear derailleurUpgraded SRAM Apex Eagle, 1x12	Rear derailleurUpgraded SRAM Rival XPLR, Direct mount, 1x13	Rear derailleurUpgraded SRAM Force XPLR, Direct mount, 1x13	Rear derailleurUpgraded SRAM RED XPLR E1, Direct mount, 1x13	Rear derailleur N/A
Cassette Shimano CS-LG400, 11-speed, 11-50T	CassetteUpgraded SRAM PG-1230, 12-speed, 11-50T	CassetteUpgraded SRAM XG-1351 XPLR E1, 13-speed, 10-46T	CassetteUpgraded SRAM XG-1371 XPLR E1, 13-speed, 10-46T	CassetteUpgraded SRAM RED XG-1391 XPLR E1, 13-speed, 10-46T	Cassette N/A
Crank Praxis EC-4, Alloy, XS/S/M 165mm, L/XL 170mm	Crank Praxis EC-4, Alloy, XS/S/M 165mm, L/XL 170mm —	Crank Praxis EC-4, Alloy, XS/S/M 165mm, L/XL 170mm —	CrankUpgraded Praxis Carbon eCrank Type 4, XS/S/M 165mm, L/XL 170mm	Crank Praxis Carbon eCrank Type 4, XS/S/M 165mm, L/XL 170mm —	Crank Praxis Carbon eCrank Type 4, XS/S/M 165mm, L/XL 170mm —
Chainrings Praxis E-Spider 110 BCD, Praxis 42T Narrow-Wide	ChainringsUpgraded Praxis E-Spider 107 BCD, SRAM 42T X-SYNC Narrow-Wide	Chainrings Praxis E-Spider 107 BCD, SRAM 42T X-SYNC Narrow-Wide —	Chainrings Praxis E-Spider 107 BCD, SRAM 42T X-SYNC Narrow-Wide —	Chainrings Praxis E-Spider 107 BCD, SRAM 42T X-SYNC Narrow-Wide —	Chainrings Praxis E-Spider 107 BCD, SRAM 42T X-SYNC Narrow-Wide —
Chain Shimano CN-LG500, 11-speed	ChainUpgraded SRAM NX/Apex, 12-speed	ChainUpgraded SRAM Rival Flat top E1, 13-speed	ChainUpgraded SRAM Force Flat top E1, 13-speed	ChainUpgraded SRAM RED Flat top E1, 13-speed	Chain N/A
Cockpit & contact points
Handlebars Ari Gravel Alloy. 31.8mm diameter, 75mm reach, 120mm drop, 16-degree flare	Handlebars Ari Gravel Alloy. 31.8mm diameter, 75mm reach, 120mm drop, 16-degree flare —	HandlebarsUpgraded Zipp Service Course SL 70 XPLR Alloy. 31.8mm diameter, 70mm reach, 115mm drop, 11-degree flare	HandlebarsUpgraded Zipp Service Course SL 70 XPLR Carbon. 31.8mm diameter, 70mm reach, 115mm drop, 11-degree flare	HandlebarsUpgraded Zipp SL-70 XPLR Carbon. 31.8mm diameter, 70mm reach, 115mm drop, 11-degree flare	Handlebars N/A
Stem Ari 3D forged 31.8mm alloy, 7 degree, 4-bolt bar clamp (customized sizing through Ari Custom Setup)	Stem Ari 3D forged 31.8mm alloy, 7 degree, 4-bolt bar clamp (customized sizing through Ari Custom Setup) —	StemUpgraded Zipp Service Course 31.8mm alloy, 6 degree, 4-bolt bar clamp (customized sizing through Ari Custom Setup)	Stem Zipp Service Course 31.8mm alloy, 6 degree, 4-bolt bar clamp (customized sizing through Ari Custom Setup) —	Stem Zipp Service Course 31.8mm alloy, 6 degree, 4-bolt bar clamp (customized sizing through Ari Custom Setup) —	Stem N/A
Grips Ari Super-Shock Pro with Anti-Slip, Black	Grips Ari Super-Shock Pro with Anti-Slip, Black —	Grips Ari Super-Shock Pro with Anti-Slip, Black —	Grips Ari Super-Shock Pro with Anti-Slip, Black —	Grips Ari Super-Shock Pro with Anti-Slip, Black —	Grips N/A
Saddle WTB Gravelier Medium Steel	Saddle WTB Gravelier Medium Steel —	Saddle WTB Gravelier Medium Steel —	Saddle WTB Gravelier Medium Steel —	SaddleUpgraded WTB Gravelier Medium Titanium	Saddle N/A
Seatpost Ari Carbon Dual Bolt, 27.2mm	Seatpost Ari Carbon Dual Bolt, 27.2mm —	Seatpost Ari Carbon Dual Bolt, 27.2mm —	Seatpost Ari Carbon Dual Bolt, 27.2mm —	Seatpost Ari Carbon Dual Bolt, 27.2mm —	Seatpost N/A
Pedals Available Separately	Pedals Available Separately —	Pedals Available Separately —	Pedals Available Separately —	Pedals Available Separately —	Pedals Available Separately —
Wheels & tires
Wheels WTB Sportterra i25, Tubeless Ready, (Carbon wheels upgrade available at checkout)	WheelsUpgraded WTB Speedterra i25, Tubeless Ready, (Carbon wheels upgrade available at checkout)	Wheels WTB Speedterra i25, Tubeless Ready, (Carbon wheels upgrade available at checkout) —	WheelsUpgraded Reynolds G30 Expert Alloy, Tubeless Ready, (Carbon wheels upgrade available at checkout)	WheelsUpgraded Zipp 303s XPLR, Tubeless Ready, (Wheel upgrade options available at checkout)	Wheels N/A
Rims WTB Sporterra i25 700c, 28 hole, Disc, Tubeless Ready	RimsUpgraded WTB Speedterra i25 700c, 28 hole, Disc, Tubeless Ready	Rims WTB Speedterra i25 700c, 28 hole, Disc, Tubeless Ready —	RimsUpgraded Reynolds G30 Expert 700c, 28 hole, Disc, Tubeless Ready	RimsUpgraded Zipp 303s XPLR, Carbon, 700c, 24 hole, Disc, Tubeless Ready	Rims N/A
Hubs F: WTB Frequency Sealed Bearing Disc, 100x12mm thru axle, 28 hole, Center Lock; R: WTB Frequency Sealed Bearing Disc, 142x12mm thru axle, 28 hole, Center Lock, HG	Hubs F: WTB Frequency Sealed Bearing Disc, 100x12mm thru axle, 28 hole, Center Lock; R: WTB Frequency Sealed Bearing Disc, 142x12mm thru axle, 28 hole, Center Lock, HG —	HubsUpgraded F: WTB Frequency Sealed Bearing Disc, 100x12mm thru axle, 28 hole, Center Lock; R: WTB Frequency Sealed Bearing Disc, 142x12mm thru axle, 28 hole, Center Lock, XDR	HubsUpgraded F: Sun Ringle SRX Sealed Bearing Disc, 100x12mm thru axle, 28 hole, Center Lock; R: Sun Ringle SRX Sealed Bearing Disc, 142x12mm thru axle, 28 hole, Center Lock, XDR	HubsUpgraded F: Zipp 176D Sealed Bearing Disc, 100x12mm thru axle, 24 hole, Center Lock; R: Zipp 76D Sealed Bearing Disc, 142x12mm thru axle, 24 hole, Center Lock, XDR	Hubs N/A
Spokes Stainless, black, with brass nipples	Spokes Stainless, black, with brass nipples —	Spokes Stainless, black, with brass nipples —	SpokesUpgraded Wheelsmith DB14, brass nipples	SpokesUpgraded Sapim CX-Sprint bladed, brass nipples	Spokes N/A
Tires Schwalbe G-One RS, V-Guard, ADDIX 700x50c, Tubeless Ready	TiresUpgraded Schwalbe G-One RS Pro, V-Guard, ADDIX 700x55c, Tubeless Ready	Tires Schwalbe G-One RS Pro, V-Guard, ADDIX 700x55c, Tubeless Ready —	Tires Schwalbe G-One RS Pro, V-Guard, ADDIX 700x55c, Tubeless Ready —	TiresUpgraded Maxxis Aspen ST, MaxxSpeed, EXO 29x2.25, Tubeless Ready	Tires N/A
Tubes 700x33-50c Presta Valve (Tubeless setup available at Checkout)	TubesUpgraded 29 x 1.75–2.4" Lightweight, 48 mm Presta Valve (Tubeless setup available at checkout)	Tubes 29 x 1.75–2.4" Lightweight, 48 mm Presta Valve (Tubeless setup available at checkout) —	Tubes 29 x 1.75–2.4" Lightweight, 48 mm Presta Valve (Tubeless setup available at checkout) —	Tubes 29 x 1.75–2.4" Lightweight, 48 mm Presta Valve (Tubeless setup available at checkout) —	Tubes N/A
Extras —	Extras —	Extras SRAM AXS Battery & Charger (Cable Not Included)	Extras SRAM AXS Battery & Charger (Cable Not Included) —	Extras SRAM AXS Battery & Charger (Cable Not Included) —	Extras —

Specs are subject to change. Any substitutions will be comparable or better.

Loading geometry chart Hover a measurement to see it on the frame.

Shafer HP geometry by frame size — mm
Measurement	XS	Small	Medium	Large	XL
Top Tube	525	545	565	585	605
Seat Tube	420	450	480	510	540
Chainstay	431	431	431	435	440
Head Angle	69°	69°	69°	69°	69°
Effective Seat Angle	74°	74°	74°	74°	74°
Seat Height for Effective Seat Angle	600	660	720	780	840
Actual Seat Angle	71.6°	72.3°	72.8°	73.3°	73.8°
Head Tube	84	95	121	154	175
Bottom Bracket Height	277	277	277	277	277
Bottom Bracket Drop	78	78	78	78	78
Wheelbase	1026	1048	1072	1098	1124
Fork Offset	50	50	50	50	50
Standover Height	730	750	770	800	825
Stack	550	560	585	615	635
Reach	368	387	400	410	423
Trail	83	83	83	83	83
Axle to Crown	440	440	440	440	440

Shafer HP geometry by frame size — cm
Measurement	XS	Small	Medium	Large	XL
Top Tube	52.5	54.5	56.5	58.5	60.5
Seat Tube	42.0	45.0	48.0	51.0	54.0
Chainstay	43.1	43.1	43.1	43.5	44.0
Head Angle	69°	69°	69°	69°	69°
Effective Seat Angle	74°	74°	74°	74°	74°
Seat Height for Effective Seat Angle	60.0	66.0	72.0	78.0	84.0
Actual Seat Angle	71.6°	72.3°	72.8°	73.3°	73.8°
Head Tube	8.4	9.5	12.1	15.4	17.5
Bottom Bracket Height	27.7	27.7	27.7	27.7	27.7
Bottom Bracket Drop	7.8	7.8	7.8	7.8	7.8
Wheelbase	102.6	104.8	107.2	109.8	112.4
Fork Offset	5.0	5.0	5.0	5.0	5.0
Standover Height	73.0	75.0	77.0	80.0	82.5
Stack	55.0	56.0	58.5	61.5	63.5
Reach	36.8	38.7	40.0	41.0	42.3
Trail	8.3	8.3	8.3	8.3	8.3
Axle to Crown	44.0	44.0	44.0	44.0	44.0

Measurements are shown in the selected unit. Angle values remain in degrees.

Be the first to review the Shafer HP.

Share your ride once you have put the bike through its paces.

01 Unbox and check contents

Remove packaging foam and zip-ties. Confirm the small-parts box has pedals, thru-axle and multitool.
02 Install the handlebar

Center the bar, set roll, and tighten faceplate bolts evenly in a cross pattern.
03 Fit the front wheel

Seat the rotor between the pads, insert the thru-axle from the non-drive side and close to spec.
04 Set saddle height

With the dropper fully extended, set height so your knee is slightly bent at the bottom of the stroke.
05 Install pedals

Grease threads. The left pedal is reverse-threaded.
06 Set suspension and tires
Set sag for your weight using your fork and shock manuals, then check tire pressure against the sidewall range.

View support docs Hide support docs

Owner's Manual PDF TQ App PDF HPR 60 Manual PDF 360Wh Battery Manual PDF Range Extender Manual PDF Torque Wrench Link TQ Service Manual PDF TQ E-Bike Error codes & Troubleshooting Link

Ready to help

Support

Common questions

Still deciding? Our team rides these bikes and can help you find the right setup.

Phone Text Email

General Technical Support

Who is this bike for?

Shafer cyclists appreciate versatility in cycling, combining the love for both on-road efficiency and off-road adventure. This cyclist seeks the freedom to explore less-traveled paths, such as gravel roads, forest tracks, and light trails, without being limited by the capabilities of a traditional road bike.

Do you offer financing?

Yes, at checkout there are several options available for financing.

How long will it take to arrive?

Estimated lead times are listed under each model's size in the bike builder. Times may vary a little based on current conditions, frame size, color, and availability.

What is the warranty?

Each frame comes with a Lifetime Warranty. Ari-branded frames come with a transferable warranty as well.

What is the guarantee?

It comes with a 30-Day Love It or Return It Guarantee.

How does transferable warranty on Ari bikes work?

Ari-branded frames come with a transferable frame warranty available to the second owner. The second owner can receive a one-year frame warranty from the date they purchase the bike from the original owner. Warranty only transfers once. All Ari bikes must have the transfer documented from the original owner to the new owner here in order to qualify for a transferable warranty.

What is the assist speed limit?

Shafer HP is a Class 3 e-bike capable of assisting up to 28 mph.

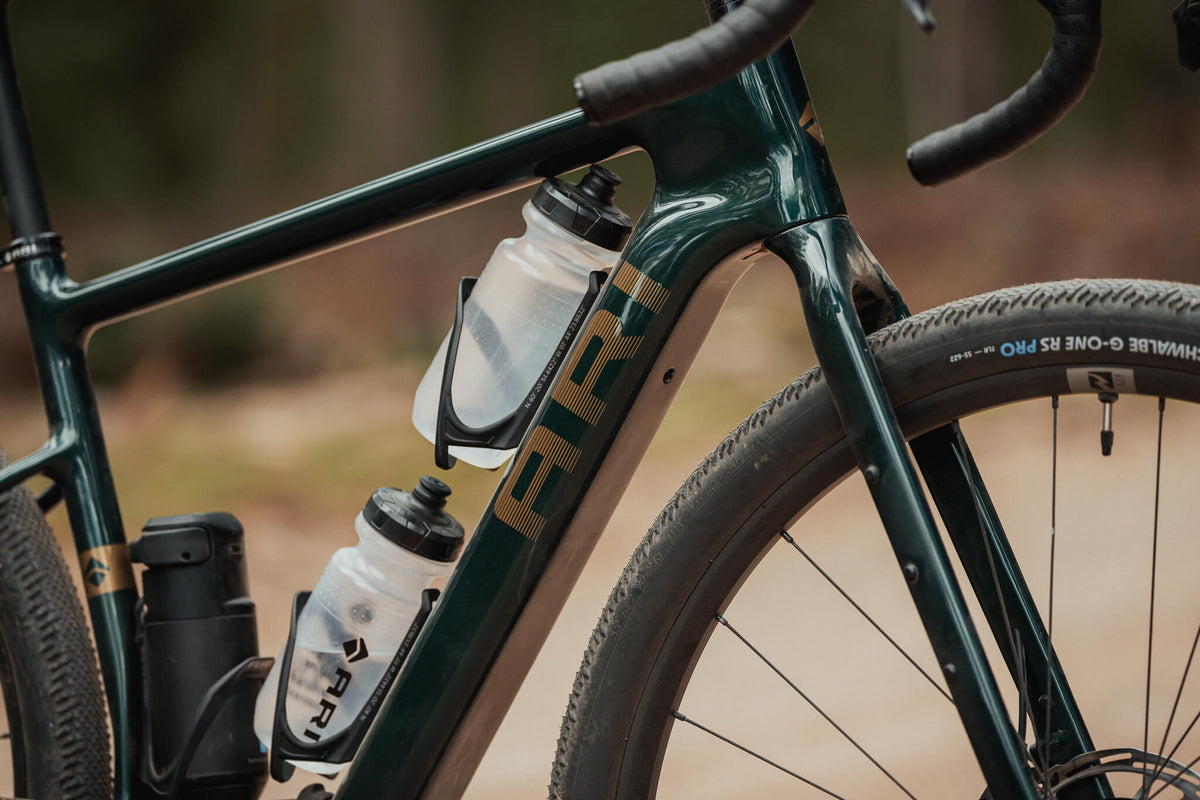

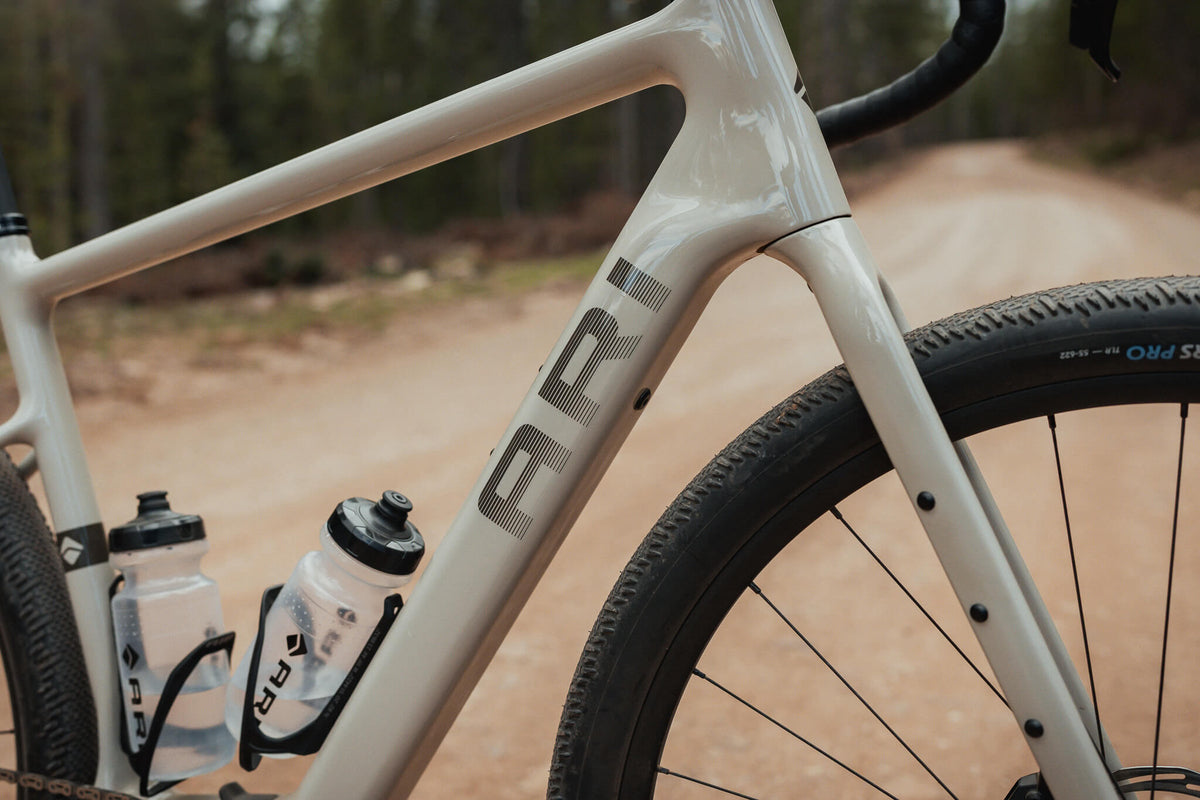

Does a water bottle fit in the frame?

At least two full-size water bottles fit inside the front triangle on all sizes. There is space for water, tools, or bags, plus extra mounts on the fork legs so you can set your Shafer HP up for whatever ride suits you.

Can I use a range extender?

Yes! A water bottle-sized 160Wh range extender can be added to keep your adventure going.

What size is the battery?

360Wh of gravel-grinding energy.

What motor does the Shafer HP use?

Shafer HP uses the TQ HPR60 drive unit to give you 60Nm and 350W of assist in a lightweight and quiet package.

What tire sizes can I use on Shafer HP?

Clearance for days. Fits tires up to 700x58mm on a 30mm inner-width rim, or run up to 50c with fenders in commuter mode.

Can the Shafer HP run a suspension fork?

Suspension gravel forks such as the RockShox Rudy XL, RockShox Rudy, 32AX, MRP Baxter, or Suntour GVX can be installed on the Shafer HP frame. If you choose to get one on your own later, we recommend running the longer fork offset option (as close to 50mm as possible). The stock fork axle-to-crown measurement is 440mm.

What are the headset dimensions?

The Standardized Headset Identification System (SHIS) is IS52 / 28.6 | IS52 / 40 (45°). This is used with the 1.5”/1.5” headtube. We have chosen to use the FSA SRS headsets for simple, clean cable management. FSA ACR is also compatible if the matching stem is used.

What are the dimensions of the rear hub and rear axle?

The rear hub is 142mm x 12mm. The axle dimensions are M12 x 167.5mm long x 15mm thread length x 1.0mm thread pitch.

What are the dimensions of the front hub and fork axle?

The front hub is 100mm x 12mm. The axle dimensions are M12 x 118mm long x 14mm thread length x 1.50mm thread pitch.

Can the Shafer HP run an internal dropper post?

The Shafer HP can use an internal dropper post with a diameter of 27.2mm.

How will it arrive?

All Ari bikes go through our Custom Setup process, making sure the bike is fit and tuned specifically to you. They are test-ridden before delivery. If your bike is shipped to you, it’s still tuned and ready to ride and requires just a few minutes of assembly.

What about service?

You can work directly with us, one of our recommended shops, or work through your local shop.
