E-Gravel (Pre-Order) Geometry Chart

Measurement	XS	S	M	L	XL
Top Tube	525	545	565	585	605
Seat Tube	420	450	480	510	540
Chainstay	431	431	431	435	440
Head Angle	69°	69°	69°	69°	69°
Effective Seat Angle	74°	74°	74°	74°	74°
Seat Height for Effective Seat Angle	600	660	720	780	840
Actual Seat Angle	71.6°	72.3°	72.8°	73.3°	73.8°
Head Tube Length	84	95	121	154	175
Bottom Bracket Height	277	277	277	277	277
Bottom Bracket Drop	78	78	78	78	78
Wheelbase	1021	1046	1072	1098	1124
Fork Offset	50	50	50	50	50
Standover Height	730	750	770	800	825
Stack	550	560	585	615	635
Reach	368	387	400	410	423
Trail	83	83	83	83	83

E-Gravel (Pre-Order)

Name: E-Gravel (Pre-Order)
Brand: Ari Bikes
SKU: ARI3089B
Price: 1000.0 USD
Availability: InStock

$1,000.00

~~Save $-1,000 (Liquid error (snippets/price line 103): Computation results in '-Infinity'% off)~~ $1,000.00

Sale Sold out

Shipping calculated at checkout.

Description

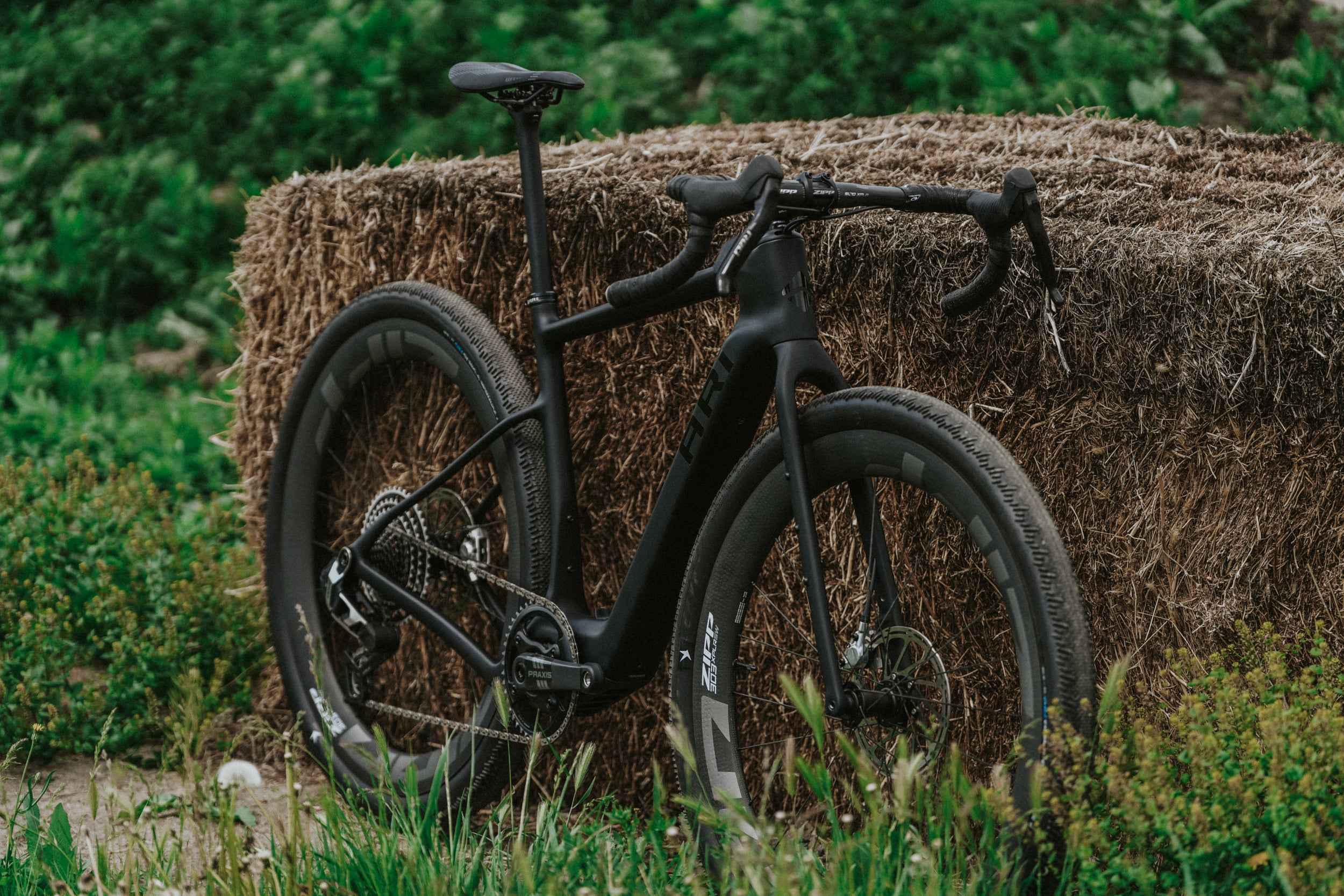

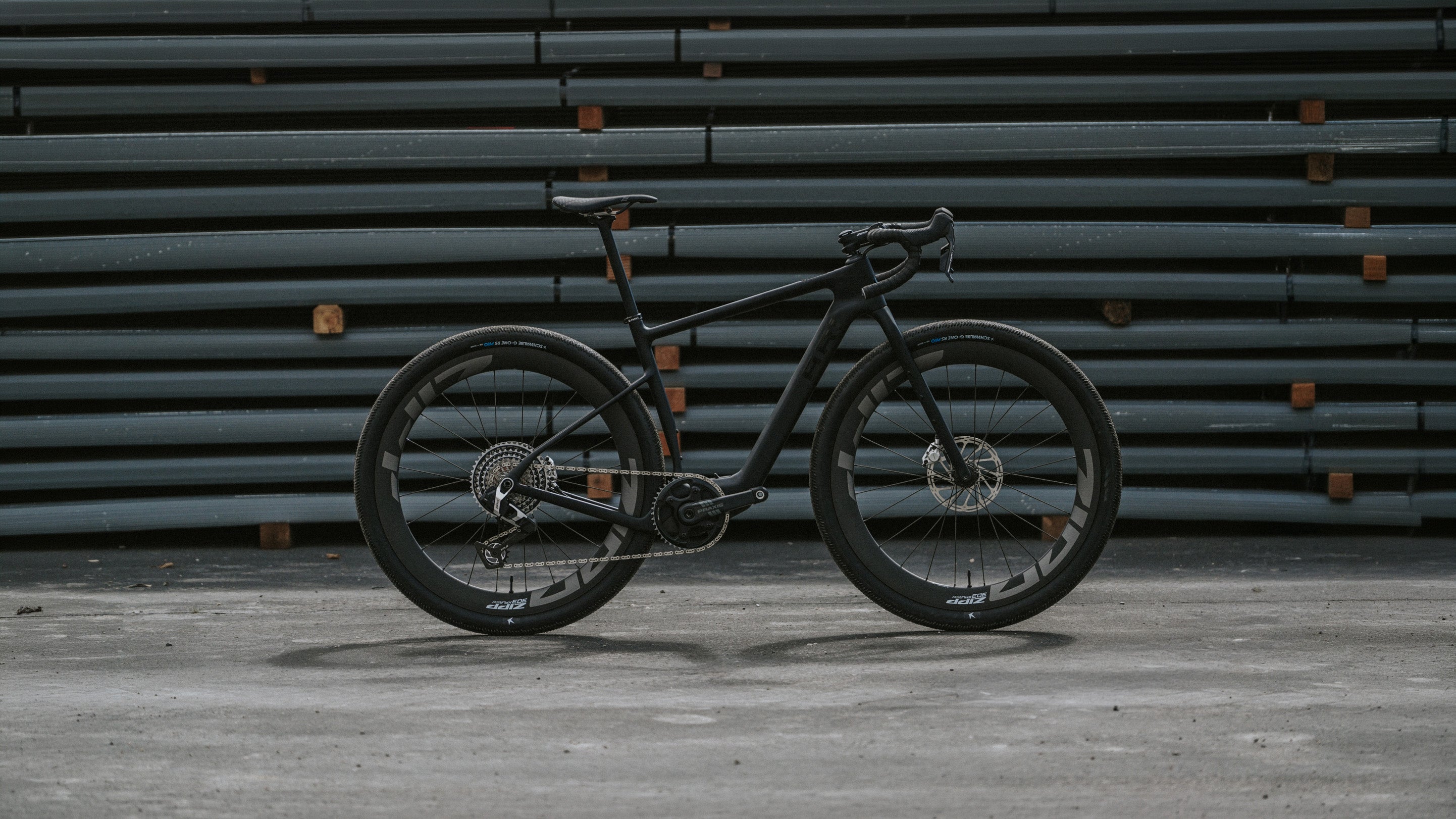

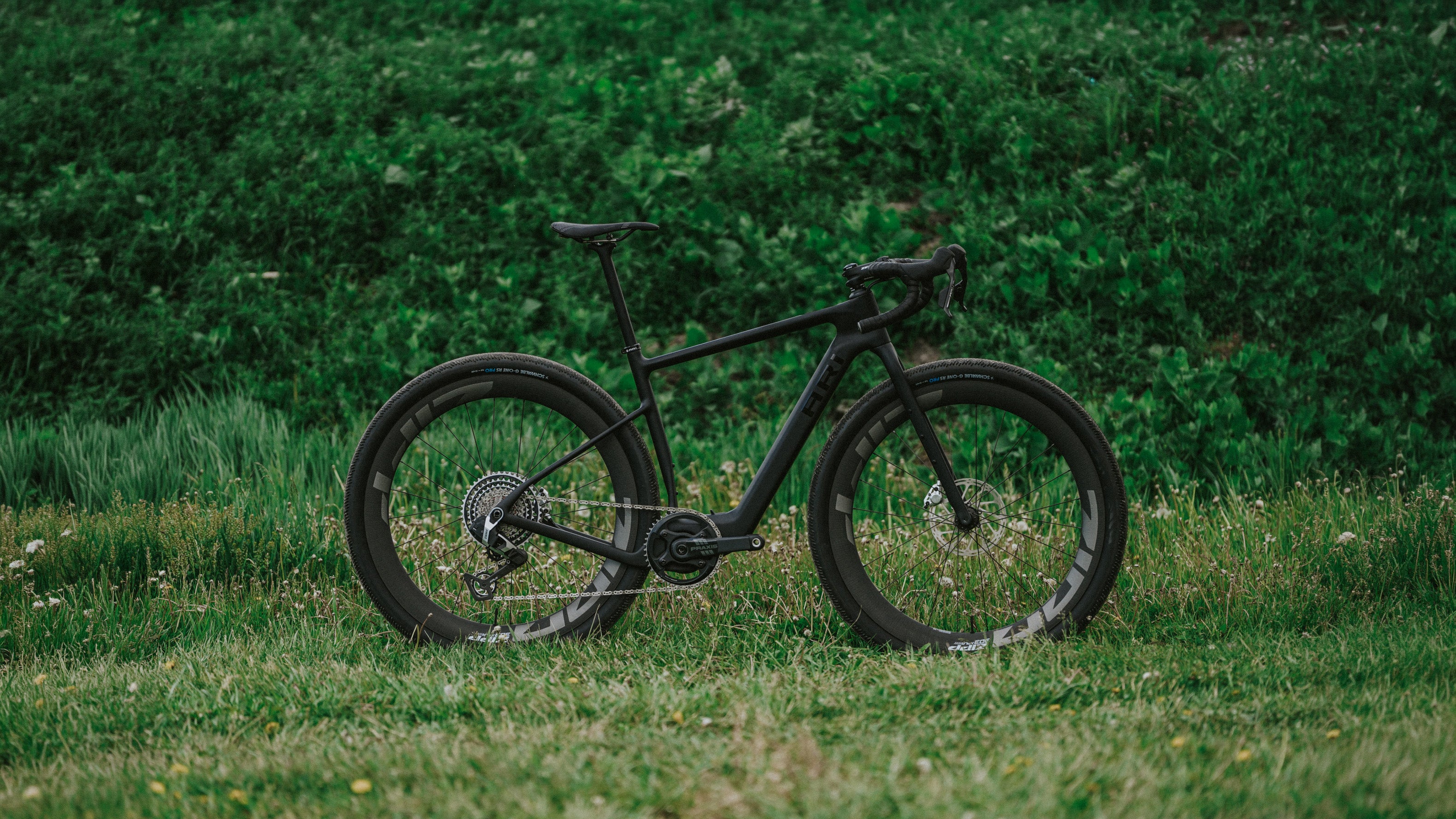

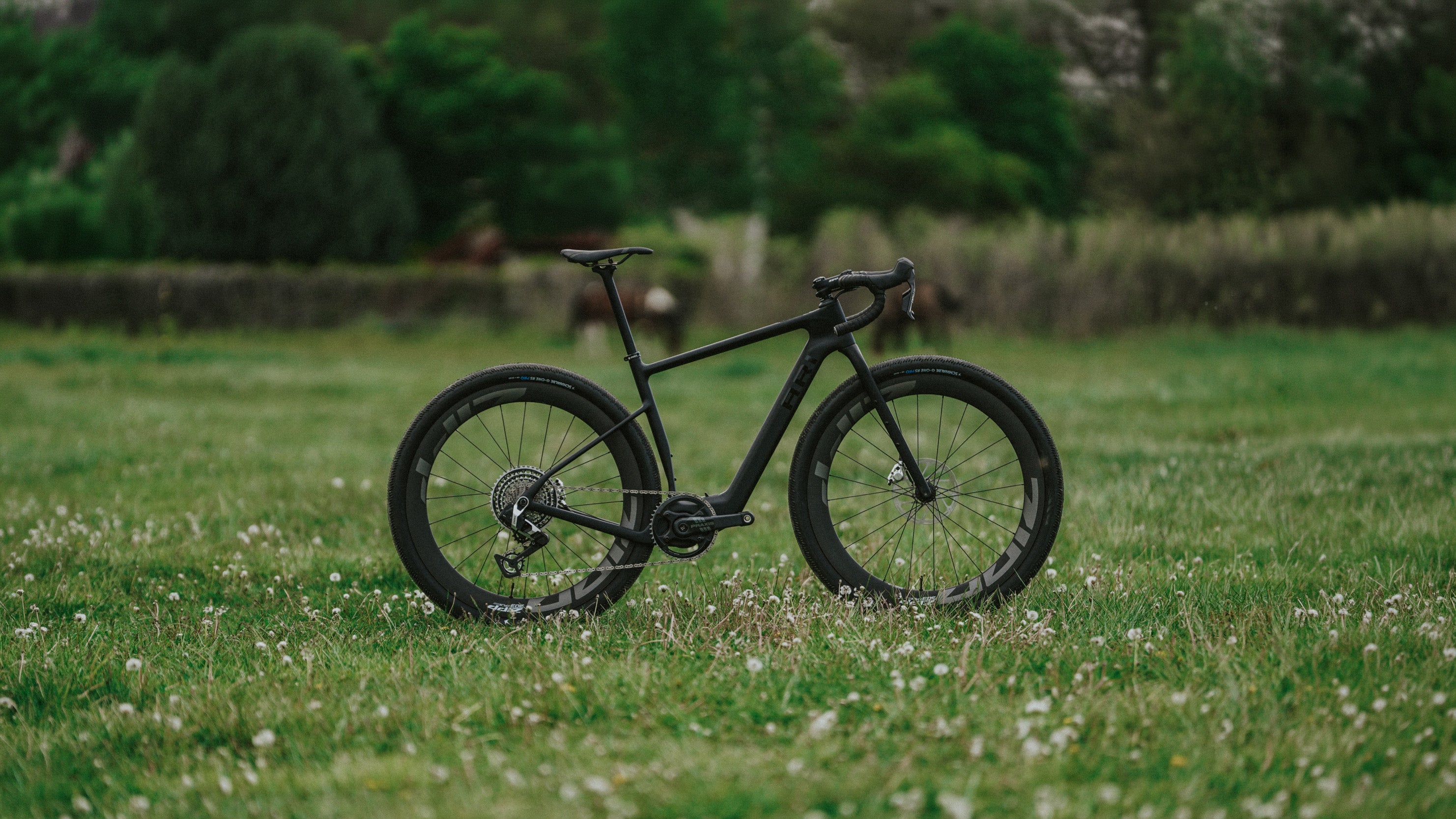

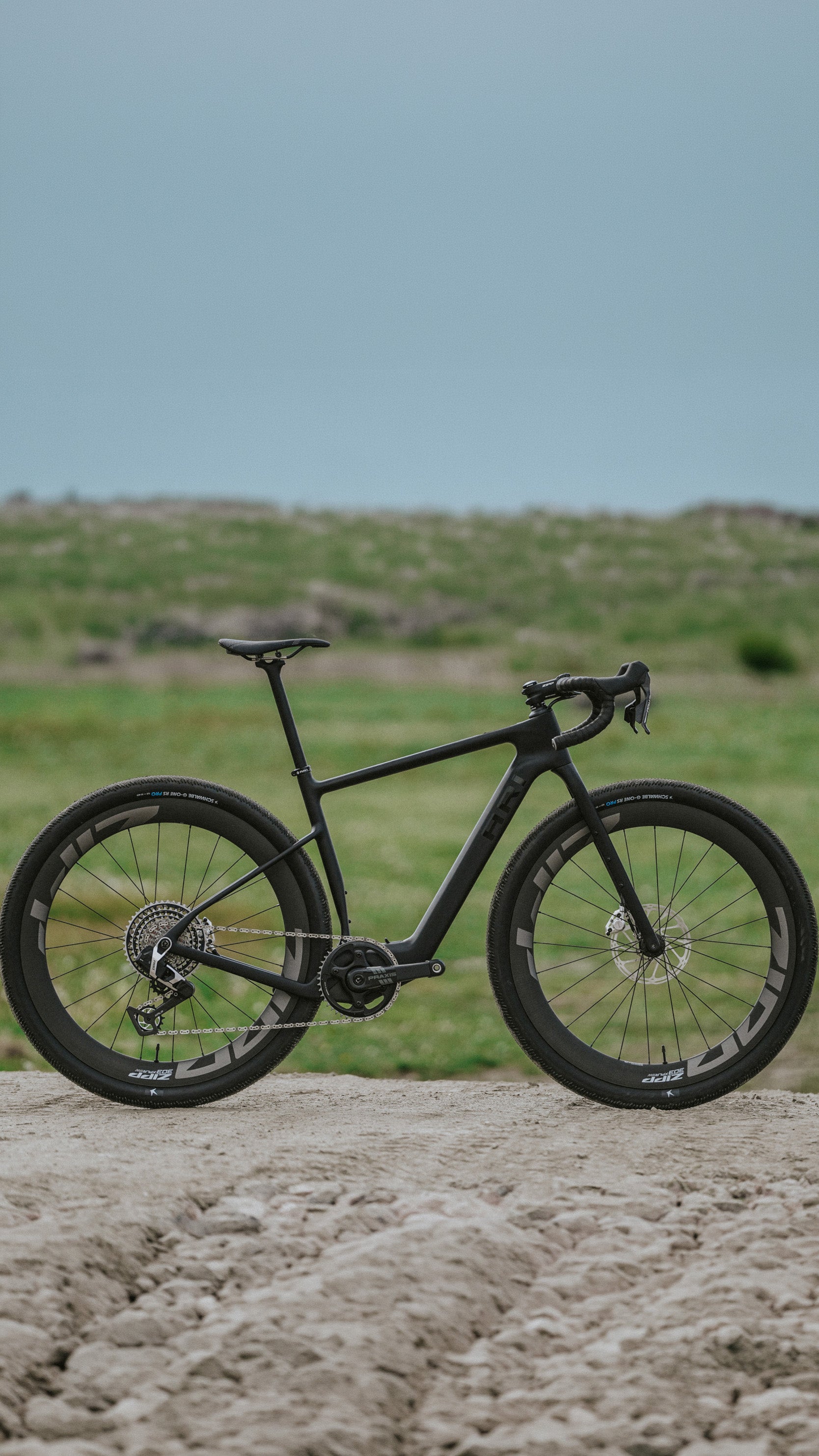

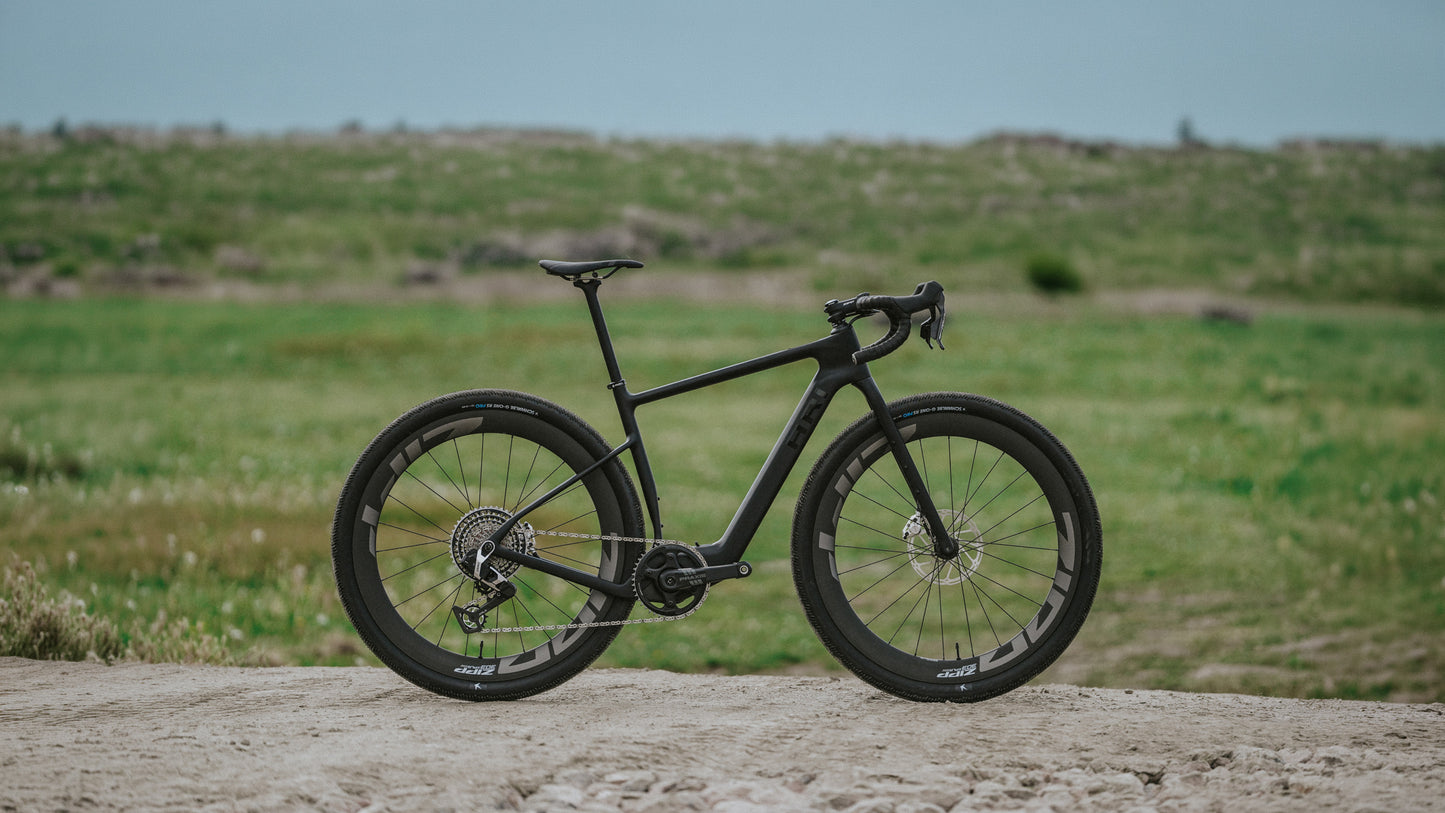

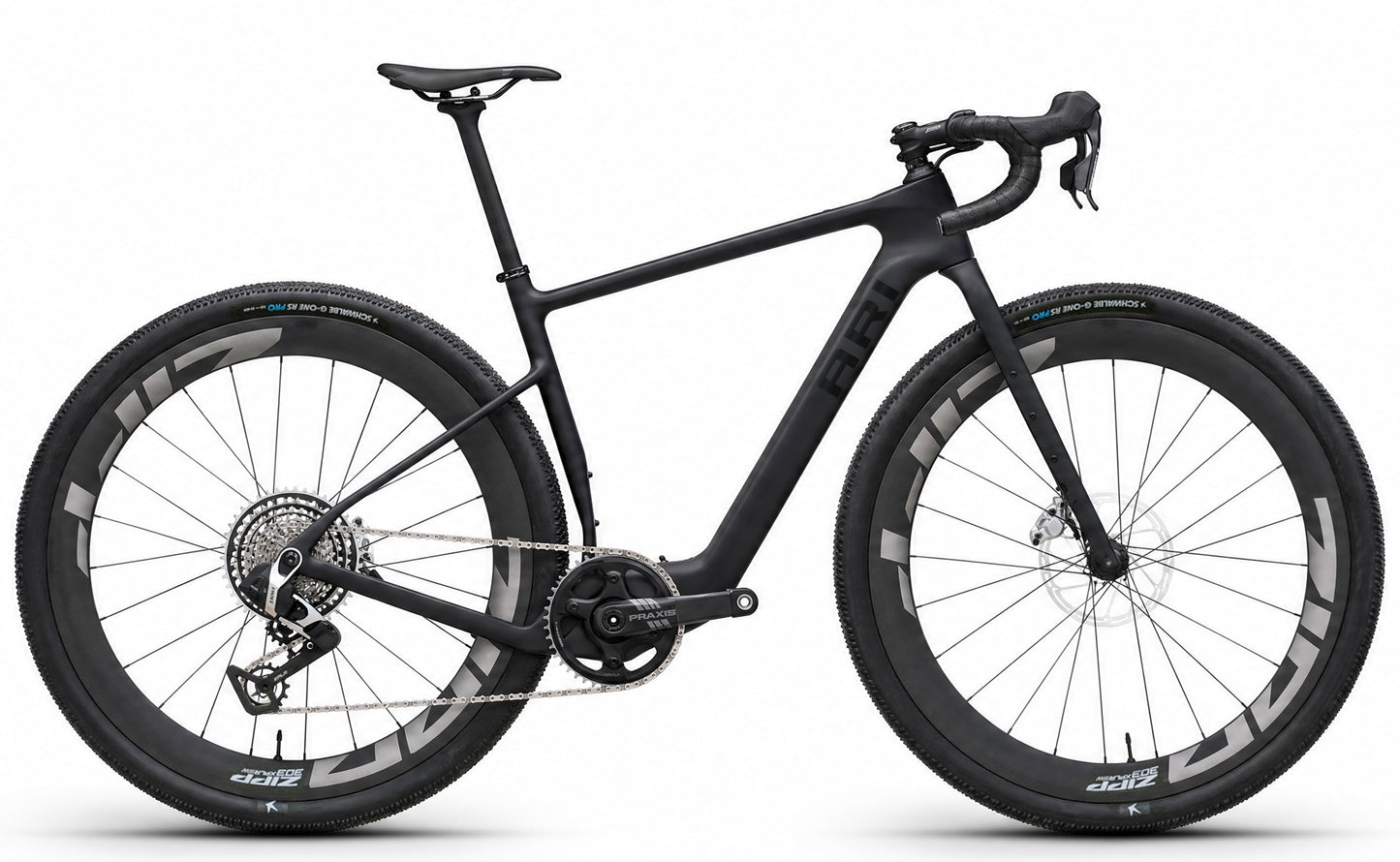

The All-New Ari E-Gravel: Award-Winning DNA, Electrified.

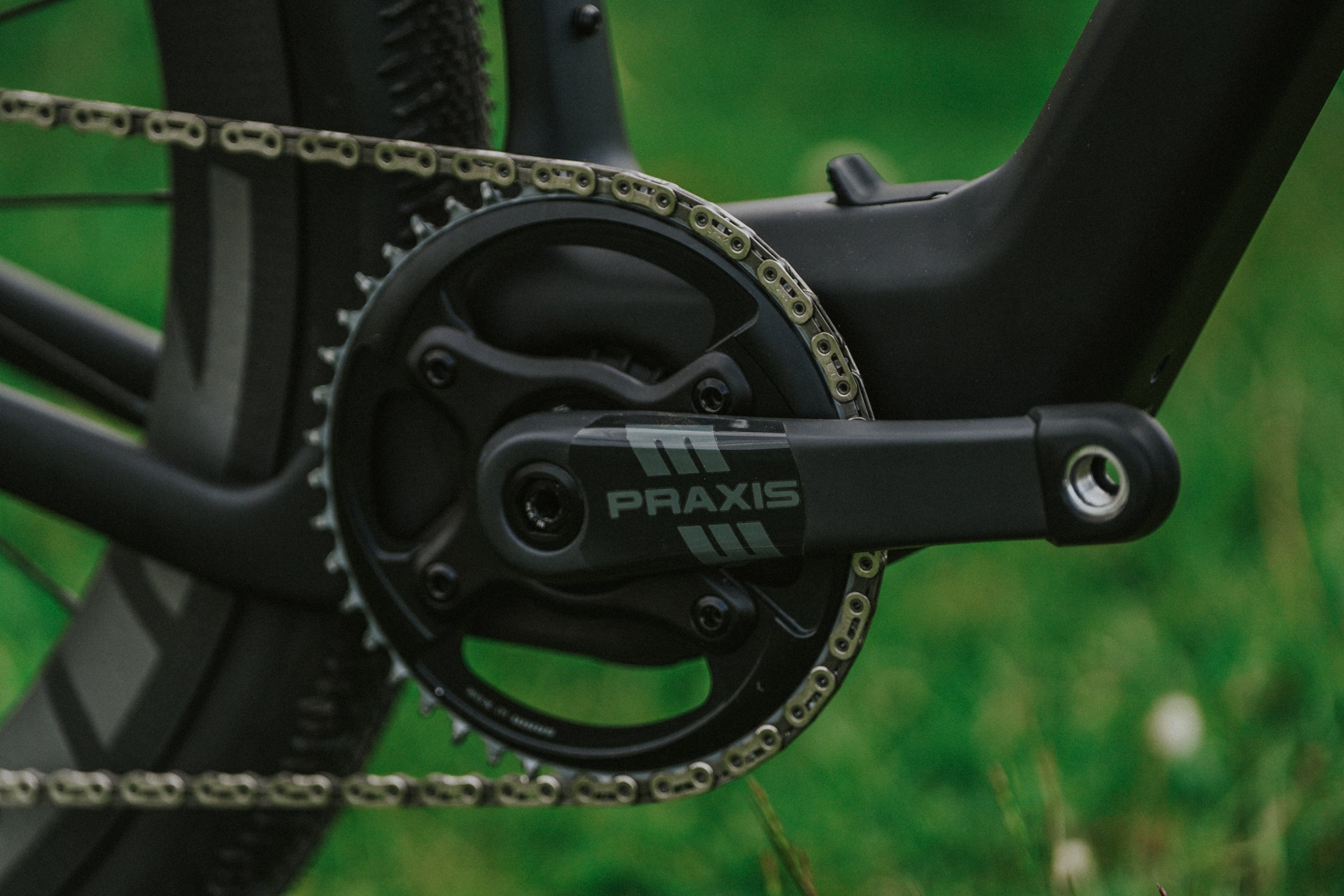

Built on the legendary geometry of the Shafer—winner of five "Bike of the Year" awards—the Ari E-Gravel brings elite performance to the electric era. We’ve kept everything you love about the original and added the seamless power of the TQ HPR-60 SL mid-drive motor.

Why you’ll love it:

Seamless Power: The TQ motor delivers a ride so smooth and quiet, you’ll forget it’s electric until you’re gliding up the steepest climbs.

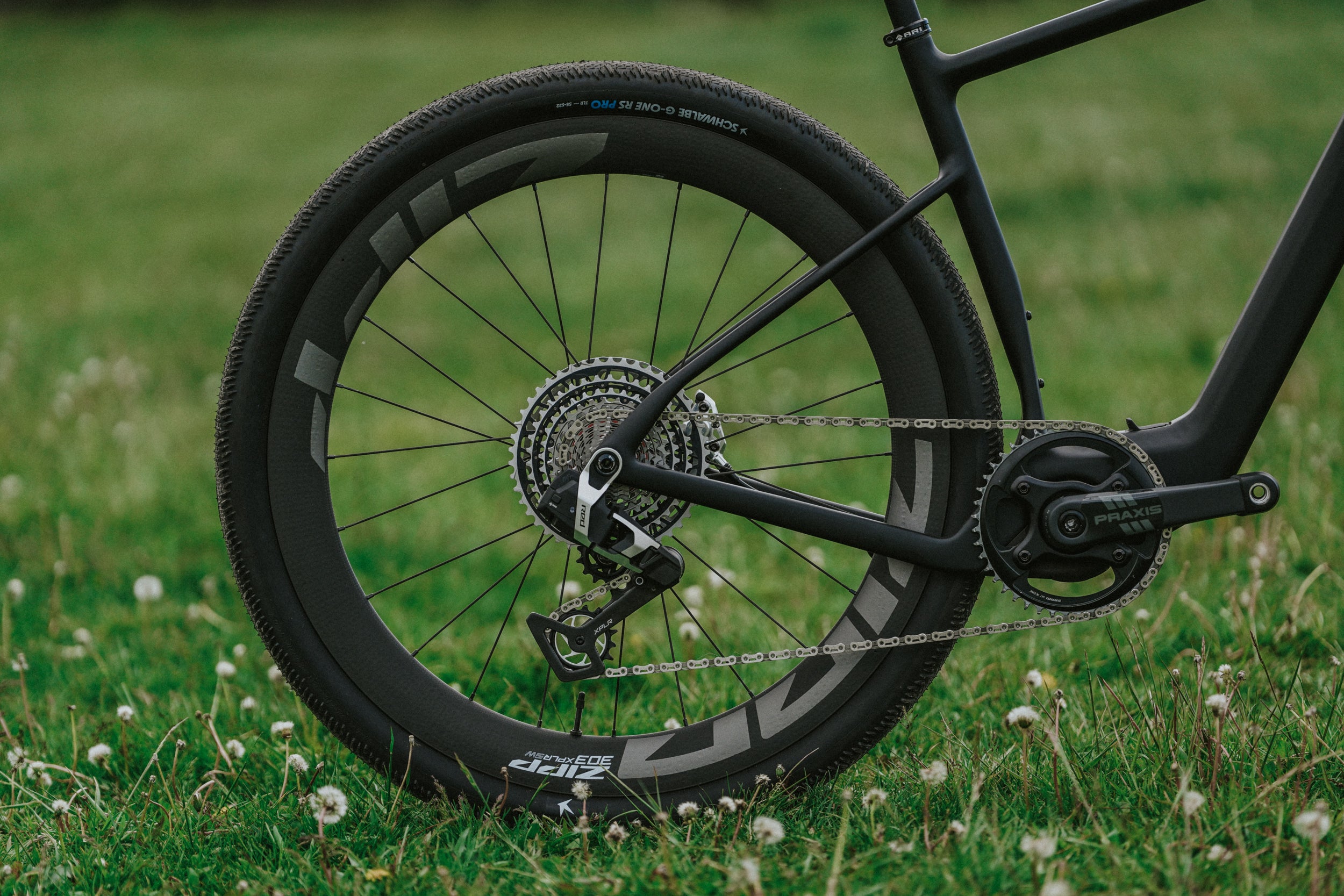

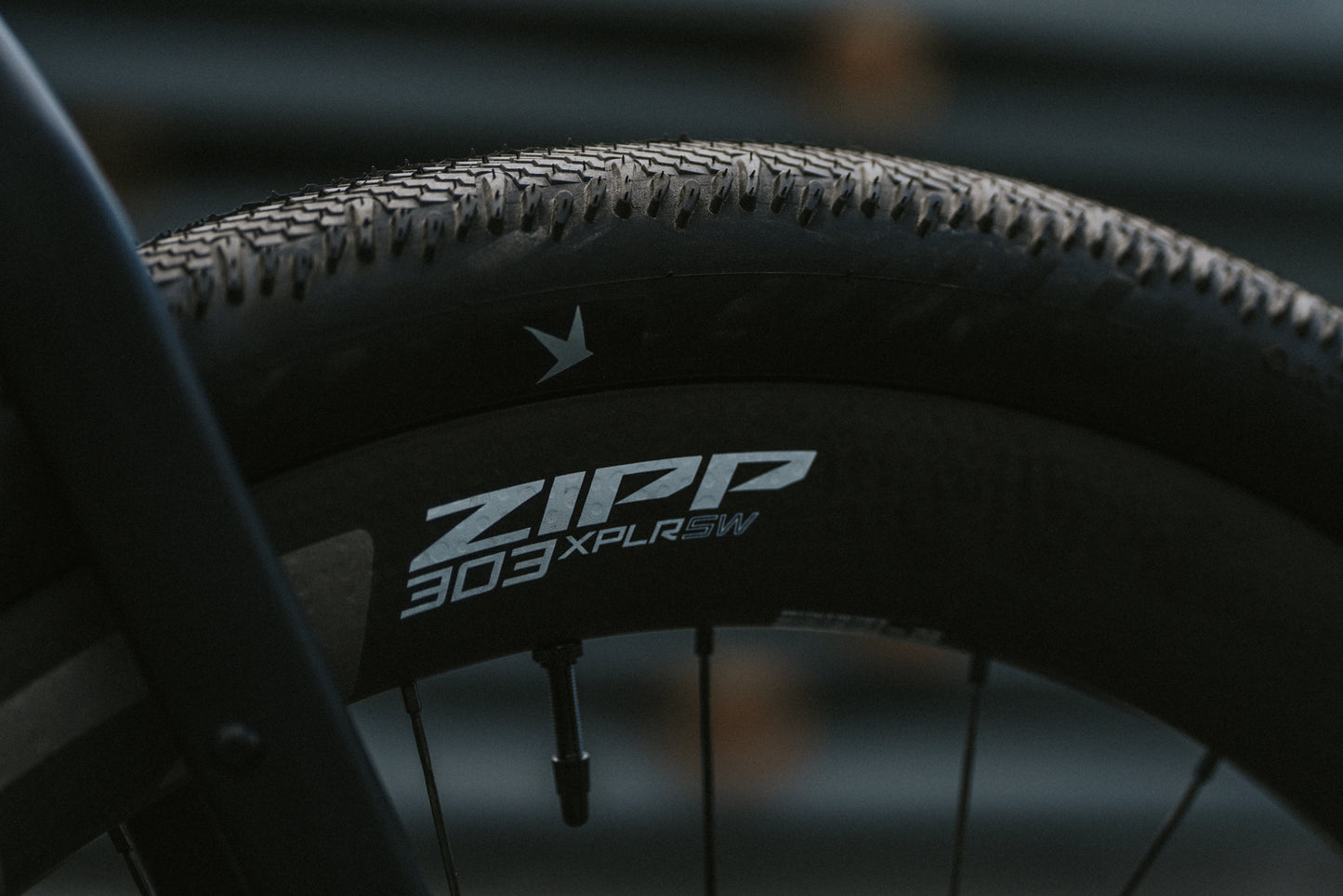

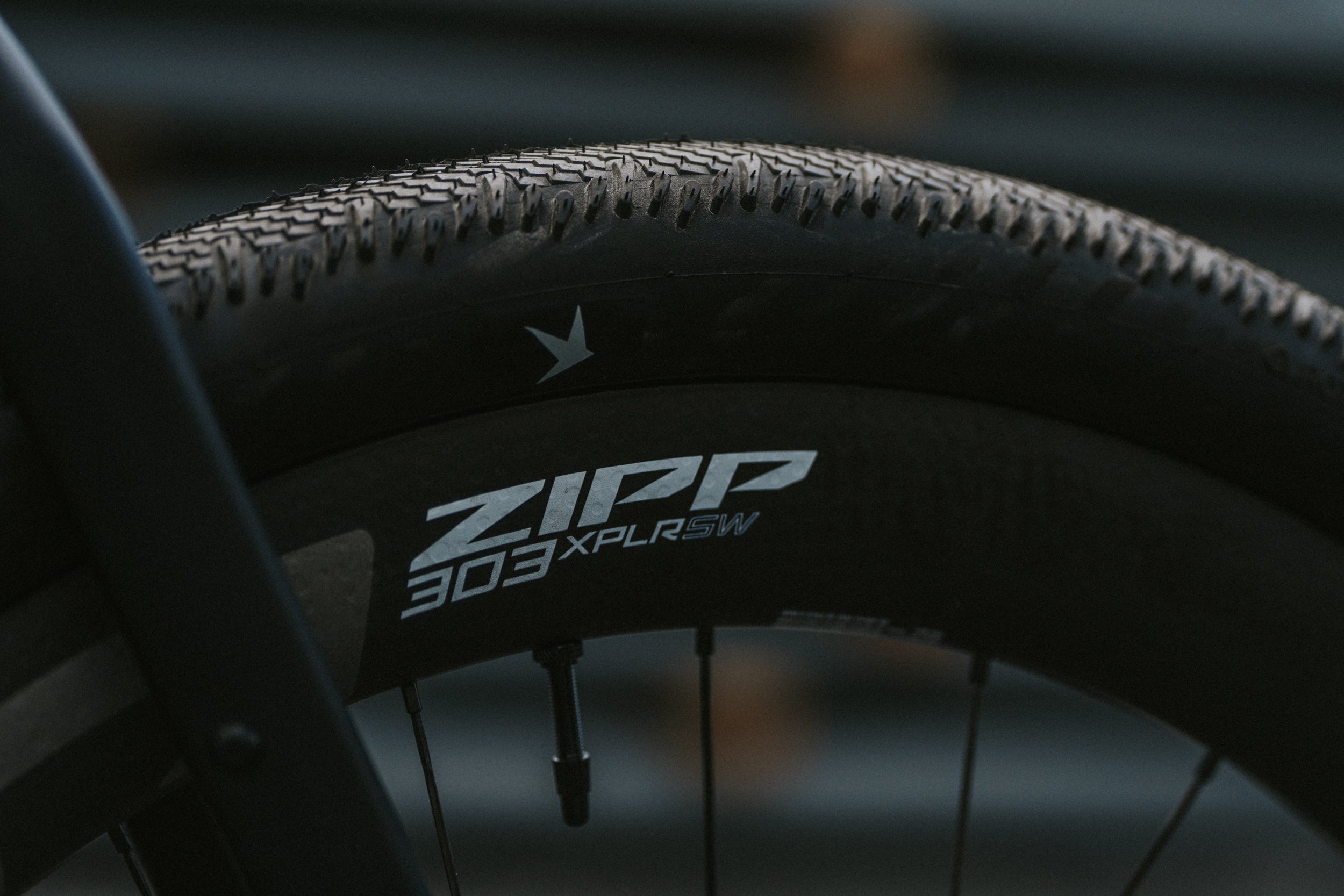

Unmatched Versatility: Features massive 60mm tire clearance and a suspension-compatible fork for when the gravel gets rowdy.
Go Further: The internal 360Wh battery (with optional range extender) ensures you can stay out longer and explore roads you never thought possible.

Pre-order now and be first to know when it drops and additional details.

Estimated Pricing:
Sport - $4899Comp - $5499Elite - $5999Pro - $6799Team - $10499*Pricing are targets and subject to change.
