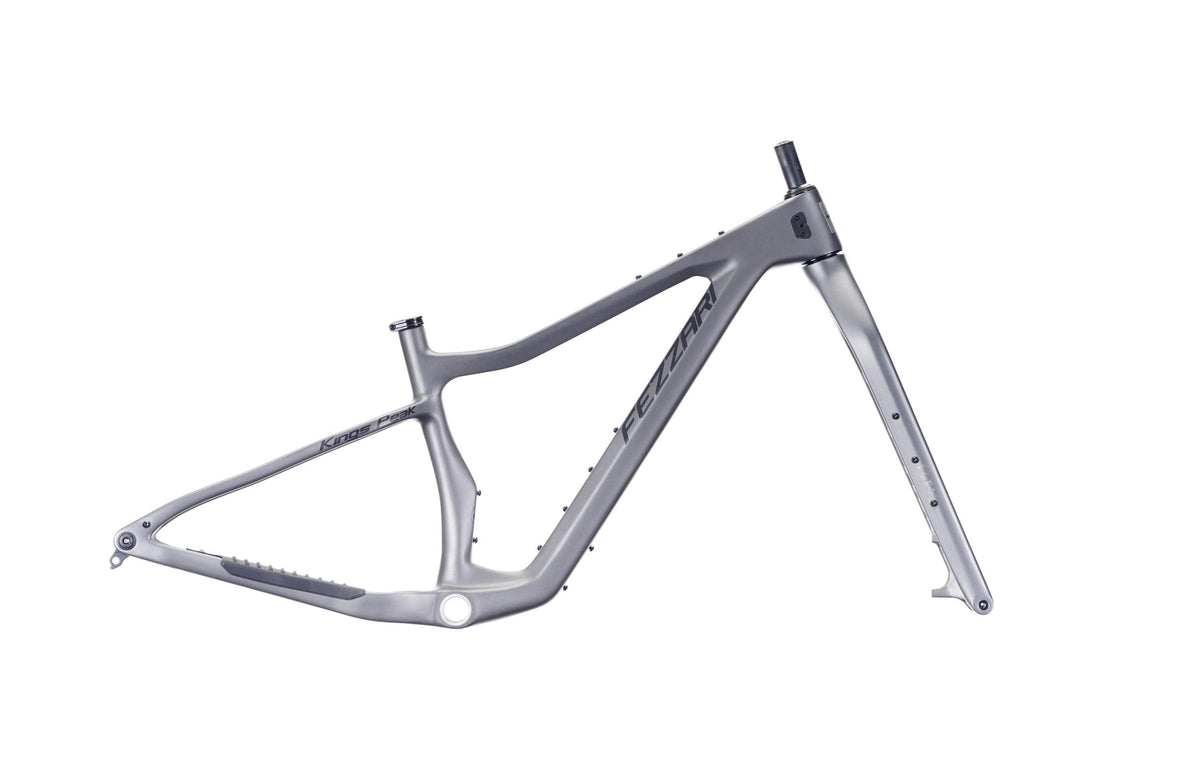

Ari Kings Peak Frameset - (1198)
Fezzari Kings Peak frameset with precut fork steerer tubes. These frames were once complete bikes that had parts removed for various projects. This is the same frame we currently use on our Ari King Peak, just branded with the Fezzari name.
Frames may show minor signs of being built up, disassembled, and stored. See photos for examples cosmetic blemishes found during inspection of these frames.
Size small frames will have steerer tube length of 164mm +-1mm long. This is long enough to fit 15-25mm worth of headset spacers, depending on the stem stack height you install.
Designed to work with 27.5 and 26 wheels. Max tire size 27.5x4.5 or 26x5.0.
Warranty: Includes Ari’s Lifetime Frame Warranty for the original owner (covers frame defects in materials and craftsmanship).
Lead Time: Ships within 3-5 days or ready for local pickup today.
Limited supplies available. All outlet sales are final (no returns or exchanges).
Build specs
- Frame Fezzari Racing Design Fat King Carbon V3, full carbon construction, 197x12mm rear axle, 100mm english thread BB, tapered headtube, internal cable routing, UDH, 31.6 seatpost size, max frame rotor size 160mm
- Fork Fezzari Racing Design Kings Peak Carbon V3, tapered, 150x15mm thru axle
- Extras FSA Headset, Compression Plug, Front and Rear axles, Seatpost clamp
Kings Peak
Adventure's best friend. Conquer any terrain with the Kings Peak's 27.5 x 4.5 tire clearance. The larger wheels and tires provide a stable and capable ride, allowing you to roll smoothly over loose and soft terrain and have maximum grip on rough and rocky trails.
Geometry
mm unless noted · your size highlighted
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Top Tube | 590 mm | 614 mm | 637 mm | 660 mm |
| Seat Tube | 400 mm | 440 mm | 460 mm | 480 mm |
| Chainstay | 450 mm | 450 mm | 450 mm | 450 mm |
| Head Angle | 67° | 67° | 67° | 67° |
| Seat Angle (Effective) | 75° | 75° | 75° | 75° |
| Head Tube | 90 mm | 100 mm | 120 mm | 130 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheelbase | 1156.9 mm | 1184.1 mm | 1208.3 mm | 1232.6 mm |
| Fork Offset | 51 mm | 51 mm | 51 mm | 51 mm |
| Fork Axle to Crown | 511 mm | 511 mm | 511 mm | 511 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Standover Height | 700 mm | 750 mm | 770 mm | 780 mm |
| Stack | 598 mm | 615 mm | 625 mm | 635 mm |
| Reach | 430 mm | 450 mm | 470 mm | 490 mm |
