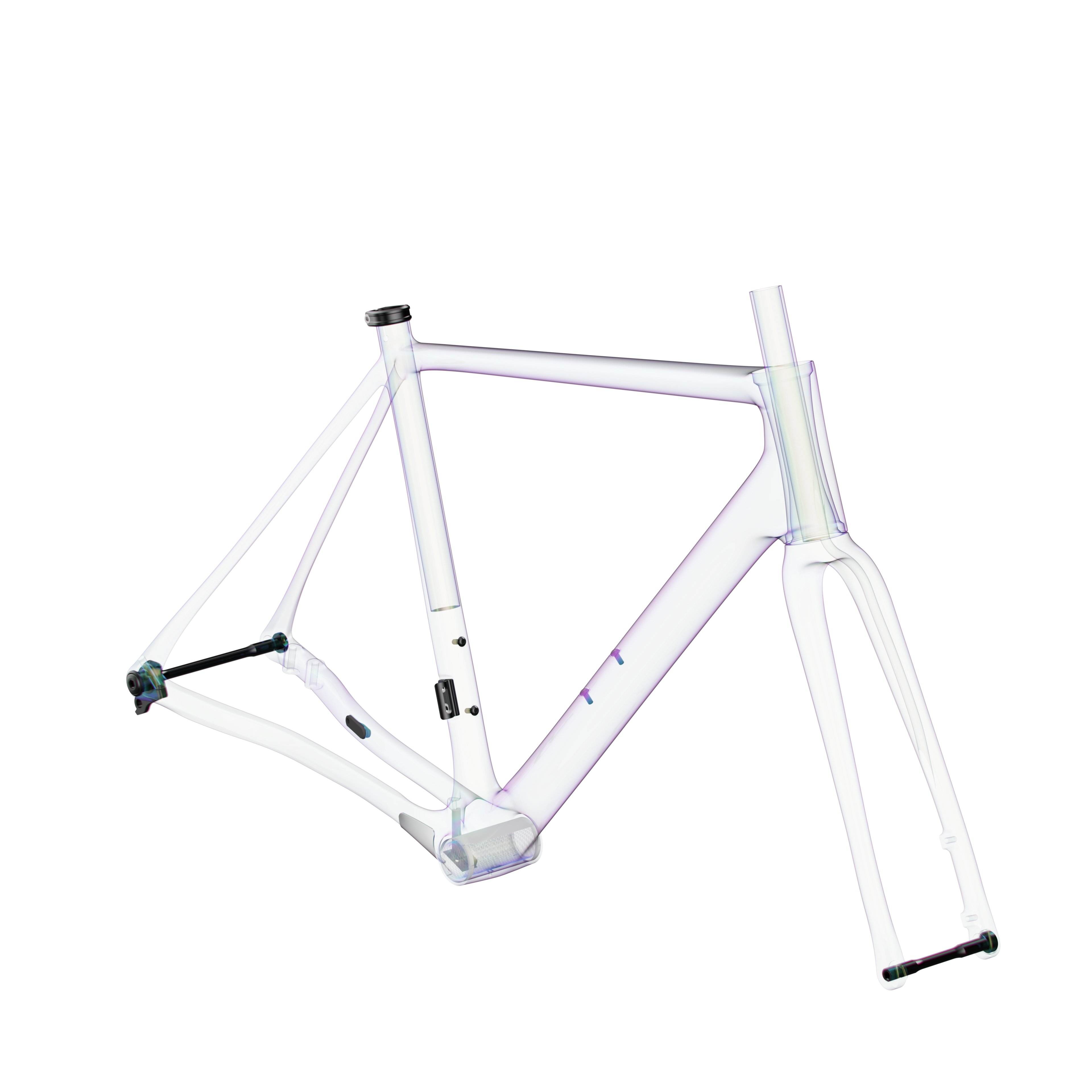

Lighter than your water bottle.
< 700g
UltraLight Carbon Frame
Weighing from sub 700g, each gram is meticulously accounted for to ensure exceptional strength-to-weight ratio for effortless climbs and nimble handling. Expect PRs.
Not all roads are great, but your experience will be.
35mm Tire Clearance
Ample tire clearance allows for versatile riding options. From buttery roads to rough tarmac and even some unpaved routes, Suncrest is at home on the roads no matter where they go.
No Manufacturing Gimmicks Here.
Using industry standard parts on axles, seat clamps, seat posts, and headsets keeps servicing your Suncrest simple and quick. Even with these easy to source parts we were able to achieve a frame weight that’s sub 700g.
The road biker’s road bike.
Everything you'd want in a road bike, and then some.
I want fast and comfortable. Is that possible?
Yes and Yes. The Suncrest offers a fit for maximum aerodynamics and power transfer, catering to riders who prioritize performance and efficiency, while still being comfortable and a joy to ride each and every time you go out.
The superbike that can be ridden every day.
Deliberate carbon layup, tuning, and frame construction reduce road chatter and provide a smooth and responsive ride experience, reducing rider fatigue on long rides and enhancing overall comfort.
Jack-of-all Trades, Master of Fun.
Back to Basics. Suncrest is made to deliver an exceptional ride experience. It adapts to various riding styles and preferences, appealing to both weight-conscious racers and cycling enthusiasts seeking new challenges on the road.
Save your time and energy for the ride.
Easy to service. Opting for a BSA threaded bottom bracket ensures reliability and ease of maintenance without adding unnecessary weight or hassle.
Go ahead, take it for a spin.
Sleek and Clean
Suncrest in a nutshell.

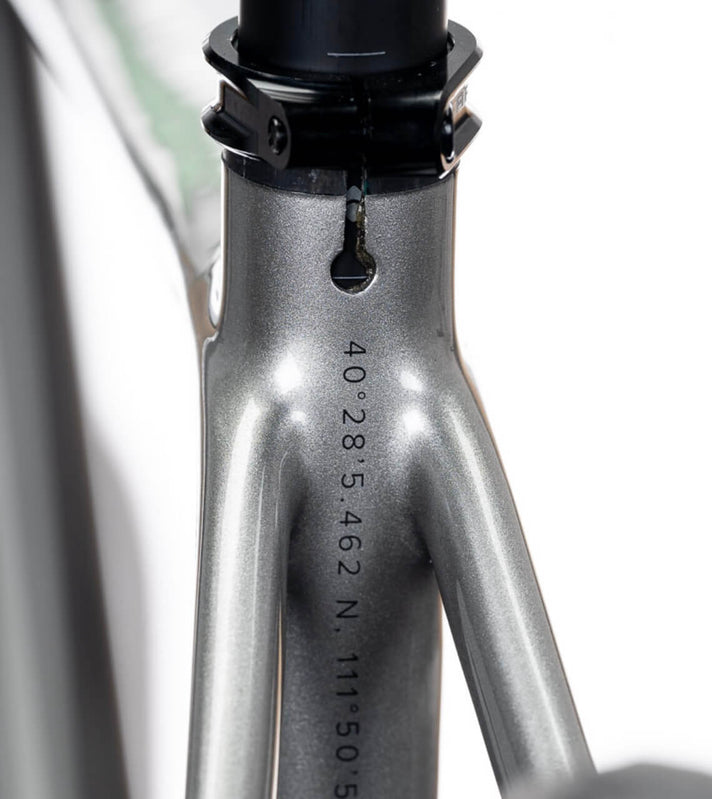

40°28’5.462 N, 111°50’5.309 W
Suncrest features a performance-fit geometry and ride tuning for optimal power transfer and precise control, while still being comfortable for your multi-hour joy rides. With its frame weight <700g, generous 35mm tire clearance, and compatibility with your favorite components, the Suncrest offers versatility without compromising on performance.
Save up to 40% Buying Direct
Bigger savings and perfect fit.
Get your bike direct from the manufacturer, custom fit, tuned and ready to ride.
Lifetime Warranty
A warranty that lasts a lifetime.
We tested Suncrest 120% above industry standards. Ride with the peace of mind knowing that this bike performs at an elite level, always. Your bike comes backed with a Lifetime Warranty. Ride it on your own roads for 30 days, and if it’s not the best bike you’ve ridden, you can return it.
Geometry
Wheel Size
Units
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Top Tube | 513 | 526 | 547 | 566 | 586 |
| Seat Tube | 422 | 464 | 500 | 525 | 550 |
| Chainstay | 410 | 410 | 410 | 410 | 410 |
| Head Angle | 71.2° | 71.5° | 72° | 72° | 71.5° |
| Seat Angle | 74.2° | 74° | 74° | 73.5° | 73° |
| Head Tube | 104 | 126 | 150 | 171 | 192 |
| Bottom Bracket Height | 267 | 269 | 269 | 269 | 271 |
| Bottom Bracket Drop | 74 | 72 | 72 | 72 | 70 |
| Wheelbase | 973 | 985 | 998 | 1013 | 1023 |
| Fork Offset | 48 | 48 | 48 | 48 | 48 |
| Standover height | 698 | 733 | 763 | 785 | 808 |
| Stack | 510 | 530 | 555 | 575 | 595 |
| Reach | 371 | 374 | 387 | 395 | 404 |
| Fork Length | 373 | 373 | 373 | 373 | 373 |
| Trail | 65 | 63 | 60 | 60 | 57 |
What’s my frame size?
Your height will determine a general recommended frame size. Occasionally, based on other body measurements, you may feel more comfortable on a different size. We recommend completing the 23-Point Custom Setup when completing your order.
Recommend a frame size for meBuild Specs
Each Ari bike is built with the best components in a given category so you get the most bang for the buck. Each model has different build specs to choose from—usually ranging in good, better, best order.
Comparison TableBuild Level
Specifications
| Suncrest Comp | Suncrest Elite | Suncrest Pro | Suncrest Team SRAM | Suncrest Frameset SL |
|---|---|---|---|---|
|
price $3,499 $3,699 |
price $4,499 $4,799 |
price $5,499 $5,699 |
price $8,099 $8,399 |
price $2,599 $2,799 |
|
frame Ari Suncrest SL Frameset - CleanCast™ Carbon, Road-disc tuned, 12x142 rear thru axle. BSA Threaded Bottom Bracket. Max tire clearance 35c |
frame Ari Suncrest SL Frameset - CleanCast™ Carbon, Road-disc tuned, 12x142 rear thru axle. BSA Threaded Bottom Bracket. Max tire clearance 35c |
frame Ari Suncrest SL Frameset - CleanCast™ Carbon, Road-disc tuned, 12x142 rear thru axle. BSA Threaded Bottom Bracket. Max tire clearance 35c |
frame Ari Suncrest SL Frameset - CleanCast™ Carbon, Road-disc tuned, 12x142 rear thru axle. BSA Threaded Bottom Bracket. Max tire clearance 35c |
frame Ari Suncrest SL Frameset - CleanCast™ Carbon, Road-disc tuned, 12x142 rear thru axle. BSA Threaded Bottom Bracket. Max tire clearance 35c. |
|
fork Ari Suncrest SL Climbing - CleanCast™ Carbon, 12x100 Thru Axle, Internal Brake Routing |
fork Ari Suncrest SL Climbing - CleanCast™ Carbon, 12x100 Thru Axle, Internal Brake Routing |
fork Ari Suncrest SL Climbing - CleanCast™ Carbon, 12x100 Thru Axle, Internal Brake Routing |
fork Ari Suncrest SL Climbing - CleanCast™ Carbon, 12x100 Thru Axle, Internal Brake Routing |
fork Ari Suncrest SL Climbing - CleanCast™ Carbon, 12x100 Thru Axle, Internal Brake Routing |
|
rear shock N/A |
rear shock N/A |
rear shock N/A |
rear shock N/A |
rear shock N/A |
|
drivetrain Shimano 105 R7100, 2x12 |
drivetrain Sram Rival eTap AXS, 2x12, with Power Meter |
drivetrain SRAM Force eTap AXS, 2x12 with Power Meter |
drivetrain SRAM Red AXS, 2x12 with Power Meter |
drivetrain N/A |
|
wheels DT Swiss E 1800, carbon wheel upgrade available at checkout |
wheels DT Swiss E 1800, carbon wheel upgrade available at checkout |
wheels DT Swiss ER 1600, carbon wheel upgrade available at checkout |
wheels Zipp 303s Carbon, (Zipp Firecrest or NSW Available at checkout) |
wheels N/A |
|
brakes Shimano 105 Hydraulic Road Disc, Rotors: 160mm/160mm |
brakes SRAM Rival Hydraulic Road Disc, Centerline Rotors: 160mm/160mm |
brakes SRAM Force AXS, 12-Speed Hydraulic Road Disc, Centerline Rotors: 160mm/160mm |
brakes SRAM Red AXS HRD Hydraulic Disc Rotors: SRAM Paceline X 160/160mm |
brakes N/A |
|
sizes XS,S,M,L,XL |
sizes XS,S,M,L,XL |
sizes XS,S,M,L,XL |
sizes XS,S,M,L,XL |
sizes XS,S,M,L,XL |
|
headset FSA SRS 1.5/1.5 |
headset FSA SRS 1.5/1.5 |
headset FSA ACR NS 1.5/1.5 |
headset FSA ACR NS 1.5/1.5 |
headset FSA SMR NS 1.5/1.5 |
|
shifters Shimano 105, 2x12 |
shifters Sram Rival AXS, 2x12 |
shifters SRAM Force AXS, 2x12 |
shifters SRAM Red AXS, 2x12 |
shifters N/A |
|
front derailleur Shimano 105 |
front derailleur SRAM Rival AXS |
front derailleur SRAM Force AXS |
front derailleur SRAM Red AXS |
front derailleur N/A |
|
rear derailleur Shimano 105 12-Speed |
rear derailleur SRAM Rival AXS, 2x12 |
rear derailleur SRAM Force AXS, 12-Speed |
rear derailleur SRAM Red AXS, 12-Speed |
rear derailleur N/A |
|
cassette Shimano 105, 11/36T, 12-Speed |
cassette SRAM XG-1250, 10-36T, 12-Speed |
cassette SRAM Force XG-1270, 10-36T, 12-Speed |
cassette SRAM RED XG-1290, 10-33T, 12-Speed |
cassette N/A |
|
crank Shimano 105 |
crank SRAM Rival AXS Left Arm Power Meter, DUB |
crank SRAM Force AXS Carbon Power Meter, DUB |
crank SRAM Red AXS Carbon Power Meter, DUB |
crank N/A |
|
chainrings Shimano 50/34T |
chainrings SRAM Rival 46/33T |
chainrings SRAM Force 48/35 |
chainrings SRAM RED 48/35T |
chainrings N/A |
|
bottom bracket Shimano SM-BBR60 BSA |
bottom bracket SRAM DUB BSA |
bottom bracket SRAM DUB BSA |
bottom bracket SRAM DUB BSA |
bottom bracket N/A |
|
chain Shimano 105, 12-Speed |
chain SRAM Rival, 12-Speed |
chain SRAM Force, 12-Speed |
chain SRAM RED, 12-Speed |
chain N/A |
|
handlebars Ari Road Alloy Compact. 31.8 diameter, 70mm reach, 125mm drop, 12-degree flare |
handlebars Ari Road Alloy Compact. 31.8 diameter, 70mm reach, 125mm drop, 12-degree flare |
handlebars Zipp SL 80 Race Carbon |
handlebars Zipp SL 80 Race Carbon |
handlebars N/A |
|
stem Ari 3D forged 31.8mm alloy, 7 degree, 4-bolt bar clamp (customized sizing through Ari Custom Setup) |
stem Ari 3D forged 31.8mm alloy, 7 degree, 4-bolt bar clamp (customized sizing through Ari Custom Setup) |
stem Zipp Service Course (customized sizing through Ari Custom Setup) |
stem Zipp Service Course SL (customized sizing through Ari Custom Setup) |
stem N/A |
|
tape/grips Ari Cork |
tape/grips Ari Cork |
tape/grips Ari Cork |
tape/grips Lizard Skins DSP 2.5 |
tape/grips N/A |
|
saddle Selle Italia X3 Boost |
saddle Selle Italia X3 Boost |
saddle Ergon SR10 Sport |
saddle Ergon SR Pro Titanium |
saddle N/A |
|
seatpost Ari Carbon Dual Bolt, 27.2 |
seatpost Ari Carbon Dual Bolt, 27.2 |
seatpost Ari Carbon Dual Bolt, 27.2 |
seatpost FSA K-Force Light, Carbon 27.2mm diameter dual bolt |
seatpost N/A |
|
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
|
rims DT Swiss E 1800, carbon wheel upgrade available at checkout |
rims DT Swiss E 1800, carbon wheel upgrade available at checkout |
rims DT Swiss ER 1600, carbon wheel upgrade available at checkout |
rims Zipp 303s Carbon, Zipp Firecrest and NSW available at checkout |
rims N/A |
|
hubs DT Swiss 370 Ratchet LN 18, 142x12/100x12 |
hubs DT Swiss 370 Ratchet LN 18, 142x12/100x12 |
hubs DT Swiss 350 Ratchet LN 18, 142x12/100x12 |
hubs Zipp 176D, 76D, 142x12/100x12 |
hubs N/A |
|
spokes DT aero comp® wide straightpull, DT new aero® straightpull |
spokes DT aero comp® wide straightp, DT new aero® straightpull |
spokes DT aero comp® wide straightp, DT new aero® straightpull |
spokes Sapim CX-Spirit |
spokes N/A |
|
tires Continental Grand Prix 500S 30c Tubeless Ready |
tires Continental Grand Prix 500S 30c Tubeless Ready |
tires Continental Grand Prix 500S 30c Tubeless Ready |
tires Continental Grand Prix 500S 30c Tubeless Ready |
tires N/A |
|
tubes 700x30 Presta Valve (Tubeless setup available at Checkout) |
tubes 700x30 Presta Valve (Tubeless setup available at Checkout) |
tubes 700x30 Presta Valve (Tubeless setup available at Checkout) |
tubes 700x30 Presta Valve (Tubeless setup available at Checkout) |
tubes N/A |
Specifications
build
Comp
price
$3,499
$3,699
frame
Ari Suncrest SL Frameset - CleanCast™ Carbon, Road-disc tuned, 12x142 rear thru axle. BSA Threaded Bottom Bracket. Max tire clearance 35c
fork
Ari Suncrest SL Climbing - CleanCast™ Carbon, 12x100 Thru Axle, Internal Brake Routing
rear shock
N/A
drivetrain
Shimano 105 R7100, 2x12
wheels
DT Swiss E 1800, carbon wheel upgrade available at checkout
brakes
Shimano 105 Hydraulic Road Disc, Rotors: 160mm/160mm
sizes
XS,S,M,L,XL
headset
FSA SRS 1.5/1.5
shifters
Shimano 105, 2x12
front derailleur
Shimano 105
rear derailleur
Shimano 105 12-Speed
cassette
Shimano 105, 11/36T, 12-Speed
crank
Shimano 105
chainrings
Shimano 50/34T
bottom bracket
Shimano SM-BBR60 BSA
chain
Shimano 105, 12-Speed
handlebars
Ari Road Alloy Compact. 31.8 diameter, 70mm reach, 125mm drop, 12-degree flare
stem
Ari 3D forged 31.8mm alloy, 7 degree, 4-bolt bar clamp (customized sizing through Ari Custom Setup)
tape/grips
Ari Cork
saddle
Selle Italia X3 Boost
seatpost
Ari Carbon Dual Bolt, 27.2
pedals
Available Separately
rims
DT Swiss E 1800, carbon wheel upgrade available at checkout
hubs
DT Swiss 370 Ratchet LN 18, 142x12/100x12
spokes
DT aero comp® wide straightpull, DT new aero® straightpull
tires
Continental Grand Prix 500S 30c Tubeless Ready
tubes
700x30 Presta Valve (Tubeless setup available at Checkout)
*Specs are subject to change. Any substitutions will be comparable or better.
Spec Comparison
Common Questions*
Do you offer financing?
Yes, at checkout there are several options available for financing.
Who is Suncrest for?
Suncrest is an ultra-light performance road bike designed for riders who love the climb and the pure joy of experiencing the ride.
How does Suncrest handle?
The Suncrest is light and lively, tuned for a supple and comfortable ride. Built for those who love the pure joy of road cycling.
What sizes is the Suncrest offered in?
5 sizes—XS, S, M, L, and XL. Our 23-Point Custom Setup uses your measurements to help determine your frame size and component setup to fit your Suncrest to you. Also, with geometry specific sizing, you can be assured that you will get the exact fit and intended performance on any size of Suncrest.
How many water bottles can it hold?
Two inside the front triangle on every size.
What type of derailleur hanger is used?
A custom Ari Road Derailleur Hanger (ARDH) is utilized on the frame. It is optimized for road rear derailleurs. A spare ARDH can be purchased from Ari. Alternatively, a SRAM Universal Derailleur Hanger (UDH) can be used with cassettes that have largest cogs of 28T or greater.
What is the bottom bracket?
English Threaded
What is the frame weight?
As light as 656 grams - small frame, raw carbon
What is the maximum tire clearance?
We gave Suncrest the ability to run up to 35mm tires to tune the ride to your style and terrain. It’s more than a light weight bike. Nothing can hold you back when you see a road that interests you, or see a shortcut (or longcut) you’ve never ridden before. Go boldly and bravely.
What drivetrains are compatible with the Suncrest?
Suncrest is compatible with both 1x and 2x drivetrains. All mechanical drivetrains are compatible. For electronic drivetrains, SRAM eTap and AXS drivetrains as well as Shimano Di2 drivetrains are compatible.
What are the headset dimensions?
The Standardized Headset Identification System (SHIS) is IS52 / 28.6 | IS52 / 40(45°). This is used with the 1.5”/1.5” headtube. We have chosen to use the FSA SRS headsets for simple, clean cable management. FSA ACR is also compatible if the matching stem is also used in conjunction with the custom Ari upper bearing cap.
What are the front and rear axle dimensions?
The front axle is M12x118mmxP1.5. Rear: M12x168mmxP1.0.
What about service?
You can work directly with us, one of our recommended shops, or work through your local shop.
What is the guarantee?
It comes with a 30 Day Love it or Return it Guarantee.
How will it arrive?
All Ari bikes go through our Custom Setup process, making sure the bike is fit and tuned specifically to you. They are test-ridden before delivery. If your bike is shipped to you, it’s still tuned and ready to ride and requires just a few minutes of assembly.
What is the warranty?
Each frame comes with a Lifetime Warranty. Ari branded frames come with a transferable warranty as well.
How does transferable warranty on Ari bikes work?
Ari branded frames come with a transferable frame warranty available to the second owner. The second owner can receive a one-year frame warranty from the date they purchase the bike from the original owner. Warranty only transfers once. All Ari bikes must have the transfer documented from the original owner to the new owner here in order to qualify for a transferable warranty.
What kind of bike is this?
The Suncrest is Ari’s lightweight carbon road bike. It uses a sub-700g frame and up to 35mm tire clearance for riders who want a fast everyday road bike that still handles rough tarmac. Complete bikes start at $2,599 for the Suncrest SL Comp build.
How does Suncrest compare to other Ari bikes?

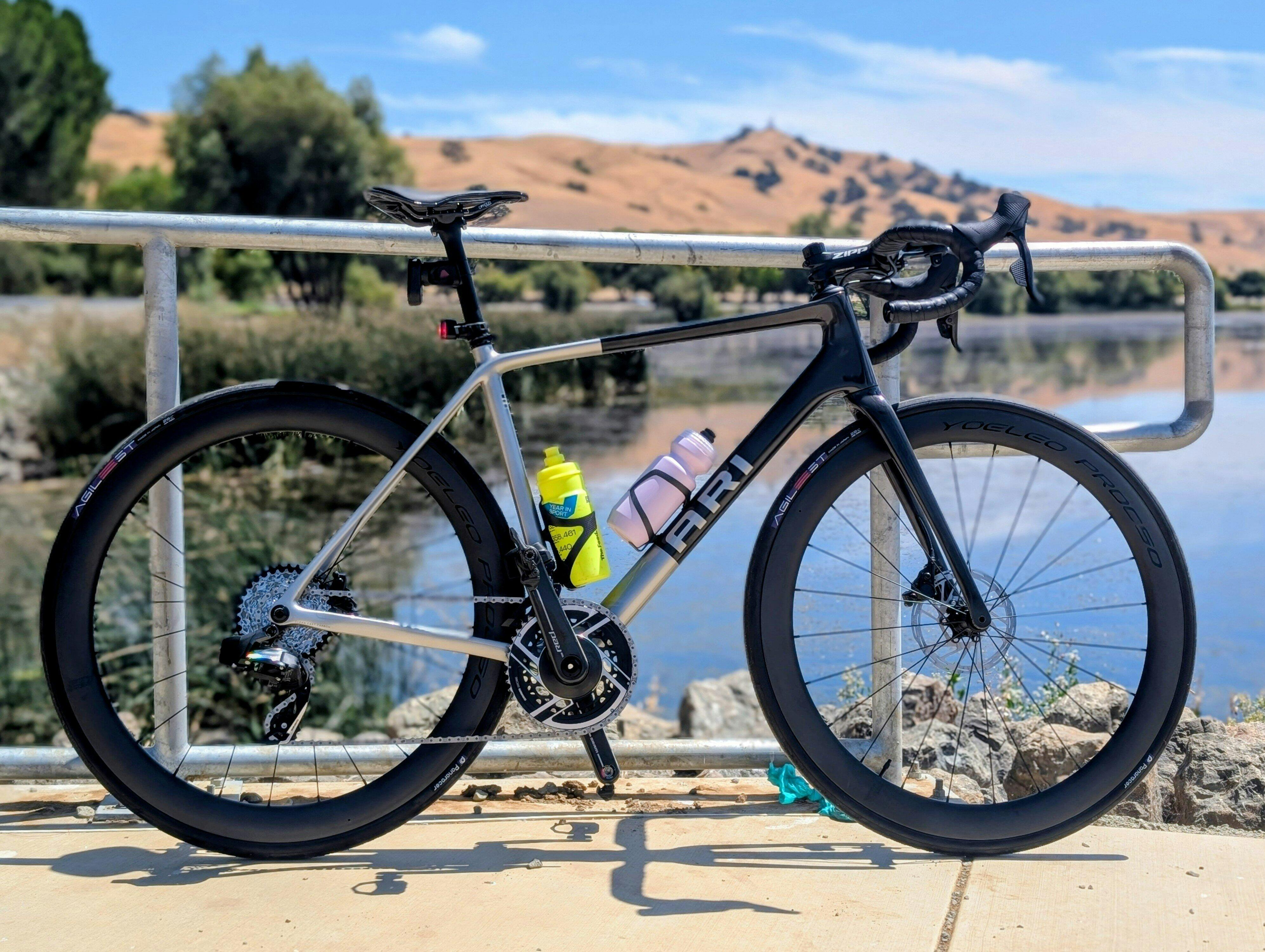

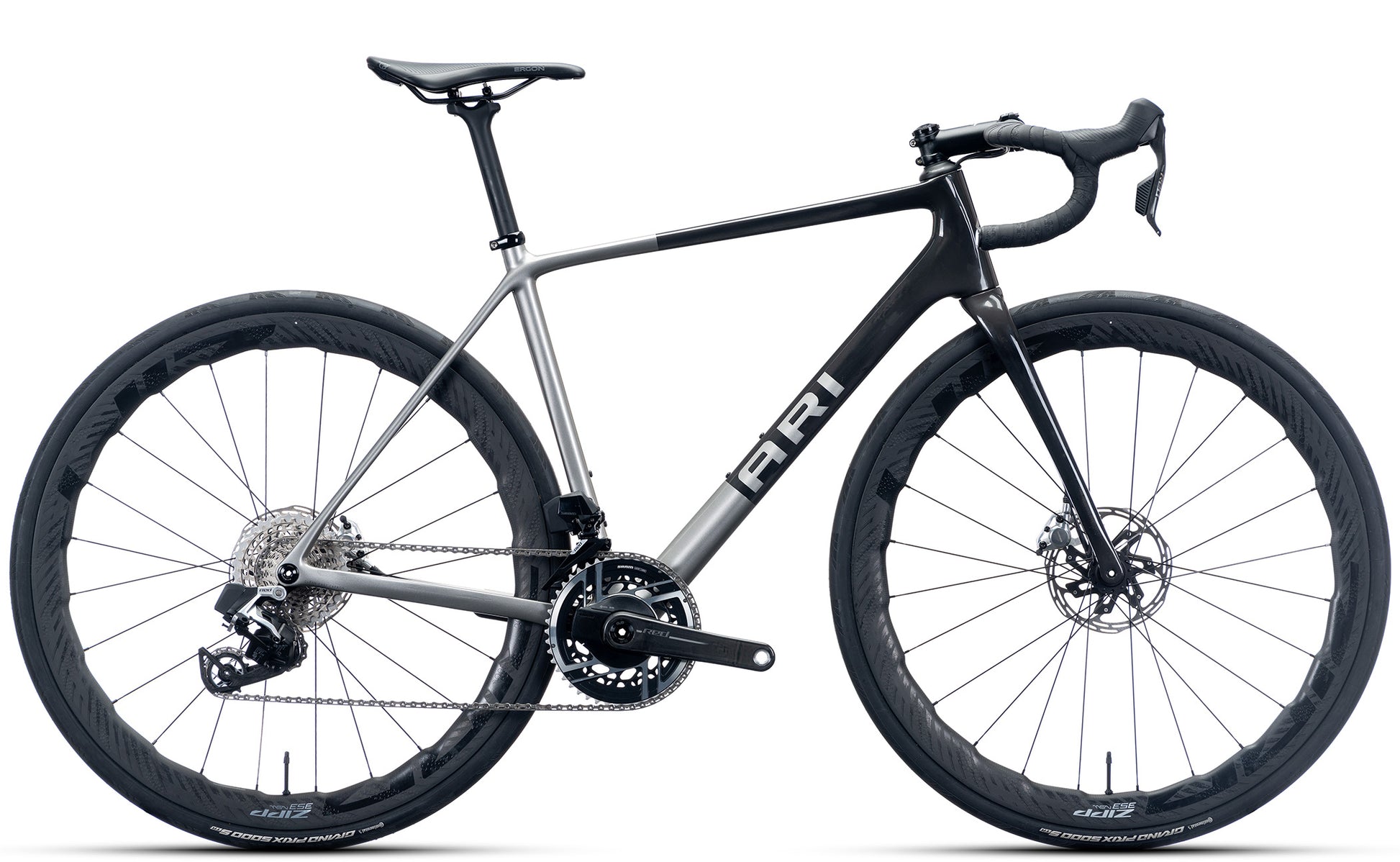

Suncrest is Ari’s lightweight carbon road bike (sub-700g frame, up to 35mm tires). Empire is the carbon endurance road bike with more comfort and up to 32c tires. Veyo is the UCI-certified performance road bike. See Empire.
How should I choose a size when buying online?
Use Ari Custom Setup and Ari will fit the bike from your body measurements. There is also a size guide in the bike builder, and the support team can help before you order. Details: Custom Fit.
What does the starting price include?
Complete bikes start at $2,599 for the Suncrest SL Comp build. The listed price is the complete bike at that build level; the bike builder shows the selected options, lead time, and any upgrades before checkout.
What assembly is required when the bike arrives?
Bikes ship pre-tuned, test-ridden, and about 95% assembled. Basic at-home assembly remains, and technicians are available for help. See Support.
What do shipping, warranty, and returns actually involve?
Current terms live on the policy pages, not in this summary. Read Shipping, Warranty, Love it or Return it, and Return Policy before you buy. Outlet bikes follow different return rules.
