NEBO
Electric, minus the bulk.
Light. Fast. Fully Capable.
Lightweight Power
With weights as low as 41 lbs, Nebo Peak gives powerful electric assist without the bulk.
Trail-Tuned
With 140mm/150mm of travel, Nebo Peak is built to climb and descend with confidence.
Everyday E‑MTB
From post-work loops to all-day adventures, Nebo Peak balances efficiency, agility, and enough boost to do it all.
Forget what you know about E-Bikes.
The Ari Nebo Peak delivers the agility and playfulness of a traditional trail bike while giving you the benefits of a powerful e‑MTB
A true game changer.
Nebo Peak changes the game. With lightweight ebikes there are typically compromises when it comes to power and capability. Nebo Peak is the outlier in it’s ability to preform above it’s competition. It’s fully integrated carbon frame is light, durable and aggressive.
Everyone has a plan until they get punched by a climb.
Nebo Peak packs a punch with the Fazua motor system – silent, efficient, and powerful. Its 480Wh battery, integrated battery-in-frame design, and USBC compatibility make it a lightweight that fights in the heavyweight class. Expect up to 40% more range than similar e-bikes.
Make every ride your best ride.
The Quiet Professional

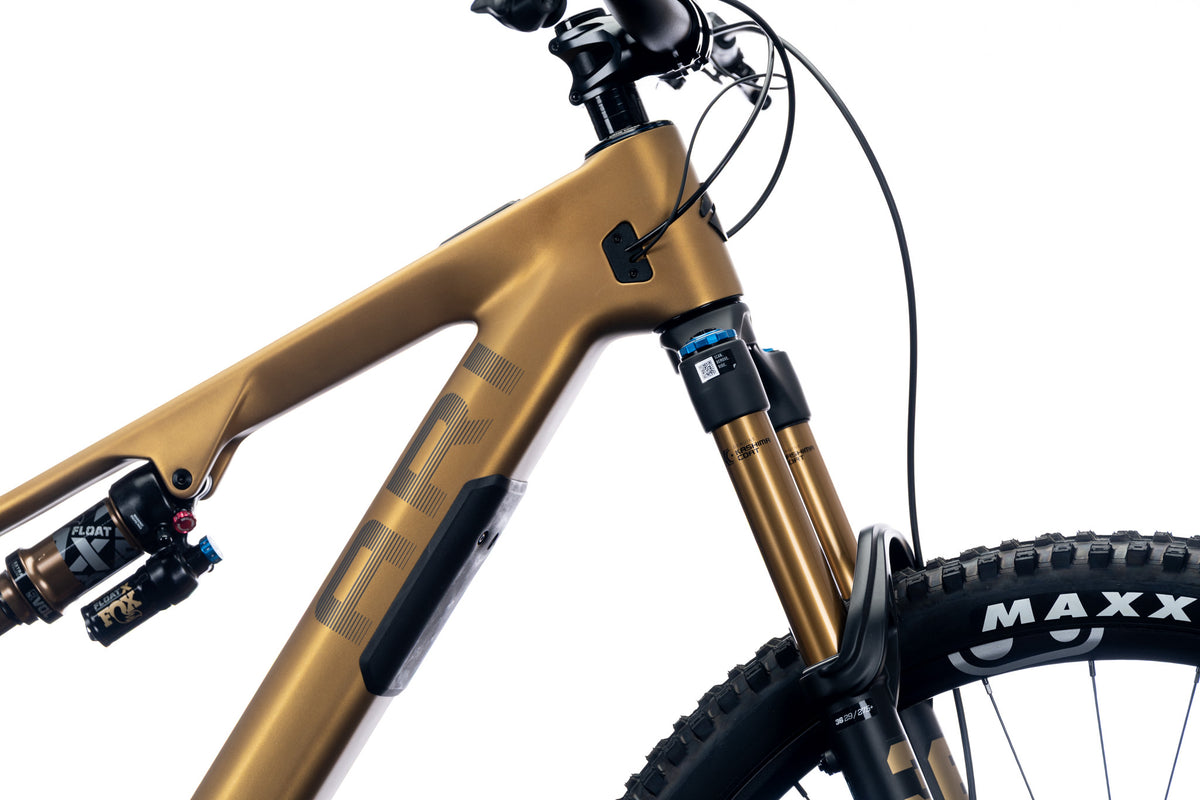

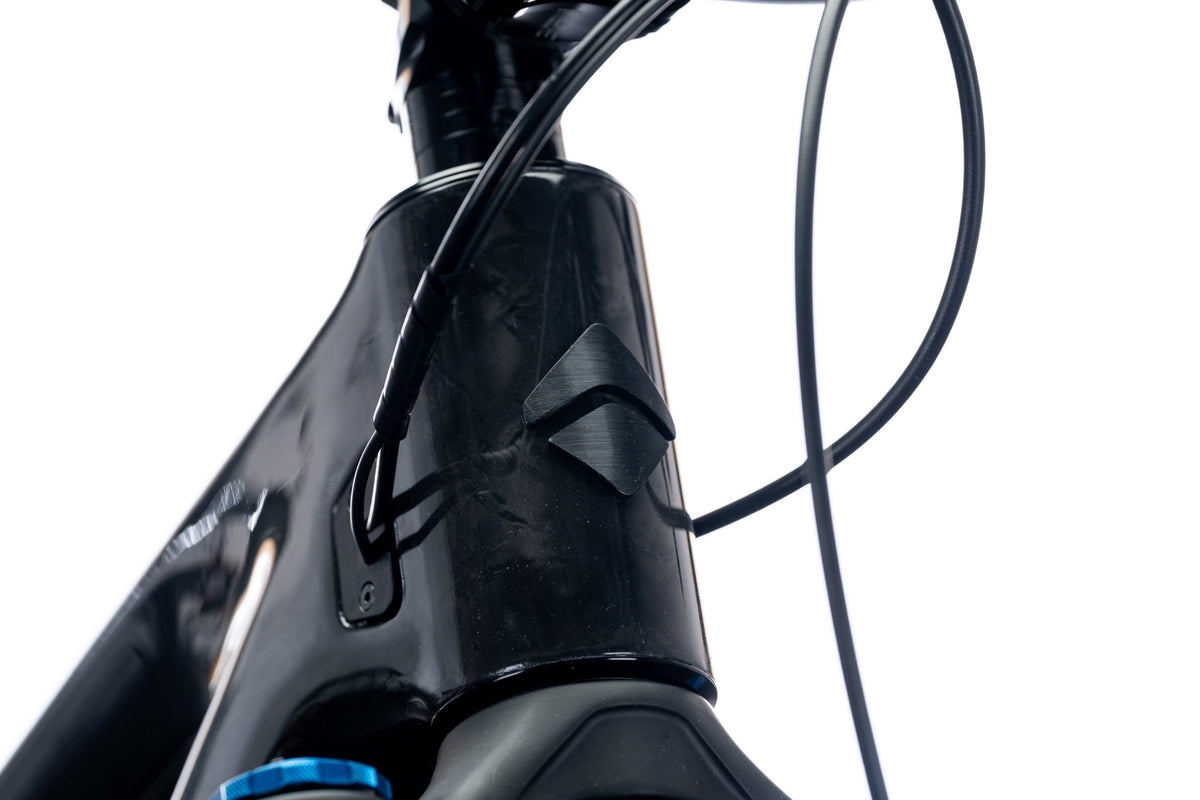

Nebo Peak moves silently with our frame wall tube-in-tube cable routing. Enhanced chainstay protection silences chain slap. Oh, and all your friends will be speechless as you rip past them.

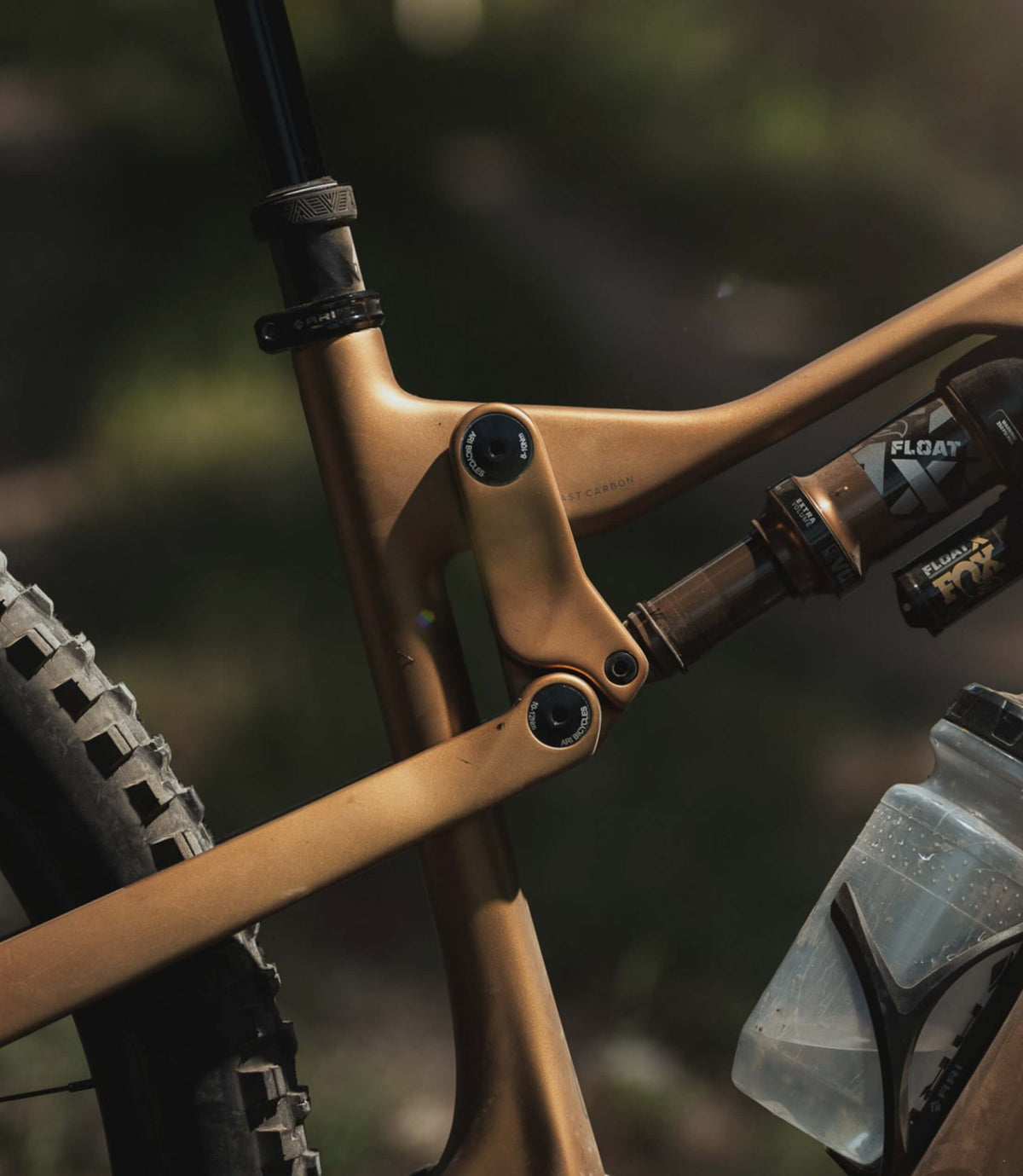

Unmatched Adjustability

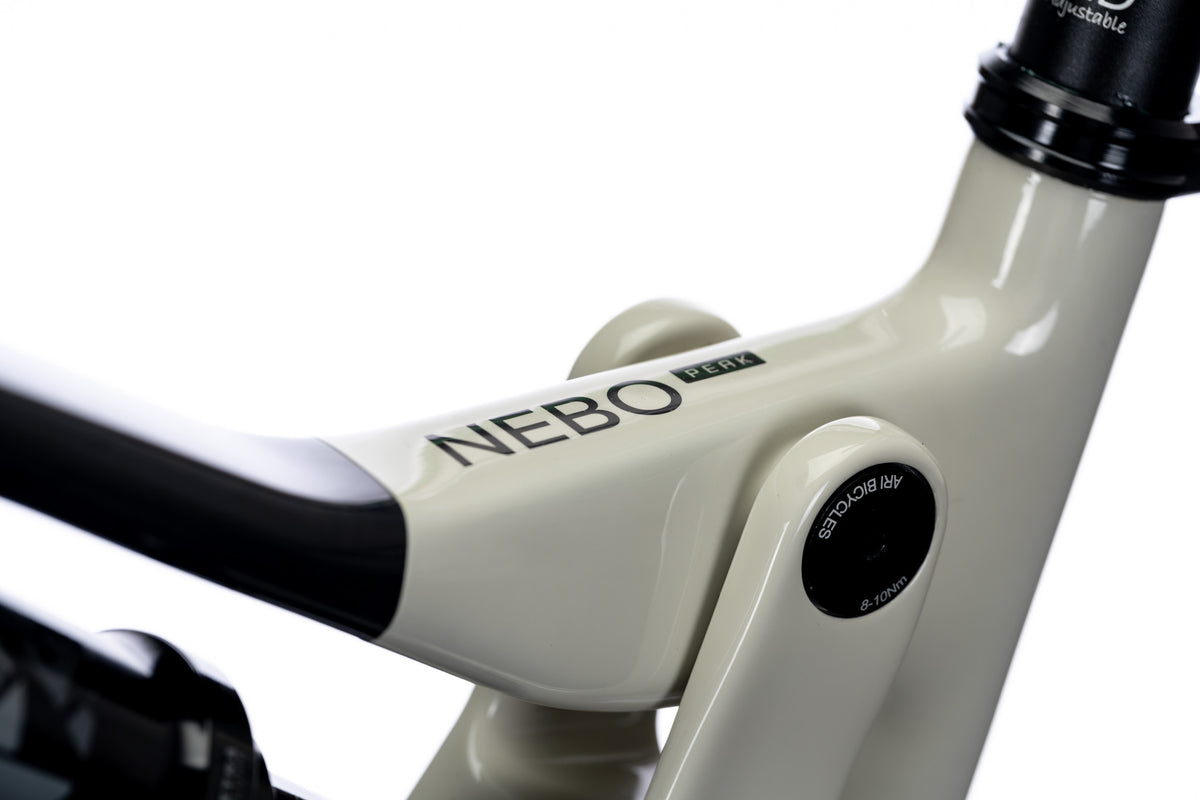

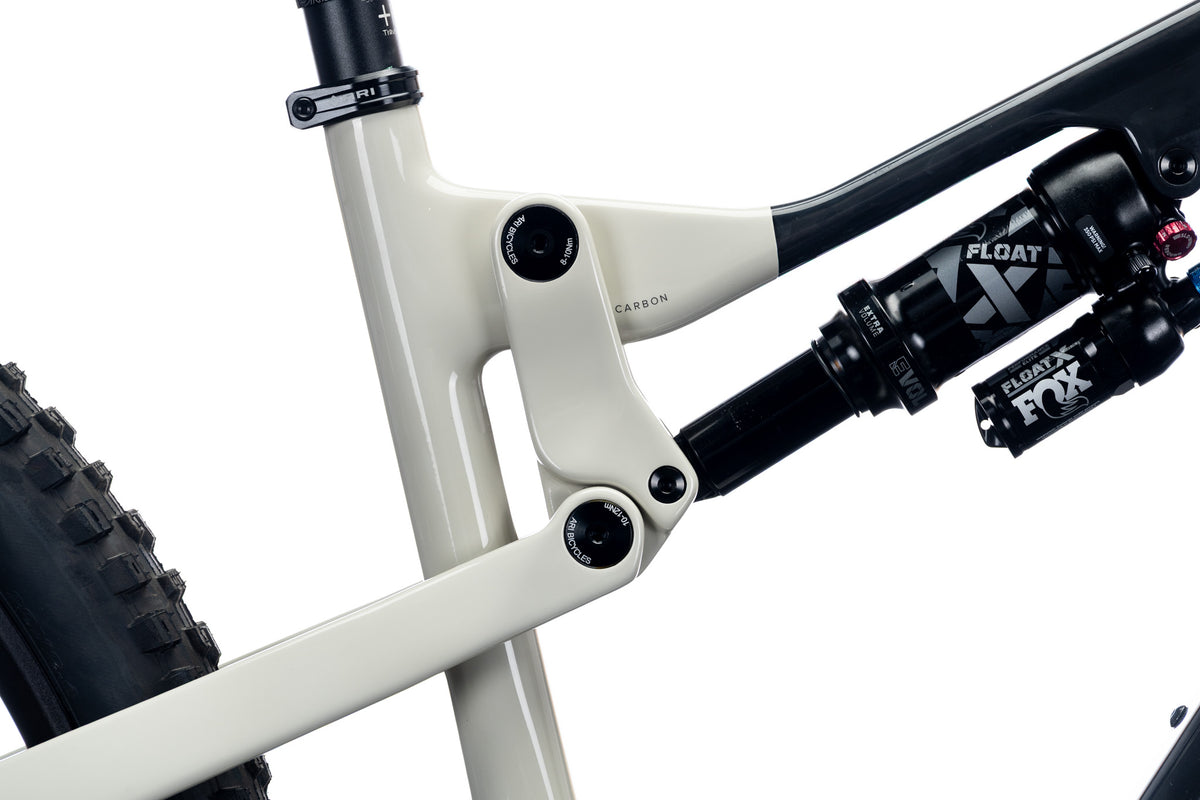

Adjust Nebo Peak to your riding style with our new GA-Link (Geometry Adjust) located in the chainstay pivot. This allows adjustability on the head tube angle and chainstay length giving you the ability to dial in the wheelbase to your preference or run a mullet setup.
Our Lowest Standover Height and Lightest Ebike Frame
With our lowest full-suspension standover height, 2 inches lower than our other full suspension bikes, Nebo Peak allows you to run the longest dropper seat post possible so you can navigate trails with ease. As with all Ari bikes, its impressively light frame is also backed by our Lifetime Warranty.
Get the Best of Both Worlds
With a suspension platform and geometry designed in perfect harmony with the Fazua motor system, the Nebo is ready to tackle all the ups and downs of your favorite trails.
With comfortable reach in the cockpit, lower standover, balanced chassis, 65 degree head tube angle for stability at high speed, and 77.5 degree seat tube angle for powerful pedaling - you can’t help but have fun on every single ride.

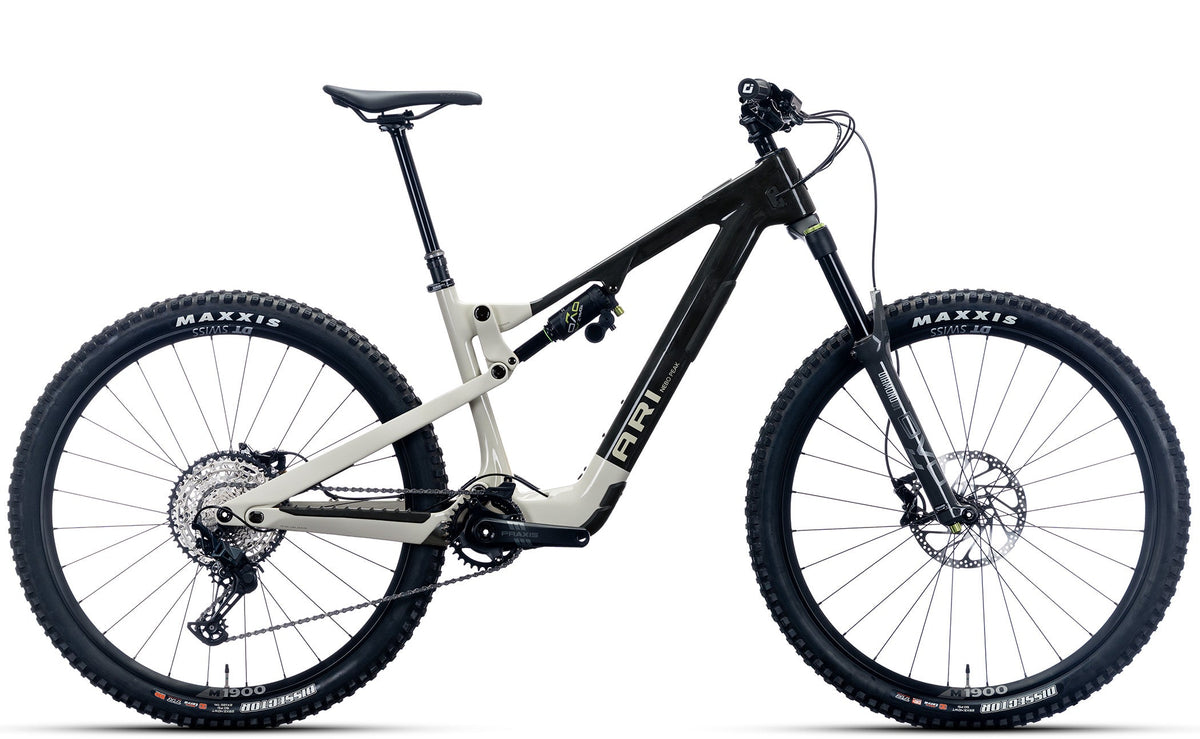

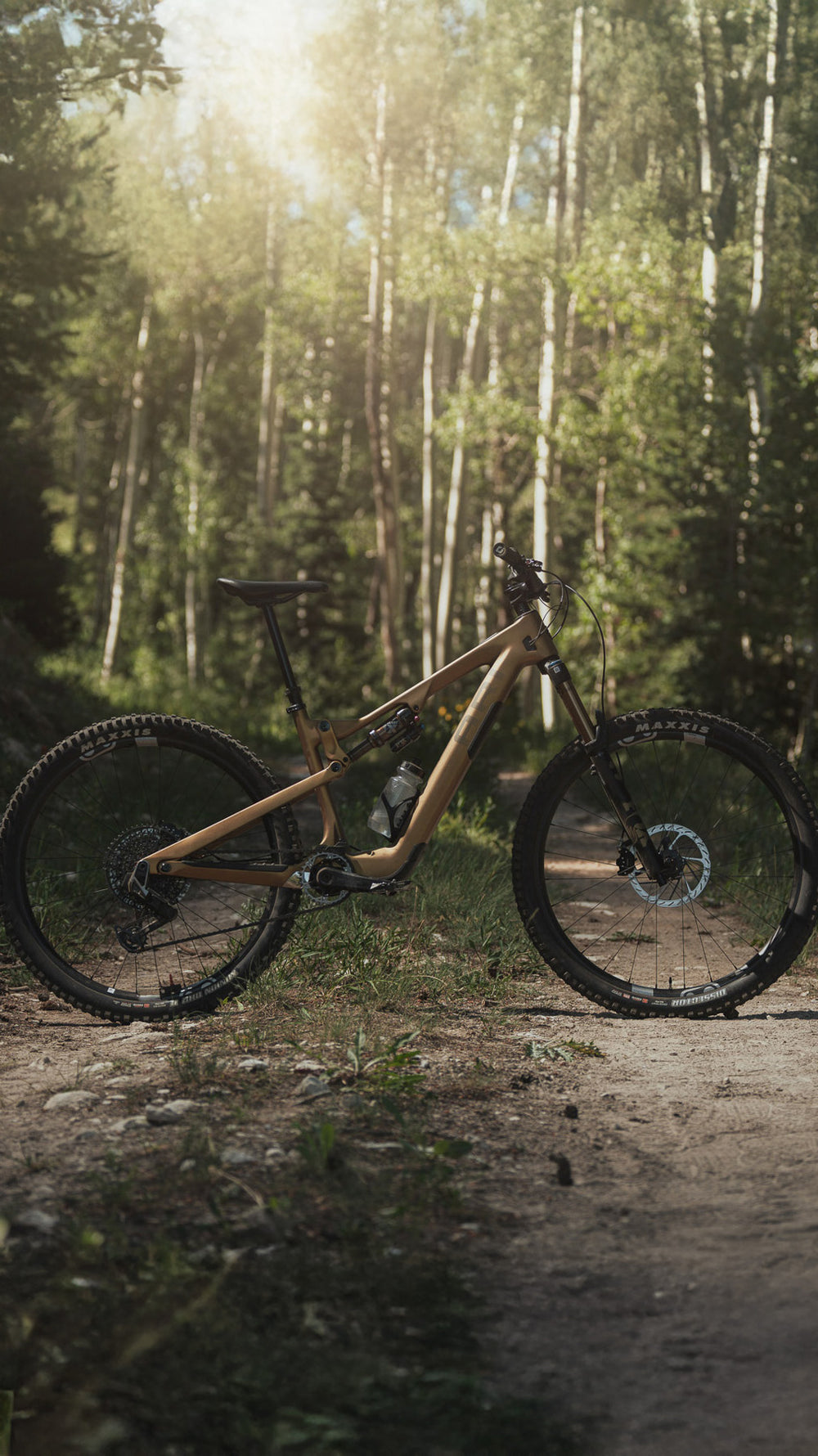

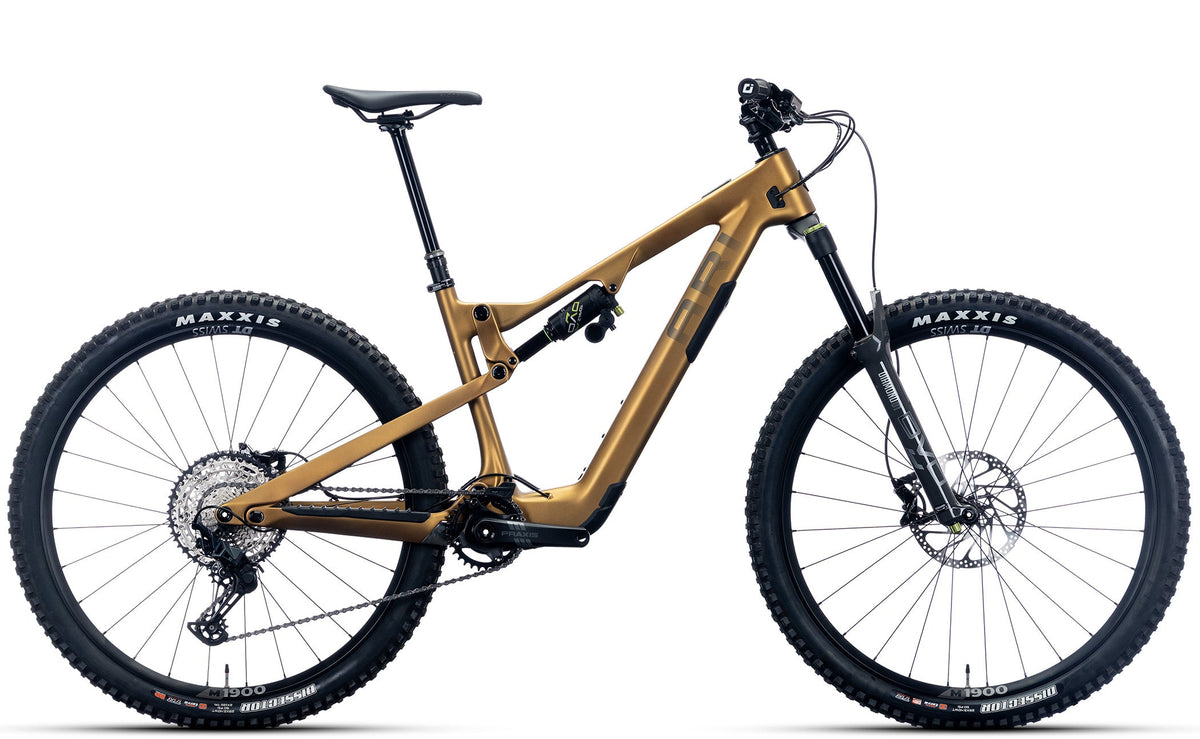

Nebo Peak
3D Model
Click and Drag to see Nebo Peak's Carbon Frame from every angle.
Geometry
GA Link
Units
| S | M | L | XL | |
|---|---|---|---|---|
| Top Tube | 568.3 | 589.9 | 612.3 | 642.4 |
| Seat Tube | 390.0 | 400.0 | 420.0 | 450.0 |
| Chainstay | 434.6 | 434.6 | 434.6 | 434.6 |
| Head Angle | 65° | 65° | 65° | 65° |
| Seat Angle (Effective)* | 77.5° | 77.5° | 77.5° | 77.5° |
| Head Tube | 100.0 | 105.0 | 113.0 | 145.0 |
| Bottom Bracket Height | 345 | 345 | 345 | 345 |
| Bottom Bracket Drop | 28.2 | 28.2 | 28.2 | 28.2 |
| Wheelbase | 1184.0 | 1211.3 | 1239.3 | 1278.1 |
| Fork Offset | 44.0 | 44.0 | 44.0 | 44.0 |
| Standover Height | 737.0 | 736.0 | 736.0 | 736.0 |
| Stack | 611.0 | 615.9 | 622.3 | 652.0 |
| Reach | 430.0 | 455.0 | 480.0 | 505.0 |
| S | M | L | XL | |
|---|---|---|---|---|
| Top Tube | 569.5 | 591.0 | 614.5 | 644.2 |
| Seat Tube | 390.0 | 400.0 | 420.0 | 450.0 |
| Chainstay | 439.7 | 439.7 | 439.7 | 439.7 |
| Head Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Seat Angle (Effective)* | 77.3° | 77.1° | 77.0° | 77.0° |
| Head Tube | 100.0 | 105.0 | 113.0 | 145.0 |
| Bottom Bracket Height | 337.8 | 337.7 | 337.6 | 337.5 |
| Bottom Bracket Drop | 35.4 | 35.5 | 35.6 | 35.7 |
| Wheelbase | 1189.9 | 1211.3 | 1246.3 | 1284.0 |
| Fork Offset | 44.0 | 44.0 | 44.0 | 44.0 |
| Standover Height | 731.0 | 730.0 | 730.0 | 730.0 |
| Stack | 615.4 | 620.1 | 629.3 | 656.6 |
| Reach | 424.1 | 449.2 | 474.3 | 499.2 |
The best experience for every rider.
Discover the benefits of our direct-to-consumer model, including exclusive discounts, direct communication with our experts, and a hassle-free purchasing process.
Learn More +
A warranty that lasts a lifetime
Riding a bike should be an enjoyable and worry-free experience. That's why we offer the best lifetime warranty in the industry.
Direct to you, the rider
The best bang for your buck. Save up to 40% when buying directly from us, the manufacture.
Custom fit to your body
Give us a few quick measurements and then we custom fit the bike to you. It makes all the difference!
Build Specs
Each Ari bike is built with the best components in a given category so you get the most bang for the buck. Each model has different build specs to choose from usually ranging in good, better, best order.
Comparison TableBuild Level
Specifications
| Nebo Peak Comp v1.5 | Nebo Peak Elite v1.5 | Nebo Peak Pro v1.5 | Nebo Peak Team v1.5 | Nebo Peak Frameset & Shock v1.5 |
|---|---|---|---|---|
|
price $5,399 $7,399 |
price $6,299 $8,599 |
price $7,299 $9,699 |
price $10,199 $11,599 |
price $5,899 $5,999 |
|
frame Ari Nebo Peak Full Suspension, 140mm travel. UDH derailleur hanger. |
frame Ari Nebo Peak Full Suspension, 140mm travel. UDH derailleur hanger. |
frame Ari Nebo Peak Full Suspension, 140mm travel. UDH derailleur hanger. |
frame Ari Nebo Peak Full Suspension, 140mm travel. UDH derailleur hanger. |
frame Ari Nebo Peak Full Suspension, 140mm travel. UDH derailleur hanger. |
|
fork DVO Diamond 36 D1 SL, 29, 150mm travel, Boost 15x110 , 44mm offset, tapered steerer - Grey |
fork Fox 36 Grip X2, Performance Elite, HSC, LSC, HSR, LSR, 150mm travel, 15x110 Axle, 44mm offset, tapered steerer |
fork Fox 36 Grip X2, Factory, HSC, LSC, HSR, LSR, 150mm travel, 15x110 Axle, 44mm offset, tapered steerer |
fork Fox 36 Grip X2, Factory, HSC, LSC, HSR, LSR, 150mm travel, 15x110 Axle, 44mm offset, tapered steerer. (Rockshox option available at checkout) |
fork Available at Checkout |
|
rear shock DVO Topaz Gen 3, 210x55, Custom Tuned |
rear shock Fox Float X, Performance Elite, 2 Pos-Adj, 210x55, Custom Tuned |
rear shock Fox Float X, Factory, 2 Pos-Adj, 210x55, Custom Tuned |
rear shock Fox Float X, Factory, 2 Pos-Adj, 210x55, Custom Tuned. (Rockshox option available at checkout) |
rear shock RockShox Super Deluxe Ultimate RC2T, 210x55, Custom Tuned |
|
drivetrain Shimano SLX 12-Speed |
drivetrain SRAM GX Eagle Transmission, 12-Speed |
drivetrain SRAM X0 Eagle Transmission, 12-Speed |
drivetrain SRAM XX Eagle Transmission, 12-Speed |
drivetrain N/A |
|
wheels DT Swiss M 1900 Spline, 28-hole, Disc, Tubeless Ready, Carbon wheels upgrade available at checkout |
wheels Crankbrothers Synthesis Enduro Alloy, F: 28-hole, R: 32-hole, Disc, Tubeless Ready, Carbon wheels upgrade available at checkout |
wheels Crankbrothers Synthesis Enduro Alloy, F: 28-hole, R: 32-hole, Disc, Tubeless Ready, Carbon wheels upgrade available at checkout |
wheels Crankbrothers Synthesis E-MTB Carbon, 29, Disc Specific, Tubeless Ready |
wheels N/A |
|
brakes TRP Tail Evo, HD-M807, TRP 2.3mm 180/180 F/R rotors |
brakes TRP Evo Pro, HD-M9040, TRP 2.3mm 203/203 F/R rotors |
brakes SRAM Maven Silver, HS2 200/180 F/R rotors |
brakes SRAM Maven Ultimate, HS2 200/200 F/R rotors |
brakes N/A |
|
sizes S,M,L,XL |
sizes S,M,L,XL |
sizes S,M,L,XL |
sizes S,M,L,XL |
sizes S,M,L,XL |
|
headset Cane Creek 40 Series ZS Tapered ZS56 | ZS56/40 |
headset Cane Creek 40 Series ZS Tapered ZS56 | ZS56/40 |
headset Cane Creek 40 Series ZS Tapered ZS56 | ZS56/40 |
headset Cane Creek 40 Series ZS Tapered ZS56 | ZS56/40 |
headset Cane Creek 40 Series ZS Tapered ZS56 | ZS56/40 |
|
shifters Shimano SLX Trigger 12-Speed |
shifters Sram AXS Pod |
shifters Sram AXS Pod |
shifters Sram AXS Pod |
shifters N/A |
|
front derailleur N/A |
front derailleur N/A |
front derailleur N/A |
front derailleur N/A |
front derailleur N/A |
|
rear derailleur Shimano SLX, SGS, 12-Speed |
rear derailleur SRAM GX Eagle Transmission, 12-Speed |
rear derailleur SRAM X0 Eagle Transmission, 12-Speed |
rear derailleur SRAM XX Eagle Transmission, 12-Speed |
rear derailleur N/A |
|
cassette Shimano CS-M7100-12, 10-51t, 12-Speed |
cassette SRAM CS-XS-1275, 10-52t, 12-Speed |
cassette SRAM CS-XS-1295, 10-52t, 12-Speed |
cassette SRAM CS-XS-1297, 10-52t, 12-Speed |
cassette N/A |
|

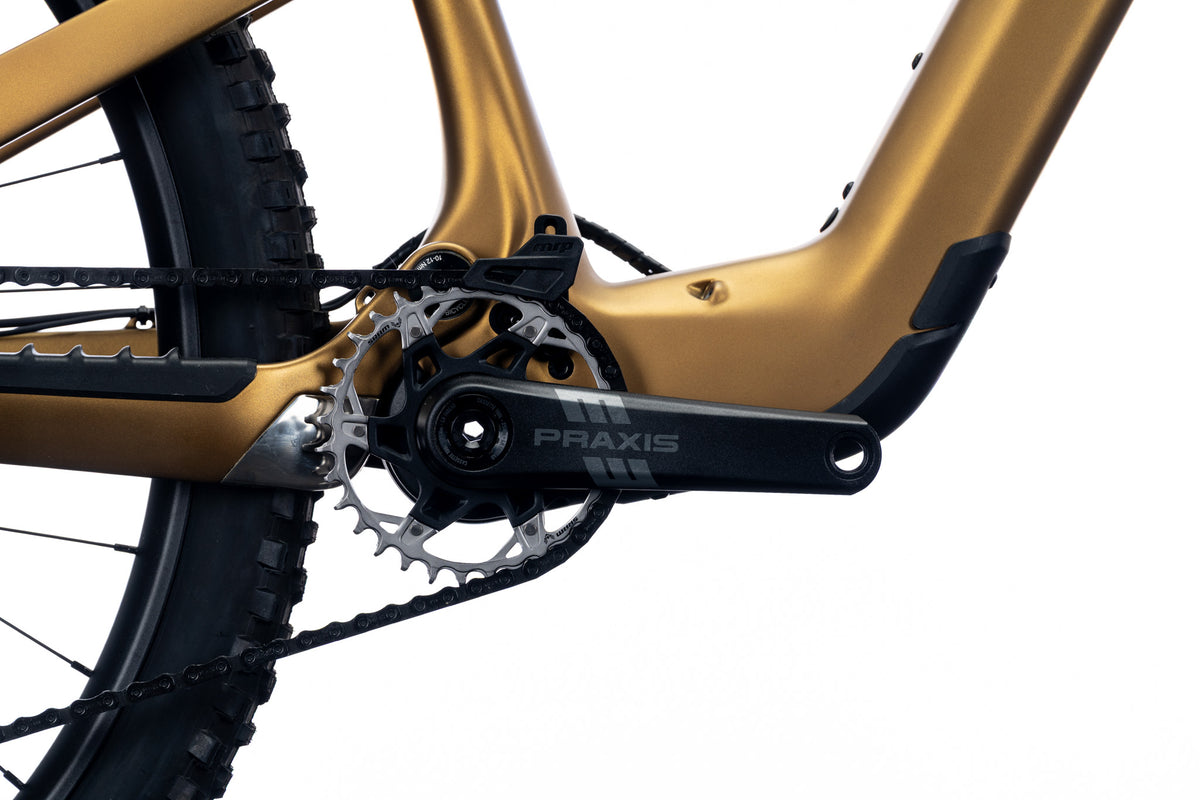

crank Praxis EC-6 Etor Spline 160mm |
crank Praxis EC-6 Etor Spline 160mm |
crank Praxis EC-6 Etor Spline 160mm |
crank Praxis EC-6 Etor Spline 160mm |
crank Praxis EC-6 Etor Spline 160mm |
|
chainrings Praxis ES-F60 32T |
chainrings SRAM XX Eagle Transmission E-MTB Fazua, 32T |
chainrings SRAM XX Eagle Transmission E-MTB Fazua, 32T |
chainrings SRAM XX Eagle Transmission E-MTB Fazua, 32T |
chainrings SRAM Direct Mount XX Eagle Transmission E-MTB Fazua, 32T, (Praxis 104 BCD Spider Also Included) |
|
drive unit Fazua Ride 60, 60Nm |
drive unit Fazua Ride 60, 60Nm |
drive unit Fazua Ride 60, 60Nm |
drive unit Fazua Ride 60, 60Nm |
drive unit Fazua Ride 60, 60Nm |
|
battery Fazua Energy 480Wh Fixed |
battery Fazua Energy 480Wh Fixed |
battery Fazua Energy 480Wh Fixed |
battery Fazua Energy 480Wh Fixed |
battery Fazua Energy 480Wh Fixed |
|
chain Shimano SLX 12-Speed |
chain SRAM GX Eagle Transmission Flat-top, 12-Speed |
chain SRAM X0 Eagle Transmission Flat-top, 12-Speed |
chain SRAM XX Eagle Transmission Flat-top, 12-Speed |
chain N/A |
|
handlebars Ari Team 35mm bar-customized sizing through Ari Custom Setup |
handlebars Ari Team 35mm bar-customized sizing through Ari Custom Setup |
handlebars Ari Team 35mm bar-customized sizing through Ari Custom Setup |
handlebars Raceface ERA 35mm, bar-customized sizing through Ari Custom Setup™ |
handlebars N/A |
|
stem Ari Charger CNC 35 stem |
stem Ari Charger CNC 35 stem |
stem Ari Charger CNC 35 stem |
stem Raceface Turbine Stem |
stem N/A |
|
tape/grips ODI Elite Pro |
tape/grips ODI Elite Pro |
tape/grips ODI Elite Pro |
tape/grips ODI Elite Pro |
tape/grips N/A |
|
saddle Ergon SM10 |
saddle Ergon SM10 |
saddle Ergon SM10 |
saddle Ergon SM10 |
saddle N/A |
|
seatpost TranzX JD-YSI05J w/ Travel Adj. Dropper- customized sizing through Ari Custom Setup |
seatpost TranzX JD-YSI05J w/ Travel Adj. Dropper- customized sizing through Ari Custom Setup |
seatpost PNW Loam Dropper- customized sizing through Ari Custom Setup |
seatpost Fox Transfer Factory Dropper- customized sizing through Ari Custom Setup |
seatpost N/A |
|
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
pedals Available Separately |
pedals N/A |
|
rims DT Swiss M 1900 Spline, 28 hole, Disc, Tubeless Ready |
rims Crankbrothers Synthesis Enduro Alloy, F: 28-hole, R: 32-hole, Disc, Tubeless Ready |
rims Crankbrothers Synthesis Enduro Alloy, F: 28-hole, R: 32-hole, Disc, Tubeless Ready |
rims Crankbrothers Synthesis E-MTB Carbon, 29, 30mm, F: 28 Hole, R: 32 Hole, Disc, Tubeless Ready |
rims N/A |
|
hubs F: DT Swiss 370, Sealed Bearing Disc, 110x15mm thru axle, 28 hole, 6 bolt; R: DT Swiss 370 Ratchet LN 18 Sealed Bearing Disc, 148x12mm thru axle, 28 hole, 6 bolt, MicroSpline |
hubs F: Crankbrothers Synthesis Standard, Sealed Bearing Disc, 110x15mm thru axle, 28-hole, 6 bolt; R: Crankbrothers Synthesis Standard Ratchet 36T Disc, 148x12mm thru axle, 32-hole, 6 bolt, XD |
hubs F: Crankbrothers Synthesis Standard, Sealed Bearing Disc, 110x15mm thru axle, 28-hole, 6 bolt; R: Crankbrothers Synthesis Standard Ratchet 36T Disc, 148x12mm thru axle, 32-hole, 6 bolt, XD |
hubs F: Crankbrothers Ratchet 6-Bolt Disc, 28H 15x110 Thru Axle, R: Crankbrothers Synthesis Ratchet 6-Bolt Disc, 32H, 148x12mm thru axle, XD |
hubs N/A |
|
spokes DT Champion Straightpull, black, with DT Swiss Squorx Prohead aluminium nipple |
spokes Pillar, J-Bend, Butted, w/ brass nipples |
spokes Pillar, J-Bend, Butted, w/ brass nipples |
spokes Sapim Race |
spokes N/A |
|
tires F: Maxxis Dissector 29x2.4, EXO+, 3C, TR Protection, Tubeless Ready. R: Maxxis Dissector 29x2.4, DoubleDown, 3C, MaxxTerra, TR Protection, Tubeless Ready |
tires F: Maxxis Dissector 29x2.4, EXO+, 3C, TR Protection, Tubeless Ready. R: Maxxis Dissector 29x2.4, DoubleDown, 3C, MaxxTerra, TR Protection, Tubeless Ready |
tires F: Maxxis Dissector 29x2.4, EXO+, 3C, TR Protection, Tubeless Ready. R: Maxxis Dissector 29x2.4, DoubleDown, 3C, MaxxTerra, TR Protection, Tubeless Ready |
tires F: Maxxis Dissector 29x2.4, EXO+, 3C, TR Protection, Tubeless Ready. R: Maxxis Dissector 29x2.4, DoubleDown, 3C, MaxxTerra, TR Protection, Tubeless Ready |
tires N/A |
|
tubes Maxxis 29x1.9/2.5 Presta, Tubeless setup available after adding bike to cart |
tubes Maxxis 29x1.9/2.5 Presta, Tubeless setup available after adding bike to cart |
tubes Maxxis 29x1.9/2.5 Presta, Tubeless setup available after adding bike to cart |
tubes Maxxis 29x1.9/2.5 Presta, Tubeless setup available after adding bike to cart |
tubes N/A |
|
extras Ari custom molded downtube, shuttle pad, and chainstay protectors |
extras Ari custom molded downtube, shuttle pad, and chainstay protectors |
extras Ari custom molded downtube, shuttle pad, and chainstay protectors |
extras Ari custom molded downtube, shuttle pad, and chainstay protectors |
extras Ari custom molded downtube, shuttle pad, and chainstay protectors, 6-bolt and centerlock magnets included. |
Specifications
build
Comp v1.5
price
$5,399
$7,399
frame
Ari Nebo Peak Full Suspension, 140mm travel. UDH derailleur hanger.
fork
DVO Diamond 36 D1 SL, 29, 150mm travel, Boost 15x110 , 44mm offset, tapered steerer - Grey
rear shock
DVO Topaz Gen 3, 210x55, Custom Tuned
drivetrain
Shimano SLX 12-Speed
wheels
DT Swiss M 1900 Spline, 28-hole, Disc, Tubeless Ready, Carbon wheels upgrade available at checkout
brakes
TRP Tail Evo, HD-M807, TRP 2.3mm 180/180 F/R rotors
sizes
S,M,L,XL
headset
Cane Creek 40 Series ZS Tapered ZS56 | ZS56/40
shifters
Shimano SLX Trigger 12-Speed
front derailleur
N/A
rear derailleur
Shimano SLX, SGS, 12-Speed
cassette
Shimano CS-M7100-12, 10-51t, 12-Speed
crank
Praxis EC-6 Etor Spline 160mm
chainrings
Praxis ES-F60 32T
drive unit
Fazua Ride 60, 60Nm
battery
Fazua Energy 480Wh Fixed
chain
Shimano SLX 12-Speed
handlebars
Ari Team 35mm bar-customized sizing through Ari Custom Setup
stem
Ari Charger CNC 35 stem
tape/grips
ODI Elite Pro
saddle
Ergon SM10
seatpost
TranzX JD-YSI05J w/ Travel Adj. Dropper- customized sizing through Ari Custom Setup
pedals
Available Separately
rims
DT Swiss M 1900 Spline, 28 hole, Disc, Tubeless Ready
hubs
F: DT Swiss 370, Sealed Bearing Disc, 110x15mm thru axle, 28 hole, 6 bolt; R: DT Swiss 370 Ratchet LN 18 Sealed Bearing Disc, 148x12mm thru axle, 28 hole, 6 bolt, MicroSpline
spokes
DT Champion Straightpull, black, with DT Swiss Squorx Prohead aluminium nipple
tires
F: Maxxis Dissector 29x2.4, EXO+, 3C, TR Protection, Tubeless Ready. R: Maxxis Dissector 29x2.4, DoubleDown, 3C, MaxxTerra, TR Protection, Tubeless Ready
tubes
Maxxis 29x1.9/2.5 Presta, Tubeless setup available after adding bike to cart
extras
Ari custom molded downtube, shuttle pad, and chainstay protectors
*Specs are subject to change. Any substitutions will be comparable or better.
Spec Comparison
Common Questions*
Do you offer financing?
Yes, at checkout there are several options available for financing.
Who is this bike for?
For those that want an ebike that is as lightweight and capable as possible. For those who enjoy climbing and descending a variety of terrain. Handles and feel much like an analog bike. For its full-power self-shuttling enduro sibling see the Timp Peak. For the aluminum version at a lower starting price see the Wire Peak.
How long will it take to arrive?
Estimated lead times are listed under each model's size in the bike builder. Times may vary a little based on current conditions, frame size, color, and availability.
What is the biggest tire size it can accommodate?
The frame will clear 29 x 2.6 or 27.5 x 2.6 tires. Tire clearance around the fork is defined by the fork manufacturer, but typically 29 x 2.6 or 27.5 x 2.8 will fit.

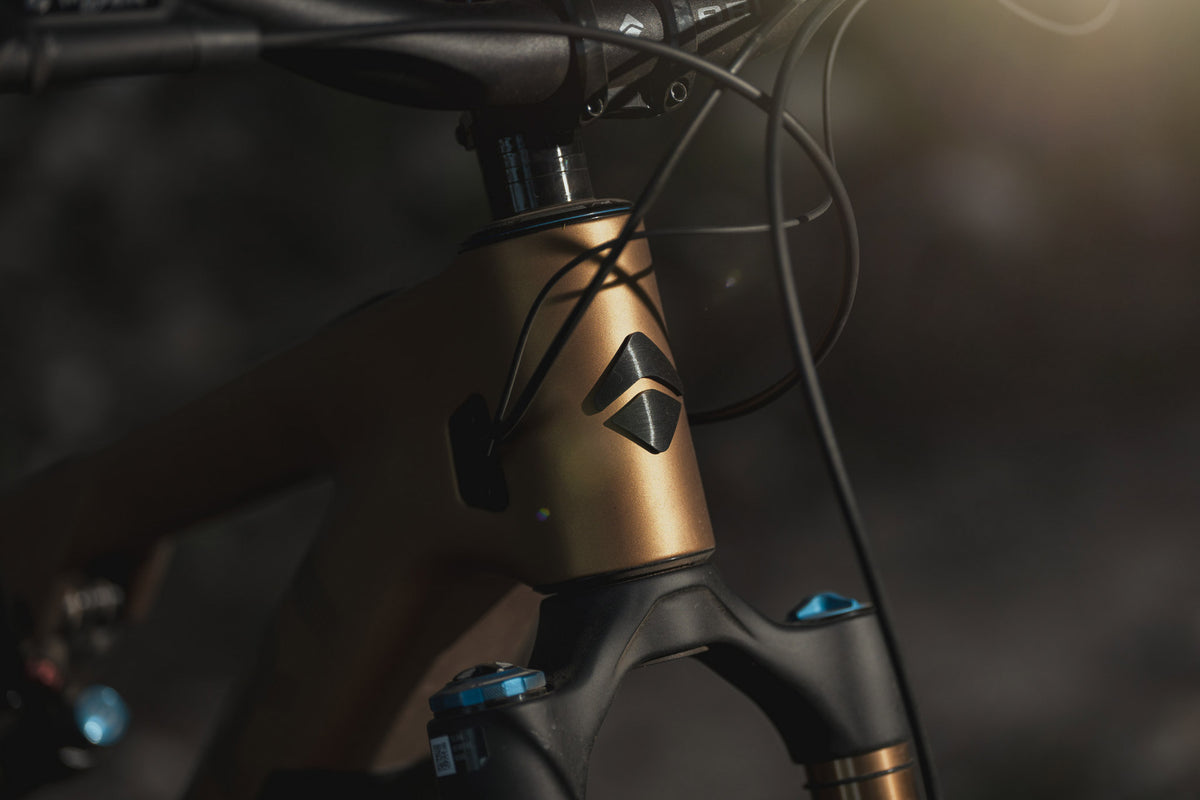

What are the headset dimensions?
Upper: ZS56 | Lower: ZS56
What are the dimensions of the rear hub and rear axle?
Rear Hub: Boost 148x12mm | Rear Axle: M12 - 174xL12xP1.0
What is the drive unit frame spec?
The Nebo Peak frame is designed to interface with the Fazua Ride 60 drive unit.
Can it run an internal dropper post?
Yes! The frame and cable routing are compatible with internally routed dropper posts.

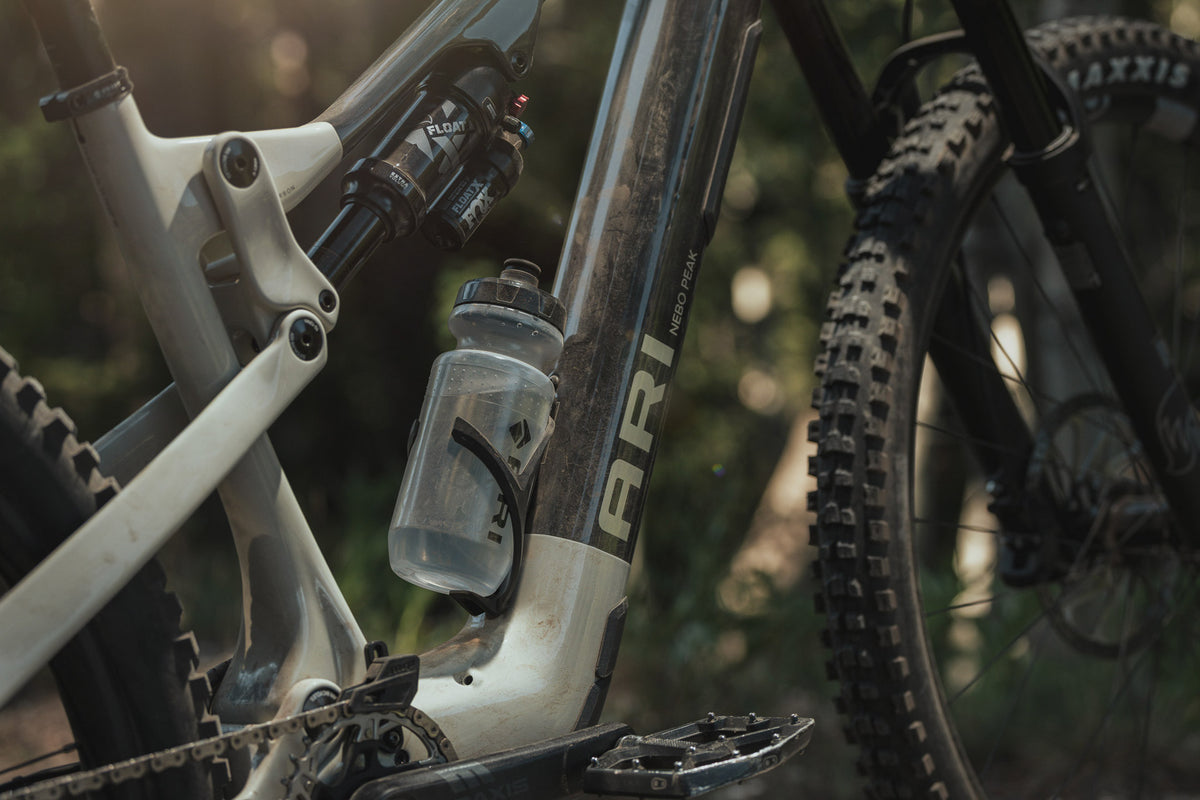

How many water bottles can it hold?
There is one mount for a water bottle inside the front triangle of every size.
How do I charge my e-bike battery safely?
To charge an e-bike battery safely, set up your charging station in a cool, dry area between 50°F and 77°F (10°C to 25°C), well away from direct sunlight, heating vents, and moisture. Always use the manufacturer-approved charger specifically designed for your battery to prevent electrical damage or fire hazards. Keep the immediate area clear of flammable materials like blankets, paper, or rugs, and place both the battery and charger on a hard, flat, non-combustible surface such as concrete, tile, or metal to prevent heat buildup. Ensure the room has proper ventilation to allow heat to dissipate, and keep a working smoke detector nearby while avoiding charging near primary escape routes.
How much suspension does this bike have?
140mm of Tetra-Link rear suspension. 150mm front suspension fork.
What is the bottom bracket frame spec?
ETOR Drive 135mm
What are the dimensions of the front hub and fork axle?
Front Hub: Boost 110x15mm | Front Axle: Defined by fork manufacture
How are the cables routed?
The Nebo Peak features frame wall tube-in-tube cable routing providing an exceptionally quiet ride and easy service. Simply push the cable in at any cable entrance, and the cable will pop out of the frame at its appropriate location.
What is the frame weight?
2580g (size medium)
What about service?
You can work directly with us, one of our recommended shops, or work through your local shop.
What is the guarantee?
It comes with a 30 Day Love it or Return it Guarantee.
How will it arrive?
All Ari bikes go through our Custom Setup process, making sure the bike is fit and tuned specifically to you. They are test-ridden before delivery. If your bike is shipped to you, it’s still tuned and ready to ride and requires just a few minutes of assembly.
What is the warranty?
Each frame comes with a Lifetime Warranty. Ari branded frames come with a transferable warranty as well.
How does transferable warranty on Ari bikes work?
Ari branded frames come with a transferable frame warranty available to the second owner. The second owner can receive a one-year frame warranty from the date they purchase the bike from the original owner. Warranty only transfers once. All Ari bikes must have the transfer documented from the original owner to the new owner here in order to qualify for a transferable warranty.

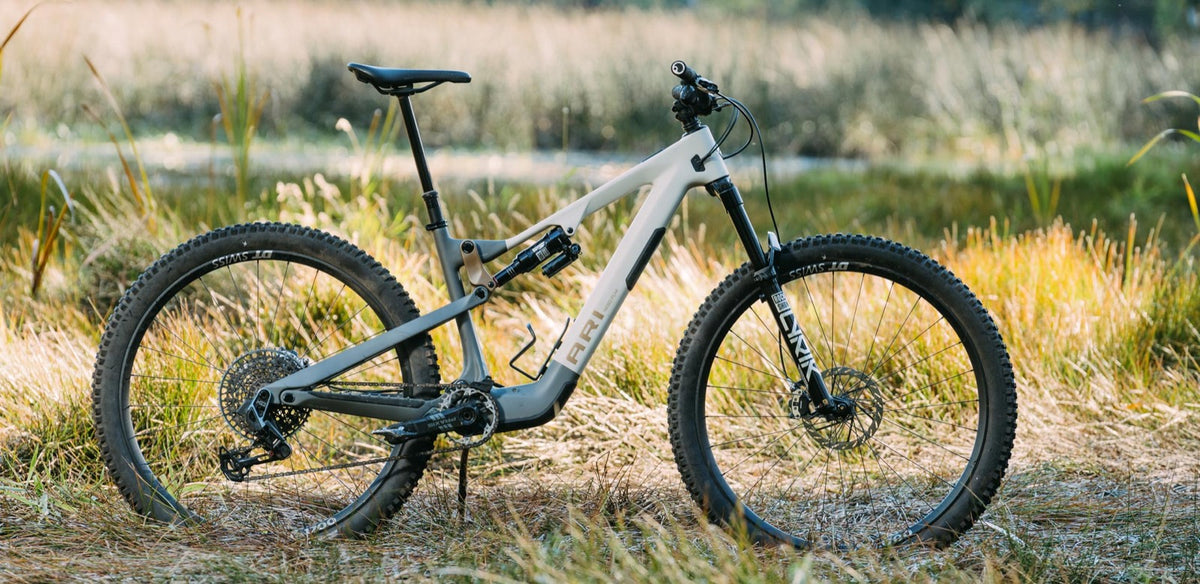

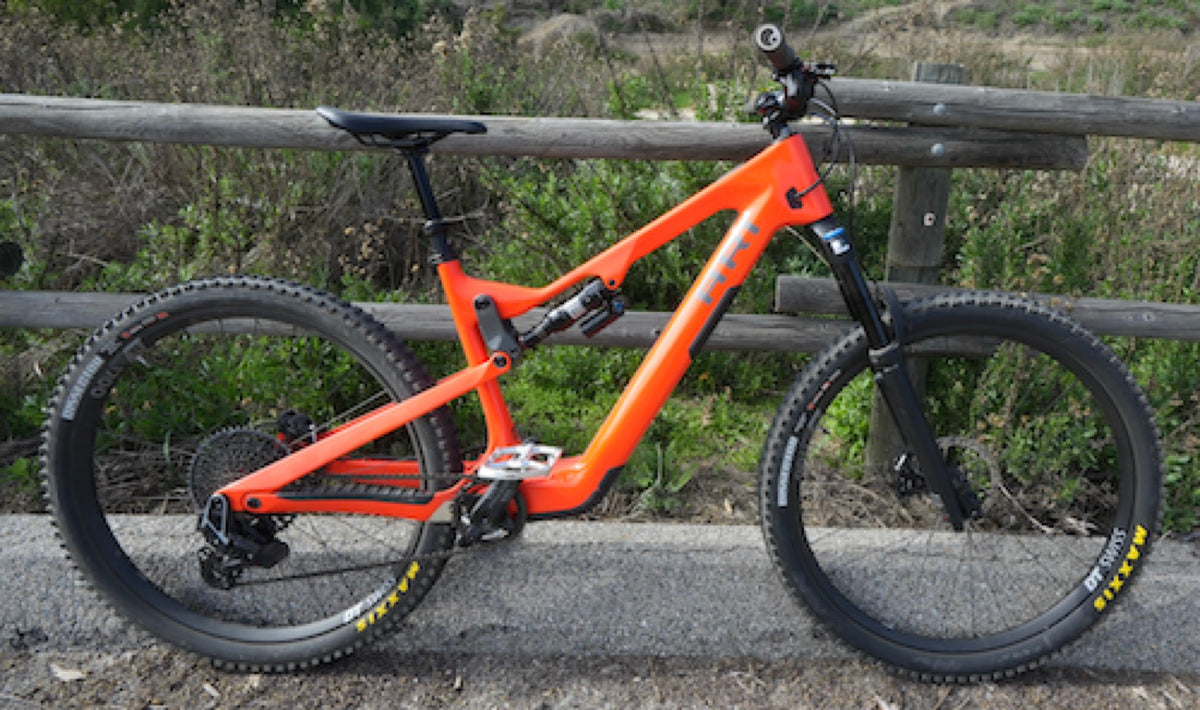

What kind of bike is this?
The Nebo Peak is Ari’s lightweight carbon trail e-MTB. It uses 140mm rear and 150mm fork travel on 29-inch wheels for riders who want electric assist that still climbs and handles like an analog trail bike. Complete bikes start at $5,399 for the Nebo Peak Comp v1.5 build.
How does Nebo Peak compare to other Ari bikes?
Nebo Peak is Ari’s lightweight carbon trail e-MTB (140mm rear / 150mm fork). Wire Peak is Ari’s aluminum full-power trail e-MTB with more travel and a lower starting price. Timp Peak is the full-power carbon enduro e-bike sibling. See Wire Peak.
How should I choose a size when buying online?
Use Ari Custom Setup and Ari will fit the bike from your body measurements. There is also a size guide in the bike builder, and the support team can help before you order. Details: Custom Fit.
What does the starting price include?
Complete bikes start at $5,399 for the Nebo Peak Comp v1.5 build. The listed price is the complete bike at that build level; the bike builder shows the selected options, lead time, and any upgrades before checkout.
What assembly is required when the bike arrives?
Bikes ship pre-tuned, test-ridden, and about 95% assembled. Basic at-home assembly remains, and technicians are available for help. See Support.
What do shipping, warranty, and returns actually involve?
Current terms live on the policy pages, not in this summary. Read Shipping, Warranty, Love it or Return it, and Return Policy before you buy. Outlet bikes follow different return rules.
