DELANO

All Mountains, Any Adventure
Overview

A Masterclass of Balance & Fun

Swiss Army Knife

Perfect balance of climbing and descending. Your go-to bike for most rides.

Balanced Performance

142mm/150mm of travel - Delano Peak is built to climb and descend with confidence.

Adventure's Bicycle

Delano Peak drives you to be creative and turn any line into the fun line.

Travel for Most Travels

Great for any ride. Not too much, not too little. 150mm front and 142mm rear travel are perfect for just about any trail. It’s the Swiss Army Knife of bikes.

Navigate Trails with Effortless Precision

Long enough to be stable, but balanced enough to be maneuverable. With a perfect blend of geometry and kinematics, the Delano Peak is responsive, playful, and efficient.

Designed for you, the rider.

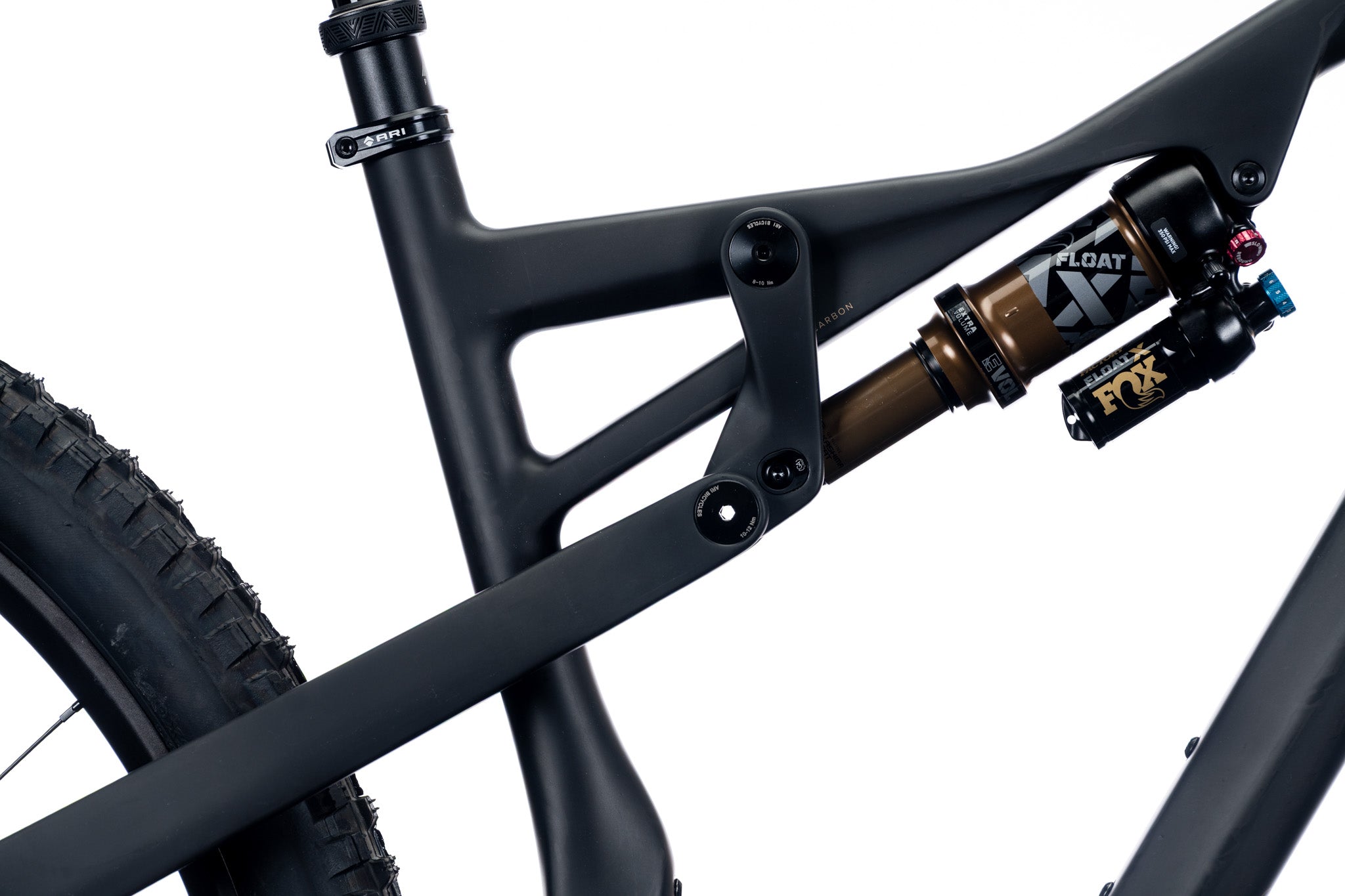

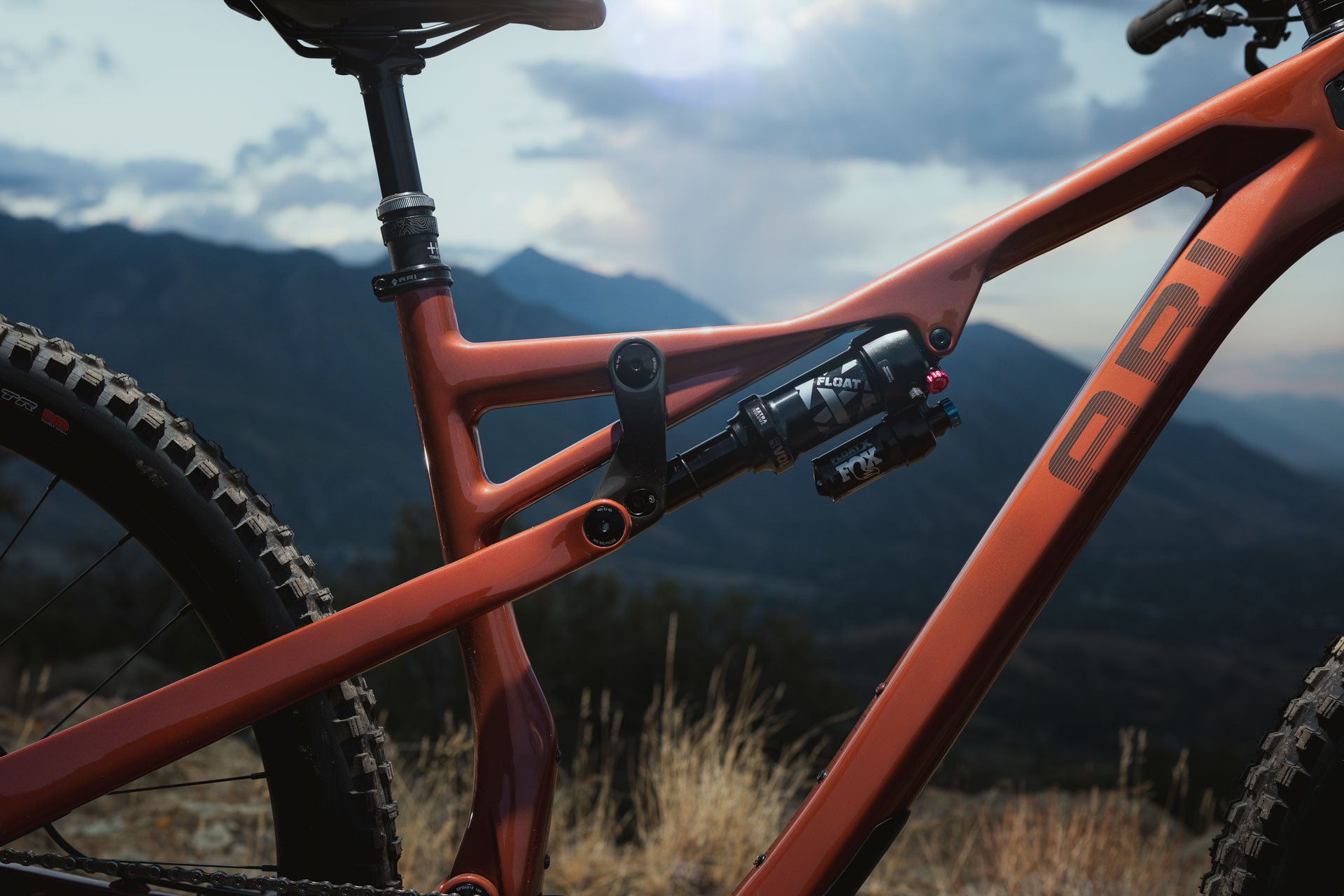

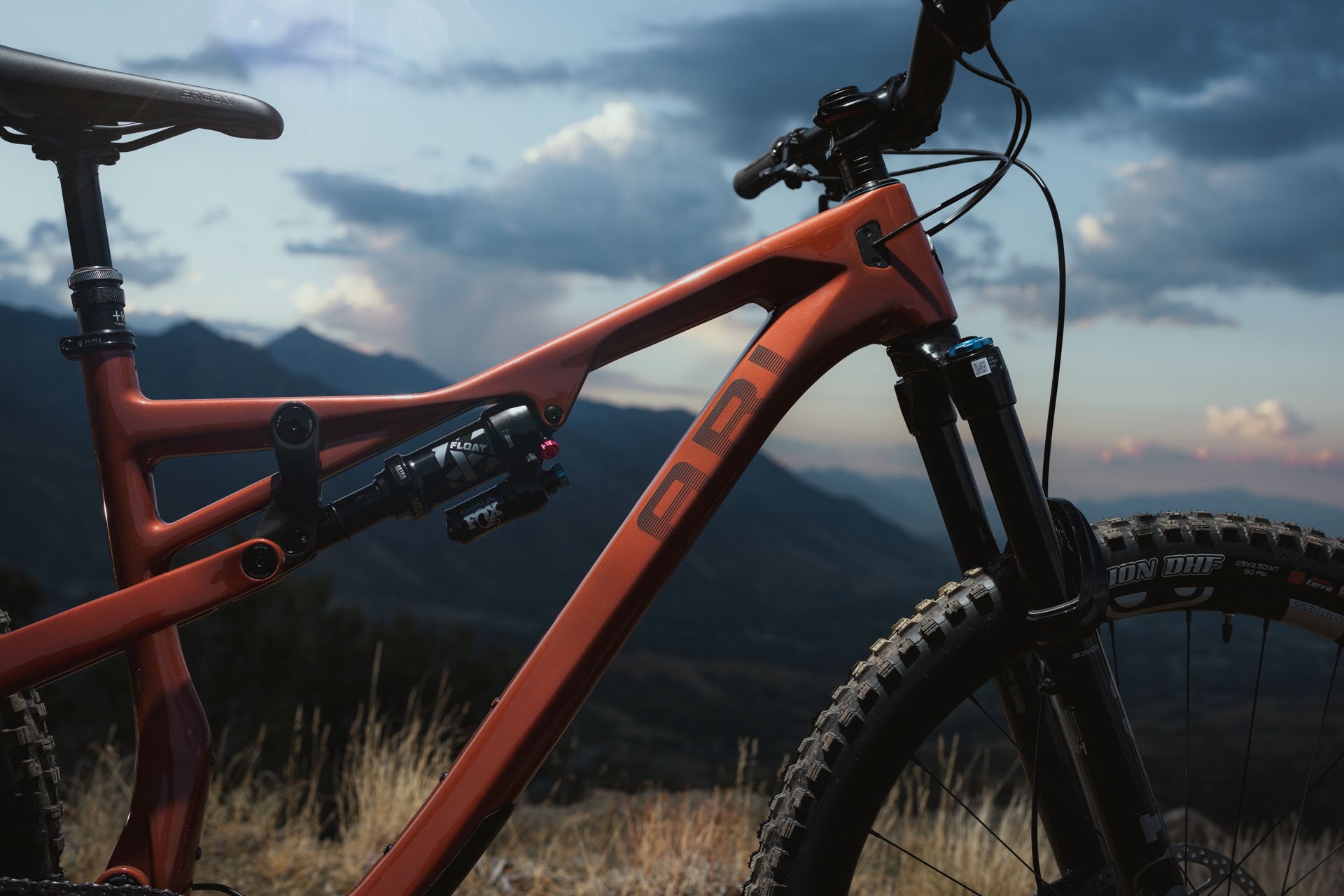

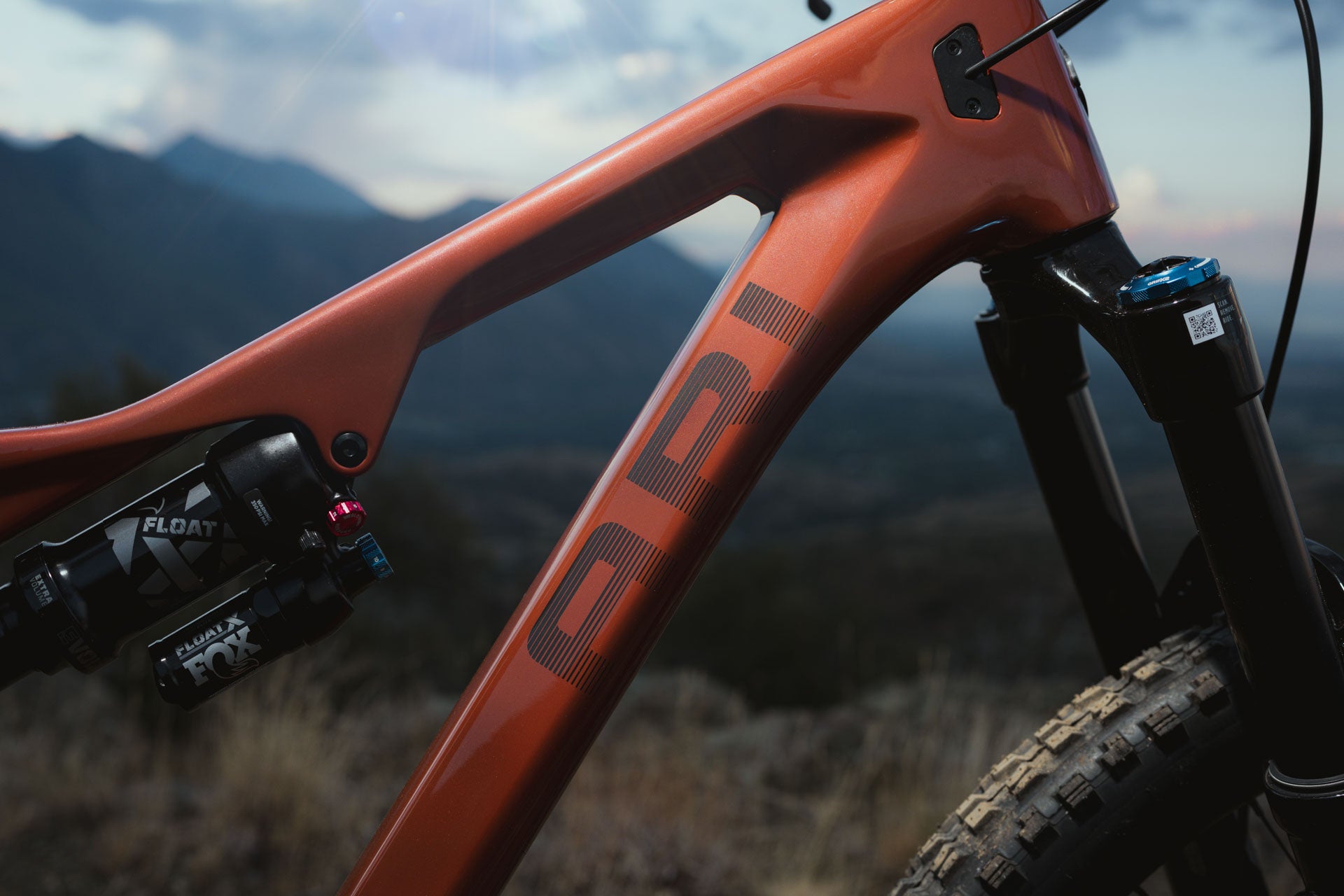

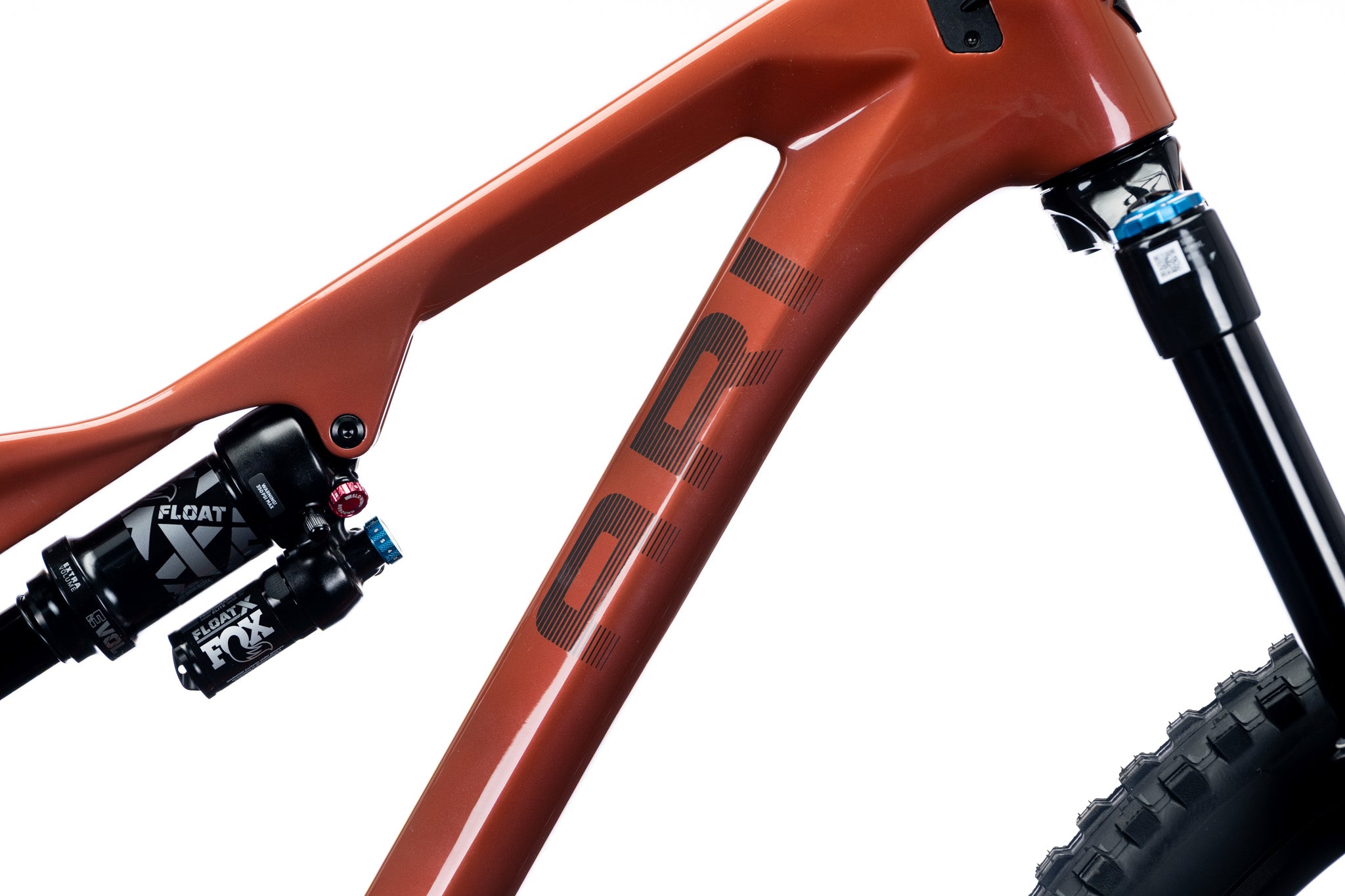

We lowered the shock placement and standover height by 2". This makes the bike more comfortable, increases stiffness, and allows for reduced weight.

Fun all day, every day.

The bike that endures.

With a 73mm threaded bottom bracket, readily-available bearing sizes, and a frame designed to fit longer droppers, maintenance and customization are a breeze.

Cleancast™ Carbon Frame

Our unique carbon layup process cuts excess waste by 30% while still increasing strength and reducing weight, making our bikes both lighter and more environmentally-friendly.

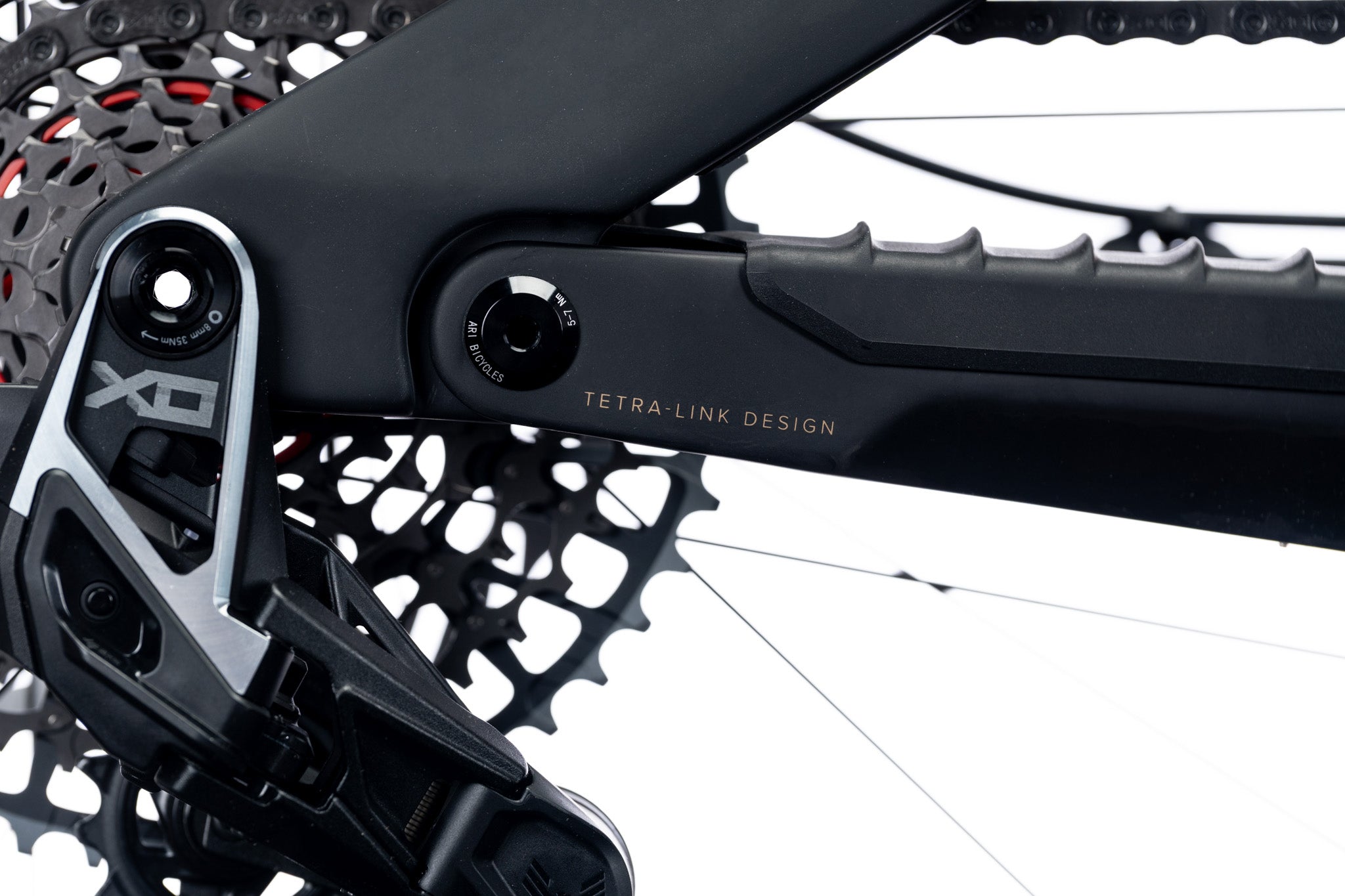

Proven TetraLink™ Platform

Snappy and energetic when you’re pedaling or pumping through rollers, yet composed and confident when the trail gets rough. It pops off rocks and roots with ease, then progressively soaks up bumps and landings to keep you centered and in control on every ride.

Clean and Quiet by Design

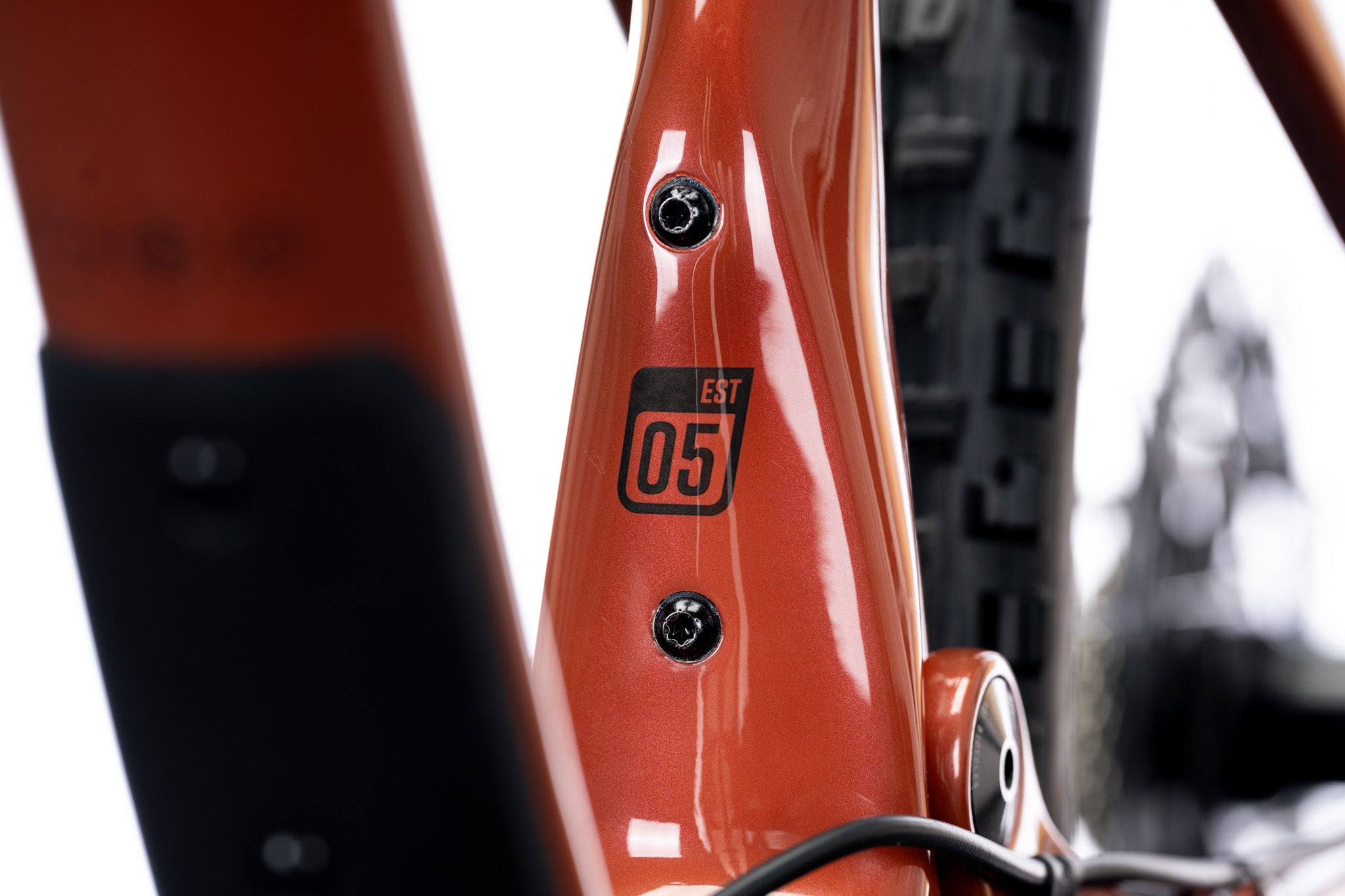

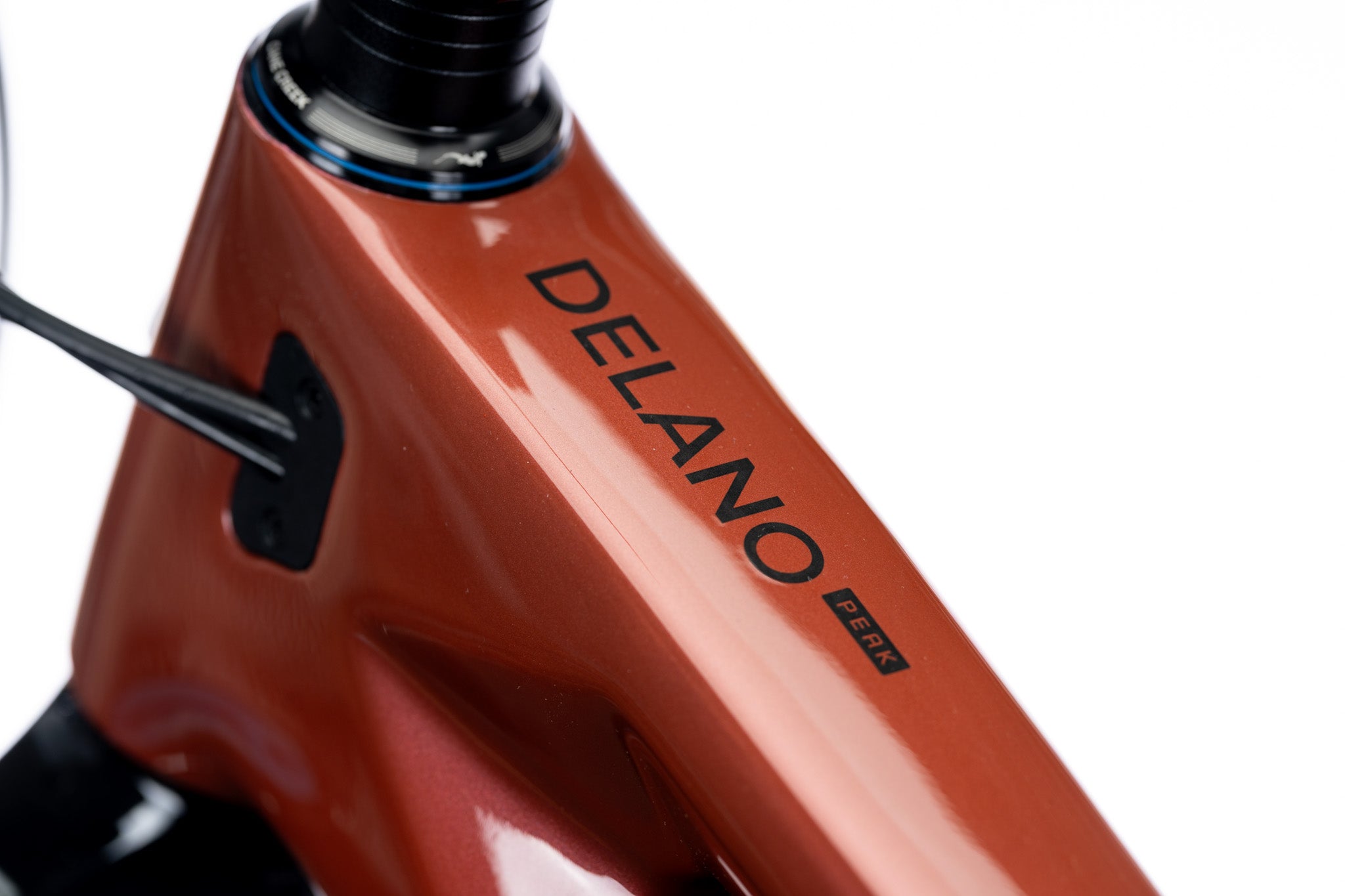

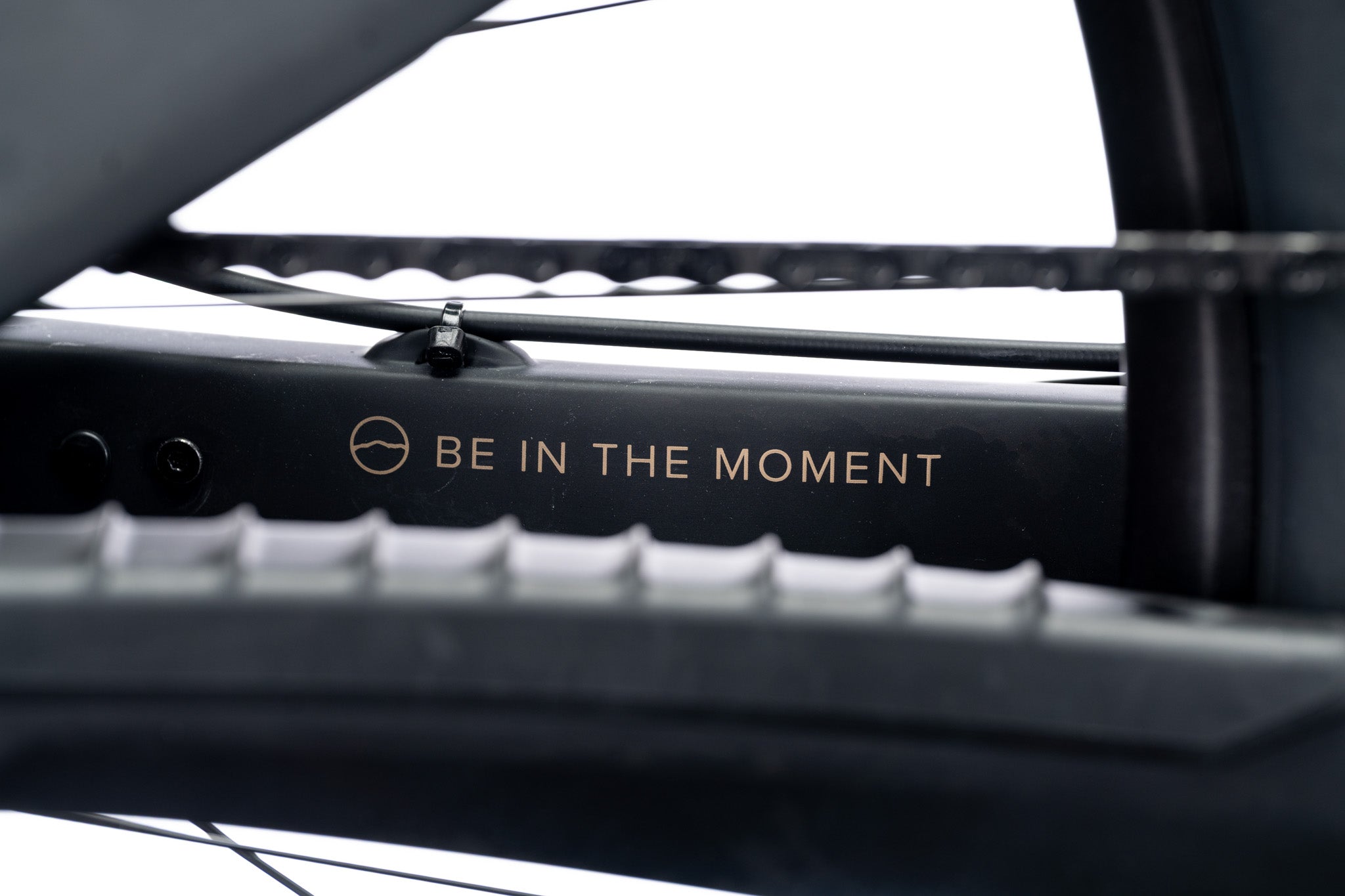

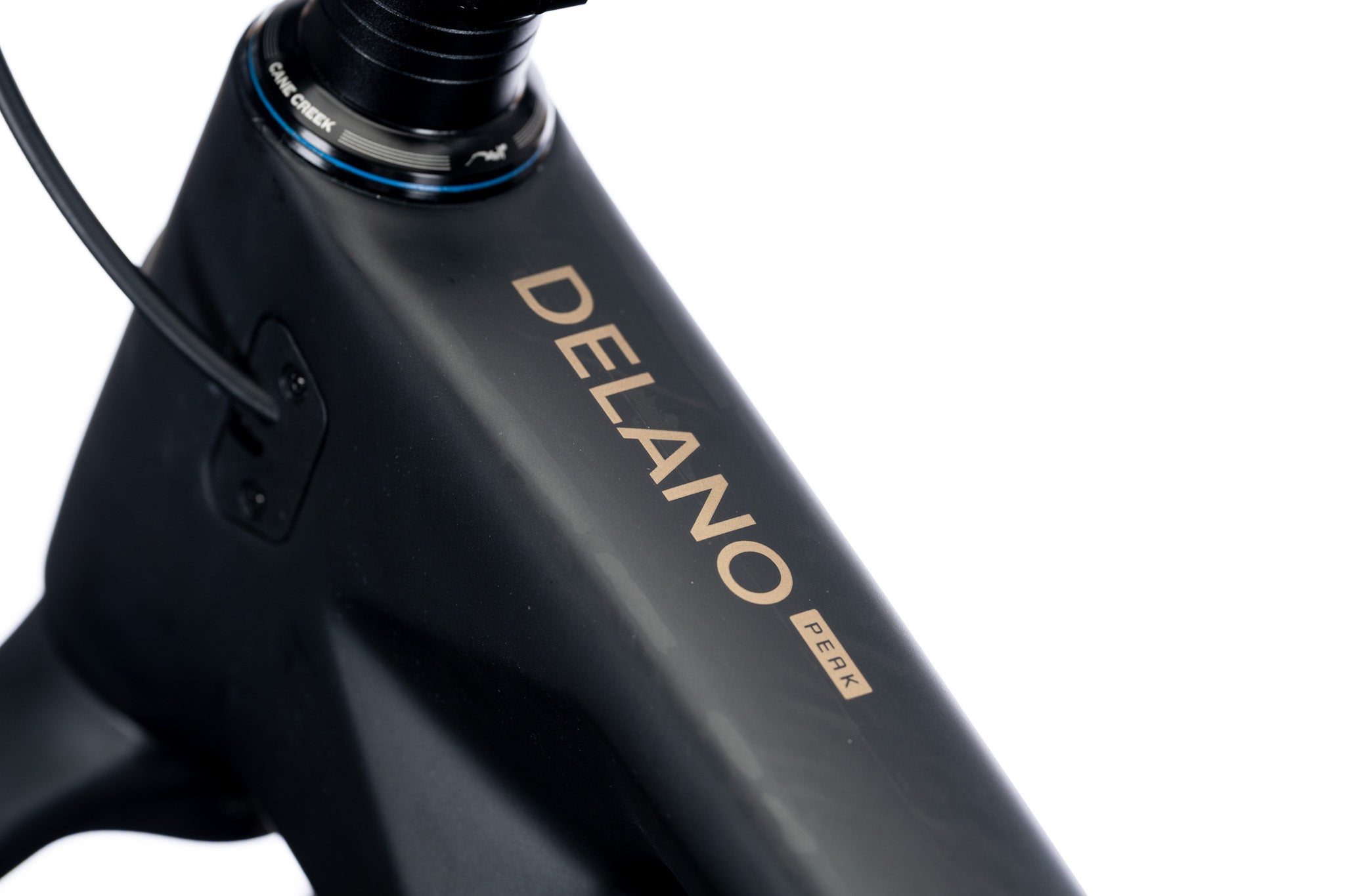

Clean-catch internal cable routing keeps everything tidy and rattle-free, giving you a truly silent ride even over the roughest terrain. A rubberized chainstay protector and downtube guard add extra defense against rock strikes and chain slap, ensuring your bike stays protected and quiet mile after mile.

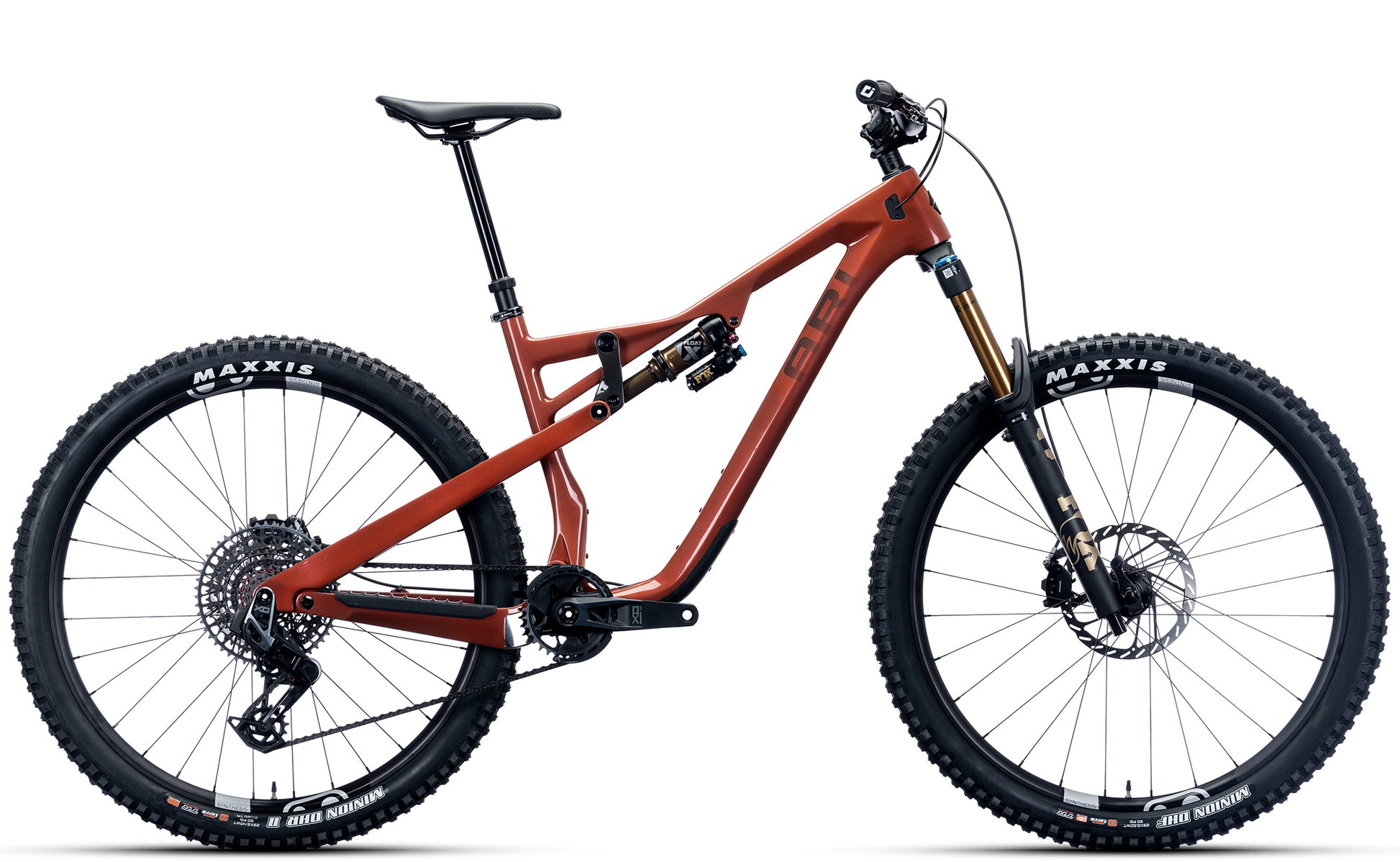

DELANO PEAK

Geometry

Units

S M L XL
Top Tube 560 593 613 637
Seat Tube 400.0 420.0 445 460.0
Chainstay 434 434 434 434
Head Angle 65° 65° 65° 65°
Seat Angle (Effective)* 77.5° 77.5° 77.5° 77.5°
Head Tube 95 95 115 130
Bottom Bracket Height 345 345 345 345
Bottom Bracket Drop 28.3 28.3 28.3 28.3
Wheelbase 1176.7 1209.7 1234 1260
Fork Offset 44.0 44.0 44.0 44.0
Standover Height 734 741 751 763
Stack 610 610 628 642
Reach 430 455 480 500
S M L XL
Top Tube 560 593 613 637
Seat Tube 400.0 420.0 445 460.0
Chainstay 433 433 433 433
Head Angle 65.4° 65.4° 65.4° 65.4°
Seat Angle (Effective)* 77.9° 77.9° 77.9° 77.9°
Head Tube 95 95 115 130
Bottom Bracket Height 343 343 343 343
Bottom Bracket Drop 22.8 22.8 22.8 22.8
Wheelbase 1175 1208 1233 1260
Fork Offset 44 44 44 44
Standover Height 734 741 751 763
Stack 603.5 603.5 621.8 635.5
Reach 435.6 467.4 483.3 504.8

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

The best experience for every rider.

Discover the benefits of our direct-to-consumer model, including exclusive discounts, direct communication with our experts, and a hassle-free purchasing process.

Learn More +
A warranty that lasts a lifetime Direct to you, the rider Custom fit to your body
A warranty that lasts a lifetime

Riding a bike should be an enjoyable and worry-free experience. That's why we offer the best lifetime warranty in the industry.

Direct to you, the rider

The best bang for your buck. Save up to 40% when buying directly from us, the manufacture.

Custom fit to your body

Give us a few quick measurements and then we custom fit the bike to you. It makes all the difference!

Build Specs

Each Ari bike is built with the best components in a given category so you get the most bang for the buck. Each model has different build specs to choose from usually ranging in good, better, best order.

Comparison Table
Build Level

*Specs are subject to change. Any substitutions will be comparable or better.

Spec Comparison
